Mazda CX-9 Grand Touring. Manual - part 496





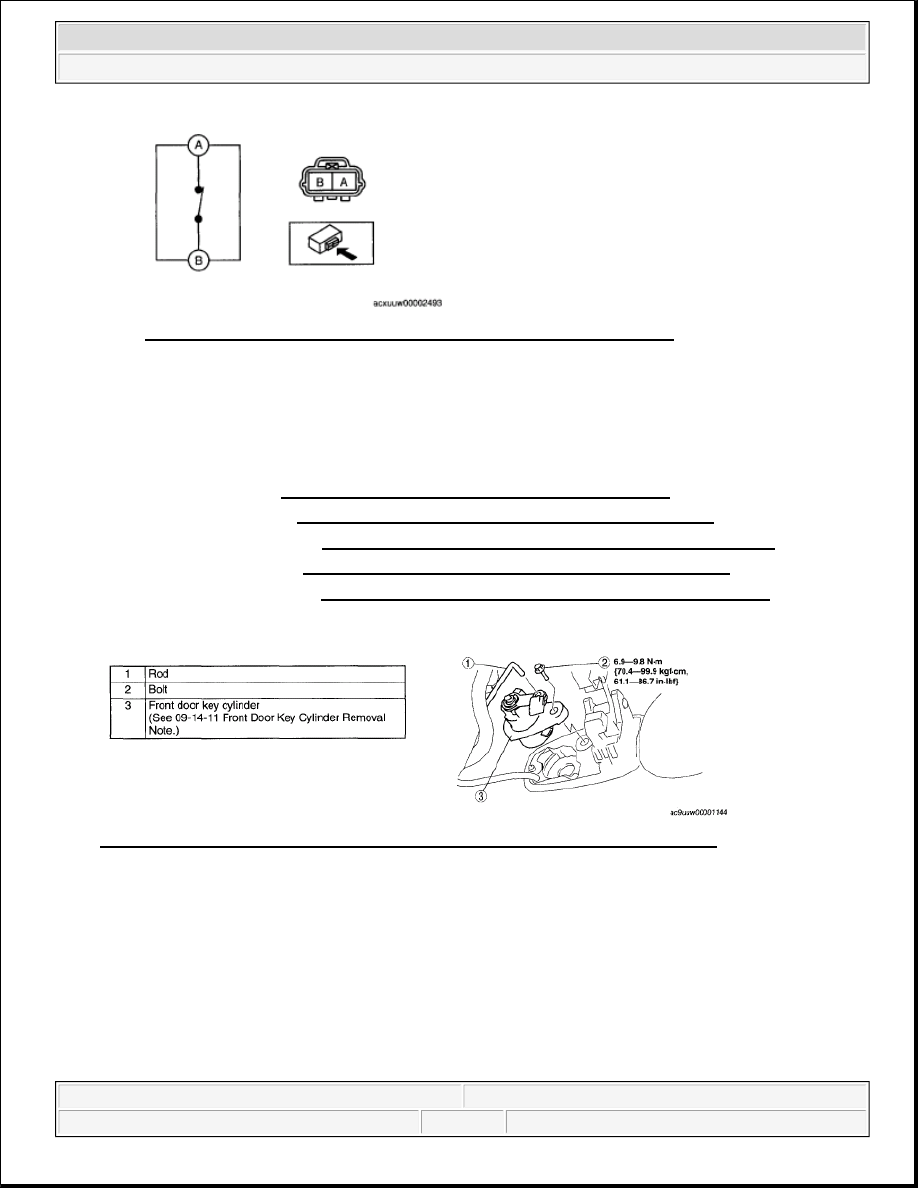

Fig. 15: Checking Continuity Between Hood Latch Switch Terminals
Courtesy of MAZDA MOTORS CORP.

FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)

2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)

3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)

4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)

5. Front door module (See FRONT DOOR MODULE REMOVAL/INSTALLATION .)

3. Remove in the order indicated in the table.

Fig. 16: Identifying Front Door Key Cylinder Bolt, Rod & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

4. Install in the reverse order of removal.

FRONT DOOR KEY CYLINDER REMOVAL NOTE

1. Remove the front door key cylinder by turning it in the direction shown by the arrow.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 11

© 2005 Mitchell Repair Information Company, LLC.

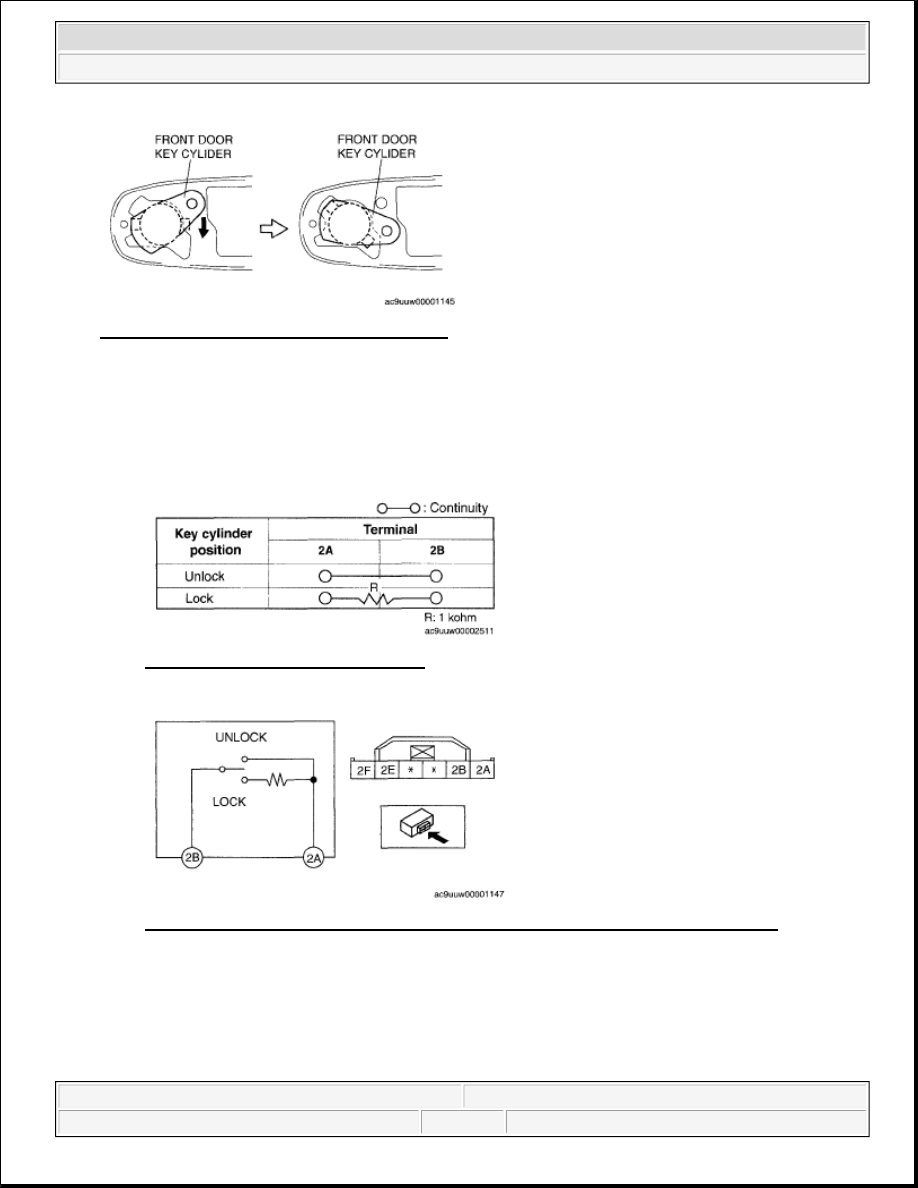

Fig. 17: Identifying Front Door Key Cylinder
Courtesy of MAZDA MOTORS CORP.

FRONT DOOR KEY CYLINDER SWITCH INSPECTION

1. Inspect for continuity between the front door key cylinder switch terminals.

If not as specified, replace the front door latch and lock actuator.

Fig. 18: Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig. 19: Checking Continuity Between Front Door Key Cylinder Switch Terminals
Courtesy of MAZDA MOTORS CORP.

FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 12

© 2005 Mitchell Repair Information Company, LLC.

1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)

2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)

3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)

4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)

5. Front door module (See FRONT DOOR MODULE REMOVAL/INSTALLATION .)

3. Remove in the order indicated in the table.

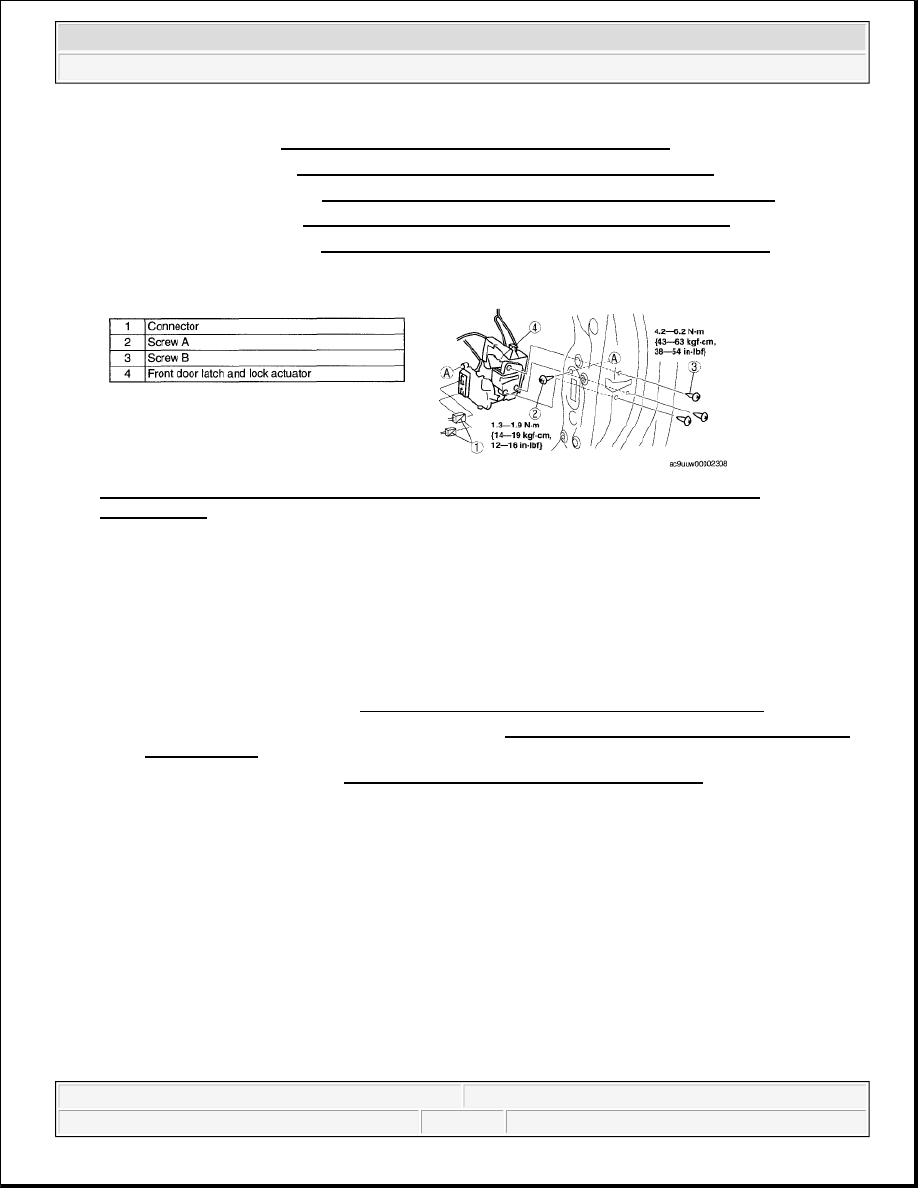

Fig. 20: Identifying Front Door Latch & Lock Actuator, Connector, Screws & Torque
Specifications

Courtesy of MAZDA MOTORS CORP.

4. Install in the reverse order of removal.

FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION

1. The following actuators and switches are integrated with the front door latch and lock actuator. Inspect

the front door latch and lock actuator according to each inspection procedure for the following items.

Front door lock actuator (See FRONT DOOR LOCK ACTUATOR INSPECTION.)

Front door key cylinder switch (Driver side) (See FRONT DOOR KEY CYLINDER SWITCH
INSPECTION
.)

Door lock-link switch (See DOOR LOCK-LINK SWITCH INSPECTION.)



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 13

© 2005 Mitchell Repair Information Company, LLC.

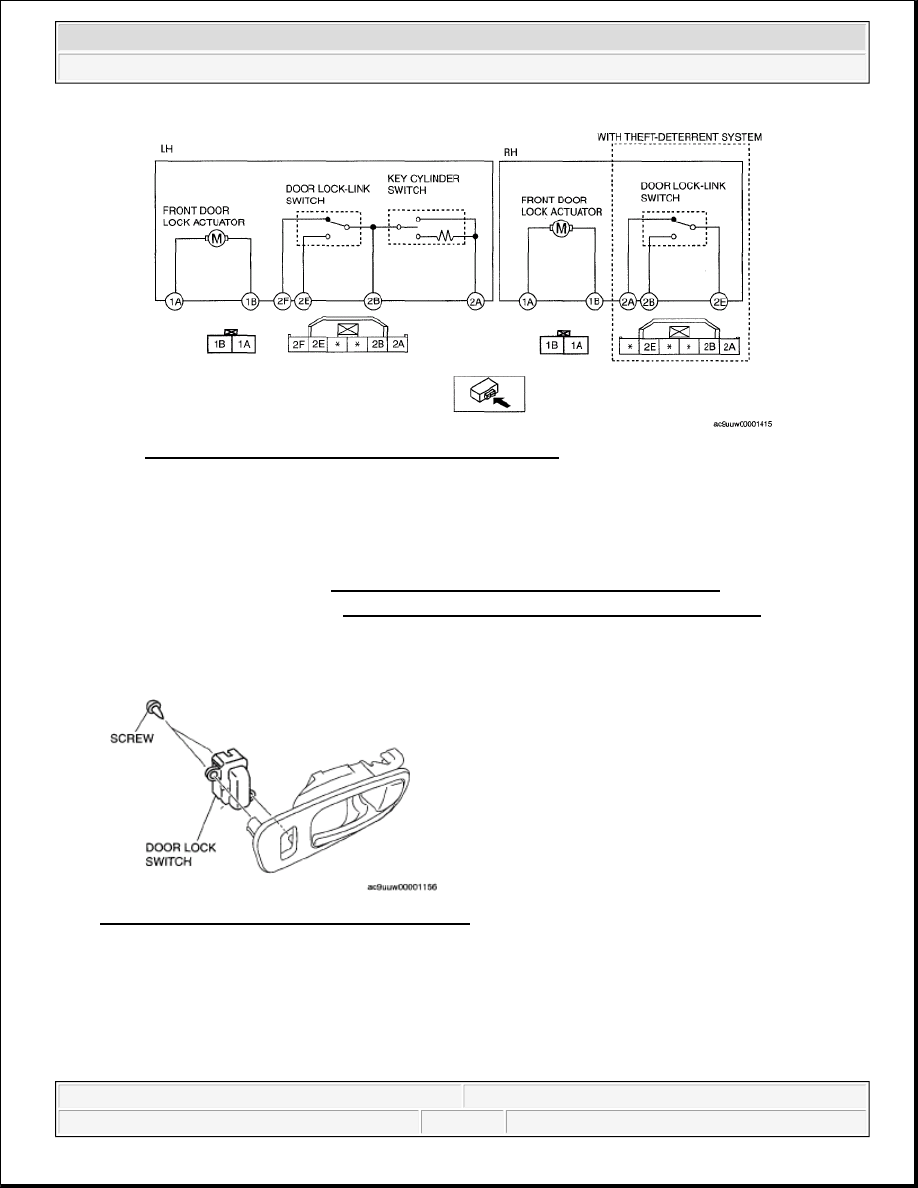

Fig. 21: Checking Front Door Latch & Lock Actuator
Courtesy of MAZDA MOTORS CORP.

DOOR LOCK SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)

3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)

4. Remove the screws, then remove the door lock switch.

5. Install in the reverse order of removal.

Fig. 22: Identifying Door Lock Switch & Screws
Courtesy of MAZDA MOTORS CORP.

DOOR LOCK SWITCH INSPECTION

1. Inspect for continuity between the door lock switch terminals using an ohmmeter.

If not as specified, replace the door lock switch.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 14

© 2005 Mitchell Repair Information Company, LLC.
