Mazda CX-9 Grand Touring. Manual - part 470





REMOVAL/INSTALLATION.)

2. Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

3. Console panel (LH) (See CONSOLE PANEL REMOVAL/INSTALLATION.)

4. Hood release lever (See HOOD LATCH AND RELEASE LEVER

REMOVAL/INSTALLATION .)

3. Remove the screw.

4. Detach clips A and hook B by pulling them in the direction of the arrow.

5. Remove the hook B.

6. Disconnect the head light leveling switch connector and TCS OFF switch connector.

7. Disconnect the BSM OFF switch connector. (Vehicles with BSM)

8. Disconnect the PLG switch connector. (Vehicles with PLG)

9. Disconnect the cabin temperature sensor connector and air hose.

10. Remove the lower panel.

11. Install in the reverse order of removal.

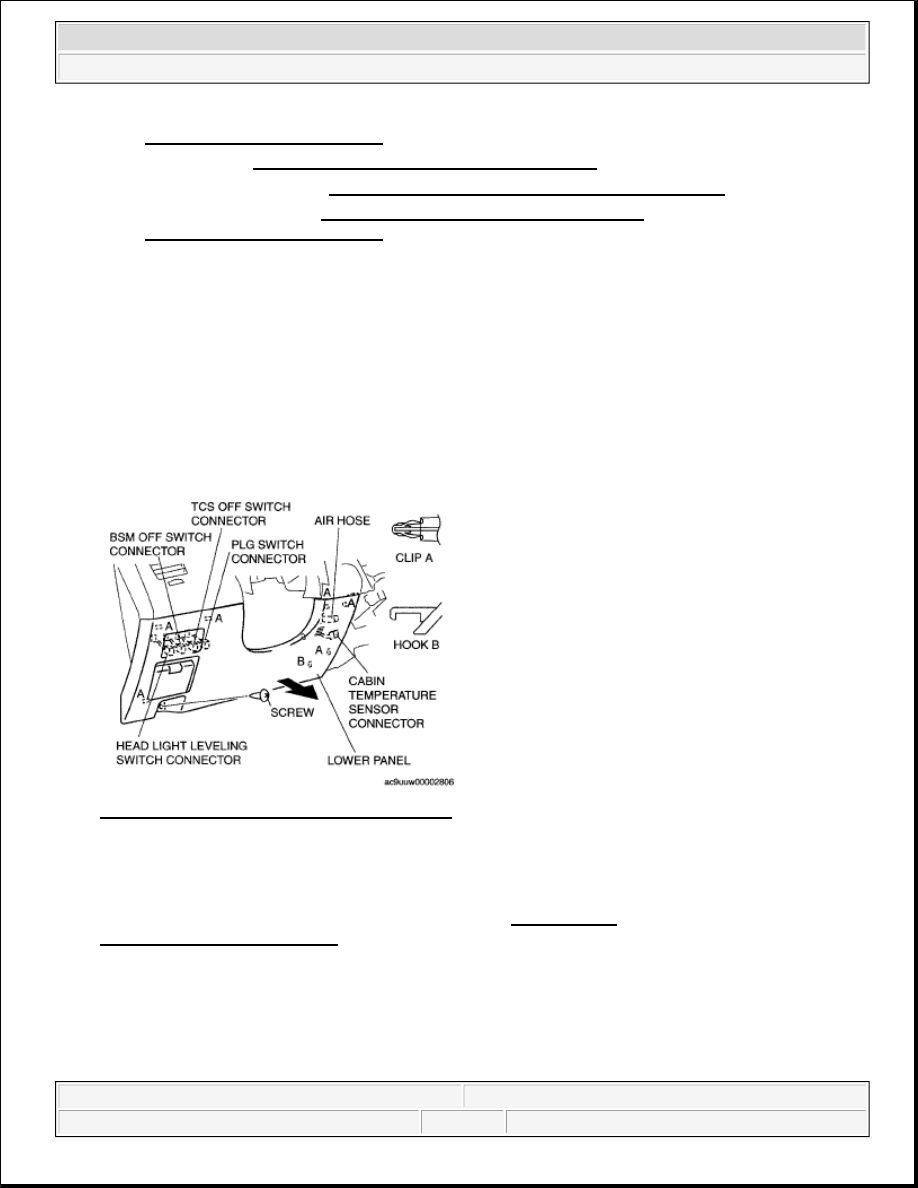

Fig. 15: Identifying Lower Panel Components
Courtesy of MAZDA MOTORS CORP.

SIDE PANEL REMOVAL/INSTALLATION

1. Remove the glove compartment service hole cover. (See AIR FILTER

REMOVAL/INSTALLATION .)

2. Insert fingers into the glove compartment service hole and detach the tabs A.

3. Remove the side panel in the direction of the arrow.

4. Install in the reverse order of removal.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 13

© 2005 Mitchell Repair Information Company, LLC.

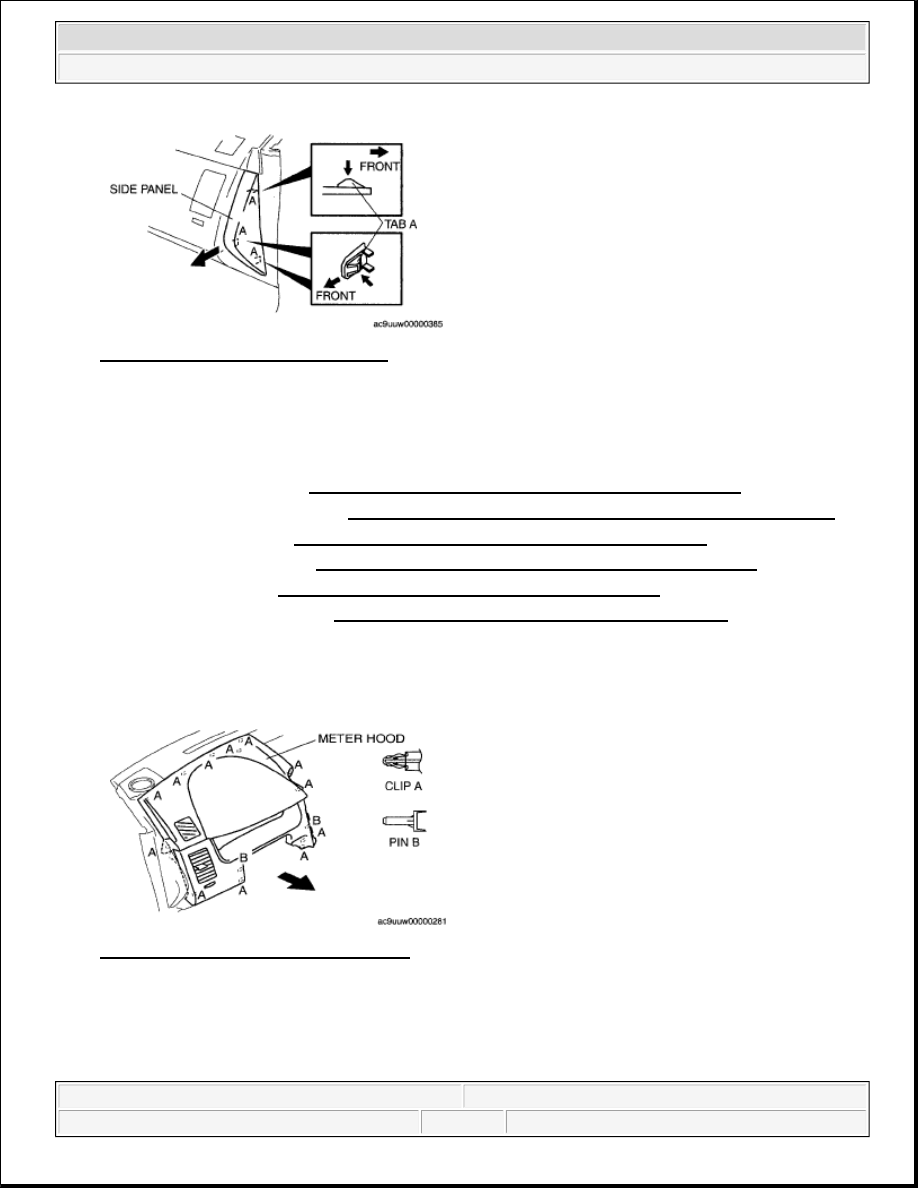

Fig. 16: Identifying Side Panel & Tab
Courtesy of MAZDA MOTORS CORP.

METER HOOD REMOVAL/INSTALLATION

1. Remove the following parts:

1. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

2. Front console box mat (See FRONT CONSOLE BOX MAT REMOVAL/INSTALLATION.)

3. Indicator panel (See INDICATOR PANEL REMOVAL/INSTALLATION.)

4. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

5. Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

6. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

2. Detach clips A and pins B by pulling them in the direction of the arrow.

3. Remove the meter hood.

4. Install in the reverse order of removal.

Fig. 17: Identifying Meter Hood & Clips
Courtesy of MAZDA MOTORS CORP.

GLOVE COMPARTMENT REMOVAL/INSTALLATION

CAUTION:

If the glove compartment is closed without being joined to the stay



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 14

© 2005 Mitchell Repair Information Company, LLC.

1. Remove the following parts:

1. Dashboard under cover (Passenger side) (See DASHBOARD UNDER COVER

REMOVAL/INSTALLATION.)

2. Glove compartment service hole cover (See AIR FILTER REMOVAL/INSTALLATION .)

2. Pull the stay damper in the direction shown in the figure, and detach the connecting part between the

glove compartment and the stay damper.

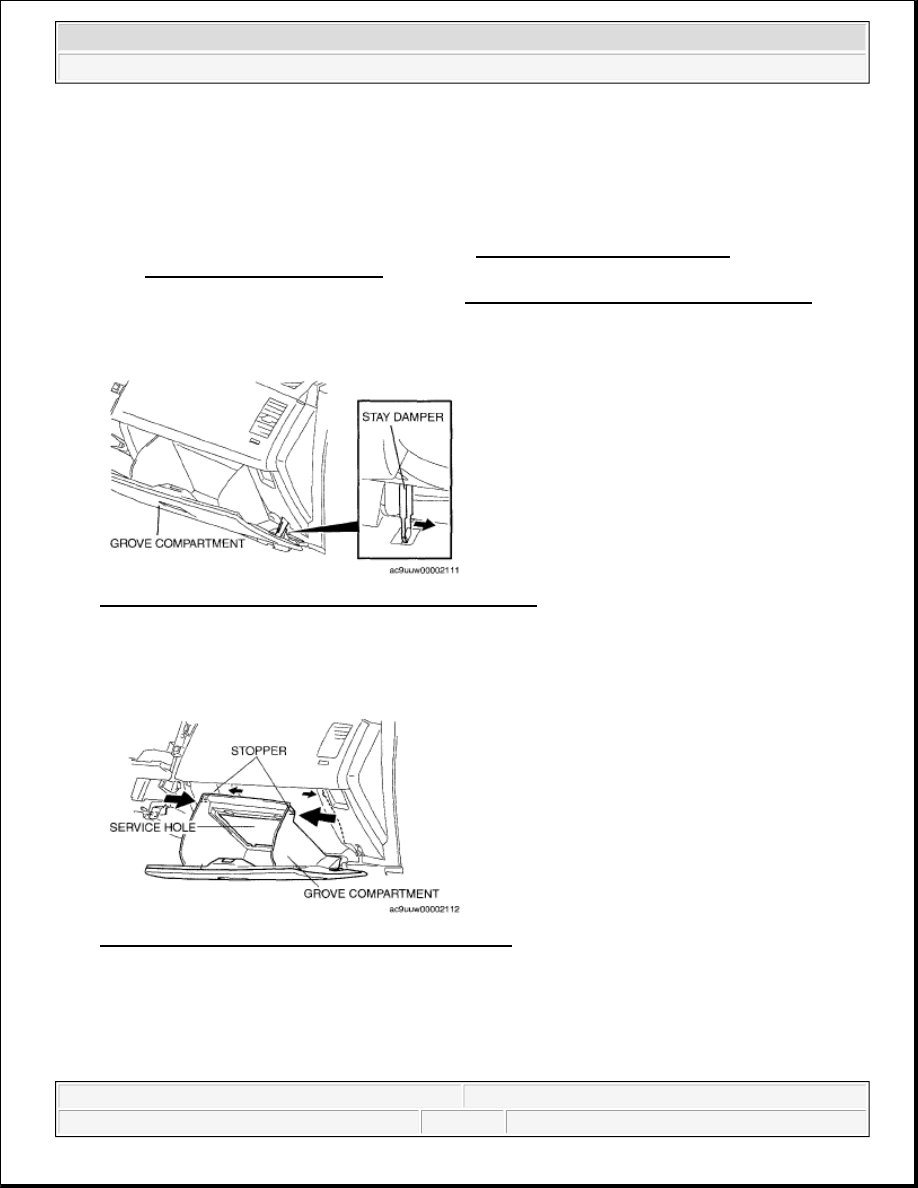

Fig. 18: Identifying Glove Compartment & Stay Damper
Courtesy of MAZDA MOTORS CORP.

3. Insert fingers into the glove compartment service hole and detach the stoppers while holding the

instrument panel.

Fig. 19: Identifying Glove Compartment Service Hole
Courtesy of MAZDA MOTORS CORP.

4. Lower the glove compartment.

5. Detach the hook from the dashboard and remove the glove compartment.

6. Install in the reverse order of removal.

damper, the stay damper may be damaged. Verify that the stay
damper is joined to the glove compartment before closing the glove
compartment.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 15

© 2005 Mitchell Repair Information Company, LLC.

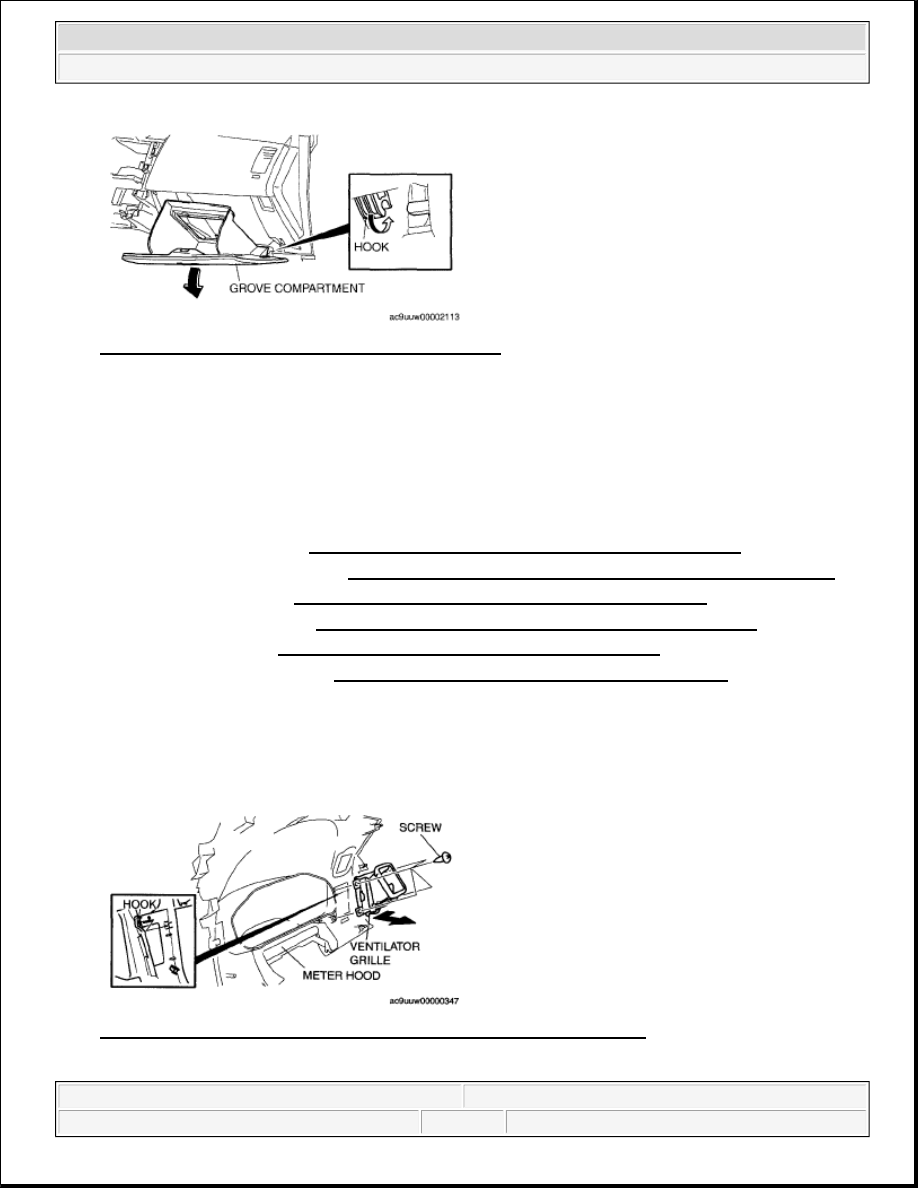

Fig. 20: Identifying Glove Compartment With Hook
Courtesy of MAZDA MOTORS CORP.

VENTILATOR GRILLE REMOVAL/INSTALLATION

DRIVER SIDE

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

2. Front console box mat (See FRONT CONSOLE BOX MAT REMOVAL/INSTALLATION.)

3. Indicator panel (See INDICATOR PANEL REMOVAL/INSTALLATION.)

4. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

5. Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

6. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

3. Remove the screws.

4. Remove the hook.

5. Remove the ventilator grille in the direction of the arrow.

6. Install in the reverse order of removal.

Fig. 21: Identifying Ventilator Grille With Hook & Screw - Driver Side
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 16

© 2005 Mitchell Repair Information Company, LLC.
