1. Disconnect the negative battery cable.

2. Remove the rear combination light. (See REAR COMBINATION LIGHT

REMOVAL/INSTALLATION .)

3. Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION .)

4. Remove the rear over fender. (See OVER FENDER REMOVAL/INSTALLATION.)

5. Remove the screws.

6. Pull the extractor chamber in the direction shown by the arrow and remove it.

7. Install in the reverse order of removal.

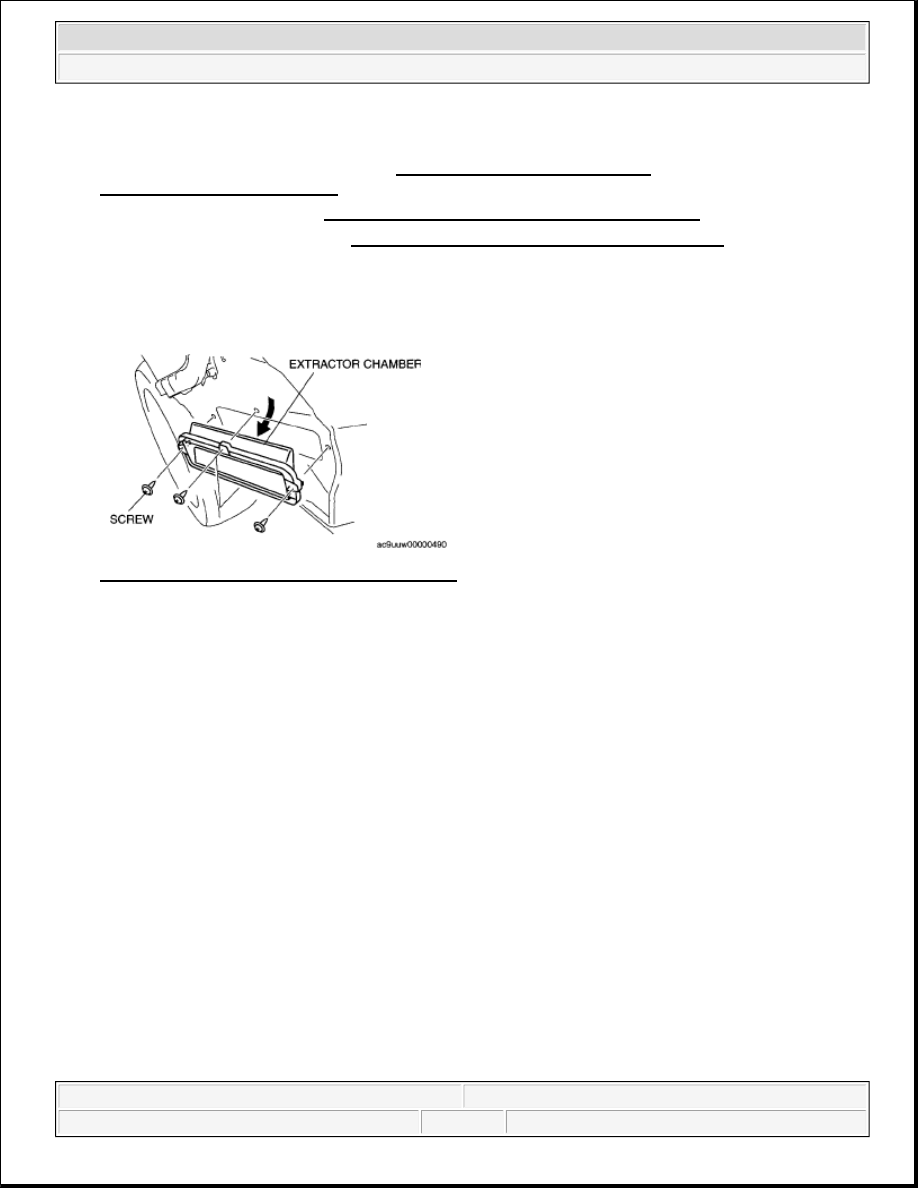

Fig. 39: Identifying Extractor Chamber Screw
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Exterior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:44:03 AM

Page 28

© 2005 Mitchell Repair Information Company, LLC.

2008 DRIVELINE/AXLE

Front Axle - Mazda CX-9

FRONT AXLE LOCATION INDEX

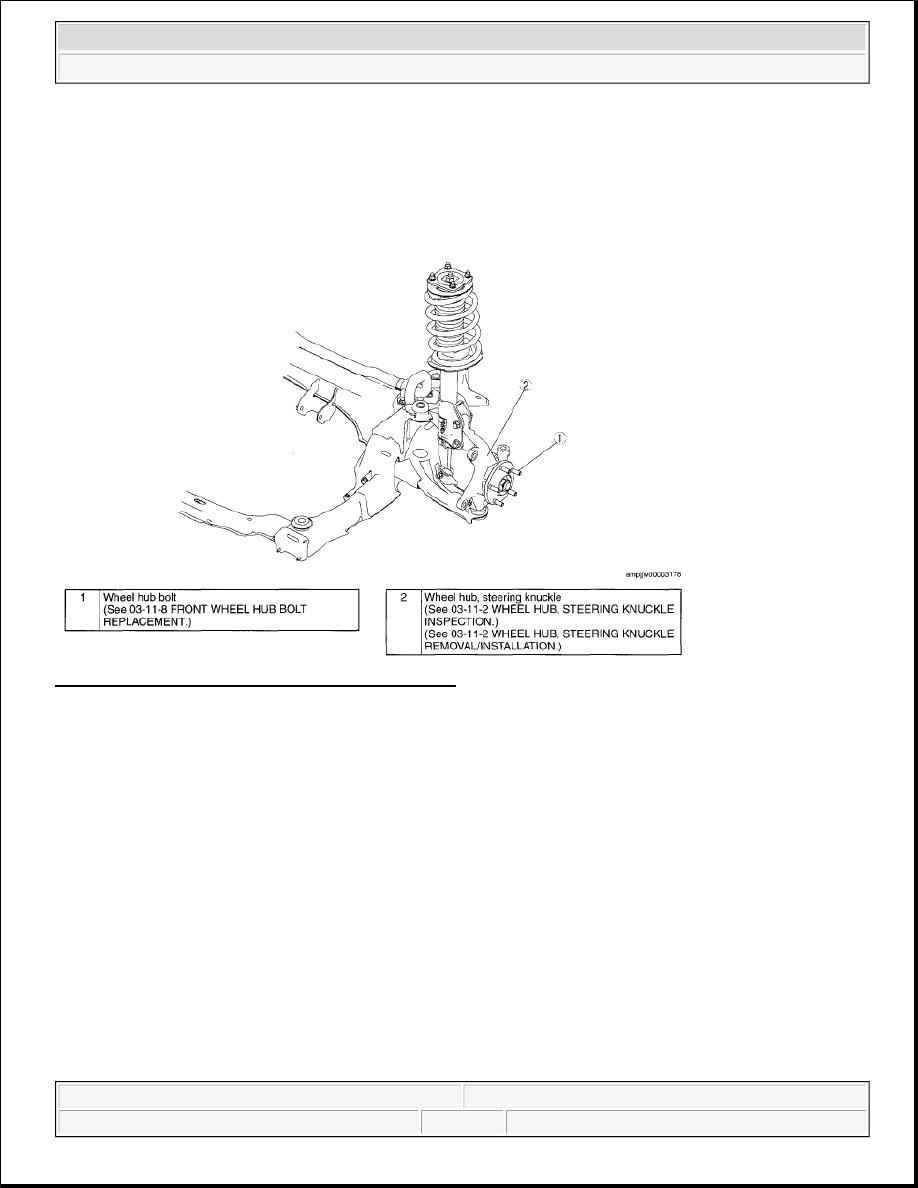

Fig. 1: Identifying Front Axle Components Location
Courtesy of MAZDA MOTORS CORP.

WHEEL HUB, STEERING KNUCKLE INSPECTION

WHEEL BEARING EXCESSIVE PLAY INSPECTION

1. Install the magnetic base and dial gauge as shown in the figure and measure the wheel bearing axial

excessive play.



If it exceeds the maximum specification, replace the wheel hub bearing.

Front wheel bearing maximum play

0.05 mm {0.002 in}



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE Front Axle - Mazda CX-9





2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE Front Axle - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:53:51 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

Microsoft



Sunday, November 15, 2009 9:53:55 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

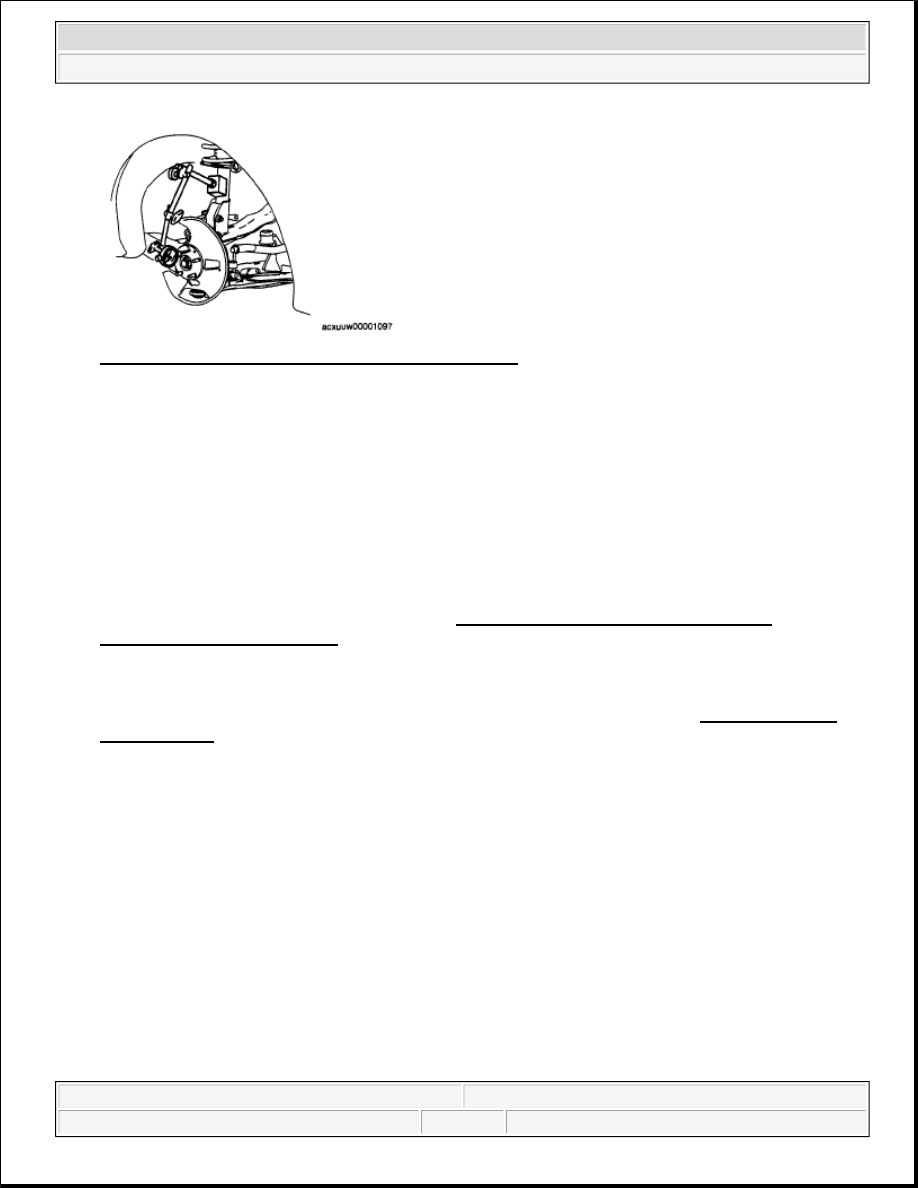

Fig. 2: Measuring Wheel Bearing Axial Excessive Play
Courtesy of MAZDA MOTORS CORP.

WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION

1. Remove the front ABS wheel-speed sensor. (See FRONT ABS WHEEL-SPEED SENSOR

REMOVAL/INSTALLATION .)

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

4. After installation, inspect the front wheel alignment and adjust it if necessary. (See FRONT WHEEL

ALIGNMENT .)

CAUTION:



Performing the following procedures without first removing the ABS
wheel-speed sensor may possibly cause an open circuit in the wiring
harness if it is pulled by mistake. Before performing the following
procedures, disconnect the ABS wheel-speed sensor connector (axle
side) and fix the wiring harness to an appropriate place where it will
not be pulled by mistake while servicing the vehicle.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE Front Axle - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:53:51 AM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

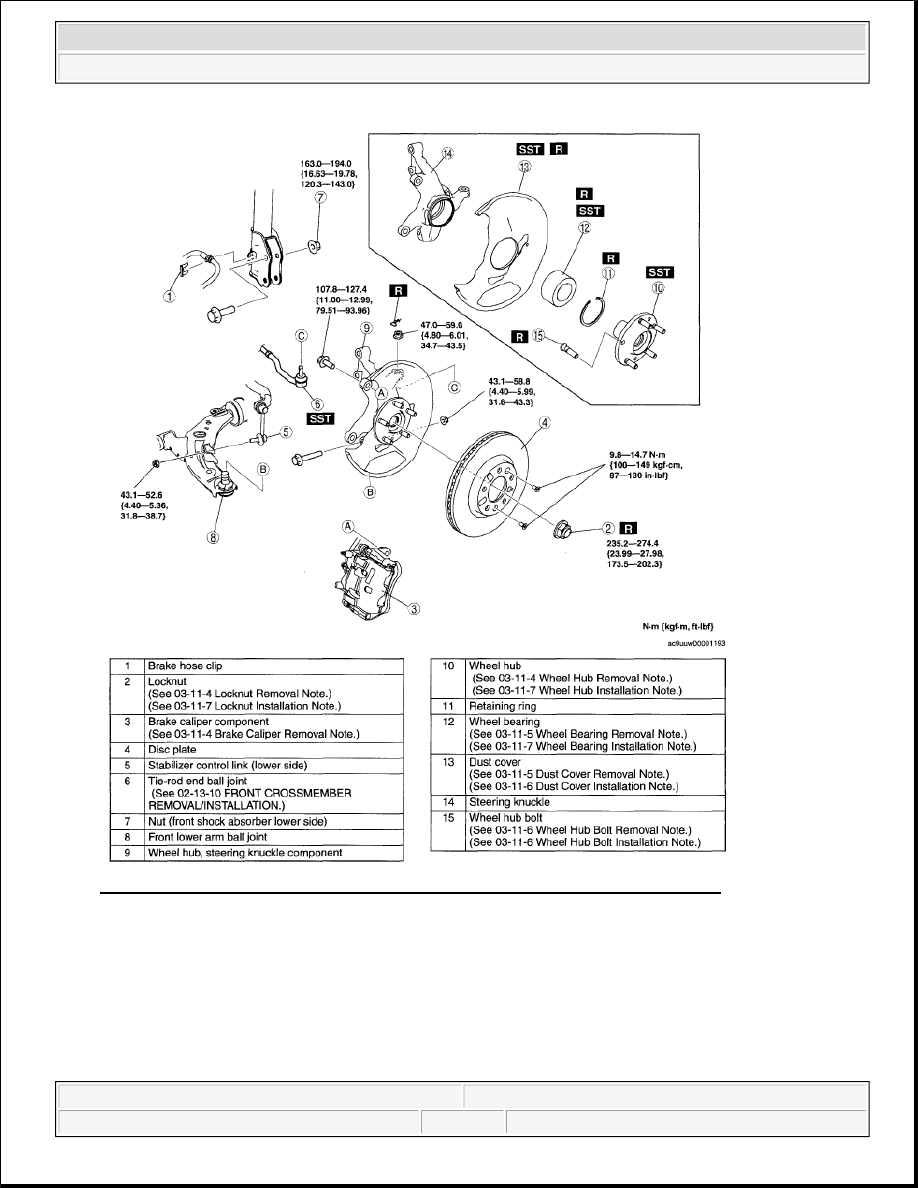

Fig. 3: Exploded View Of Wheel Hub, Steering Knuckle & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

LOCKNUT REMOVAL NOTE

1. Lock the hub by applying the brakes.

2. Knock the crimped portion of the locknut outward using a small chisel and a hammer.

3. Remove the locknut.

4. Install a spare nut onto the drive shaft so that the nut is flush with the end of the drive shaft.
