2. Temporarily tighten WU-TWC (RH) bracket.

3. Temporarily tighten WU-TWC (RH) bracket (L type) (engine side).

4. Push up the engine.

5. Install the WU-TWC (RH).

6. Install the No.1 engine mount (transaxle side). (See ENGINE REMOVAL/INSTALLATION [MZI-

3.7] .)

7. Install the insulator. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION .)

8. Install the joint shaft. (See JOINT SHAFT REMOVAL/INSTALLATION [AWD] .)

9. Install the WU-TWC (RH) bracket.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Exhaust System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:59:10 AM

Page 4

© 2005 Mitchell Repair Information Company, LLC.

2008 ACCESSORIES & BODY, CAB

Exterior Trim - Mazda CX-9

EXTERIOR TRIM LOCATION INDEX



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Exterior Trim - Mazda CX-9





2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Exterior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:44:03 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

Microsoft



Sunday, November 15, 2009 10:44:07 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Exterior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:44:03 AM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

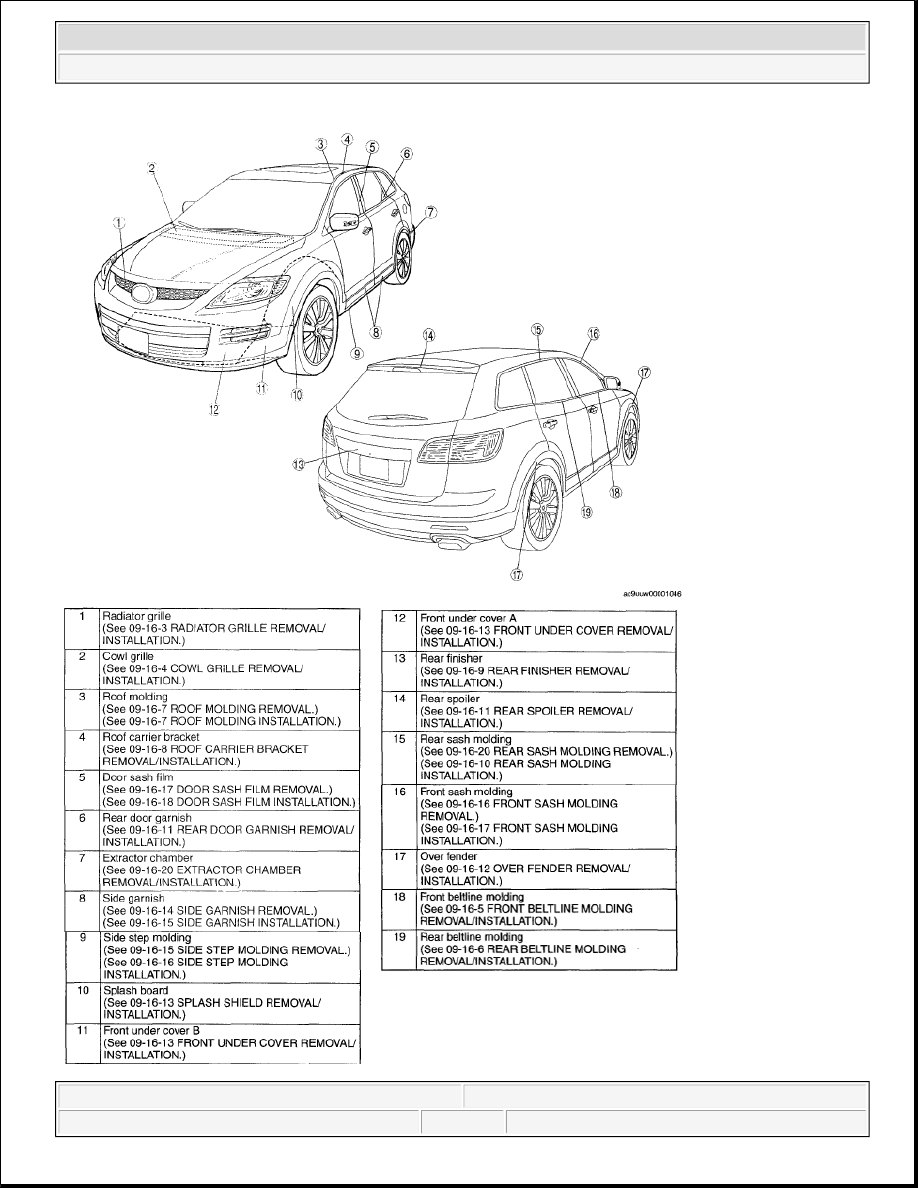

Fig. 1: Identifying Exterior Trim Location
Courtesy of MAZDA MOTORS CORP.

RADIATOR GRILLE REMOVAL/INSTALLATION

1. Set the front over fender out of the way. (See OVER FENDER REMOVAL/INSTALLATION.)

2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)

3. Remove the bolts.

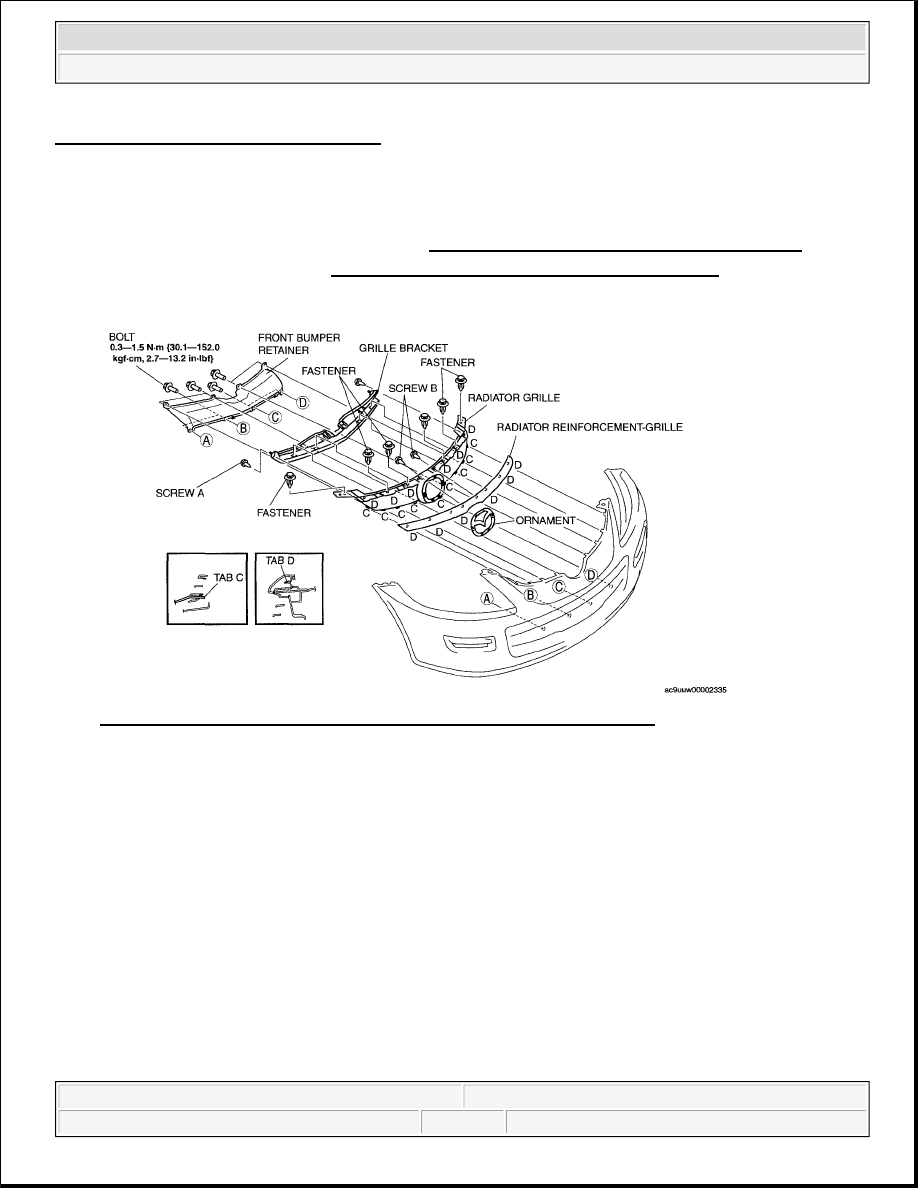

Fig. 2: Identifying Radiator Grille Components & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

4. Remove the front bumper retainers.

5. Remove the fasteners.

6. Remove the screws A.

7. Remove the grille bracket.

8. Remove the screws B.

9. Remove the tabs D.

10. Remove the ornament.

11. Remove the radiator grille.

12. Press tabs C in the direction of the arrow, pull the radiator grille inward, and remove it from the front

bumper.

13. Install in the reverse order of removal.
