Mazda CX-9 Grand Touring. Manual - part 383

Courtesy of MAZDA MOTORS CORP.

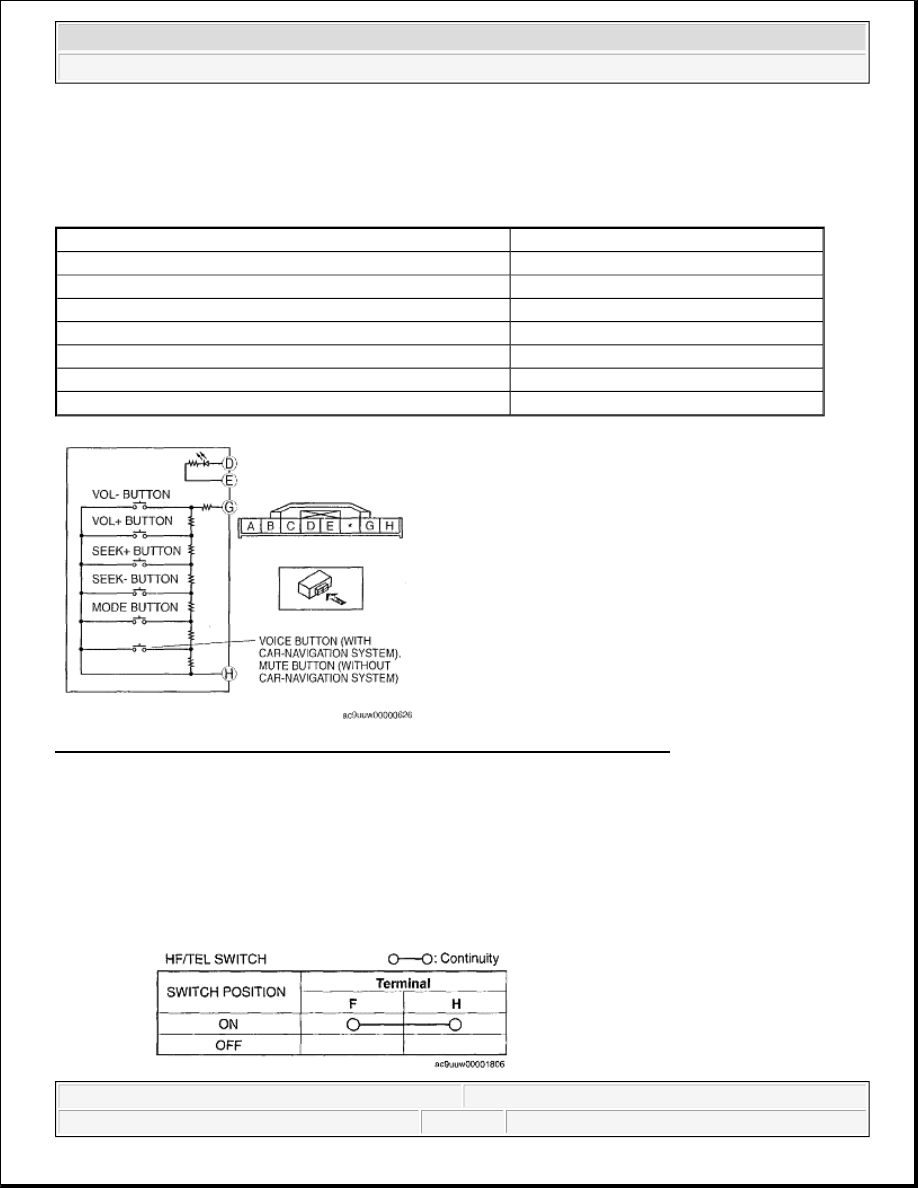

R : Resistance. See the table.

RESISTANCE SPECIFICATION

Fig. 49: Identifying Audio Control Switch Terminals (Without HF/TEL System)
Courtesy of MAZDA MOTORS CORP.

WITH HF/TEL SYSTEM

1. Verify the resistance and continuity between the audio control switch terminals.



If the resistance and continuity are not as indicated in the tables, replace the audio control switch.

HF/TEL SWITCH

Switch position

Resistance (ohm)

VOL- button ON

51-56

VOL+ button ON

140-154

SEEK+ button ON

286-315

SEEK- button ON

534-589

MODE button ON

985-1,088

VOICE/MUTE button ON

1,935-2,138

OFF

4,795-5,299



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Entertainment - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:06 AM

Page 29

© 2005 Mitchell Repair Information Company, LLC.

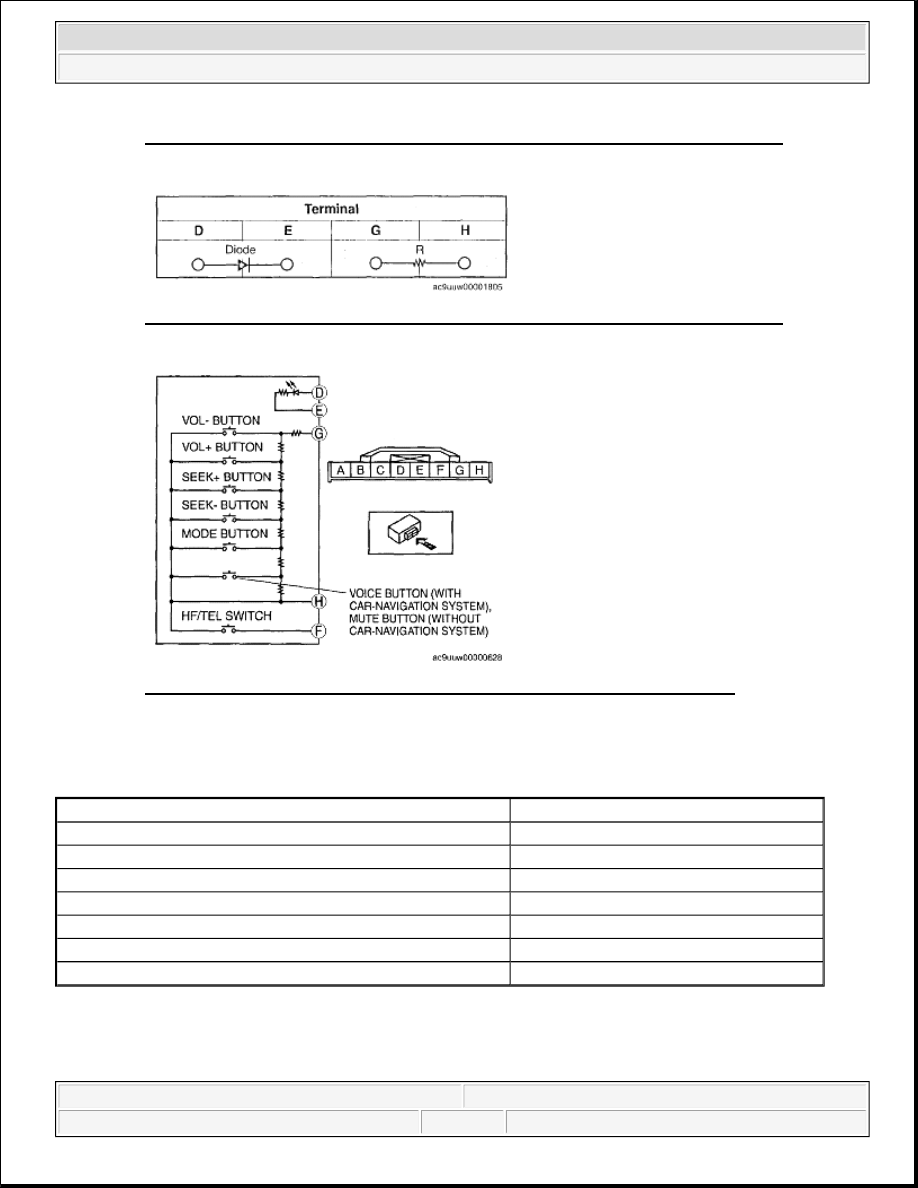

Fig. 50: Audio Control Switch Terminals Continuity Chart (With HF/TEL System)
Courtesy of MAZDA MOTORS CORP.

Fig. 51: Audio Control Switch Terminals Continuity Chart (With HF/TEL System)
Courtesy of MAZDA MOTORS CORP.

Fig. 52: Identifying Audio Control Switch Terminals (With HF/TEL System)
Courtesy of MAZDA MOTORS CORP.

R : Resistance. See the table.

RESISTANCE SPECIFICATION

MICROPHONE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

Switch position

Resistance (ohm)

VOL- button ON

51-56

VOL+ button ON

140-154

SEEK+ button ON

286-315

SEEK- button ON

534-589

MODE button ON

985-1,088

VOICE/MUTE button ON

1,935-2,138

OFF

4,795-5,299



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Entertainment - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:06 AM

Page 30

© 2005 Mitchell Repair Information Company, LLC.

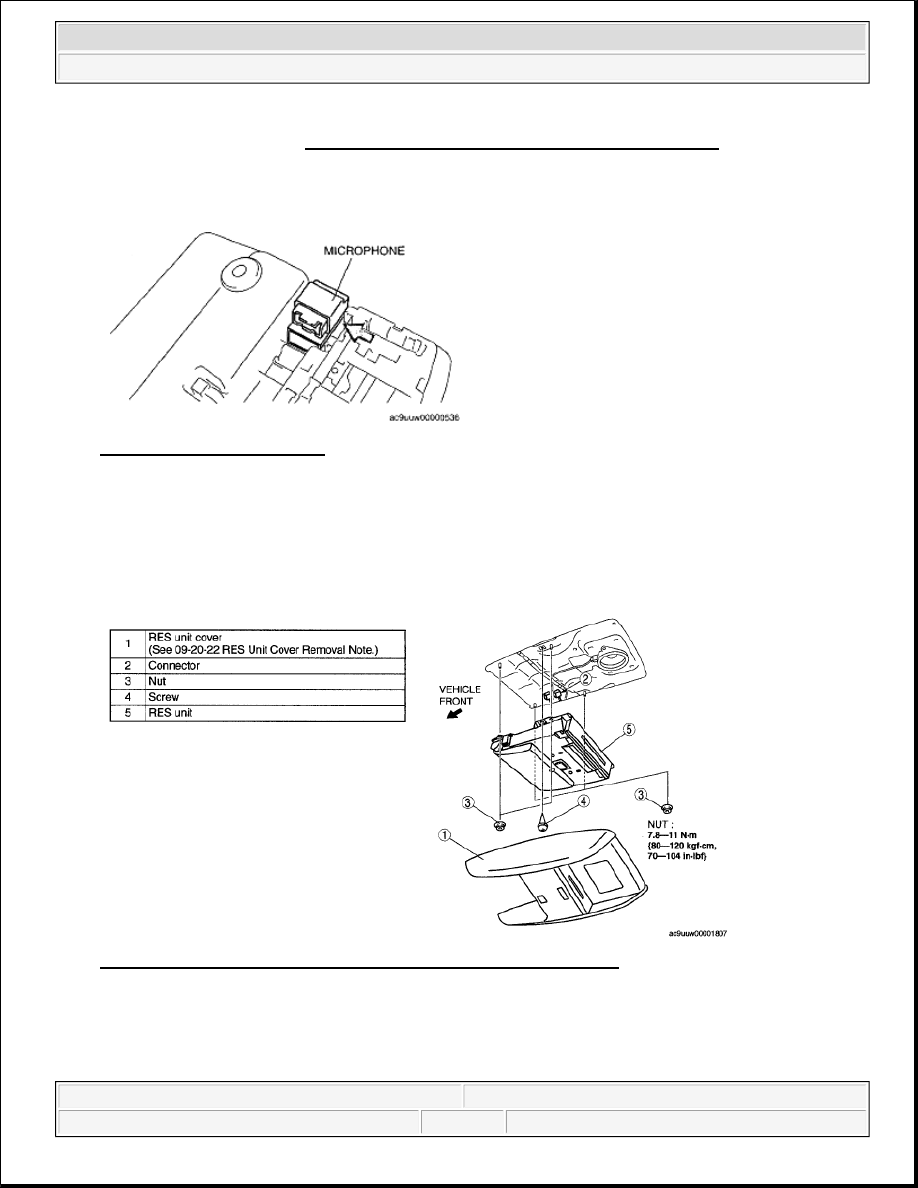

2. Remove the map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)

3. Press the microphone in the direction indicated by the arrow and remove the microphone.

4. Install in the reverse order of removal.

Fig. 53: View Of Microphone
Courtesy of MAZDA MOTORS CORP.

RES UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.

Fig. 54: Identifying RES Unit Components & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

3. Install in the reverse order of removal.

RES UNIT COVER REMOVAL NOTE



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Entertainment - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:06 AM

Page 31

© 2005 Mitchell Repair Information Company, LLC.

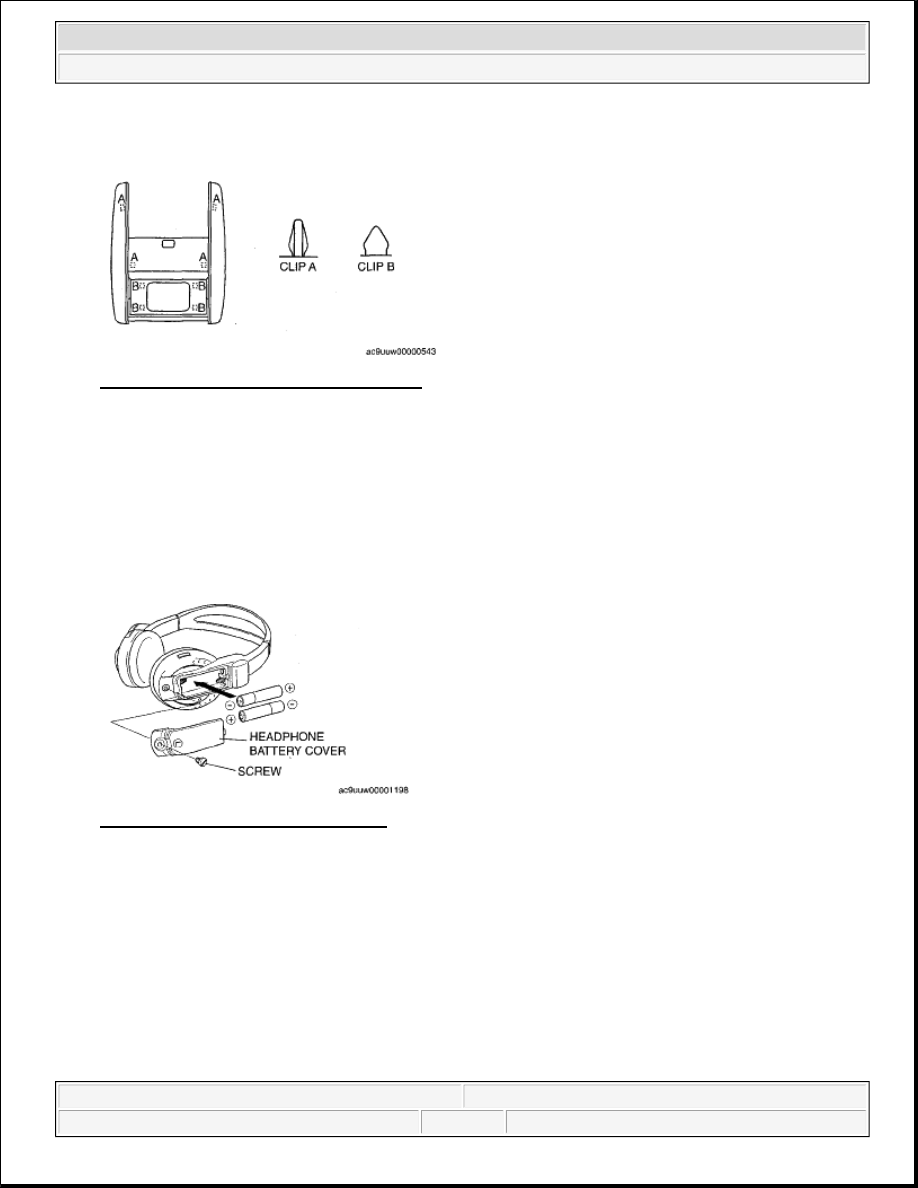

1. Pull the cover outward and detach clips A and B.

Fig. 55: Identifying RES Unit Cover Clips
Courtesy of MAZDA MOTORS CORP.

HEADPHONE BATTERY REPLACEMENT

1. Remove the screw, then remove the headphone battery cover.

2. Remove the old batteries.

3. Insert 2 AAA-size batteries with the positive pole (+) and negative pole (-) as shown in the figure.

4. Install the headphone battery cover and screw.

Fig. 56: Inserting AAA-Size Batteries
Courtesy of MAZDA MOTORS CORP.

REMOTE CONTROLLER BATTERY REPLACEMENT

1. Push the tab, and pull the battery case out.

2. Remove the old battery.
