FRONT ANTENNA FEEDER INSPECTION

1. Verify that the continuity is as indicated in the table.



If not as indicated in the table, replace the front antenna feeder.

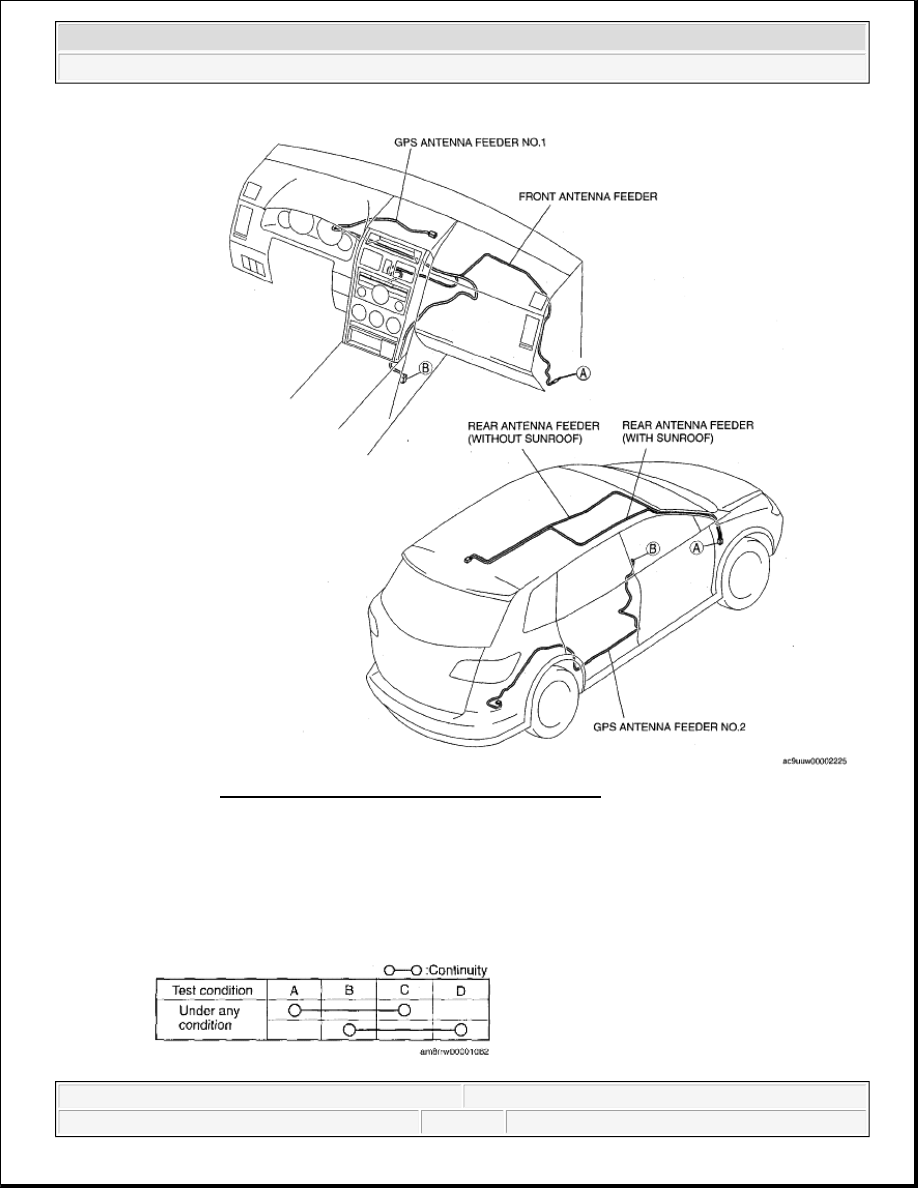

Fig. 39: Identifying Antenna Feeder Location
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Entertainment - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:06 AM

Page 25

© 2005 Mitchell Repair Information Company, LLC.

Fig. 40: Front Antenna Feeder Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig. 41: Identifying Front Antenna Feeder Terminals
Courtesy of MAZDA MOTORS CORP.

REAR ANTENNA FEEDER INSPECTION

1. Verify that the continuity is as indicated in the table.



If not as indicated in the table, replace the rear antenna feeder.

Fig. 42: Rear Antenna Feeder Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

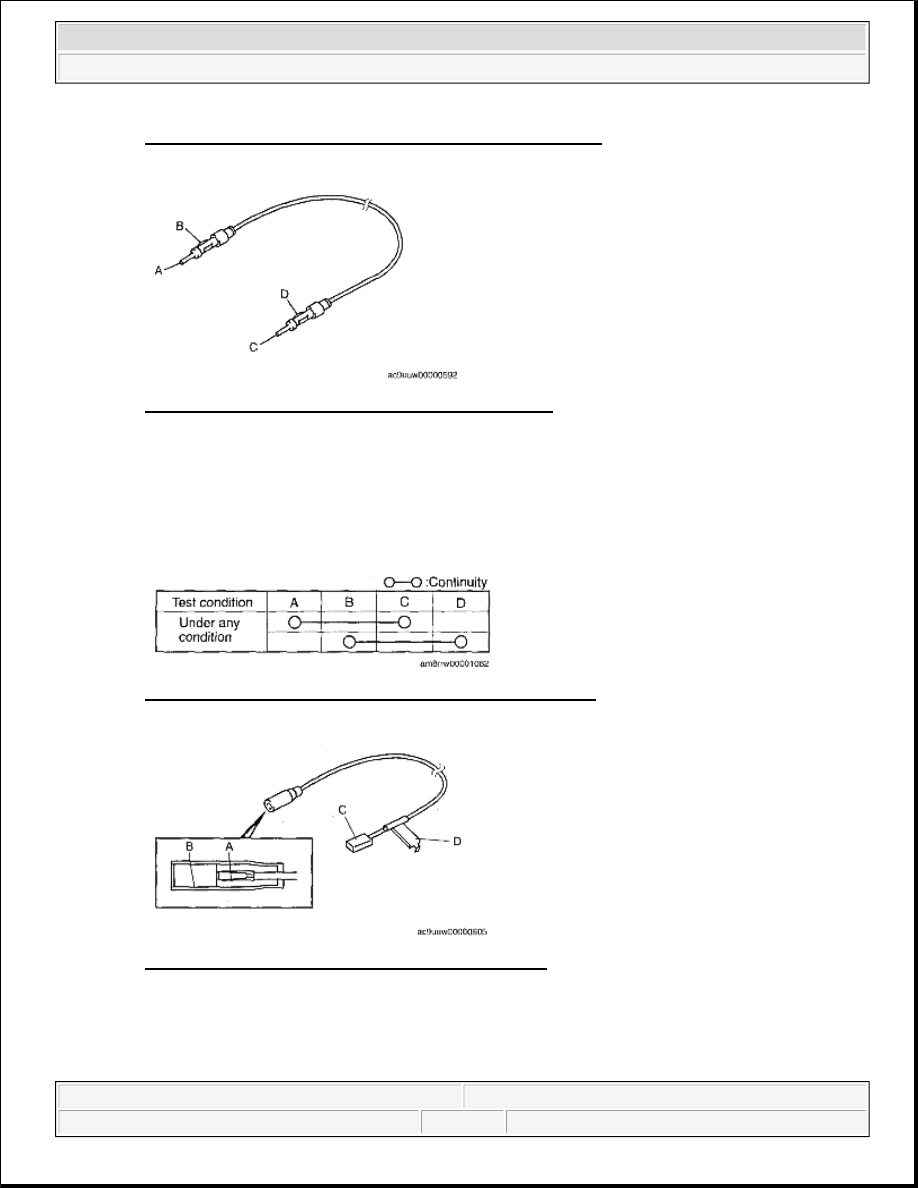

Fig. 43: Identifying Rear Antenna Feeder Terminals
Courtesy of MAZDA MOTORS CORP.

GPS ANTENNA FEEDER INSPECTION

1. Verify that the continuity is as indicated in the table.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Entertainment - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:06 AM

Page 26

© 2005 Mitchell Repair Information Company, LLC.



If not as indicated in the table, replace the GPS antenna feeder.

Fig. 44: GPS Antenna Feeder Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

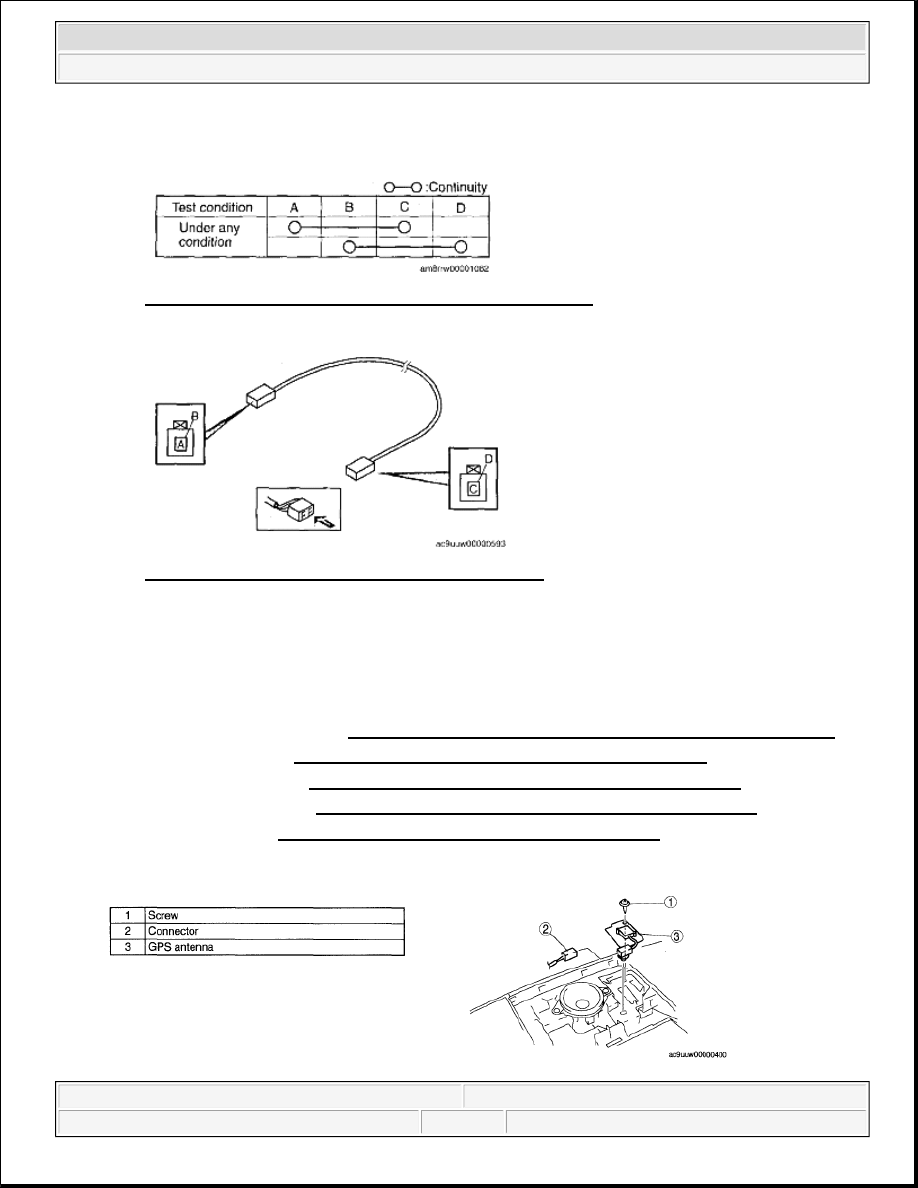

Fig. 45: Identifying GPS Antenna Feeder Terminals
Courtesy of MAZDA MOTORS CORP.

GPS ANTENNA REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Front console box mat (See FRONT CONSOLE BOX MAT REMOVAL/INSTALLATION .)

2. Indicator panel (See INDICATOR PANEL REMOVAL/INSTALLATION .)

3. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)

4. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)

5. Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)

3. Remove in the order indicated in the table.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Entertainment - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:06 AM

Page 27

© 2005 Mitchell Repair Information Company, LLC.

Fig. 46: Identifying GPS Antenna Components
Courtesy of MAZDA MOTORS CORP.

4. Install in the reverse order of removal.

AUDIO CONTROL SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE

REMOVAL/INSTALLATION .)

3. Remove the steering wheel. (See STEERING WHEEL AND COLUMN

REMOVAL/INSTALLATION .)

4. Remove in the order indicated in the table.

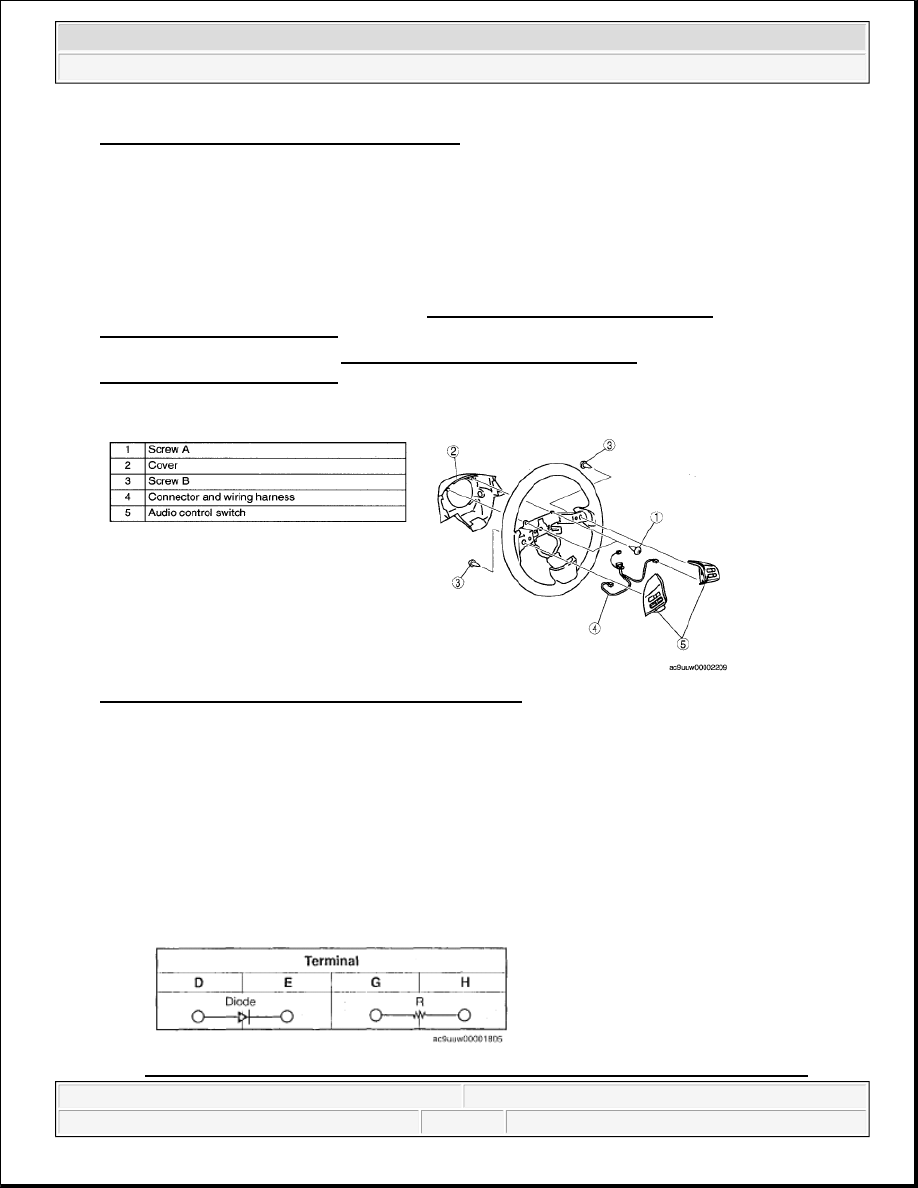

Fig. 47: Identifying Audio Control Switch Components
Courtesy of MAZDA MOTORS CORP.

5. Install in the reverse order of removal.
