Mazda CX-9 Grand Touring. Manual - part 228





terminal 2AS

DTC P0059: Open circuit between front HO2S (LH) terminal A and PCM
terminal 2E

DTC P0060: Open circuit between rear HO2S (LH) terminal A and PCM
terminal 2AO

HO2S heater malfunction



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:34 AM

Page 45

© 2005 Mitchell Repair Information Company, LLC.

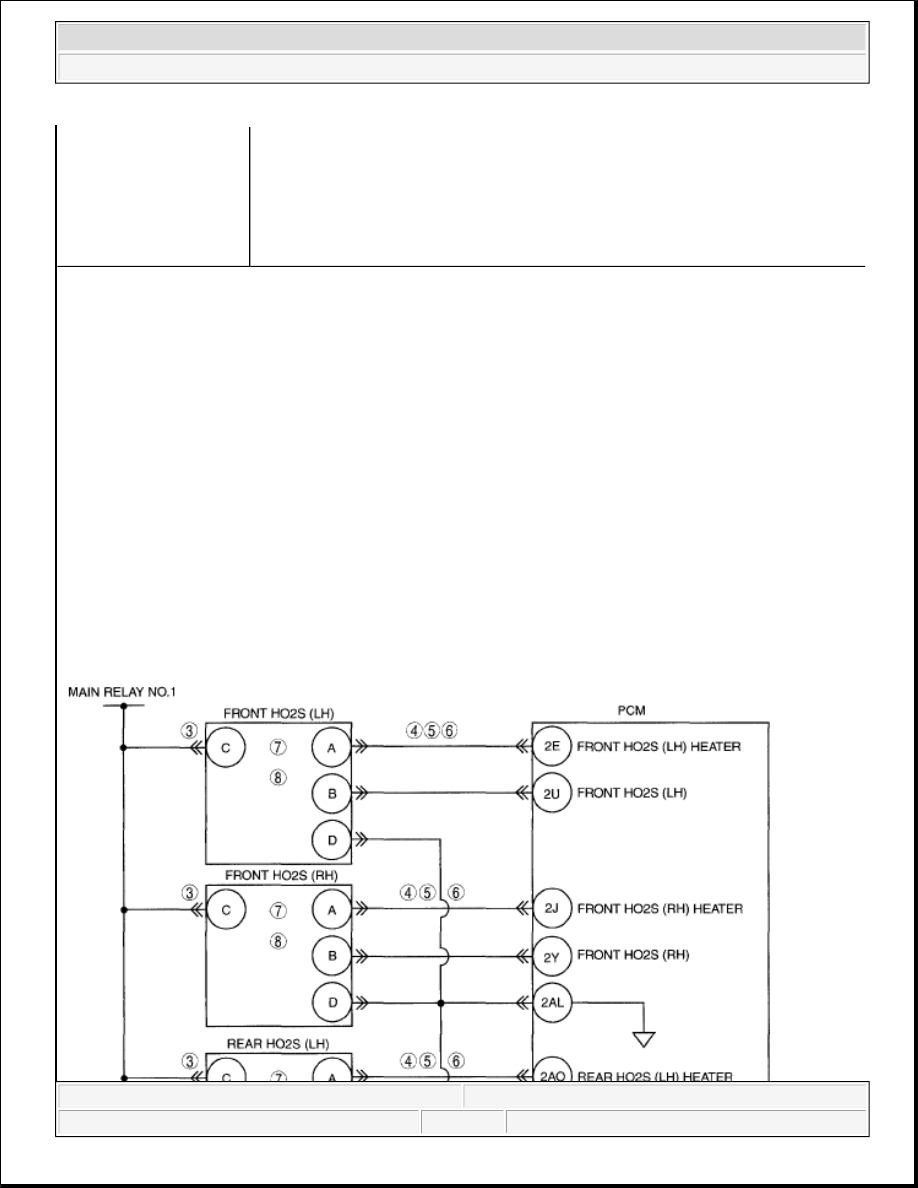

DIAGNOSTIC PROCEDURE

DTC P0053, P0054, P0059, P0060 (MZI-3.7) DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA
HAS BEEN RECORDED


Has FREEZE FRAME DATA been
recorded?

Yes Go to the next step.

No

Record FREEZE FRAME DATA on the repair

order, then go to the next step.

2

VERIFY RELATED REPAIR
INFORMATION AVAILABILITY


Verify related Service Bulletins
and/or on-line repair information
availability.

Is any related Service Bulletins
available?

Yes

Perform repair or diagnosis according to the
available Service Bulletins.

If the vehicle is not repaired, go to the next
step.

No

Go to the next step.

3

INSPECT FOR POWER SUPPLY IN
WIRING HARNESS


Disconnect the suspect HO2S
connector.

Perform the KOEO self-test.

Measure the voltage between the
suspect HO2S connector terminal A
and C, on the wiring harness side.

Is the voltage more than 10 V?

Yes Turn the ignition switch off. Go to the next step.

No Repair or replace suspected part, then go to step 9.

4

INSPECT HO2S HEATER FOR
SHORT TO GROUND


Disconnect the PCM.

Measure the resistance between
HO2S connector terminal A, the
wiring harness side, and body
ground.

Yes Go to the next step.

No

Repair or replace suspected part, Go to Step 9



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:34 AM

Page 46

© 2005 Mitchell Repair Information Company, LLC.

Is the resistance more than 10
kilohms?

5

INSPECT HO2S HEATER FOR
SHORT IN WIRING HARNESS


Measure the resistance between the
following terminals:

HO2S terminal A (wiring
harness-side) and HO2S
terminal C (wiring harness-
side)

HO2S terminal A (wiring
harness-side) and HO2S
terminal D (wiring harness-
side)

HO2S terminal A (wiring
harness-side) and HO2S
terminal B (wiring harness-
side)

Are the resistances more than 10
kilohms?

Yes Go to the next step.

No

Repair or replace suspected part, Go to Step 9

6

INSPECT HO2S HEATER CIRCUIT
FOR OPEN CIRCUIT IN WIRING
HARNESS


For DTC P0053 Measure resistance
between PCM terminal 2J and front
HO2S (RH) terminal A.

For DTC P0054 Measure resistance
between PCM terminal 2AS and rear
HO2S (RH) terminal A.

For DTC P0059 Measure resistance
between PCM terminal 2E and front
HO2S (LH) terminal A.

For DTC P0060 Measure resistance
between PCM terminal 2AO and
rear HO2S (LH) terminal A.

Is the resistance less than 5.0 ohms?

Yes Go to the next step.

No

Repair or replace suspected part, Go to Step 9.

7

INSPECT INTERNAL RESISTANCE
OF HO2S HEATER


Measure the resistance between the
suspect HO2S terminal A and C on
the component side.

Yes Go to the next step.

No

Replace the HO2S.

(See FRONT HEATED OXYGEN SENSOR

(HO2S) REMOVAL/INSTALLATION [MZI-

3.7] .)

(See REAR HEATED OXYGEN SENSOR



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:34 AM

Page 47

© 2005 Mitchell Repair Information Company, LLC.

DTC P0068 [MZI-3.7]

DTC P0068 (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES

Is the resistance between 3-30
ohms?

(HO2S) REMOVAL/INSTALLATION [MZI-

3.7] .) Go to Step 9.

8

INSPECT HO2S CASE FOR SHORT
TO POWER SUPPLY, HTR, AND
SIGNRTN


Measure the resistance between the
suspect HO2S terminal A and D on
the component side.

Measure the resistance between the
suspect HO2S terminal A and body
ground.

Is the resistance more than 10
kilohms?

Yes Replace the PCM. Go to the next step.

No

Replace the HO2S.

(See FRONT HEATED OXYGEN SENSOR

(HO2S) REMOVAL/INSTALLATION [MZI-

3.7] .)

(See REAR HEATED OXYGEN SENSOR

(HO2S) REMOVAL/INSTALLATION [MZI-

3.7] .) Go to the next step.

9

VERIFY TROUBLESHOOTING OF
MISFIRE DTC HAS BEEN
COMPLETED


Verify that all disconnected
connectors reconnected.

Turn the ignition switch to the ON
position (Engine off).

Clear the DTC from the PCM
memory using the M-MDS.

Start the engine and run it at idle.

Retrieve DTCs using the M-MDS.

Is the PENDING CODE for this
DTC present?

Yes

Replace the PCM, then go to the next step. (See
PCM REMOVAL/INSTALLATION [MZI-
3.7]
 .)

No

Go to the next step.

10

VERIFY AFTER REPAIR
PROCEDURE


Perform "AFTER REPAIR
PROCEDURE".

(See AFTER REPAIR
PROCEDURE [MZI-3.7]
.)

Are any DTC present?

Yes

Go to the applicable DTC inspection., (See DTC
TABLE [MZI-3.7]
.)

No

Troubleshooting completed.

DTC P0068

MAP/MAF-throttle position correlation



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:34 AM

Page 48

© 2005 Mitchell Repair Information Company, LLC.
