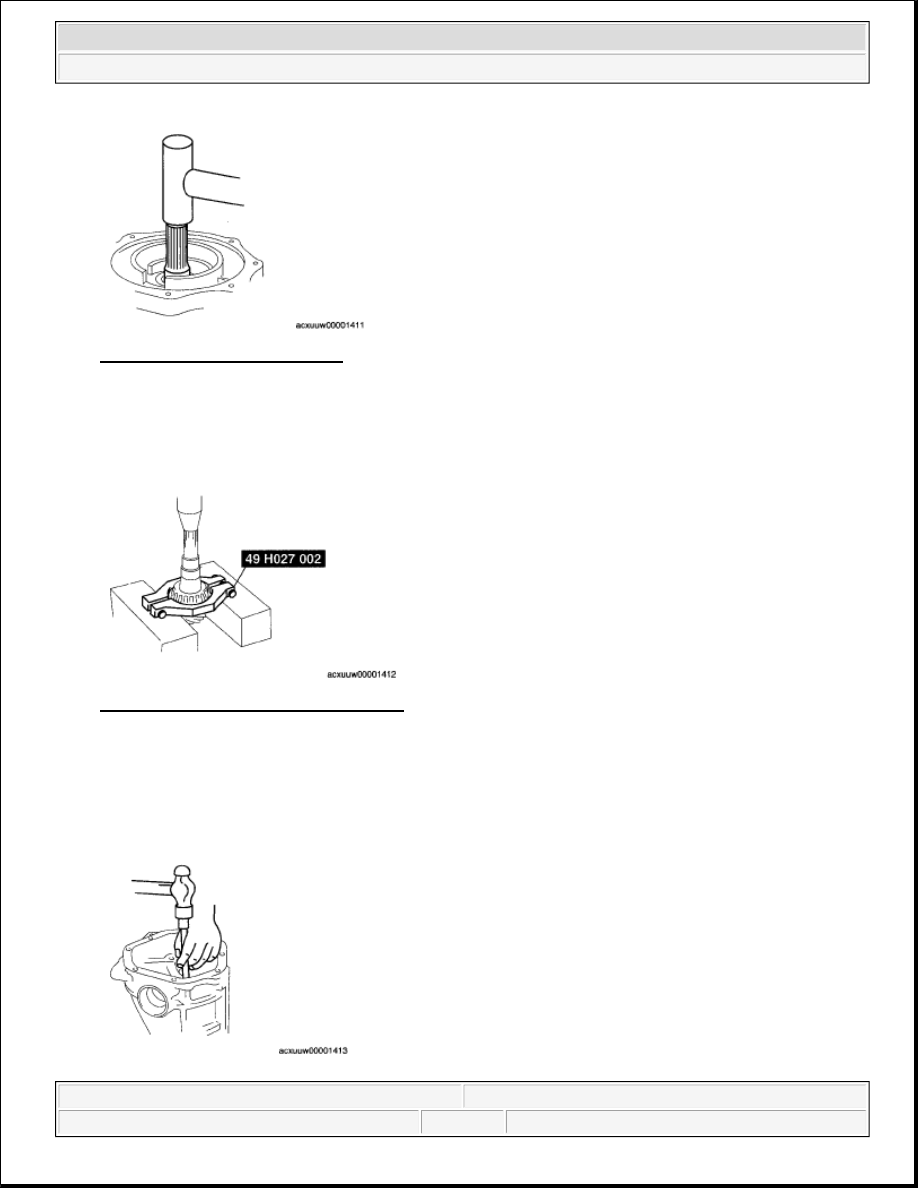

Fig. 27: Removing Drive Pinion
Courtesy of MAZDA MOTORS CORP.

BEARING INNER RACE (REAR BEARING) DISASSEMBLY NOTE

1. Remove the bearing inner races (rear bearing) using the SST and a press.

Fig. 28: Removing Bearing Inner Races
Courtesy of MAZDA MOTORS CORP.

BEARING OUTER RACE DISASSEMBLY NOTE

1. Remove the bearing outer races using the 2 grooves in the carrier and alternately tapping the sides of the

races with a brass bar.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Differential - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:52:15 AM

Page 16

© 2005 Mitchell Repair Information Company, LLC.

Fig. 29: Removing Bearing Outer Races
Courtesy of MAZDA MOTORS CORP.

RING GEAR DISASSEMBLY NOTE

1. Secure the gear case in a vice and remove the bolts.

2. Lightly tap around the ring gear using a plastic hammer to remove the ring gear from the gear case.

Fig. 30: Identifying Gear Case Bolts
Courtesy of MAZDA MOTORS CORP.

SIDE BEARING INNER RACE DISASSEMBLY NOTE

1. Remove the side bearing inner races from the gear case using the SST and a press.

Fig. 31: Removing Side Bearing Inner Races From Gear Case
Courtesy of MAZDA MOTORS CORP.

REAR DIFFERENTIAL ASSEMBLY

NOTE:



Mark or otherwise distinguish between the left and right side bearings so
that they are not mixed up at the time of reassembly.

WARNING:



The engine stand is equipped with a self-lock mechanism, however,
if the rear differential is in a tilted condition, the self-lock mechanism



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Differential - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:52:15 AM

Page 17

© 2005 Mitchell Repair Information Company, LLC.

1. Assemble in the order indicated in the table.

could become inoperative. If the rear differential unexpectedly
rotates it could cause injury, therefore do not maintain the rear
differential in a tilted condition. When turning the rear differential,
grasp the rotation handle firmly.

NOTE:



Clean away the old sealant before applying the new sealant.



Install the rear cover within 10 minutes after applying sealant.



Allow the sealant to set at least 30 minutes after installation before filling
the differential with the specified oil.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Differential - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:52:15 AM

Page 18

© 2005 Mitchell Repair Information Company, LLC.

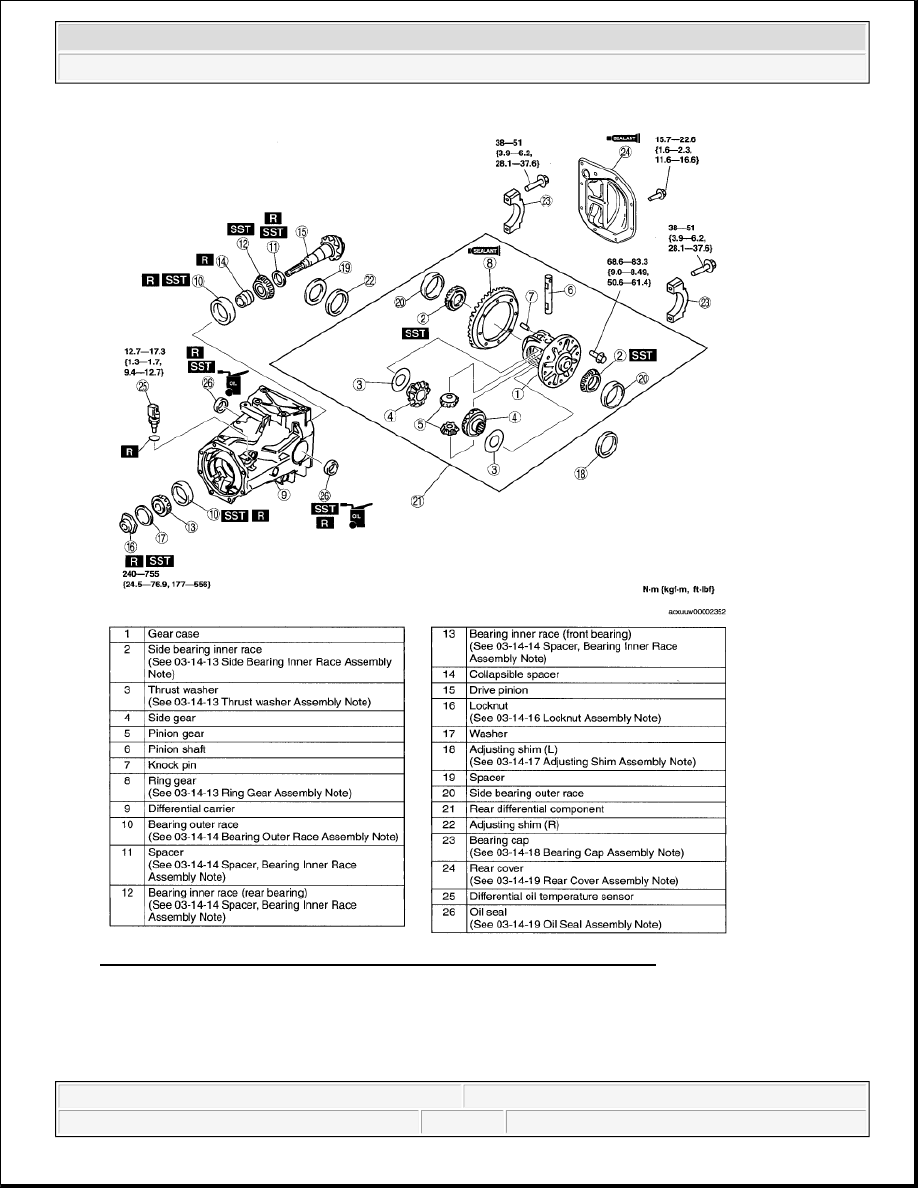

Fig. 32: View Of Rear Differential Components & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

SIDE BEARING INNER RACE ASSEMBLY NOTE

CAUTION:



Do not mix up the left and right side bearing inner races.
