Mazda CX-9 Grand Touring. Manual - part 152

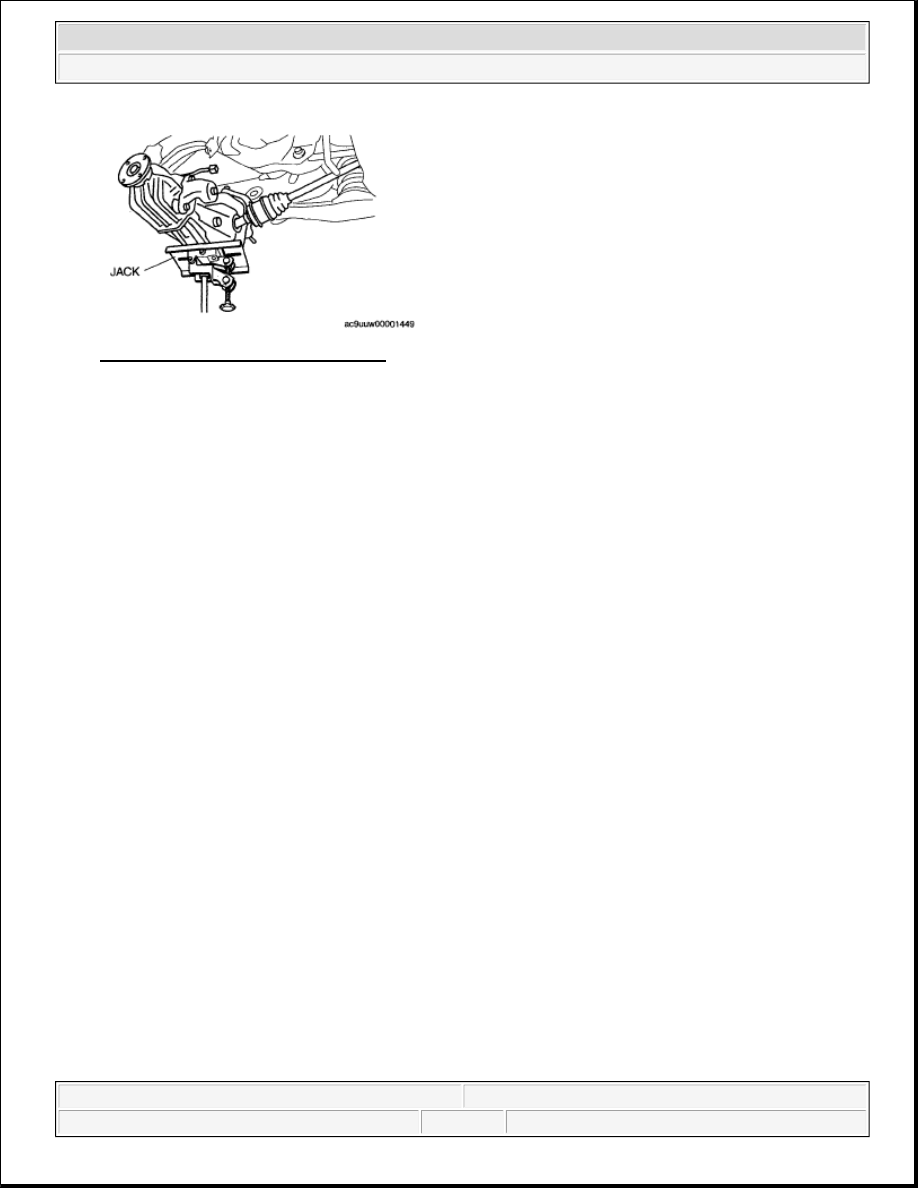

Fig. 20: Jacking Up Rear Drive Shaft
Courtesy of MAZDA MOTORS CORP.

REAR DIFFERENTIAL DISASSEMBLY

1. Disassemble in the order indicated in the table.

WARNING:

The engine stand is equipped with a self-lock mechanism, however,
if the rear differential is in a tilted condition, the self-lock mechanism
could become inoperative. If the rear differential unexpectedly
rotates it could cause injury, therefore do not maintain the rear
differential in a tilted condition. When turning the rear differential,
grasp the rotation handle firmly.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Differential - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:52:15 AM

Page 12

© 2005 Mitchell Repair Information Company, LLC.

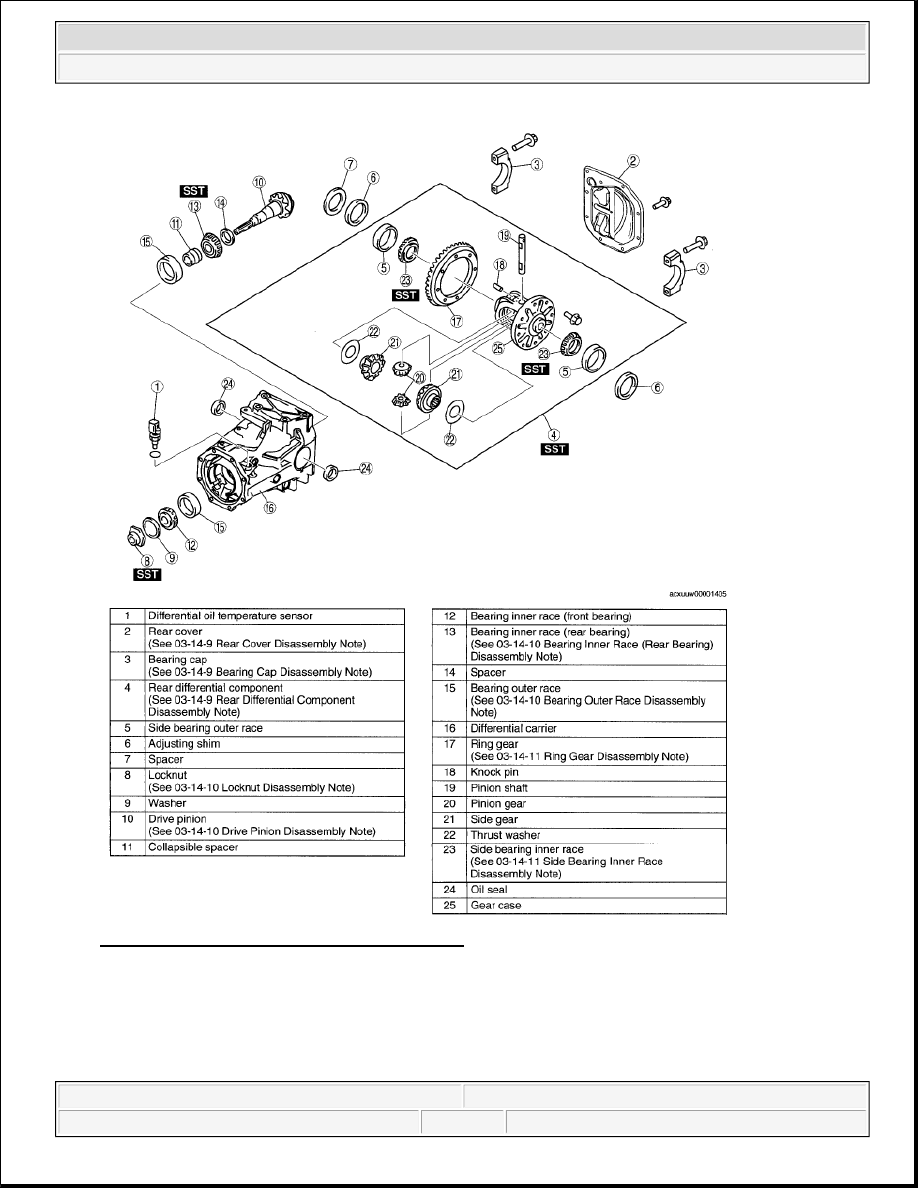

Fig. 21: View Of Rear Differential Components
Courtesy of MAZDA MOTORS CORP.

REAR COVER DISASSEMBLY NOTE

1. Install the SSTs to the engine stand.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Differential - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:52:15 AM

Page 13

© 2005 Mitchell Repair Information Company, LLC.

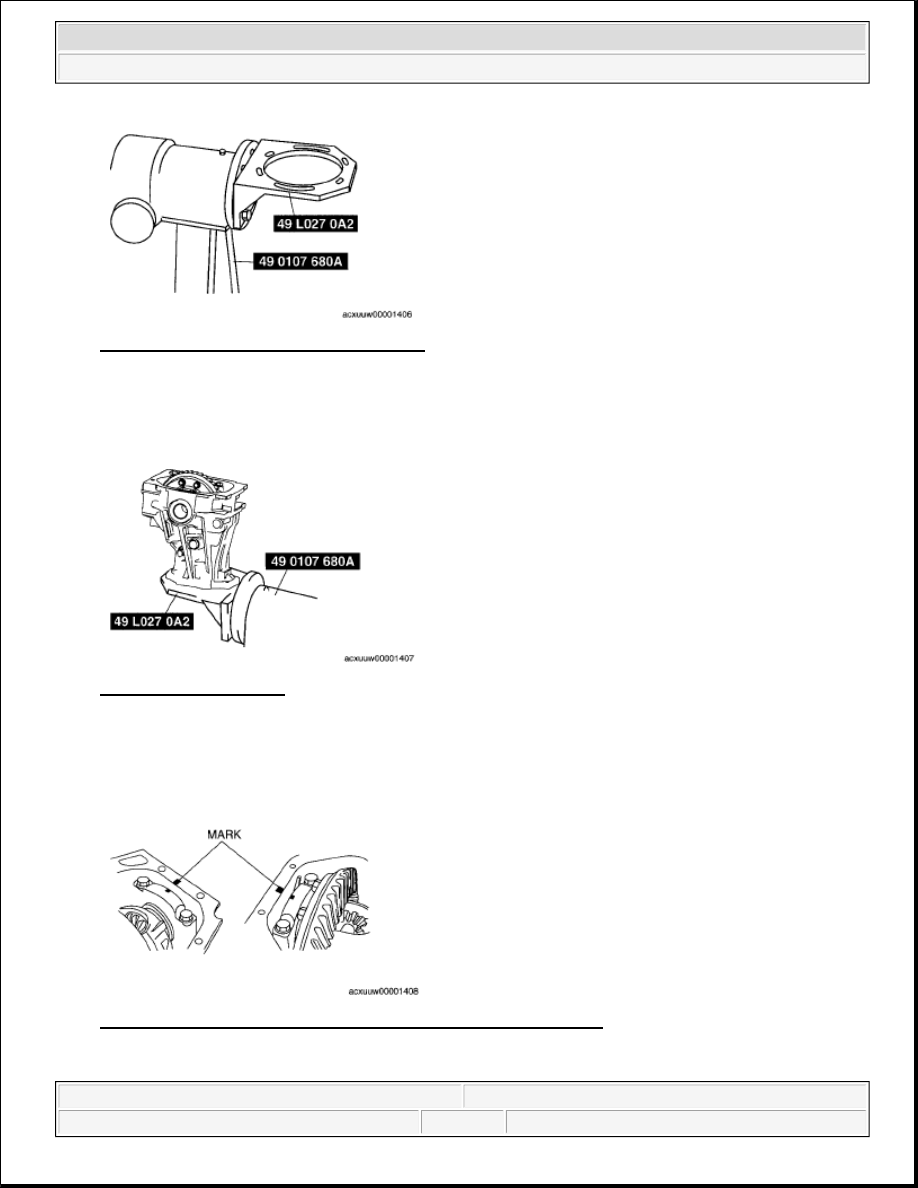

Fig. 22: Identifying SSTs To Engine Stand
Courtesy of MAZDA MOTORS CORP.

2. Install the rear differential to the SSTs.

3. Remove the rear cover using an oil seal cutter.

Fig. 23: Identifying SST
Courtesy of MAZDA MOTORS CORP.

BEARING CAP DISASSEMBLY NOTE

1. Place alignment marks on the bearing cap and carrier.

Fig. 24: Identifying Alignment Marks On Bearing Cap & Carrier
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Differential - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:52:15 AM

Page 14

© 2005 Mitchell Repair Information Company, LLC.

REAR DIFFERENTIAL COMPONENT DISASSEMBLY NOTE

1. Remove the rear differential component using the SSTs.

2. Mark or otherwise distinguish between the removed left and right adjusting shims, spacers and side

bearing outer races so that they are not mixed up at the time of reassembly.

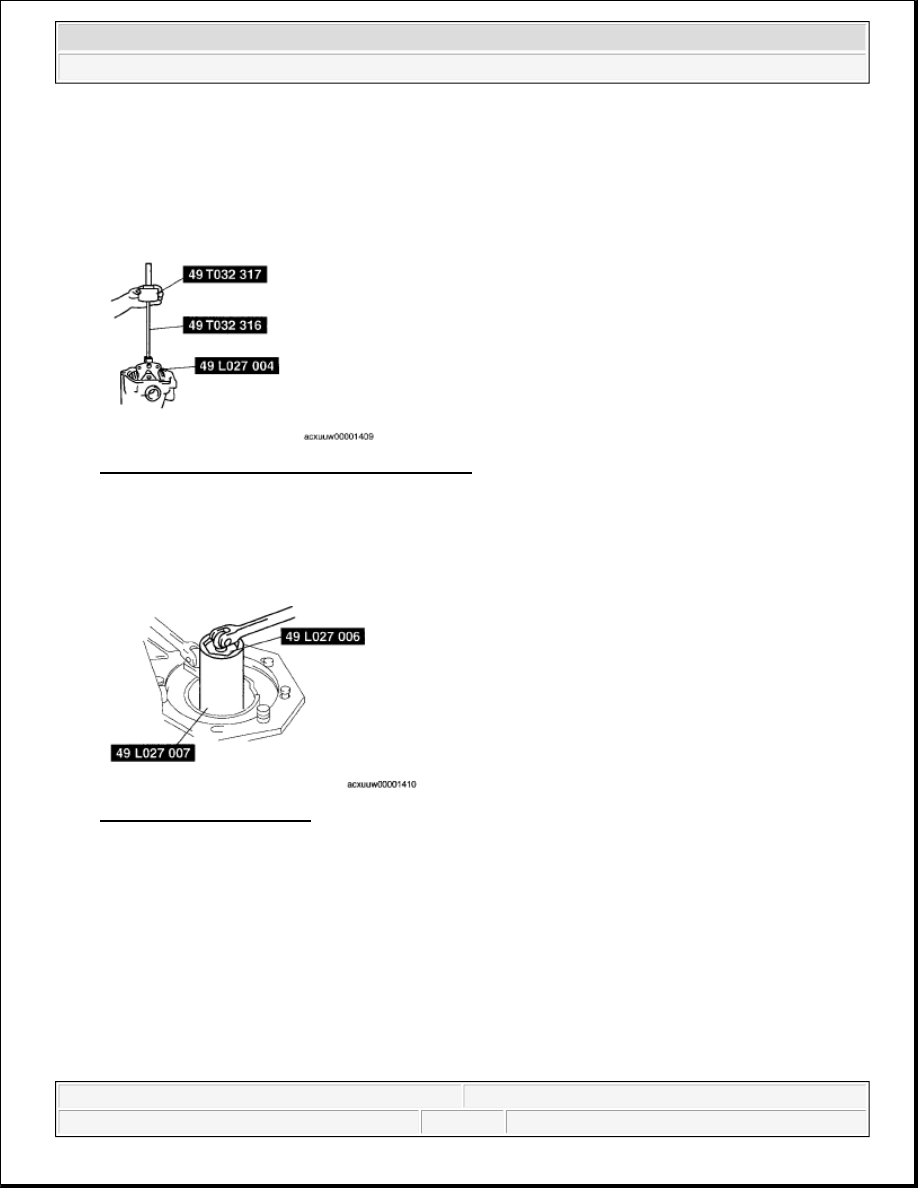

Fig. 25: Removing Rear Differential Component
Courtesy of MAZDA MOTORS CORP.

LOCKNUT DISASSEMBLY NOTE

1. Remove the locknut using the SSTs.

Fig. 26: Removing Locknut
Courtesy of MAZDA MOTORS CORP.

DRIVE PINION DISASSEMBLY NOTE

1. Remove the drive pinion by lightly tapping with a copper hammer.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Differential - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:52:15 AM

Page 15

© 2005 Mitchell Repair Information Company, LLC.
