Mazda CX-9 Grand Touring. Manual - part 143





Fig. 1: Identifying Cooling System Components Location
Courtesy of MAZDA MOTORS CORP.


COOLING SYSTEM SERVICE WARNINGS [MZI-3.7]

ENGINE COOLANT LEVEL INSPECTION [MZI-3.7]

WARNING:

Never remove the cooling system cap or loosen the radiator drain
plug while the engine is running, or when the engine and radiator are
hot. Scalding engine coolant and steam may shoot out and cause
serious injury. It may also damage the engine and cooling system.

Turn off the engine and wait until it is cool. Even then, be very
careful when removing the cap. Wrap a thick cloth around it and
slowly turn it counterclockwise to the first stop. Step back while the
pressure escapes.

When you are sure all the pressure is gone, press down on the cap
using the cloth, turn it, and remove it.

Depending on the vehicle, the cooling fan may operate suddenly
even when the ignition switch is turned off. Therefore, keep hands
and tools away from the cooling fan even if the cooling fan is not
operating to prevent injury to personnel or damage to the cooling
fan. Always disconnect the negative battery cable when servicing
the cooling fan or parts near the cooling fan.

WARNING:

Never remove the cooling system cap or loosen the radiator drain
plug while the engine is running, or when the engine and radiator are
hot. Scalding engine coolant and steam may shoot out and cause
serious injury. It may also damage the engine and cooling system.

Turn off the engine and wait until it is cool. Even then, be very
careful when removing the cap. Wrap a thick cloth around it and
slowly turn it counterclockwise to the first stop. Step back while the
pressure escapes.

When you are sure all the pressure is gone, press down on the cap
using the cloth, turn it, and remove it.

NOTE:

If the "FL22" mark is shown on or near the cooling system cap, use FL22
type engine coolant.

FL22 type engine coolant is shipped as a diluted solution. Use the solution
as is when replacing coolant.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Cooling System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:57:25 AM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

1. Verify that the engine coolant level in the coolant reserve tank is between the F and L marks.

If the engine coolant level is below the L mark, add engine coolant.

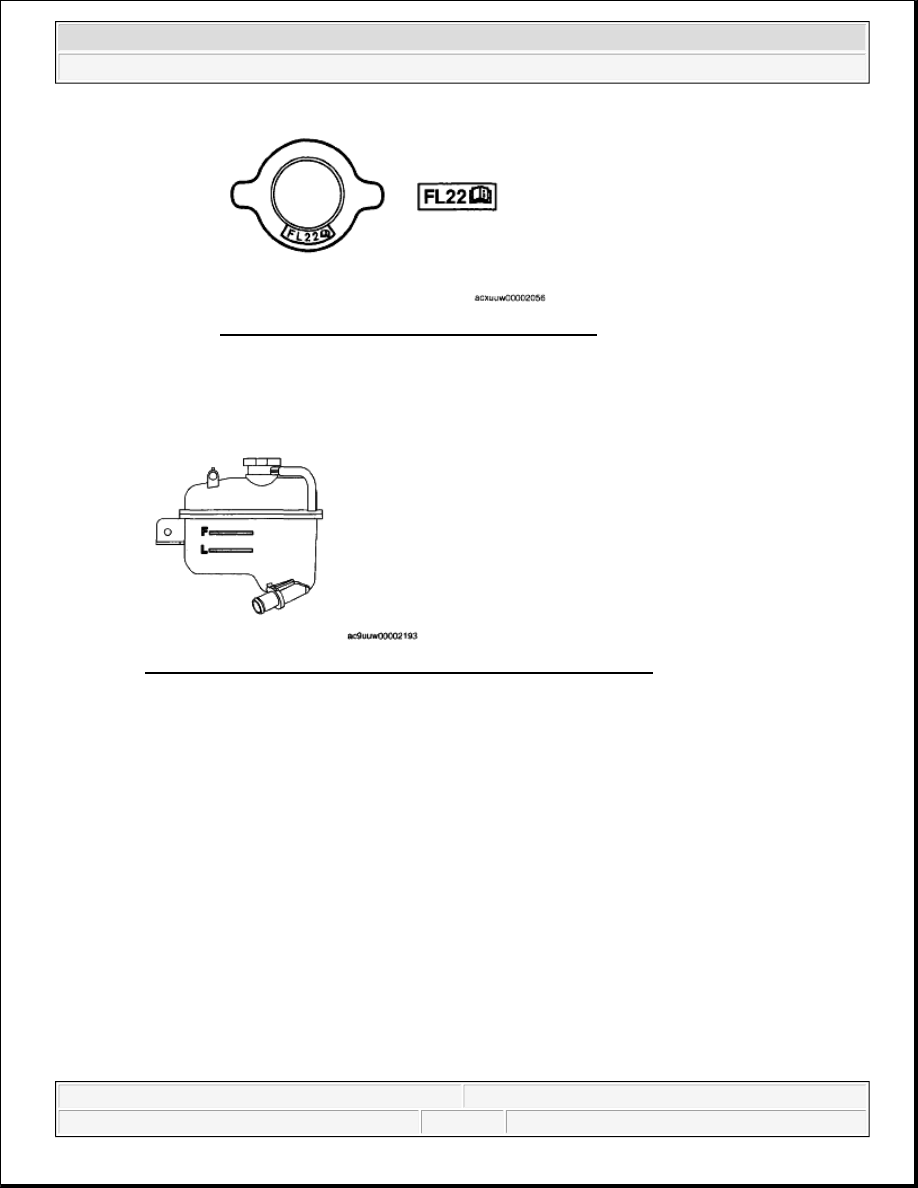

Fig. 3: Identifying Engine Coolant Level In Coolant Reserve Tank
Courtesy of MAZDA MOTORS CORP.

ENGINE COOLANT PROTECTION INSPECTION [MZI-3.7]

1. Measure the engine coolant temperature and specific gravity using a thermometer and a hydrometer.

Fig. 2: Identifying Cooling System Cap Mark
Courtesy of MAZDA MOTORS CORP.

CAUTION:

Use engine coolant at a concentration that meets the
environmental conditions in which the vehicle is driven,
otherwise engine damage could occur.

The engine has aluminum parts and must be protected by an
ethylene-glycol-based coolant to prevent corrosion and
freezing.

Do not use coolants containing Alcohol, Methanol, Borate or
Silicate. These coolants could damage the cooling system.

Use only soft (demineralized) water in the coolant mixture.
Water that contains minerals will cut down on the coolant's
effectiveness.

Engine coolant damages paint. If engine coolant does get on a



2008 Mazda CX-9 Grand Touring

2008 ENGINE Cooling System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:57:25 AM

Page 4

© 2005 Mitchell Repair Information Company, LLC.

2. Determine the engine coolant protection level by referring to the graph shown in the figure.

If the engine coolant protection level is not correct, add water or engine coolant.

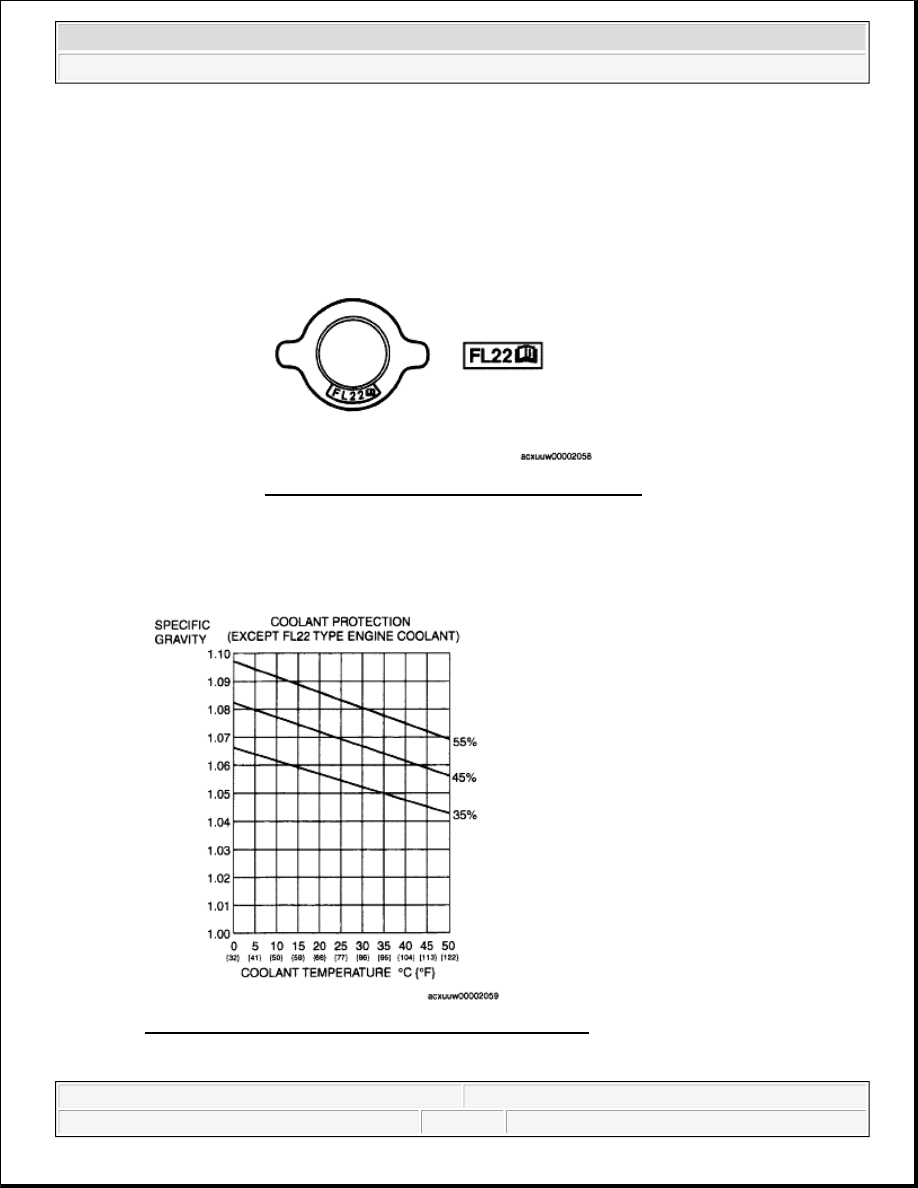

Fig. 5: Specific Gravity And Coolant Temperature Graph
Courtesy of MAZDA MOTORS CORP.

painted surface, rinse it off quickly.

NOTE:

If the "FL22" mark is shown on or near the cooling system cap, use
FL22 type engine coolant.

FL22 type engine coolant is shipped as a diluted solution. Use the
solution as is when replacing coolant.

Fig. 4: Identifying Cooling System Cap Mark
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Cooling System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:57:25 AM

Page 5

© 2005 Mitchell Repair Information Company, LLC.

ENGINE COOLANT REPLACEMENT [MZI-3.7]

Engine coolant capacity (approx. quantity)

Dual fan control module: 12.2 L {12.9 US qt, 10.7 Imp qt}

Single fan control module: 11.6 L {12.3 US qt, 10.2 Imp qt}

WARNING:

Never remove the cooling system cap or loosen the radiator drain
plug while the engine is running, or when the engine and radiator are
hot. Scalding engine coolant and steam may shoot out and cause
serious injury. It may also damage the engine and cooling system.

Turn off the engine and wait until it is cool. Even then, be very
careful when removing the cap. Wrap a thick cloth around it and
slowly turn it counterclockwise to the first stop. Step back while the
pressure escapes.

When you are sure all the pressure is gone, press down on the cap
using the cloth, turn it, and remove it.

CAUTION:

Use engine coolant at a concentration that meets the environmental
conditions in which the vehicle is driven, otherwise engine damage
could occur.

The engine has aluminum parts and must be protected by an
ethylene-glycol-based coolant to prevent corrosion and freezing.

Do not use coolants containing Alcohol, Methanol, Borate or Silicate.
These coolants could damage the cooling system.

Use only soft (demineralized) water in the coolant mixture. Water that
contains minerals will cut down on the coolant's effectiveness.

Engine coolant damages paint. If engine coolant does get on a
painted surface, rinse it off quickly.

NOTE:

If the "FL22" mark is shown on or near the cooling system cap, use FL22
type engine coolant.

FL22 type engine coolant is shipped as a diluted solution. Use the solution
as is when replacing coolant.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Cooling System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:57:25 AM

Page 6

© 2005 Mitchell Repair Information Company, LLC.
