1. Inspect for abnormal noise, looseness, and sticking.
Replace the bearing if necessary.

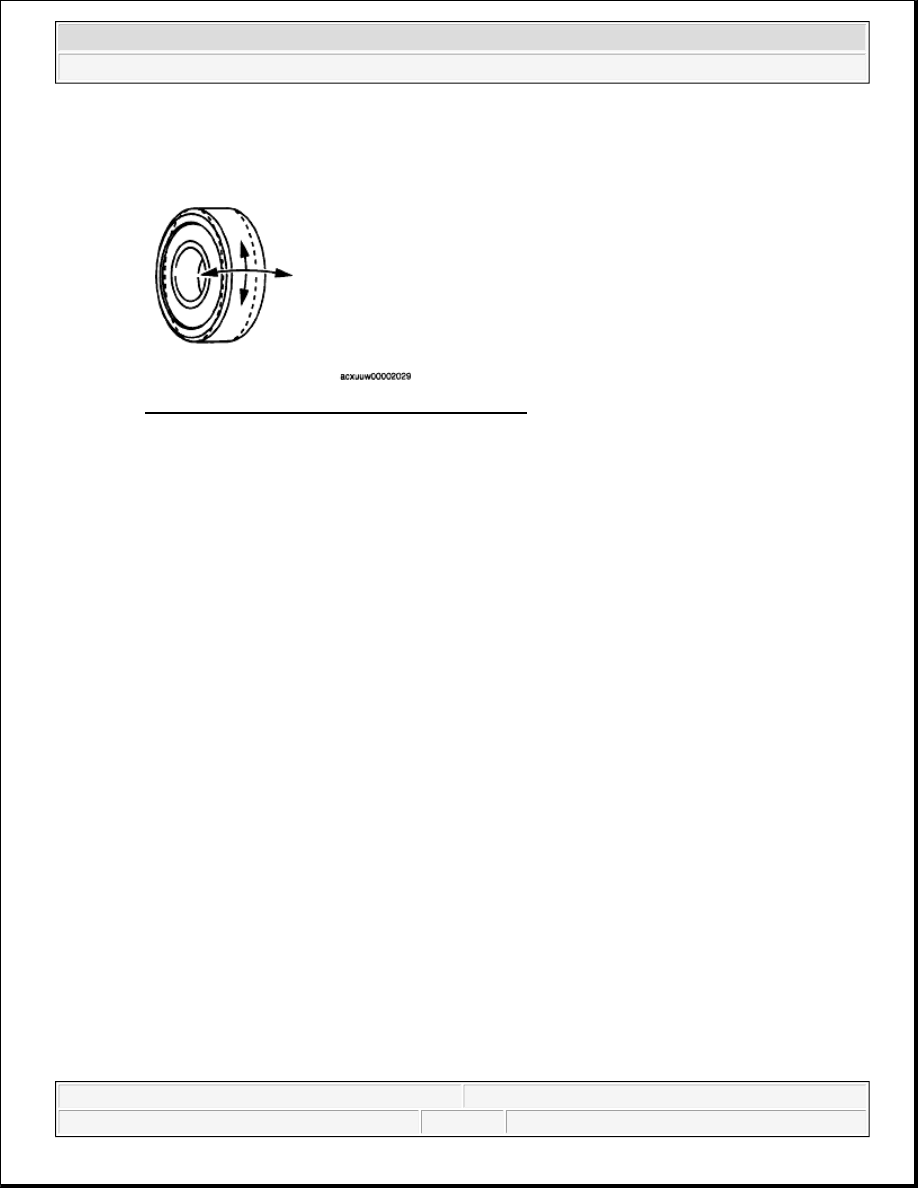

Fig. 16: Inspecting Bearing Looseness, & Sticking
Courtesy of MAZDA MOTORS CORP.

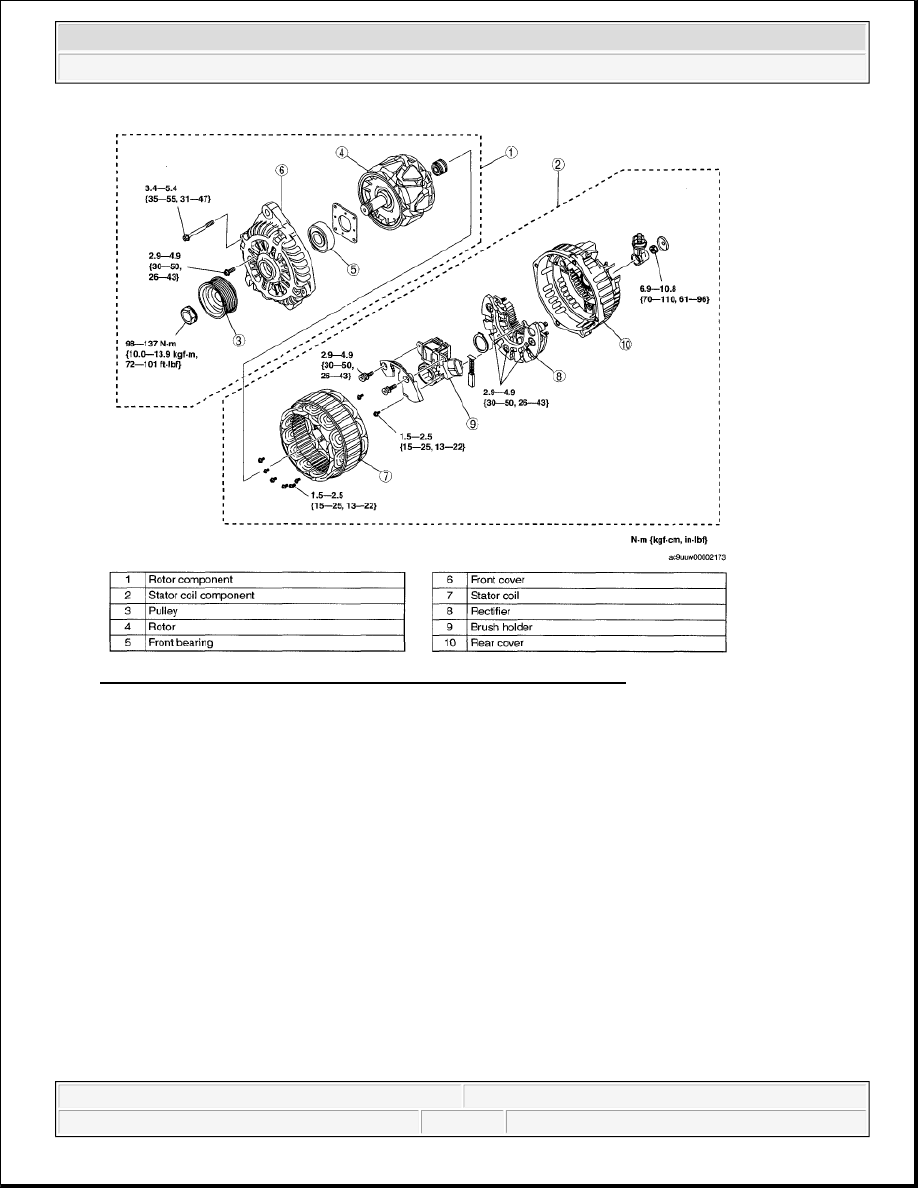

GENERATOR DISASSEMBLY/ASSEMBLY [MZI-3.7]
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
CAUTION:
Melt the solder quickly, otherwise the diodes (rectifier) and regulator
will be damaged by excessive heat.
