Mazda CX-9 Grand Touring. Manual - part 111

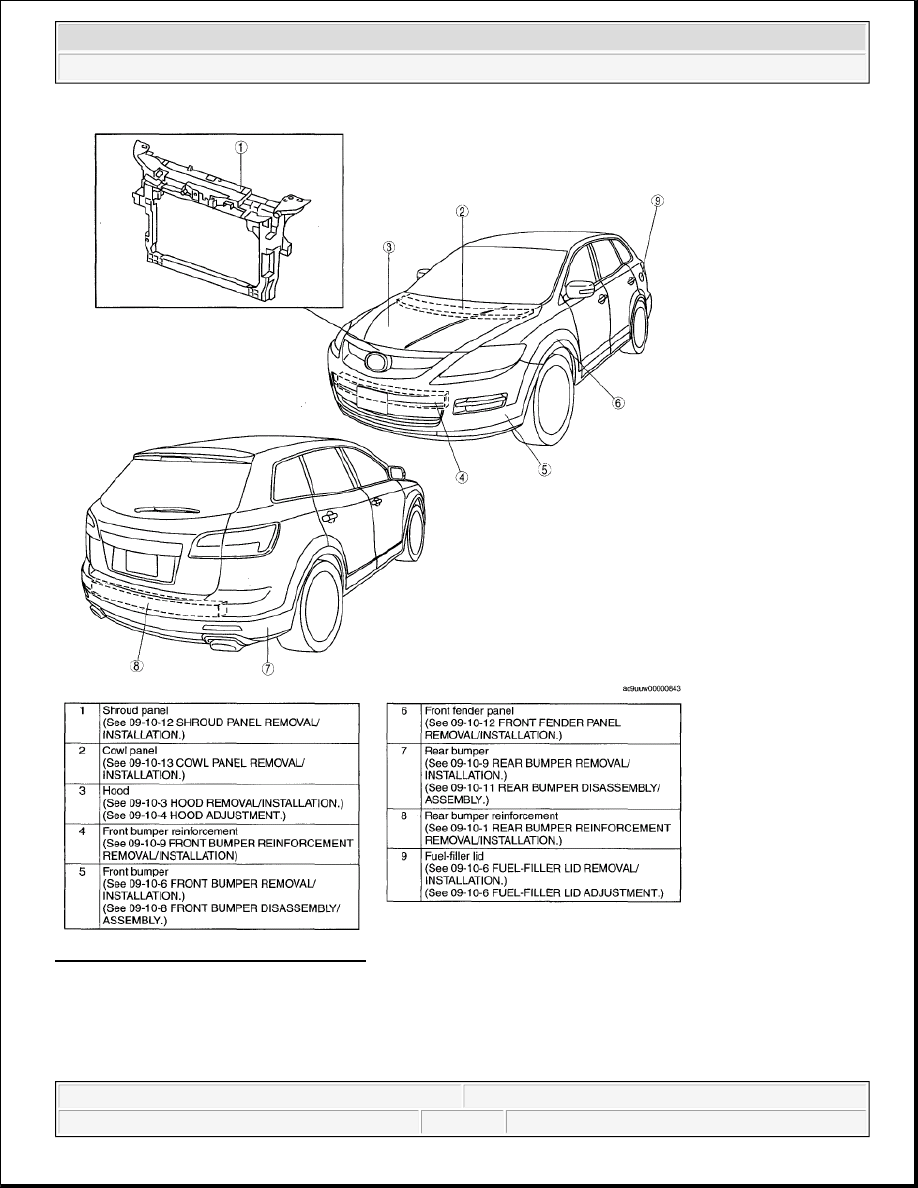

Fig. 2: Identifying Body Panels Location
Courtesy of MAZDA MOTORS CORP.

HOOD REMOVAL/INSTALLATION

WARNING:



Removing the hood without supporting it could cause the hood to



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Body Panels - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:44:45 AM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

1. Disconnect the negative battery cable.

2. To remove the hood hinges, remove the following parts:

1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE

REMOVAL/INSTALLATION )

2. Side cowl grille (See COWL GRILLE REMOVAL/INSTALLATION )

3. Remove in the order indicated in the table.

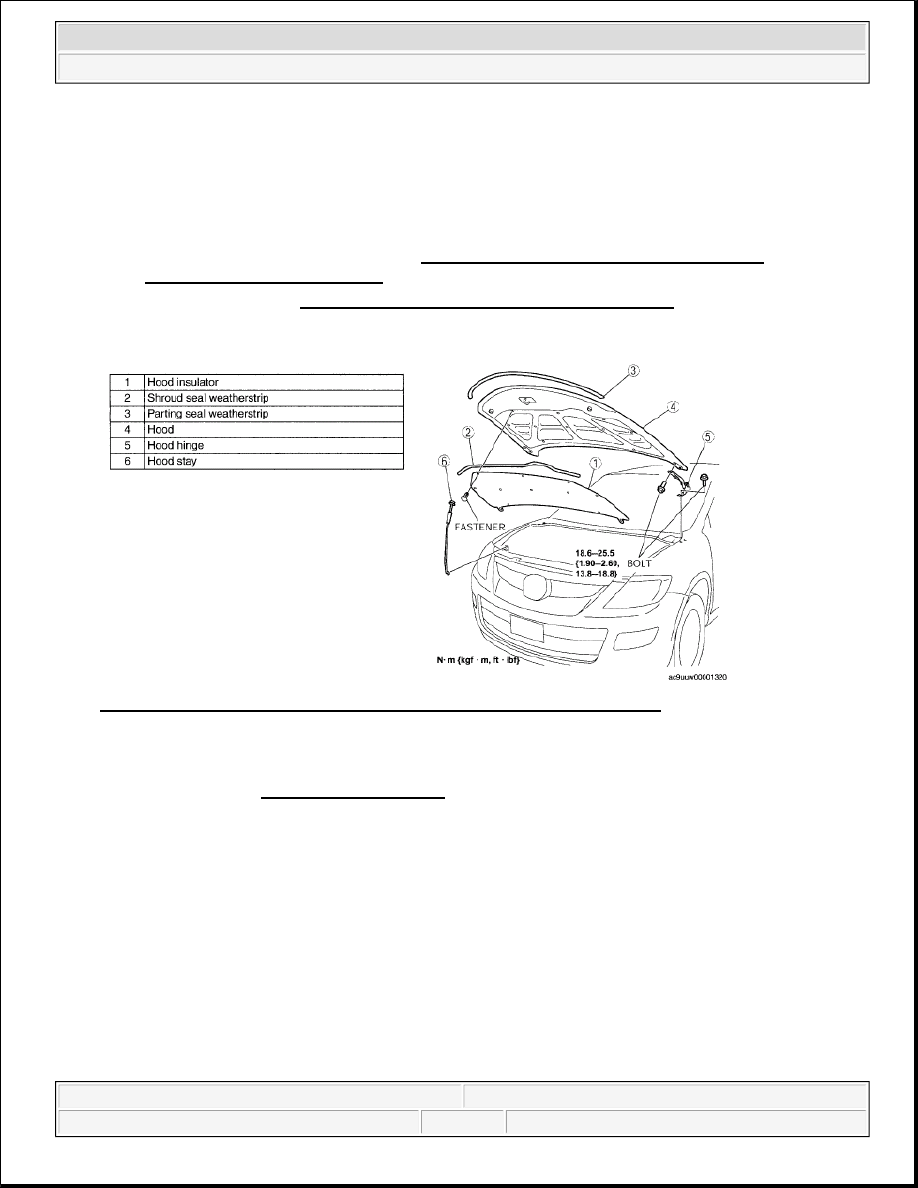

Fig. 3: Identifying Hood Removing Components & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

4. Install in the reverse order of removal.

5. Adjust the hood. (See HOOD ADJUSTMENT.)

HOOD ADJUSTMENT

GAP ADJUSTMENT

1. Measure the gap between the hood and body.

fall and cause serious injury. Always perform the procedure with at
least another person to prevent the hood from falling.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Body Panels - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:44:45 AM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

Fig. 4: Measuring Gap Between Hood And Body
Courtesy of MAZDA MOTORS CORP.

Standard clearance

a: -1.5-1.5 mm {-0.05-0.05 in}

b: 0.73-4.33 mm {0.03-0.17 in}

c: -1.2-1.2 mm {-0.04-0.04 in}

2. Disconnect the negative battery cable.

3. Remove the following parts:

1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE

REMOVAL/INSTALLATION )

2. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION )

4. Loosen the hood hinge installation bolts and adjust the hood.

5. Tighten the bolts.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Body Panels - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:44:45 AM

Page 4

© 2005 Mitchell Repair Information Company, LLC.

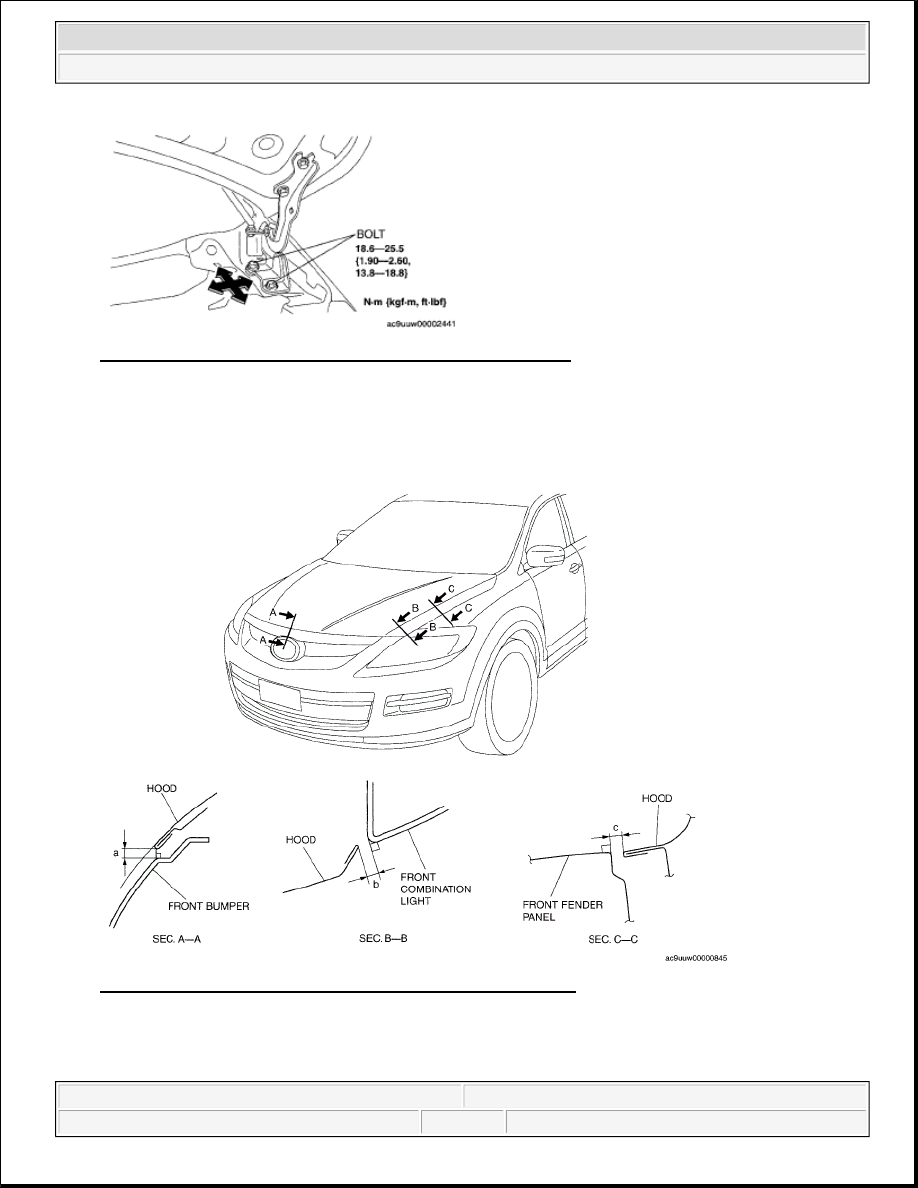

Fig. 5: Identifying Hood Hinge Bolts & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

HEIGHT ADJUSTMENT

1. Measure the height difference between the hood and body.

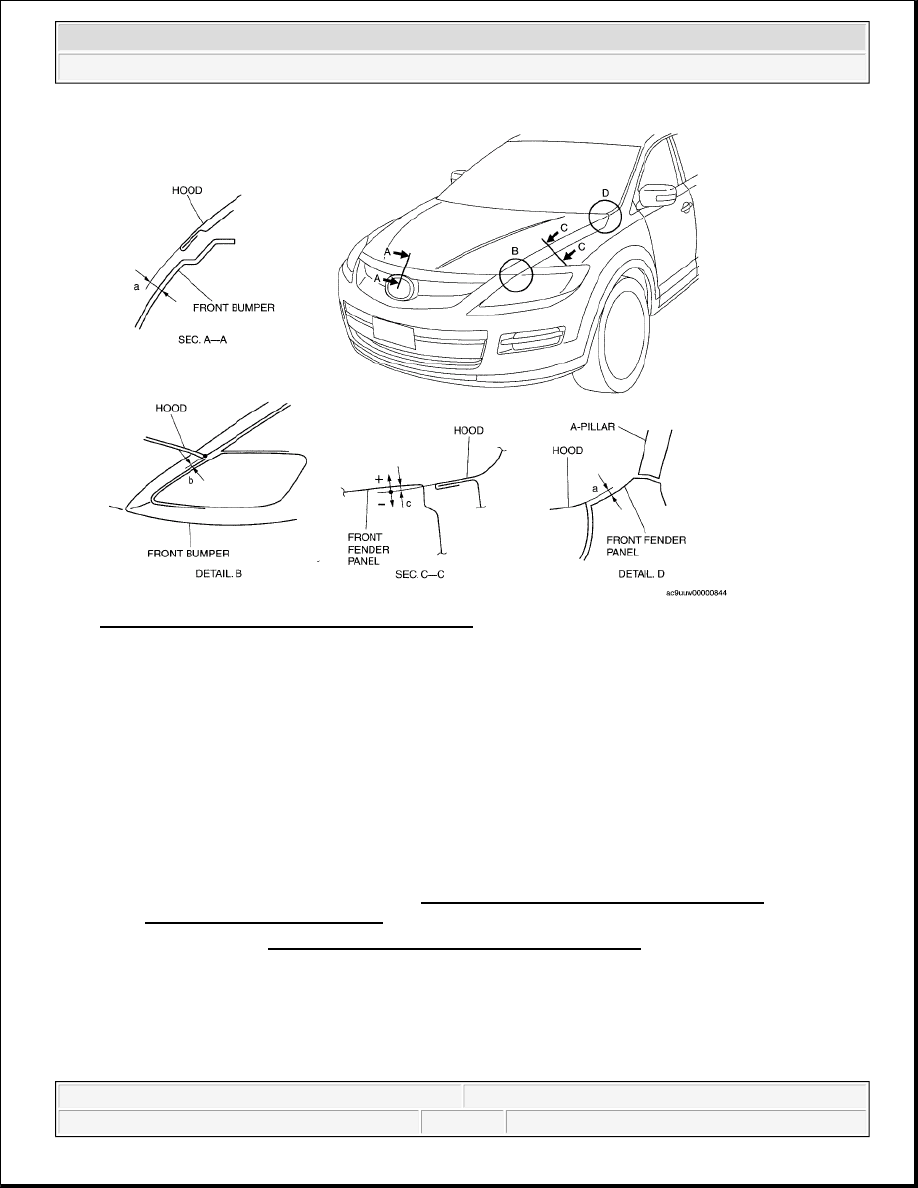

Fig. 6: Measuring Height Difference Between Hood And Body
Courtesy of MAZDA MOTORS CORP.

Clearance
