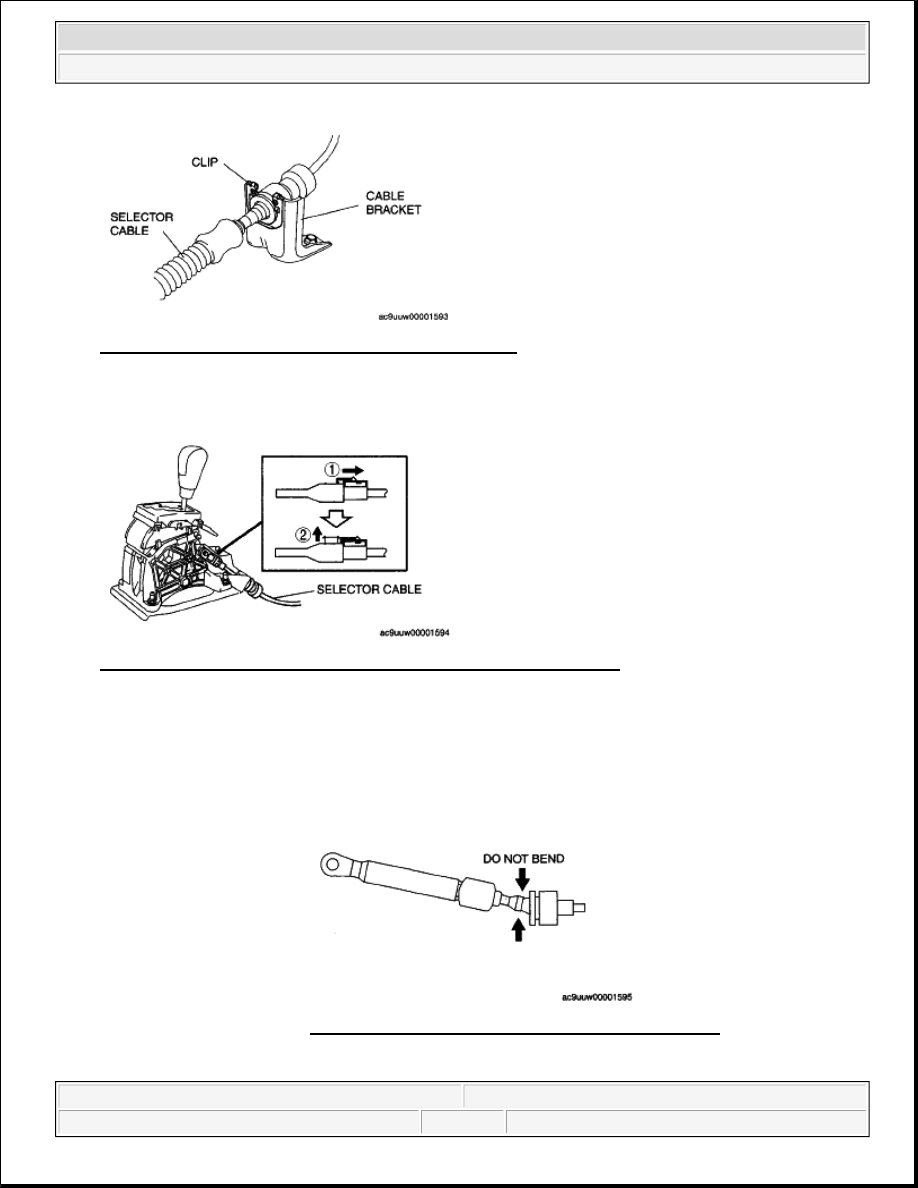

Fig. 25: Identifying Selector Cable And Cable Bracket
Courtesy of MAZDA MOTORS CORP.

3. Lock the lock piece of the selector cable (selector lever side) in the order shown in the figure.

Fig. 26: Locking Lock Piece Of Selector Cable (Selector Lever Side)
Courtesy of MAZDA MOTORS CORP.

4. Verify that the manual shaft is in the P position.

CAUTION:

Bending the selector cable in the manner shown in the figure
will damage the cable and it may become loose when shifted.
When installing the selector cable, hold it straight.

Fig. 27: Inspecting Manual Shaft Is In P Position
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle Shift Mechanism - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:30:13 AM

Page 13

© 2005 Mitchell Repair Information Company, LLC.

5. Install the clip as shown in the figure.

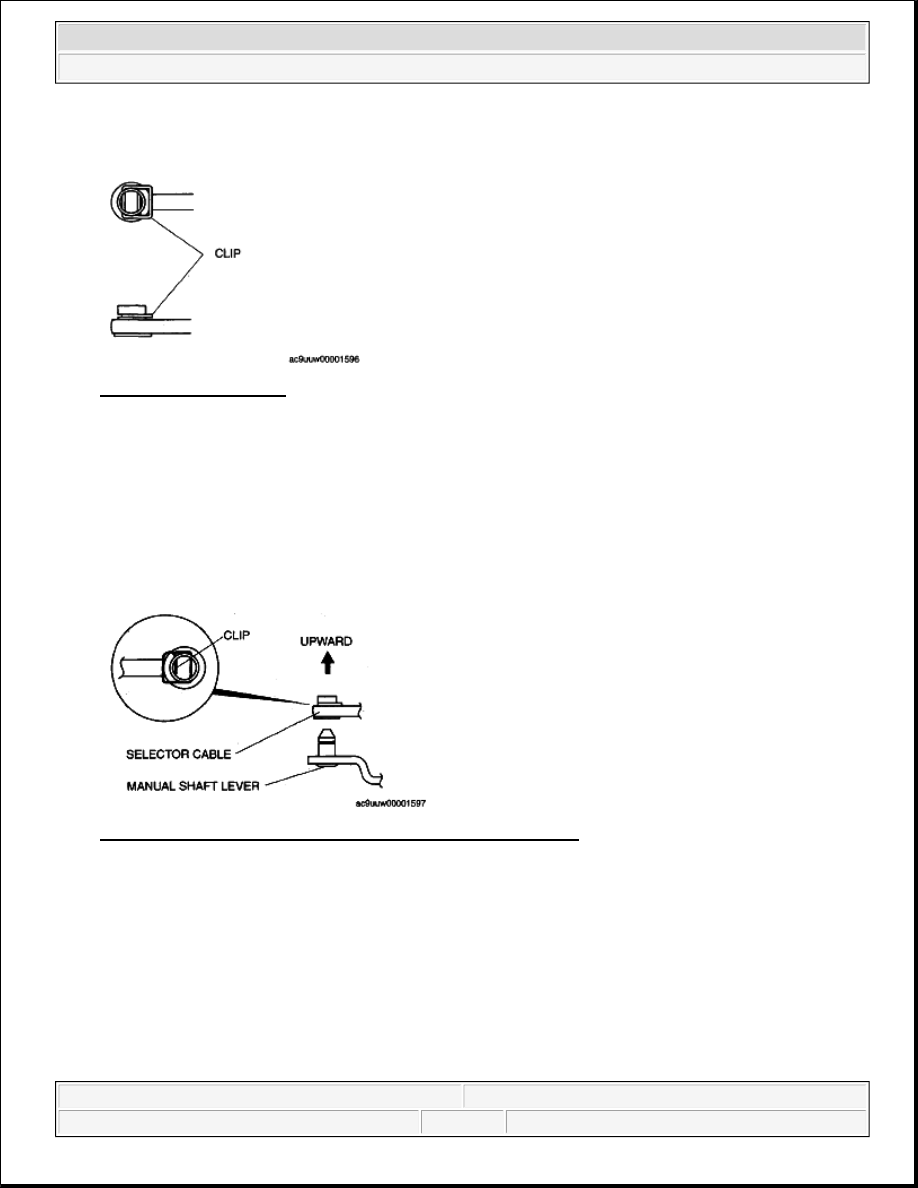

Fig. 28: Identifying Clip
Courtesy of MAZDA MOTORS CORP.

6. Install the selector lever to the manual shaft lever so that no load acts on the selector cable.

7. Confirm that the tip of the manual shaft lever projects out of the end of the selector cable.

8. Securely install the selector cable to the selector cable bracket.

Fig. 29: Inspecting Clip Side Of Selector Cable End Facing Up
Courtesy of MAZDA MOTORS CORP.

INTERLOCK CABLE INSTALLATION NOTE

1. Push the interlock cable.

NOTE:

Install the selector lever to the manual shaft lever with the clip side of
the selector cable end facing up.



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle Shift Mechanism - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:30:13 AM

Page 14

© 2005 Mitchell Repair Information Company, LLC.

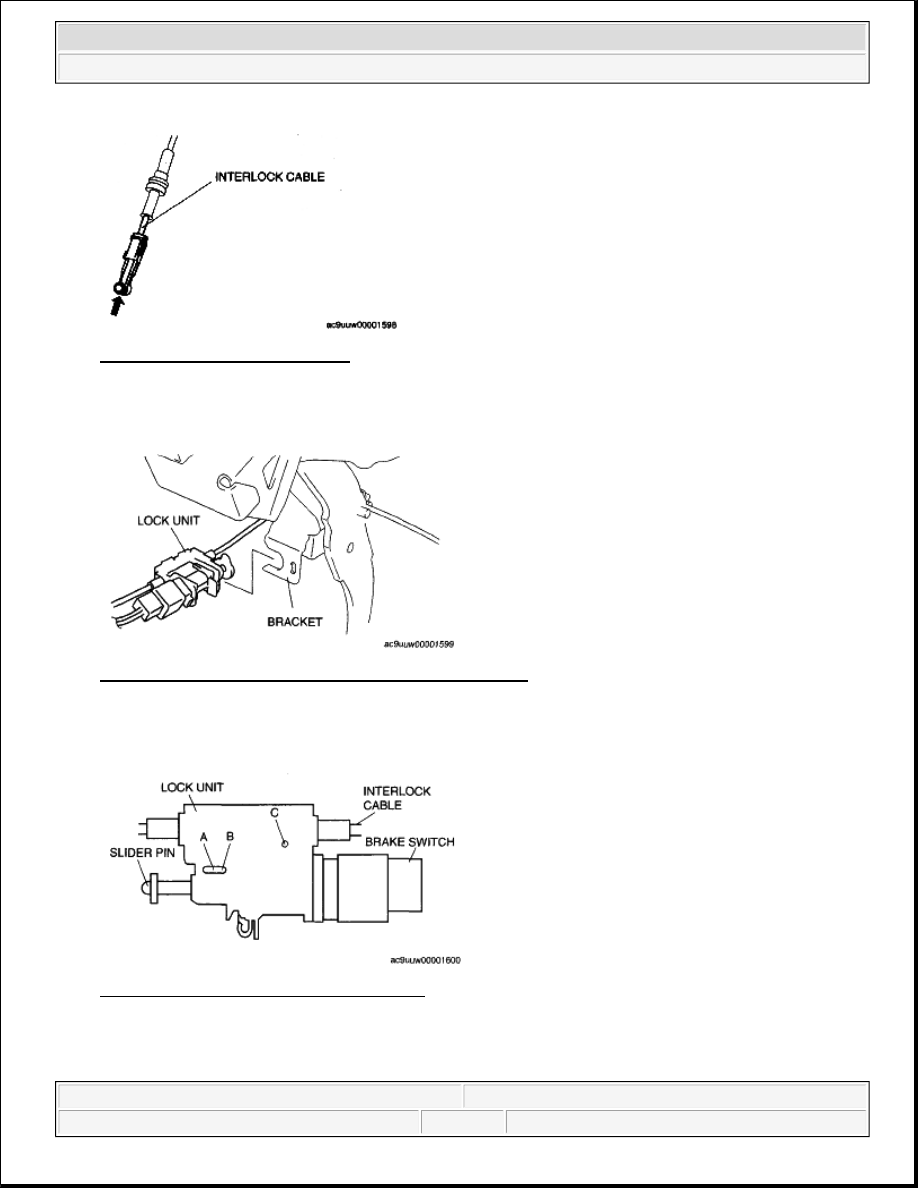

Fig. 30: Pushing Interlock Cable
Courtesy of MAZDA MOTORS CORP.

2. Verify that the marking on the slider pin is positioned as shown in the figure.

Fig. 31: Inspecting Marking On Slider Pin Is Positioned
Courtesy of MAZDA MOTORS CORP.

3. Push the a 1.5 mm {0.059 in} round bar or similar into hole A by fully pushing the slider pin in.

Fig. 32: Identifying Hole A And Slider Pin
Courtesy of MAZDA MOTORS CORP.

4. Fully pull the end of the interlock cable.



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle Shift Mechanism - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:30:13 AM

Page 15

© 2005 Mitchell Repair Information Company, LLC.

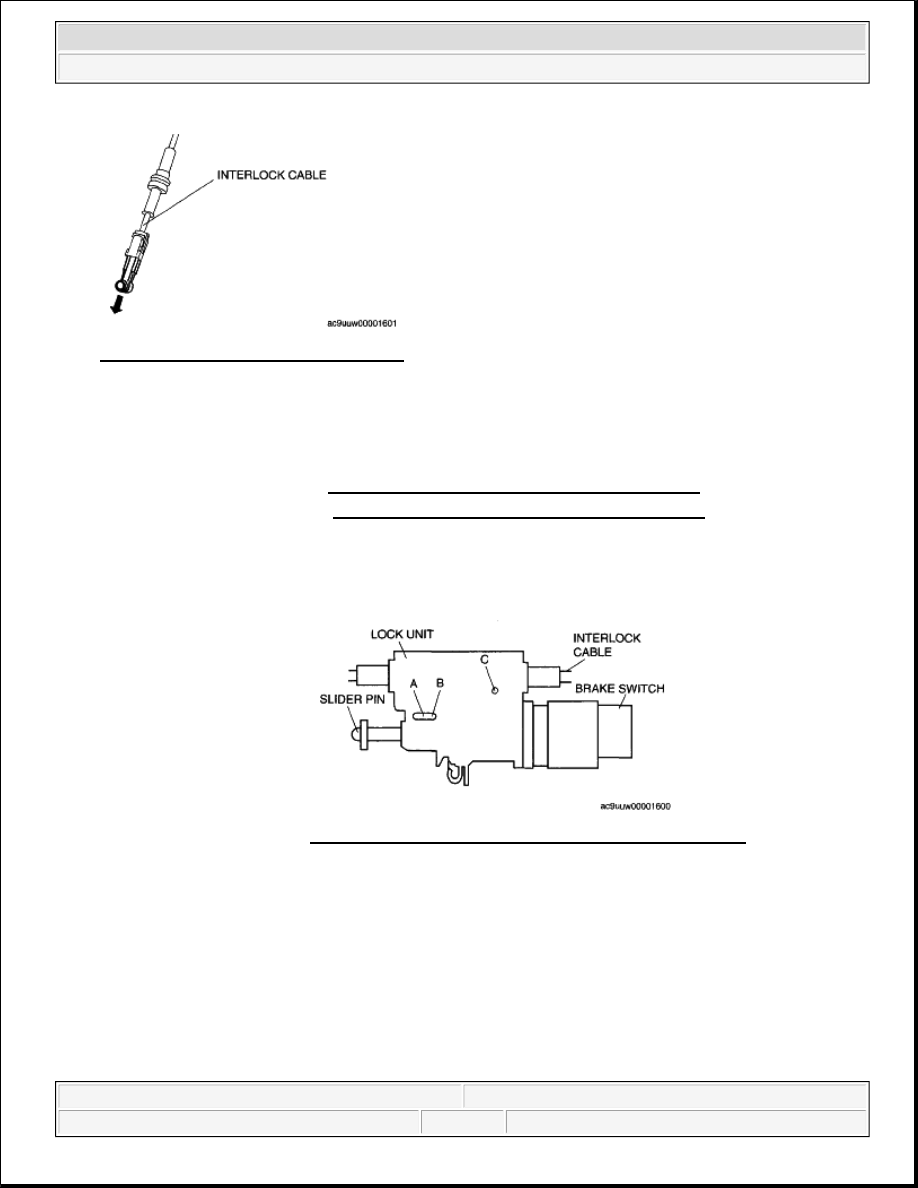

Fig. 33: Pulling End Of Interlock Cable
Courtesy of MAZDA MOTORS CORP.

5. Push the a 1.5 mm {0.059 in} round bar or similar into hole B and hole C of the lock unit until it passes

through.

6. Disconnect the brake switch connector.

7. Remove the brake switch. (See BRAKE PEDAL REMOVAL/INSTALLATION .)

8. Install a new brake switch. (See BRAKE PEDAL REMOVAL/INSTALLATION .)

9. With the slider pin pressed, slide the lock unit to fix the lock unit hook into the bracket hole securely as

shown in the figure.

CAUTION:

Do not connect the brake switch connector until the interlock
cable is installed.

Fig. 34: Identifying Hole B And Hole C Of Lock Unit
Courtesy of MAZDA MOTORS CORP.

CAUTION:

Allowing the interlock cable to be bent or twisted during
installation can affect the lock unit operation.



2008 Mazda CX-9 Grand Touring

2008 TRANSMISSION Automatic Transaxle Shift Mechanism - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:30:13 AM

Page 16

© 2005 Mitchell Repair Information Company, LLC.
