Mazda CX-9 Grand Touring. Manual - part 78





Fig. 270: Installing Converter Housing To Transaxle Case
Courtesy of MAZDA MOTORS CORP.

71. Temporarily tighten the bolts by hand as shown in the figure.

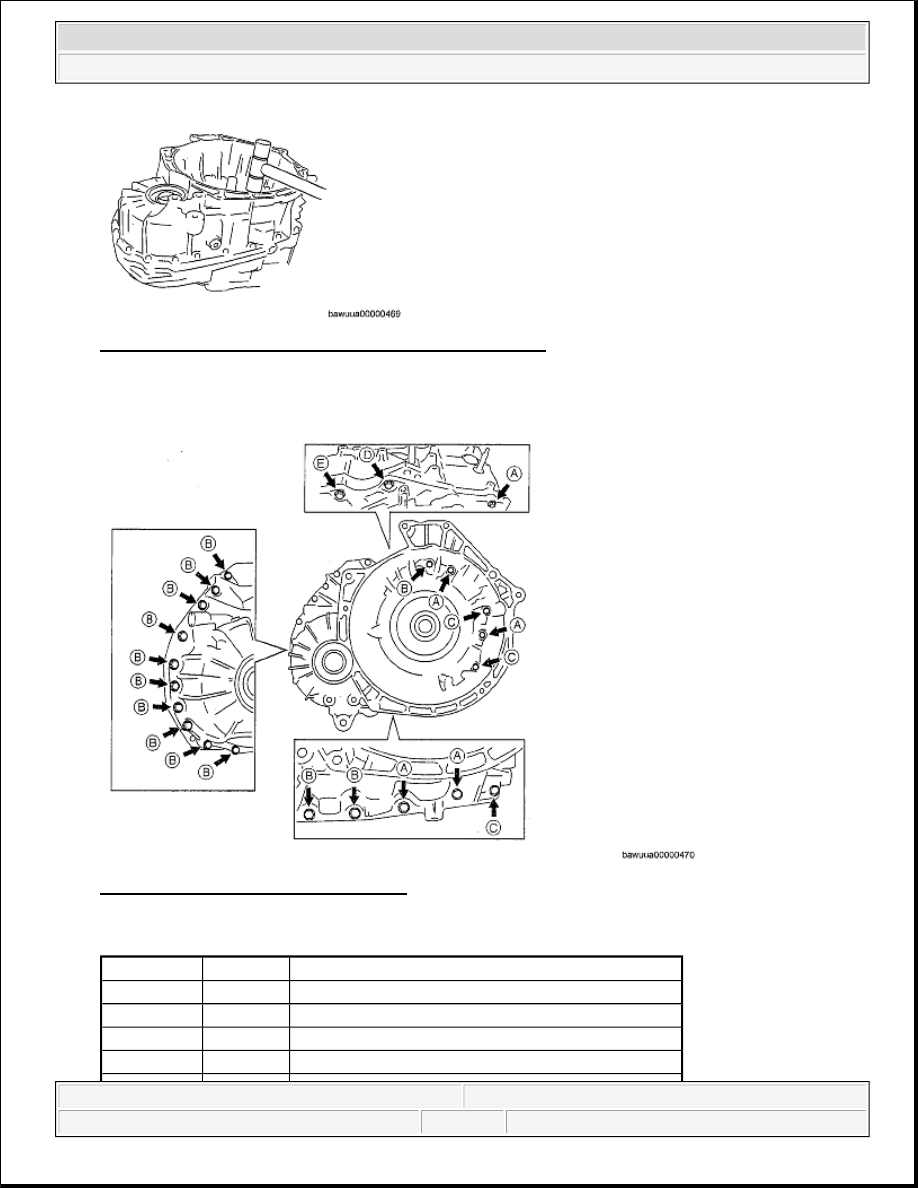

Fig. 271: Locating Transaxle Case Bolts
Courtesy of MAZDA MOTORS CORP.

TRANSAXLE CASE BOLTS IDENTIFICATION TABLE

Bolt number Bolt size Length (measured from below the head) (mm {in})

A

M8 x 1.25

30 {1.18}

B

M8 x 1.25

35 {1.38}

C

M8 x 1.25

39 {1.54}

D

M10 x 1.25

25 {0.984}



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 146

© 2005 Mitchell Repair Information Company, LLC.

72. Tighten the bolts.

Tightening torque

A, B, C: 23.5 - 35.3 N.m {2.4 - 3.5 kgf.m, 17.4 - 26.0 ft.lbf}

D, E: 29.4 - 41.2 N.m {3.0 - 4.2 kgf.m, 21.7 - 30.3 ft.lbf}

73. Install the input/turbine speed sensor to the transaxle case.

Tightening torque 3.9 - 6.9 N.m {40 - 70 kgf.cm, 26 - 60 in.lbf}

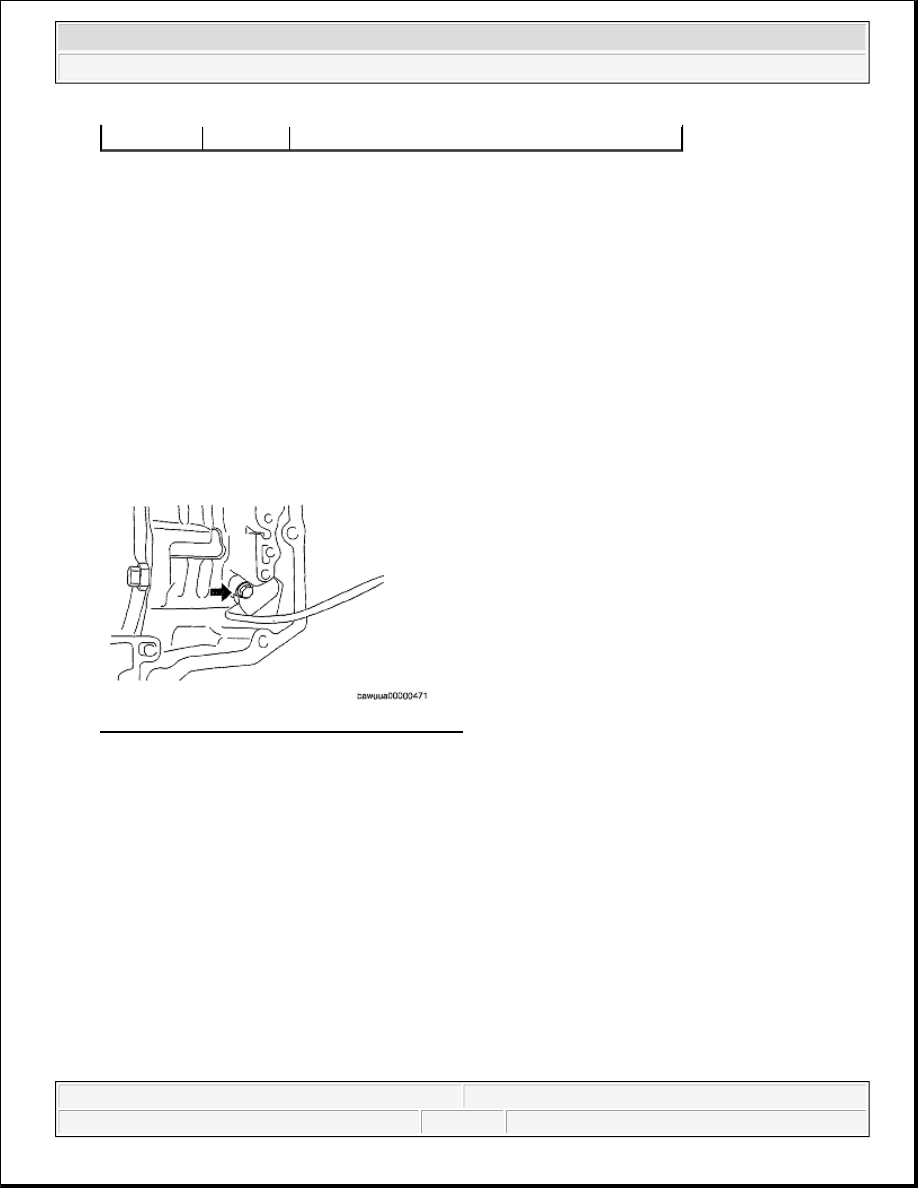

Fig. 272: Locating Input/Turbine Speed Sensor
Courtesy of MAZDA MOTORS CORP.

74. Apply ATF to a new gasket as shown in the figure.

75. Install the gasket to the coupler component.

76. Install a new O-ring to the coupler component.

E

M10 x 1.25

40 {1.57}

CAUTION:

Do not damage the input/turbine speed sensor.

CAUTION:

Do not apply ATF to the O-ring.

CAUTION:

Do not apply too much force to the coupler component.

Do not damage the coupler component.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 147

© 2005 Mitchell Repair Information Company, LLC.

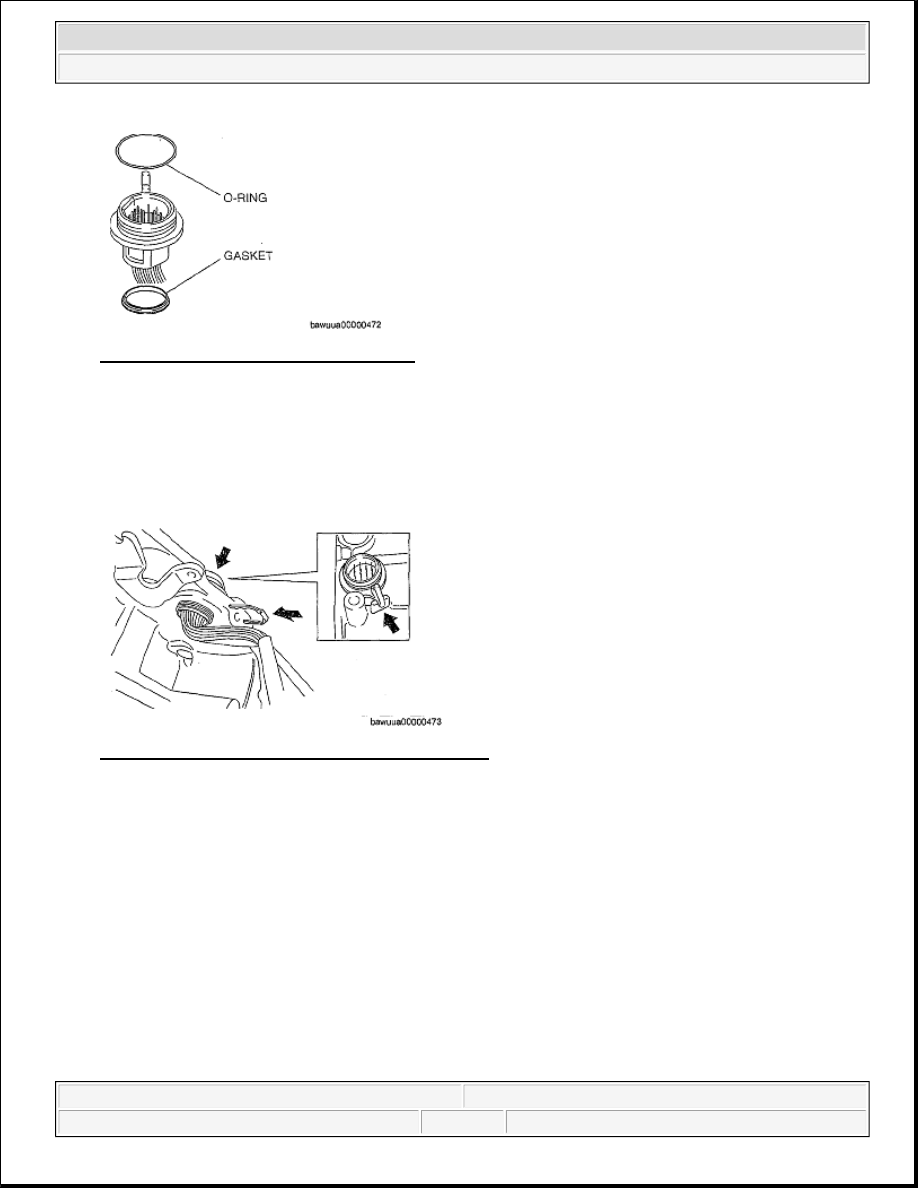

Fig. 273: Identifying O-Ring And Gasket
Courtesy of MAZDA MOTORS CORP.

77. Install the coupler component to the transaxle case.

Fig. 274: Locating Coupler Component Lock Plate
Courtesy of MAZDA MOTORS CORP.

78. Install a new coupler component lock plate.

NOTE:

Install the coupler component to the transaxle case by engaging its
claw.

CAUTION:

When installing the control valve body component, do not put
the coupler component in the open space of the separate plate
in the control valve body component.

Do not pinch the coupler component between the separate plate
and the control valve body component.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 148

© 2005 Mitchell Repair Information Company, LLC.

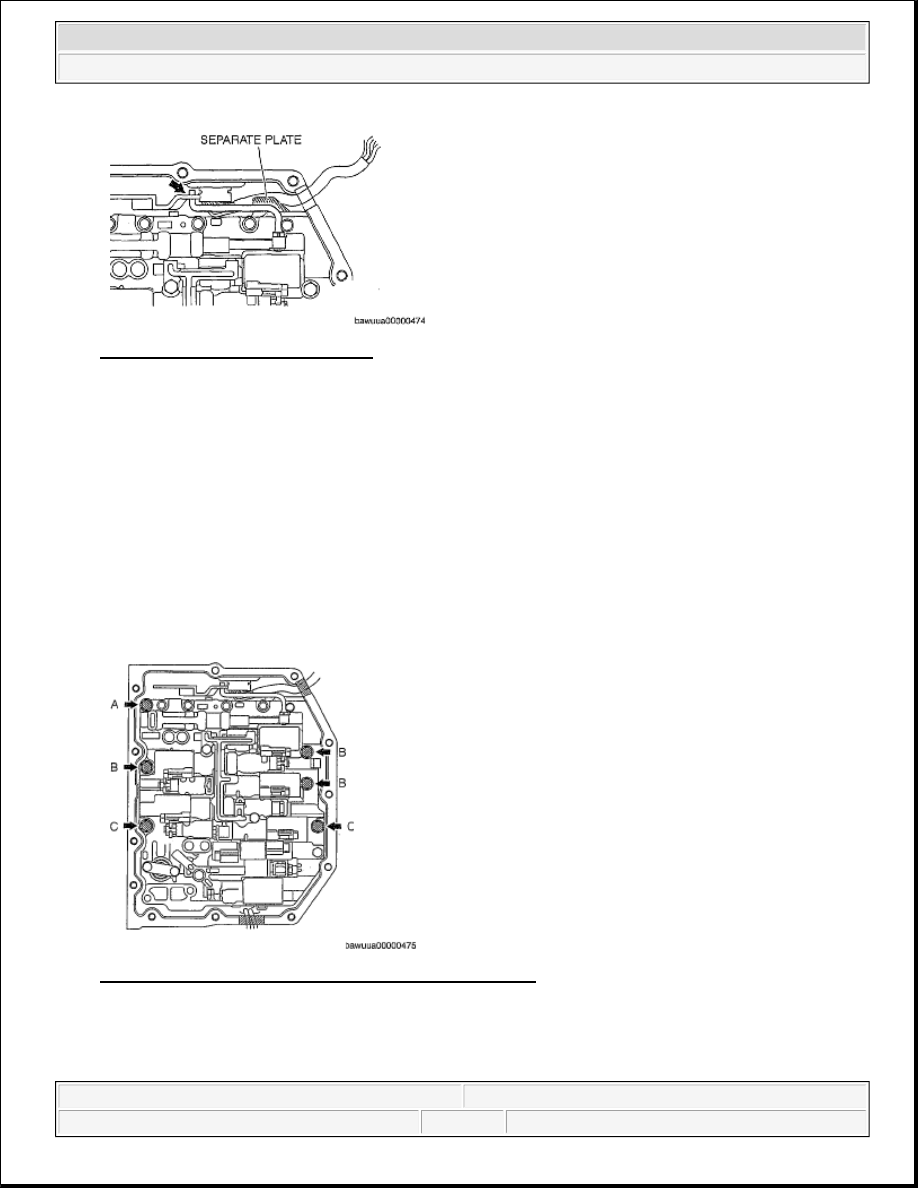

Fig. 275: Identifying Separate Plate
Courtesy of MAZDA MOTORS CORP.

79. Connect the manual valve link and install the control valve body component.

80. Temporarily install the control valve body component with the bolts.

Bolt length (measured from below the head)

A. A: 31 mm {1.220 in}

B. B: 17 mm {0.669 in}

C. C: 21 mm {0.827 in}

Fig. 276: Locating Control Valve Body Component Bolts
Courtesy of MAZDA MOTORS CORP.

81. Temporarily install the suction cover and a new gasket with the bolts.

NOTE:

Aligning the bolt holes, temporarily tighten the bolts by hand.
