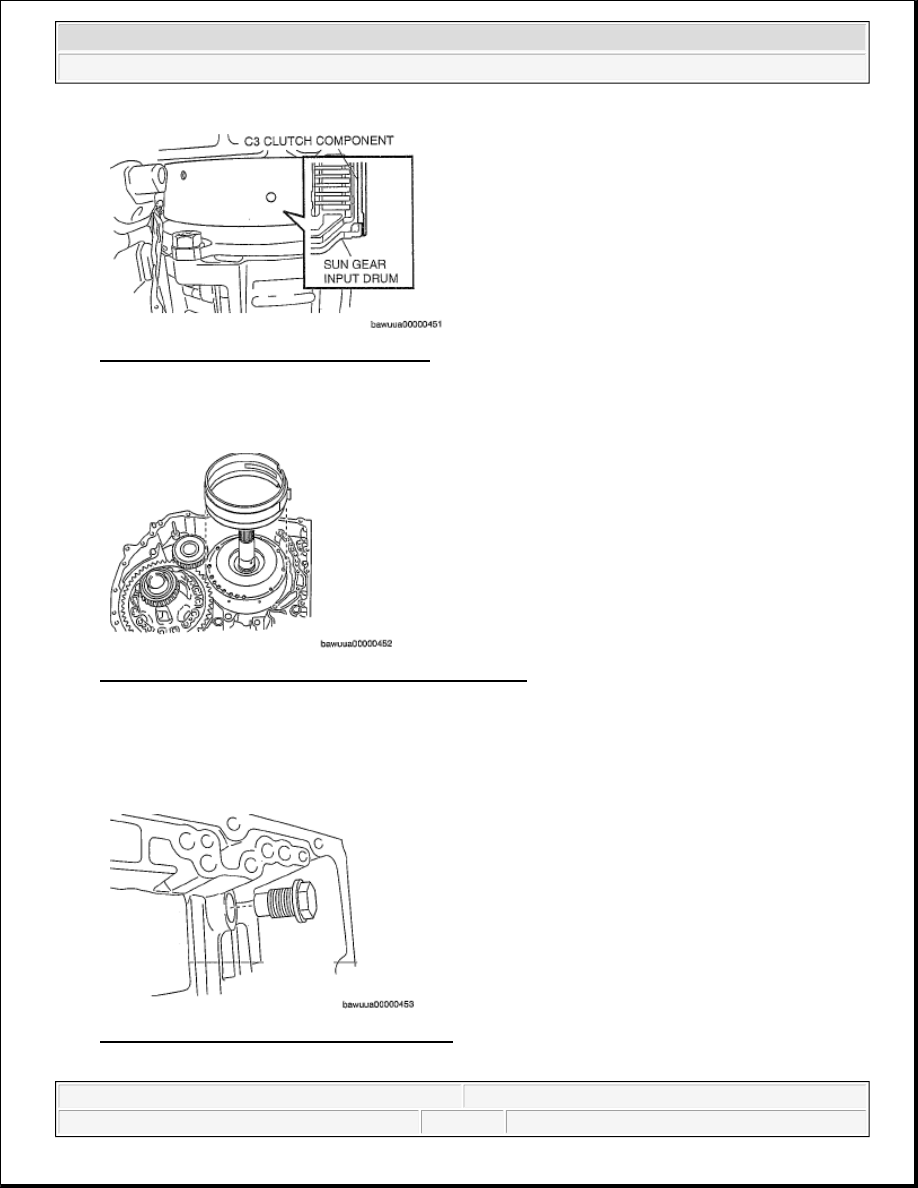

Fig. 252: Inspecting C3 Clutch Component
Courtesy of MAZDA MOTORS CORP.

47. Install the B1 brake band to the transaxle case.

Fig. 253: Identifying B1 Brake Band Of Transaxle Case
Courtesy of MAZDA MOTORS CORP.

48. Install the brake band anchor bolt to the transaxle case.

Tightening torque 133.3 - 199.9 N.m {13.6 - 20.3 kgf.m, 98.3 - 147.4 ft.lbf}

Fig. 254: Identifying Brake Band Anchor Bolt
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 138

© 2005 Mitchell Repair Information Company, LLC.

49. Install the piston return spring, B1 brake piston and the brake piston cover to the transaxle case.

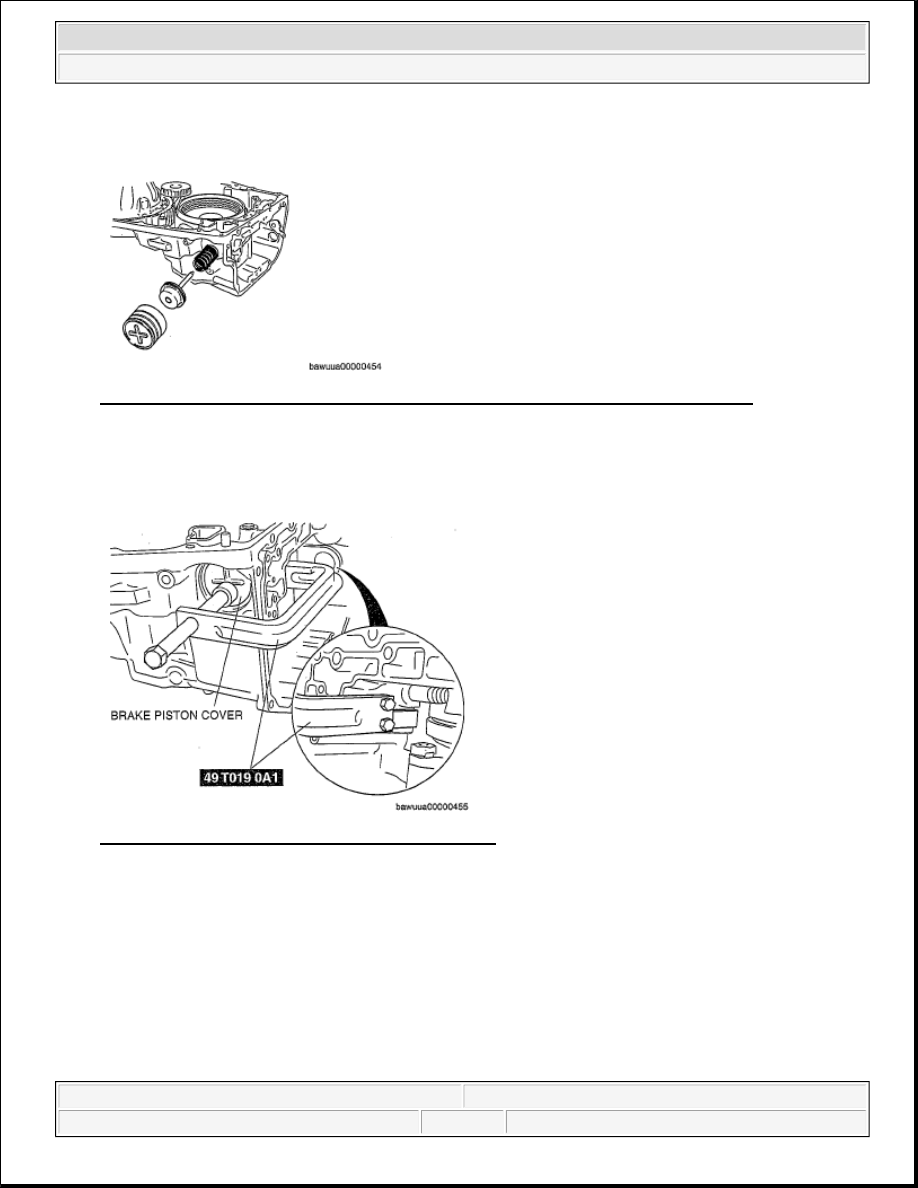

Fig. 255: Identifying Piston Return Spring, B1 Brake Piston And Brake Piston Cover
Courtesy of MAZDA MOTORS CORP.

50. Using the SST, press the brake piston cover into the position where the snap ring groove is visible.

51. Apply ATF to the oil seal.

Fig. 256: Pressing Brake Piston Cover Into Position
Courtesy of MAZDA MOTORS CORP.

52. Install the oil strainer and the oil seal to the oil pump component.

53. Apply ATF to each rubbing surface of the oil pump component.

CAUTION:



Do not drop the thrust washer.



Do not damage the oil seal.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 139

© 2005 Mitchell Repair Information Company, LLC.

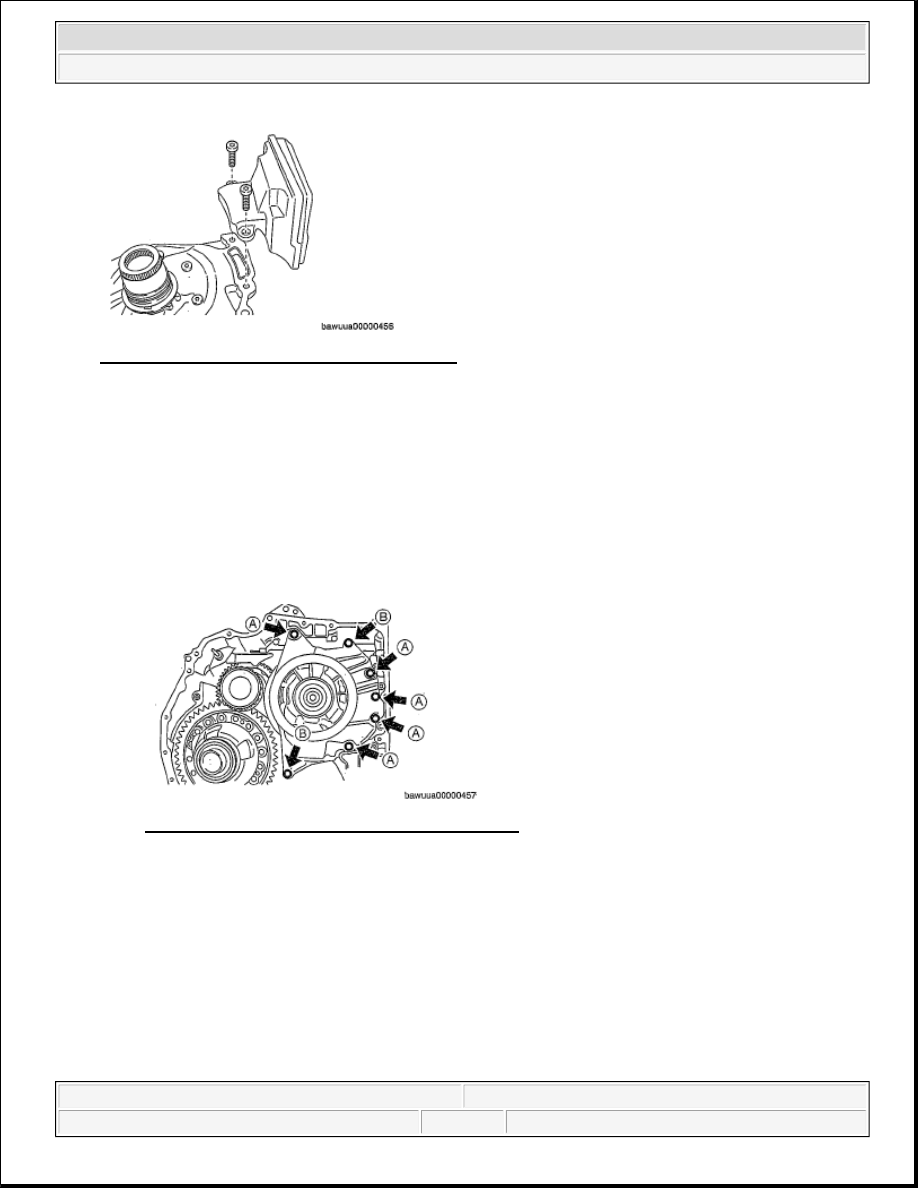

Fig. 257: Identifying Oil Strainer And Oil Seal
Courtesy of MAZDA MOTORS CORP.

54. Install the oil pump component to the transaxle case.

Tightening torque 19.6 - 29.4 N.m {2.0 - 2.9 kgf.m, 14.5 - 21.6 ft.lbf}

Bolt length (measured from below the head)

A. A: 22 mm {0.866 in}

B. B: 35 mm {1.378 in}

Fig. 258: Identifying Oil Pump Component Bolts
Courtesy of MAZDA MOTORS CORP.

55. Verify that the input shaft turns smoothly.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:17 AM

Page 140

© 2005 Mitchell Repair Information Company, LLC.

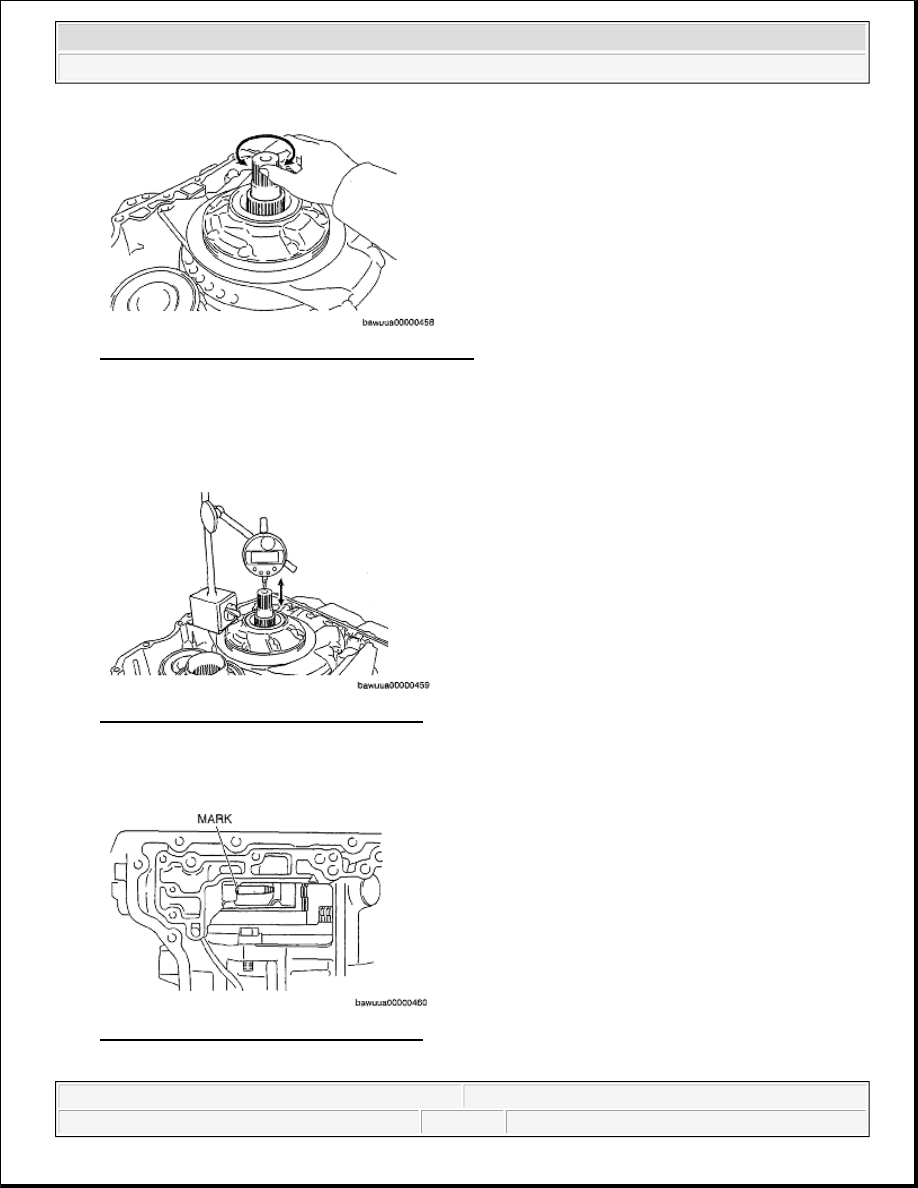

Fig. 259: Inspecting Input Shaft Turns Smoothly
