Mazda CX-9 Grand Touring. Manual - part 60

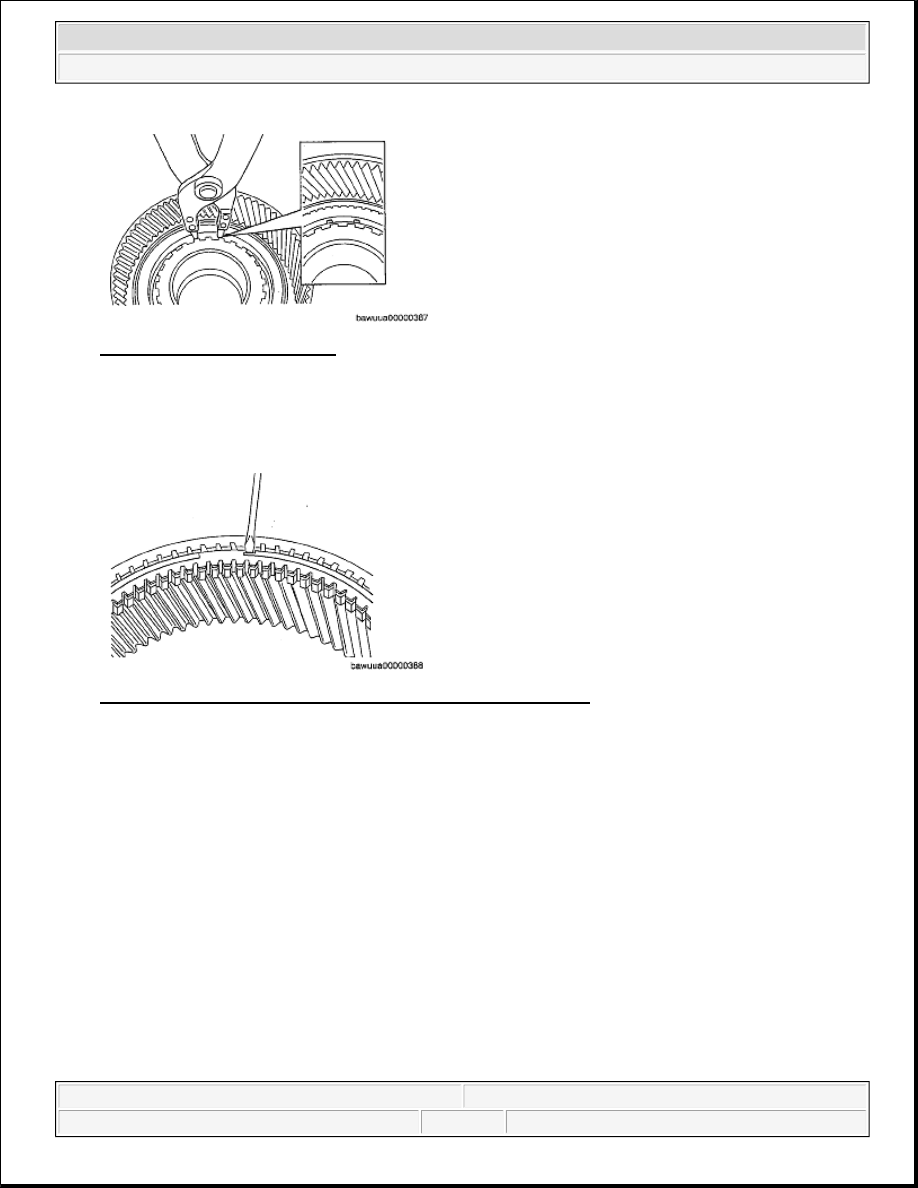

Fig. 140: Loosening Snap Ring
Courtesy of MAZDA MOTORS CORP.

2. Using a flathead screwdriver, remove the snap ring from the rear planetary ring gear.

3. Remove the ring gear flange from the rear planetary ring gear.

Fig. 141: Removing Snap Ring From Rear Planetary Ring Gear
Courtesy of MAZDA MOTORS CORP.

4. Using a flathead screwdriver and hammer, pry back the crimps locking the washer.

CAUTION:



If the lockwasher crimps are not completely pried back, the tool
cannot fit over the bolt properly and the bolt cannot be
loosened.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 74

© 2005 Mitchell Repair Information Company, LLC.

5. Using the SST , remove the nut and the washer.

Fig. 143: Identifying SST
Courtesy of MAZDA MOTORS CORP.

6. Using a flathead screwdriver, remove the snap ring from the counter drive gear.

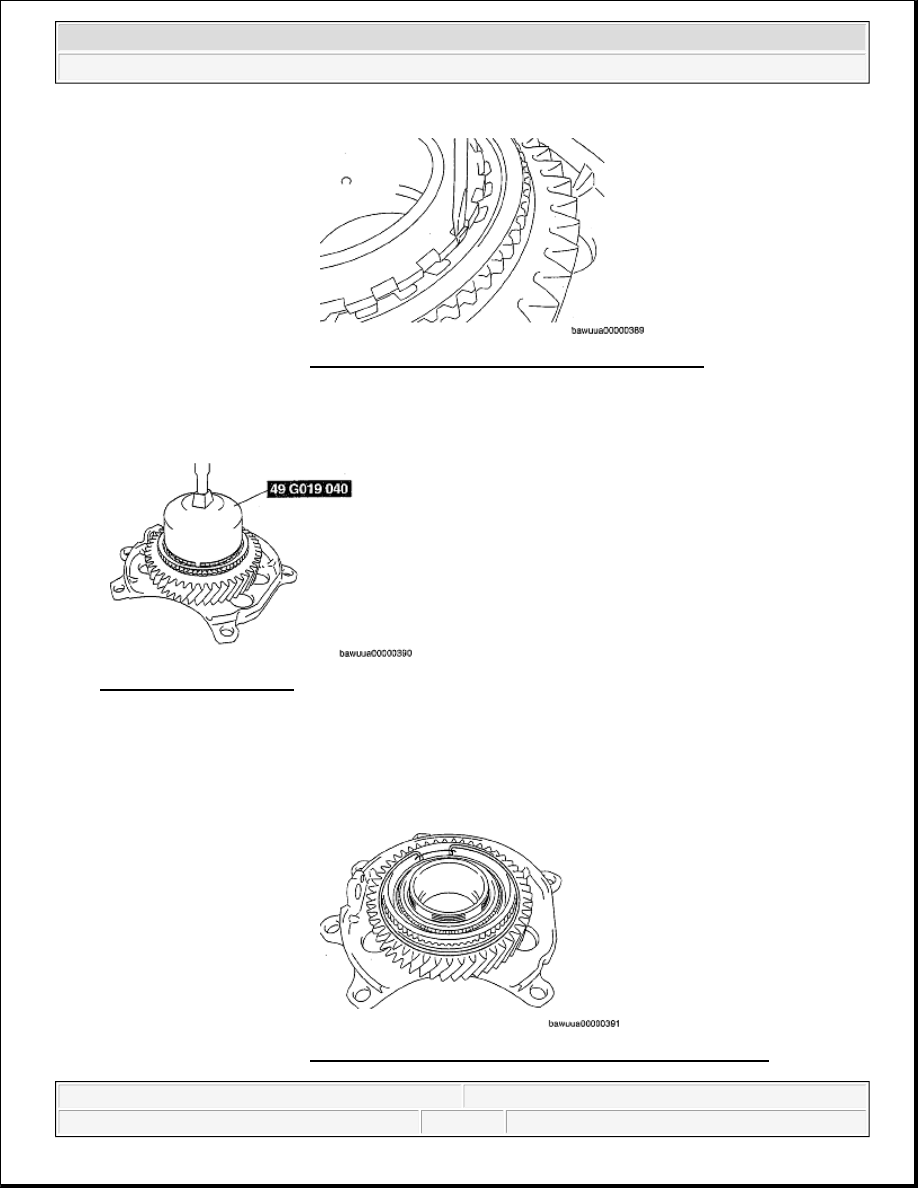

Fig. 142: Prying Back Crimps Locking Washer
Courtesy of MAZDA MOTORS CORP.

CAUTION:



Do not drop the tapered roller bearing.

Fig. 144: Identifying Snap Ring Of Counter Drive Gear
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 75

© 2005 Mitchell Repair Information Company, LLC.

7. Using the SST , remove the counter drive gear and tapered roller bearing.

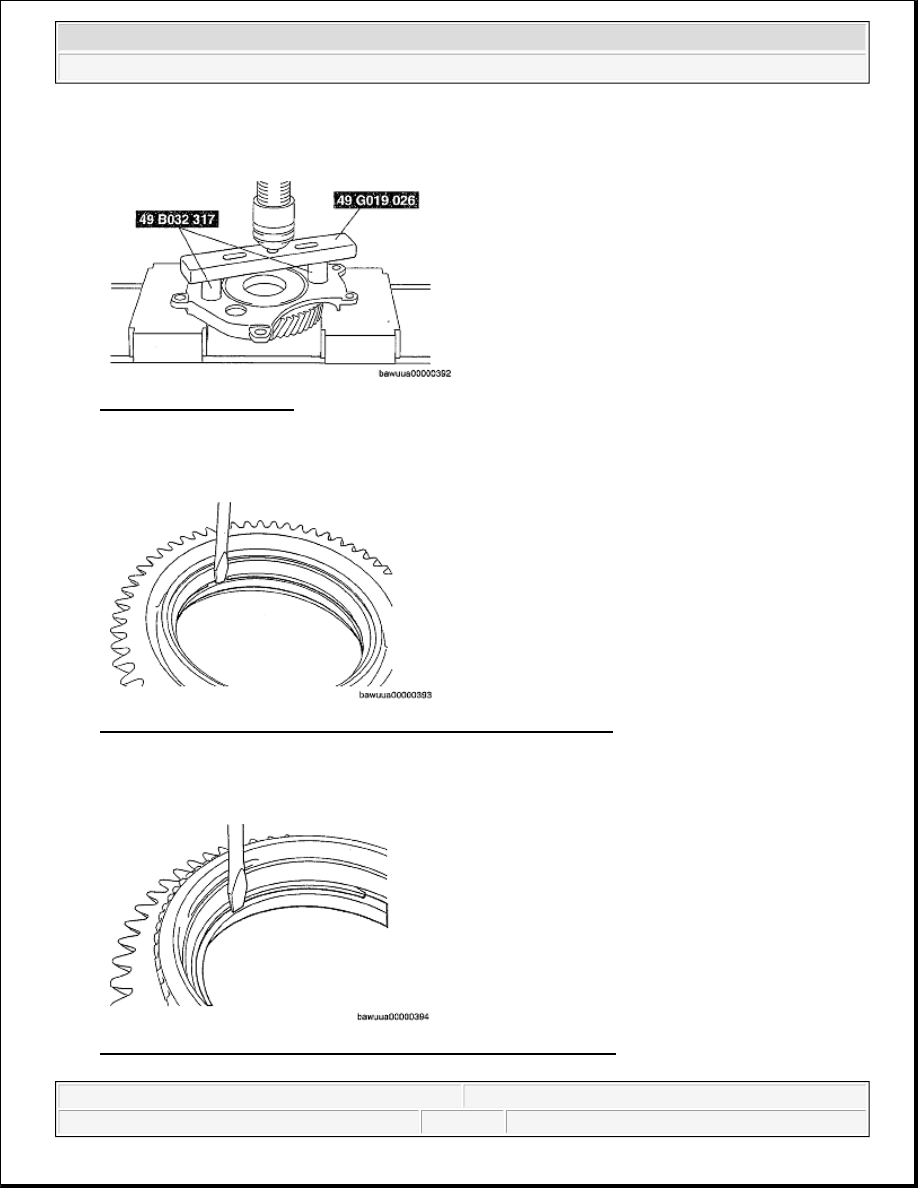

Fig. 145: Identifying SST
Courtesy of MAZDA MOTORS CORP.

8. Using a flathead screwdriver and hammer, remove the bearing race inner from the counter drive gear.

Fig. 146: Removing Bearing Race Inner From Counter Drive Gear
Courtesy of MAZDA MOTORS CORP.

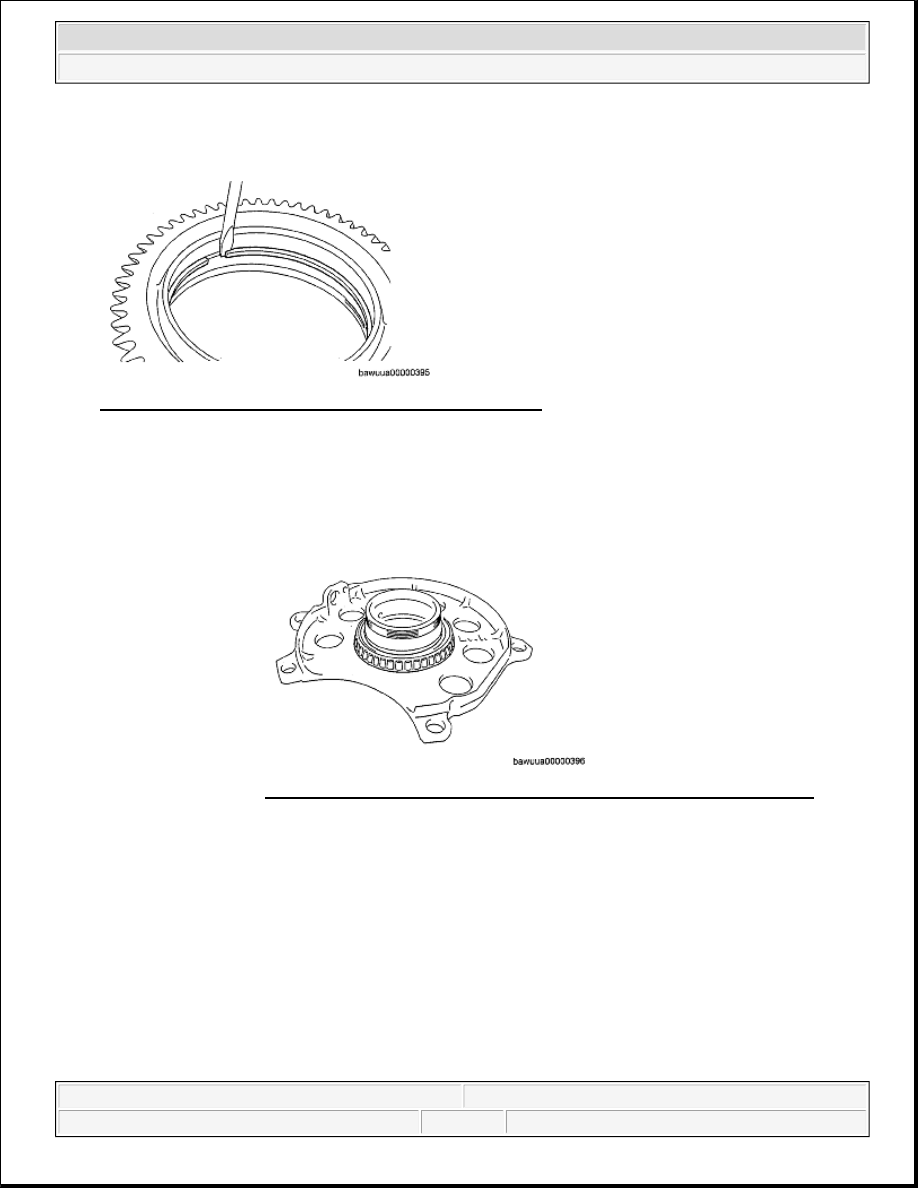

9. Using a flathead screwdriver and hammer, remove the bearing race outer from the counter drive gear.

Fig. 147: Removing Bearing Race Outer From Counter Drive Gear
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:16 AM

Page 76

© 2005 Mitchell Repair Information Company, LLC.

10. Using a flathead screwdriver, remove the snap ring from the counter drive gear.

Fig. 148: Removing Snap Ring From Counter Drive Gear
Courtesy of MAZDA MOTORS CORP.

Assembly Procedure

1. Using the SST and a press, install the tapered roller bearing to the center support.

Substitution SST



49 L033 101

NOTE:



The tapered roller bearing cannot be removed from the center
support.



The tapered roller bearing and center support must be replaced as a
set.

Fig. 149: Identifying Tapered Roller Bearing And Center Support
Courtesy of MAZDA MOTORS CORP.

NOTE:



The tapered roller bearing and bearing race outer must be replaced as a
set.
