Mazda CX-9 Grand Touring. Manual - part 42



Do not apply oil or drive the vehicle immediately after installing a part applied with sealant. Leave
it for one hour or more.



Do not wash aluminum parts or rubber parts with alkaline chemicals.



Do not wash the rubber parts with white gasoline.

6. Handling ATF with care



If you spill ATF on the floor, wipe it off immediately, as it is quite slippery and dangerous.



Be sure to use JWS3309 type ATF.

Disassembly

Components



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:15 AM

Page 2

© 2005 Mitchell Repair Information Company, LLC.



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:15 AM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

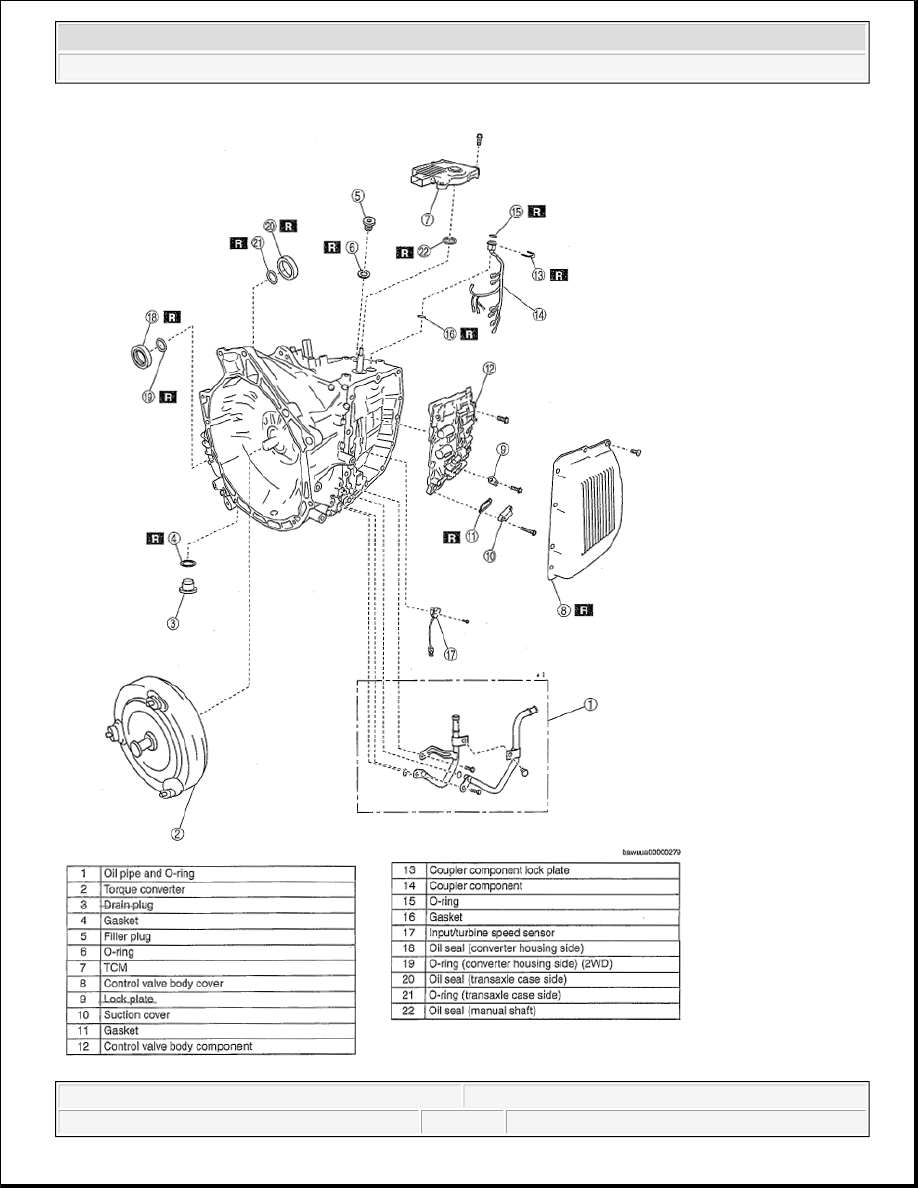

Fig. 1: Identifying Automatic Transaxle Disassembly Components (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

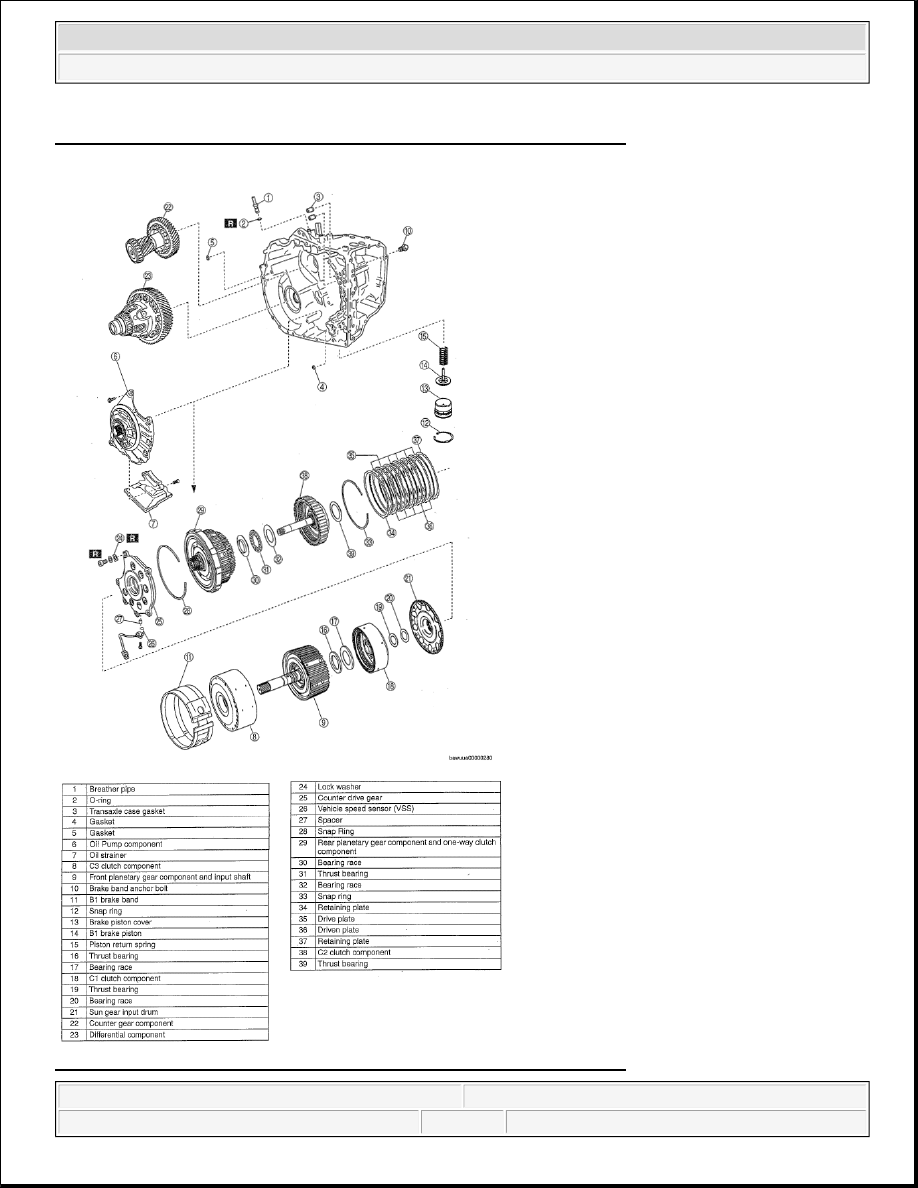

Fig. 2: Identifying Automatic Transaxle Disassembly Components (2 Of 4)



2008 Mazda CX-9 Grand Touring

2005-08 TRANSMISSION Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6



Microsoft



Sunday, November 15, 2009 10:28:15 AM

Page 4

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of MAZDA MOTORS CORP.

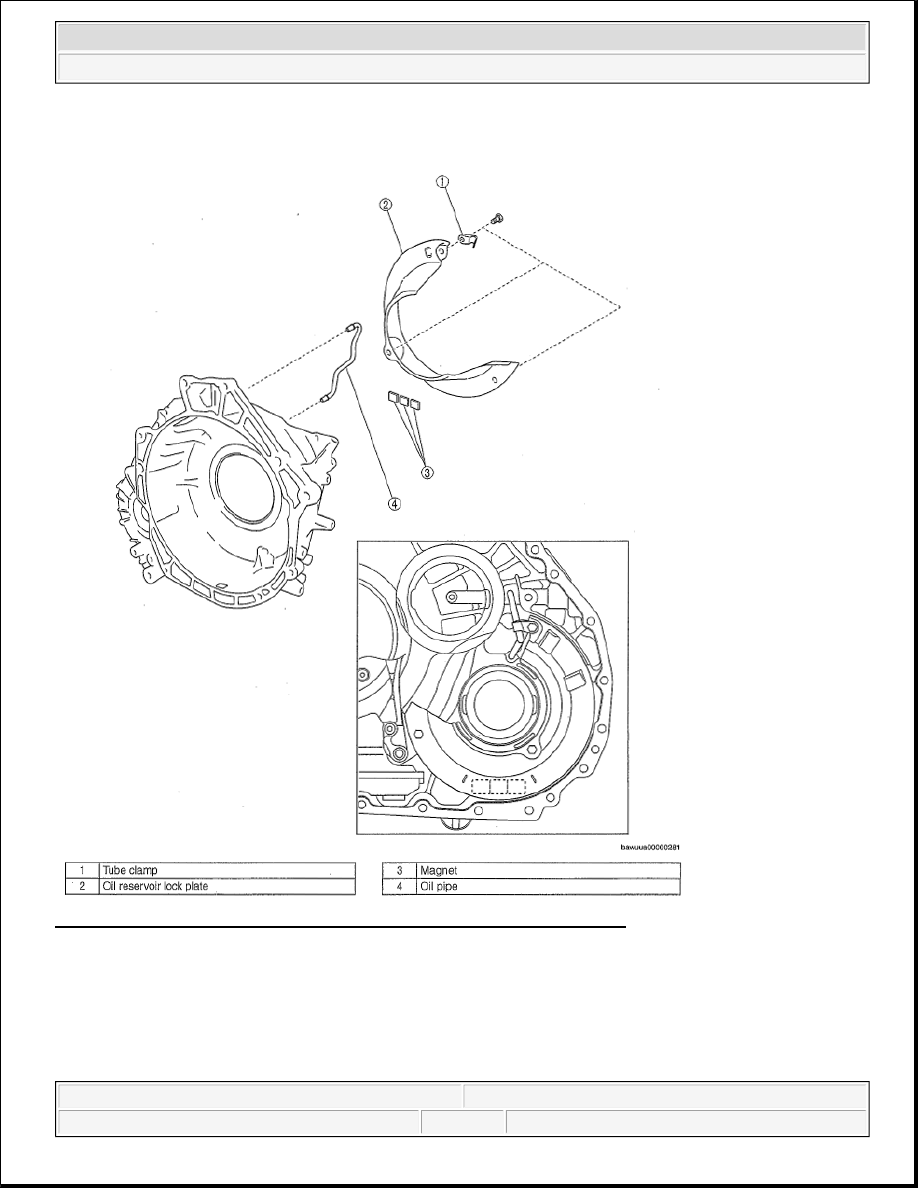

Fig. 3: Identifying Automatic Transaxle Disassembly Components (3 Of 4)
Courtesy of MAZDA MOTORS CORP.
