Mazda CX-9 Grand Touring. Manual - part 41





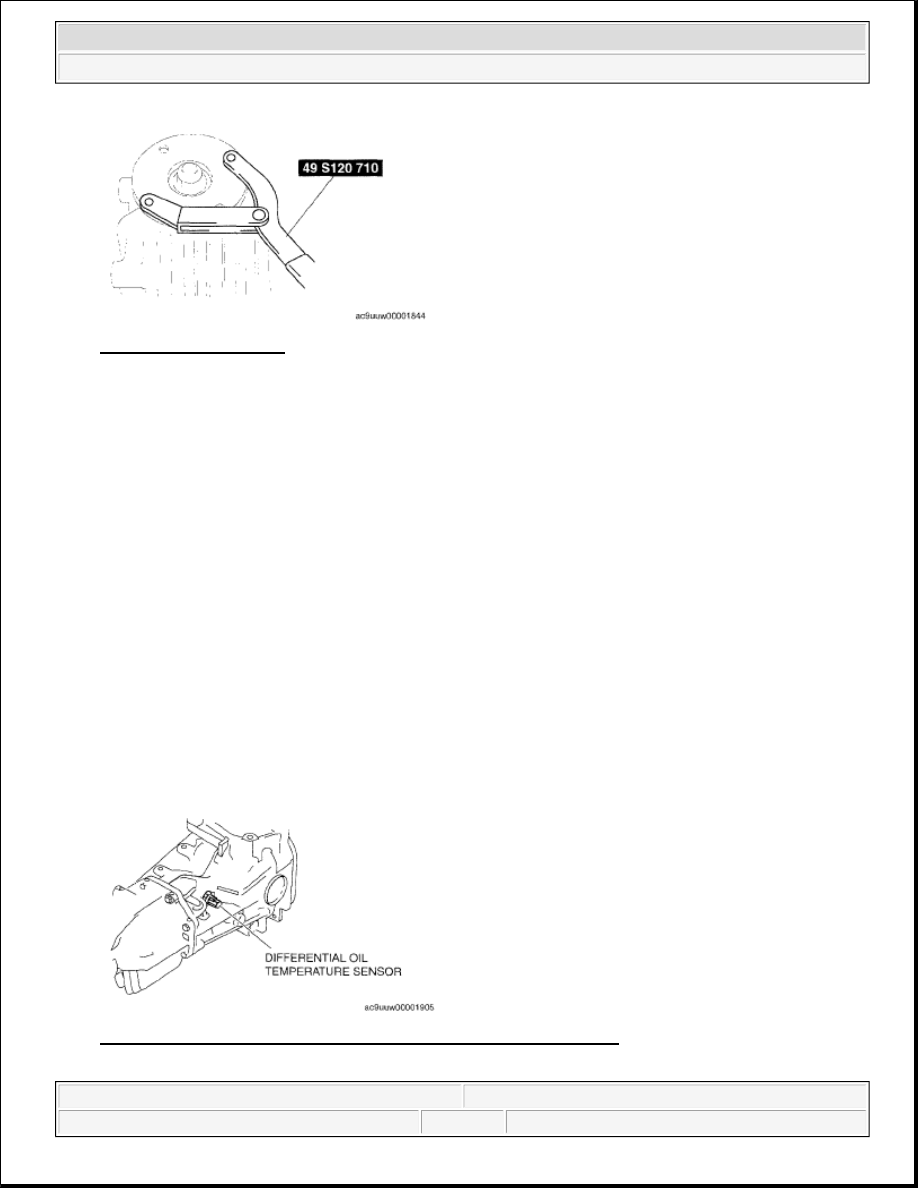

Fig. 24: Identifying SST
Courtesy of MAZDA MOTORS CORP.

DIFFERENTIAL OIL TEMPERATURE SENSOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Disconnect the differential oil temperature sensor connector.

3. Remove the differential oil temperature sensor.

4. Apply differential oil to the O-ring.

5. Install the differential oil temperature sensor.

Tightening torque

12.7-17.3 N.m {1.3-1.7 kgf.m, 9.4-12.7 ft.lbf}

6. Connect the differential oil temperature sensor connector.

7. Connect the negative battery cable.

Fig. 25: Identifying Differential Oil Temperature Sensor Connector
Courtesy of MAZDA MOTORS CORP.

WARNING:

Hot differential oil may cause severe burns. Do not perform
maintenance while differential oil is hot.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE All Wheel Drive (AWD) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:31:22 AM

Page 16

© 2005 Mitchell Repair Information Company, LLC.

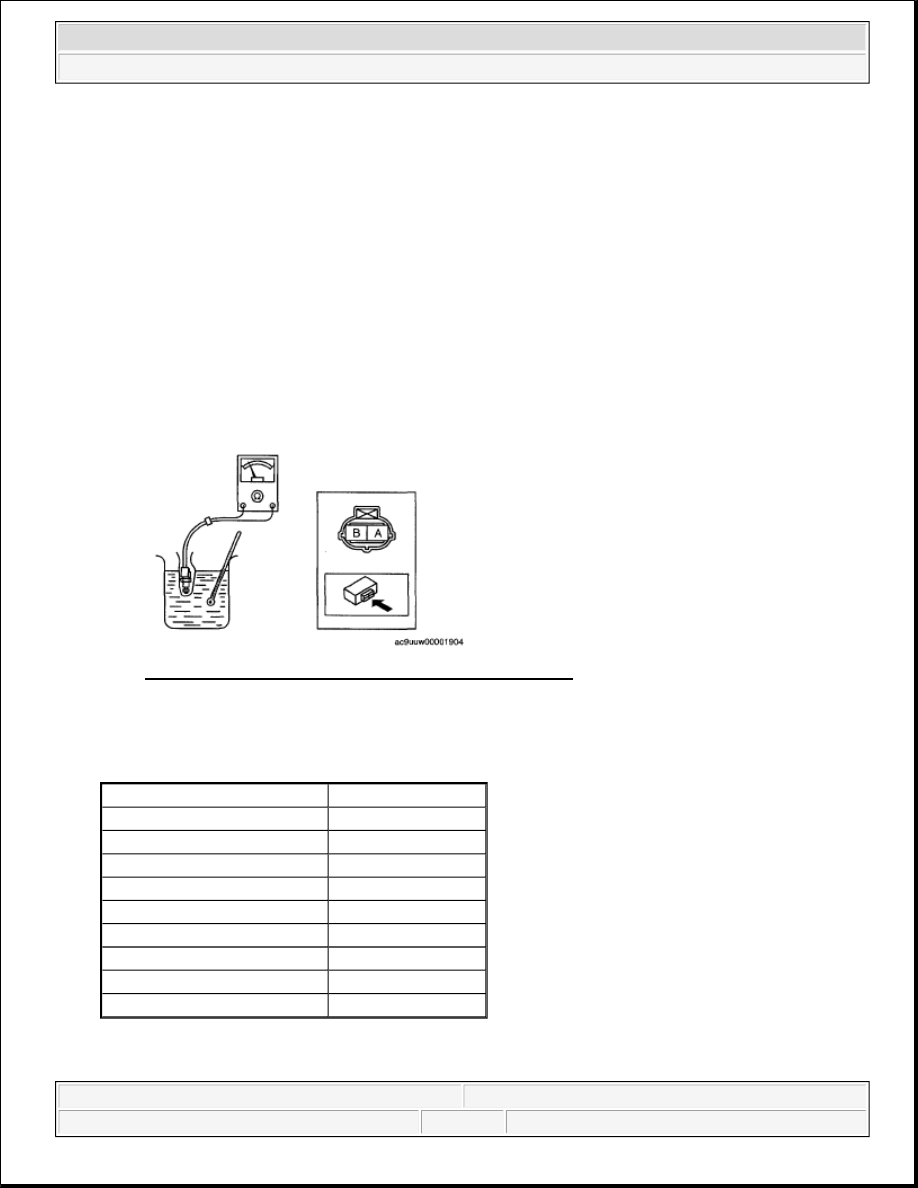

DIFFERENTIAL OIL TEMPERATURE SENSOR INSPECTION

1. Disconnect the negative battery cable.

2. Disconnect the differential oil temperature sensor connector and remove the differential oil temperature

sensor.

3. Wrap the differential oil temperature sensor with plastic wrap and immerse it into a beaker filled with

water. Gradually raise the water temperature, and measure resistance between differential oil temperature
sensor terminals A and B.

If not as specified, inspect the harness for continuity. If there is normal continuity between the
terminals, replace the differential oil temperature sensor.

Fig. 26: Inspecting Differential Oil Temperature Sensor
Courtesy of MAZDA MOTORS CORP.

Differential oil temperature sensor specification

RESISTANCE SPECIFICATION

4. Install the differential oil temperature sensor and connect the connector.

5. Connect the negative battery cable.

WARNING:

Hot differential oil may cause severe burns. Do not perform
maintenance while differential oil is hot.

Water temperature (°C {°F}) Resistance (kirohm)

0 {32}

91-100

10 {50}

56-61

20 {68}

35-39

30 {86}

23-25

40 {104}

14-17

50 {122}

10-11

60 {140}

7.1-7.9

70 {158}

5.0-5.6

80 {176}

3.6-4.0



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE All Wheel Drive (AWD) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:31:22 AM

Page 17

© 2005 Mitchell Repair Information Company, LLC.

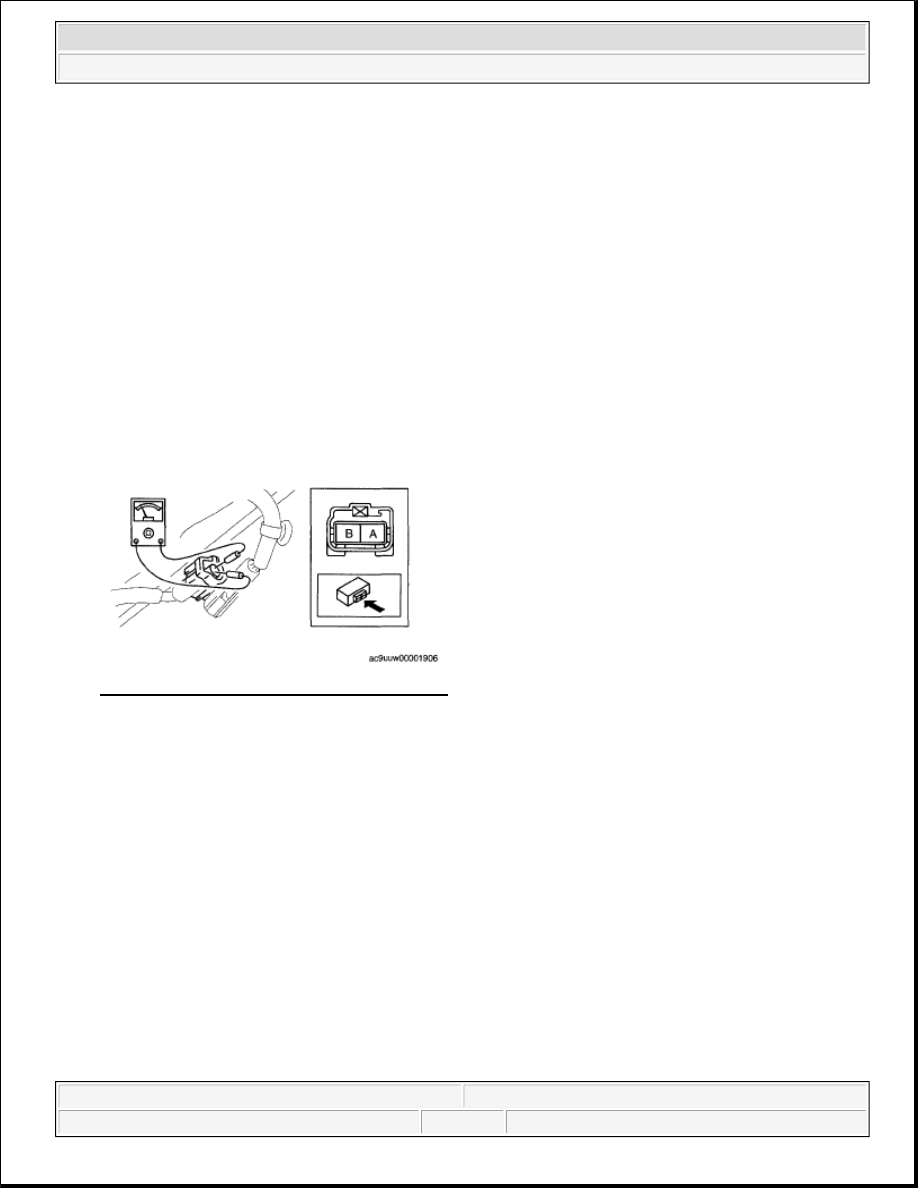

AWD SOLENOID INSPECTION

1. Disconnect the negative battery cable.

2. Disconnect the AWD solenoid connector.

3. Measure resistance between AWD solenoid connector terminals A and B.

If the resistance is not within the specification, replace the coupling unit.

AWD solenoid resistance

1.5-2.0 ohms

(Rear differential oil temperature at 20°C {68°F})

4. Connect the AWD solenoid connector.

5. Connect the negative battery cable.

Fig. 27: Inspecting AWD Solenoid Connector
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLE All Wheel Drive (AWD) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:31:22 AM

Page 18

© 2005 Mitchell Repair Information Company, LLC.

2005-08 TRANSMISSION

Automatic Transaxle Overhaul (AW6A-EL) - CX-7, CX-9 & Mazda 6

AUTOMATIC TRANSAXLE

AUTOMATIC TRANSAXLE DISASSEMBLY

Precaution

The following are precautions that must be followed when performing removal/installation.

1. Handle electronic parts with care

Do not pull the wiring harness forcibly when disconnecting the connector. Unlock the lock first and
pull the connector.

When connecting the connector, verify to insert it until it is properly locked. (Verify that a click
sound is heard.)

Do not shock electronic parts. Replace with new parts if they have been dropped or subjected to
shock.

2. Prevent foreign matter from penetrating

Be sure to remove foreign matter such as dust and sand from the automatic transaxle before
removing parts.

Protect removed parts from dust with an object such as a vinyl sheet.

Do not use cotton work gloves or shop rags as frayed strings might get caught in the unit. Thus
work with bare hands or use vinyl gloves.

3. Prevent scratching

Do not pry with a screwdriver forcibly. Slightly hit the case with a plastic hammer when separating
component cases at seams.

Do not pull the valve forcibly.

Be careful not to get the wire harness caught between parts during installation.

4. Prevent incorrect installation and lack of or missing parts

Be careful not to install parts incorrectly or lose parts since there are similar types of O-rings, snap
rings, bearings and races. Take great care for straightening parts and checking installation direction.

Be careful not to drop small parts such as check balls or lose them during installation.

5. Wash parts and apply oil

Wash each part before installing and dry using compressed air, and then apply the specified ATF
type JWS3309.

Soak disks in ATF type JWS3309 before installing. In particular, soak new disks for 2 h or more
so that the oil seeps into the lining.

If the thrust bearing or race falls during installation, use a small amount of yellow petrolatum
grease.

Apply ATF type JWS3309 to contact and rotating surfaces.



2008 Mazda CX-9 Grand Touring
