SECURITY AND LOCKS [ADVANCED KEYLESS SYSTEM]

09–14A–9

09–14A

2006MY Mazda RX-8 Service Highlights (3409–1U–05J)

ON-BOARD DIAGNOSYS SYSTEM OUTLINE (KEYLESS ENTRY SYSTEM)

EHU091469000106

Special Features

• The keyless entry system has an on-board diagnostic function to facilitate system diagnosis.

• The on-board diagnostic function consists of the following functions: a malfunction detection function, which

detects overall malfunctions in the keyless entry system-related parts; a memory function, which stores
detected DTCs; a display function, which indicates system malfunctions by DTC display; and a PID/data
monitoring function, which reads out specific input/output signals.

• Using the WDS or equivalent, DTCs can be read out and cleared, and the PID/data monitoring function can be

activated.

End Of Sie

ON-BOARD DIAGNOSYS SYSTEM PID DATA/MONITOR FUNCTION OPERATION (KEYLESS ENTRY
SYSTEM)

EHU091469000107

On-board Diagnostic Function
Malfunction detection function

• Detects overall malfunctions in the keyless entry system-related parts.

Display function

• If any malfunction is detected, the keyless warning light (red) in the instrument cluster illuminates to inform the

driver of a system malfunction.

Memory function

• Stores malfunctions in the keyless entry system-related parts detected by the malfunction detection function,

and the stored malfunction contents are not cleared even if the ignition switch is turned to the LOCK position or
the negative battery cable is disconnected.

DTC table

*

: With immobilizer system

DTC

System malfunction location

WDS or equivalent

display

B1342

Keyless control module internal malfunction

B1134

Unprogrammed card key

B2477

Configuration error

B1317

Keyless control module power supply voltage increases.

B1318

Keyless control module power supply voltage decreases

B2170

Push switch (Steering lock unit)

B1126

Steering lock unit internal malfunction

U0236

Steering lock unit communication system

B1093

Steering lock unit communication error

U0214

Keyless receiver

B1133

Keyless antenna (exterior, RF)

B1132

Keyless antenna (exterior, LF)

B1127

Keyless antenna (Interior, trunk)

B1128

Keyless antenna (Interior, rear)

B1131

Keyless antenna (exterior, rear)

B1129

Keyless antenna (Interior, middle)

B112A

Keyless antenna (Interior, front)

U0323

Communication error to instrument cluster

U0100

Communication error to PCM

U0073

Control module communication error

U2023

Error signal from CAN related module

B1681

*

No detected communication with the coil antenna.

B2103

*

Coil malfunction

B1213

*

Only one key ID number is programmed.

SECURITY AND LOCKS [ADVANCED KEYLESS SYSTEM]

09–14A–10

2006MY Mazda RX-8 Service Highlights (3409–1U–05J)

Revised 4/2008 (Ref. No. R058/08)

PID/data monitor function

• The PID/data monitor function is used for optionally selecting input/output signal monitor items preset in the

keyless control module and reading them out in real-time.

• Use the WDS or equivalent to read the PID/data monitor.

PID/data monitor table

*

: Vehicles with immobilizer system

Simulation Function

• The simulation function is used for optionally selecting simulation items of output parts preset in the keyless

control module, and to operate them regardless of control.

ACTIVE COMMAND MODE TABLE

End Of Sie

PID name

(definition)

Data contents

Unit/

Operation

Terminal

DTC_CNT

Number of continuous DTCs

−

−

RPM

Engine speed

RPM

3Z, 3AA

VSS

Vehicle speed

KPH

3Z, 3AA

VPWR

Supply voltage

V

2A

NUMCARD

Number of programmed card keys

−

−

NUMKEY

*

Number of programmed key ID numbers

−

−

DRSW_D

Door switch (driver’s door)

CLOSE/

OPEN

3Q

DRSW_ALL

Door switch (except driver’s door)

CLOSE/

OPEN

3Q

REQ_SW_R

Request switch (right side door)

On/Off

3I

REQ_SW_L

Request switch (left side door)

On/Off

3K

REQ_SW_BK

Request switch (trunk lid)

On/Off

3M

LOCK_SW_D

Door lock-link switch (driver’s side)

On/Off

3N

IMMOBI

Immobilizer system equipped or not

On

*

/Off

−

TR/LG_SW

Trunk compartment light switch

CLOSE/

OPEN

IG_KEY_IN

Key reminder switch

Key-In/Key-

Out

3F

IG_SW_ST

Ignition switch (Push switch)

Pushed/Not

Pushed

3E

BUZZER

Keyless beeper

On/Off

2K

SECURITY

Security light

On/Off

2G

PWR_IG1

Power supply (IG1)

On/Off

2C

PWR_ACC

Power supply (ACC)

On/Off

2E

Command

name

Output part name

Unit/

Operation

Terminal

BZR_OUT

Keyless beeper

On/Off

2K

BZR_INN

Interior buzzer (Instrument cluster)

On/Off

3Z, 3AA

LNP_RED

Keyless warning light (red)

On/Off

3Z, 3AA

LNP_GREEN

Keyless indicator light (green)

On/Off

3Z, 3AA

DR_LOCK

All doors lock

Off/Lock

3Q

DR_UNLOCK

All doors unlock

Off/Unlock

3Q

SECURITY AND LOCKS [ADVANCED KEYLESS SYSTEM]

09–14A–11

09–14A

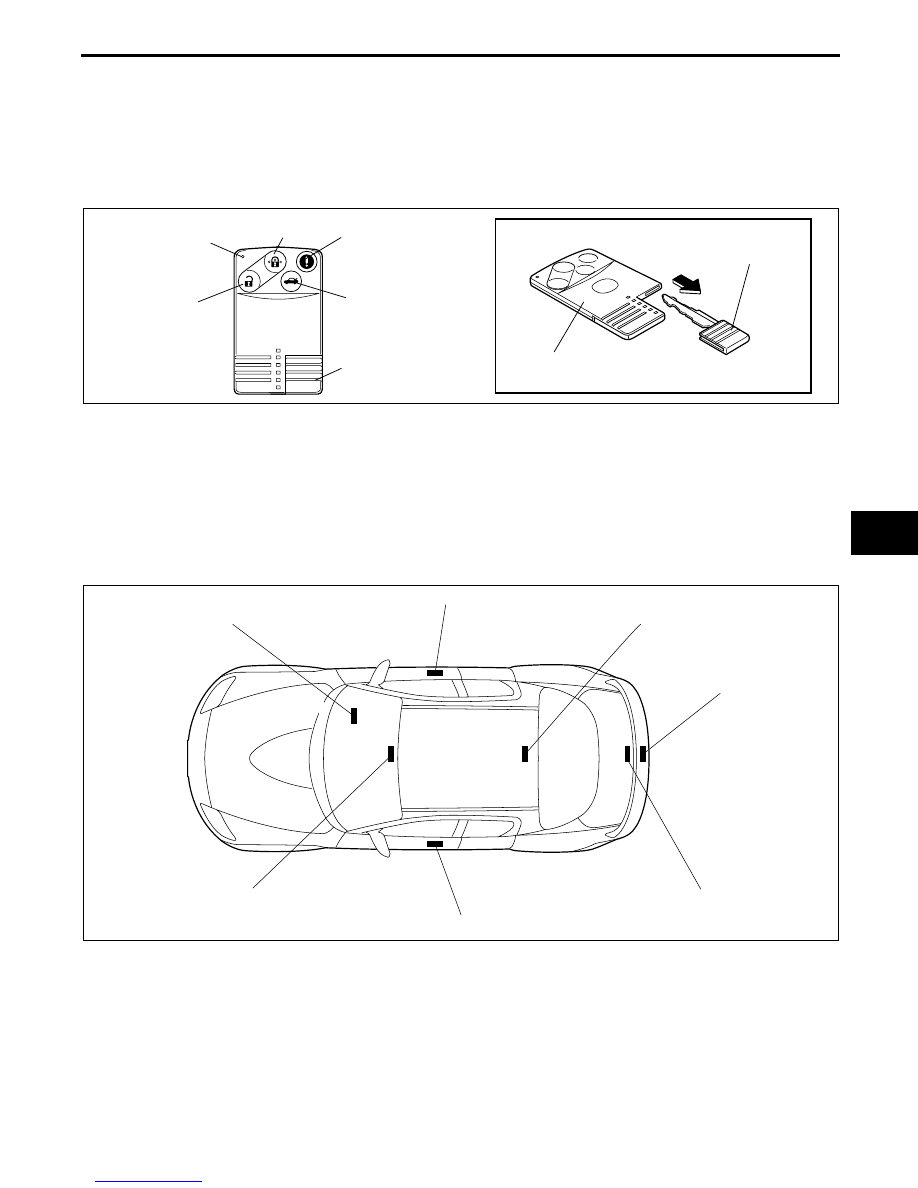

CARD KEY (TRANSMITTER) CONSTRUCTION/OPERATION

EHU091469000108

•

A card-type transmitter that is thin and convenient to carry has been adopted.

•

A maximum of six transmitters can be programmed for one vehicle.

•

A built-in operation indicator light illuminates according to LOCK/UNLOCK button operation and request signal
from the vehicle.

•

In case the transmitter is inoperable due to battery depletion, the doors can be locked/unlocked and the engine
can be started using the auxiliary key.

•

A transponder is built into the auxiliary key for vehicles with the immobilizer system.

End Of Sie

KEYLESS ANTENNA CONSTRUCTION/OPERATION

EHU091469000109

•

Consists of the antennas for request signal output (7 locations).

•

Operated by the keyless control module, the keyless antennas send request signals to produce the reception
areas inside and outside the vehicle.

•

The keyless antennas built-into the front doors can output signals to both inside or outside the vehicle, and
change the level of the radiowave (output to inside or outside the vehicle) according to operation conditions.

•

The keyless control module locates the card key by determining the antenna which is receiving the signal the
strongest.

End Of Sie

INDICATOR
LIGHT

UNLOCK BUTTON

LOCK BUTTON

PANIC BUTTON

TRUNK LID
BUTTON

AUXILIARY KEY

AUXILIARY KEY

TRANSMITTER

E5U914AS1008

KEYLESS ANTENNA (EXTERIOR, RF)

KEYLESS ANTENNA (EXTERIOR, LF)

KEYLESS ANTENNA (INTERIOR, MIDDLE)

KEYLESS ANTENNA (TRUNK LID)

KEYLESS ANTENNA (INTERIOR, FRONT)

KEYLESS ANTENNA
(EXTERIOR, REAR)

KEYLESS ANTENNA (INTERIOR, REAR)

EHU914AS8008

SECURITY AND LOCKS [ADVANCED KEYLESS SYSTEM]

09–14A–12

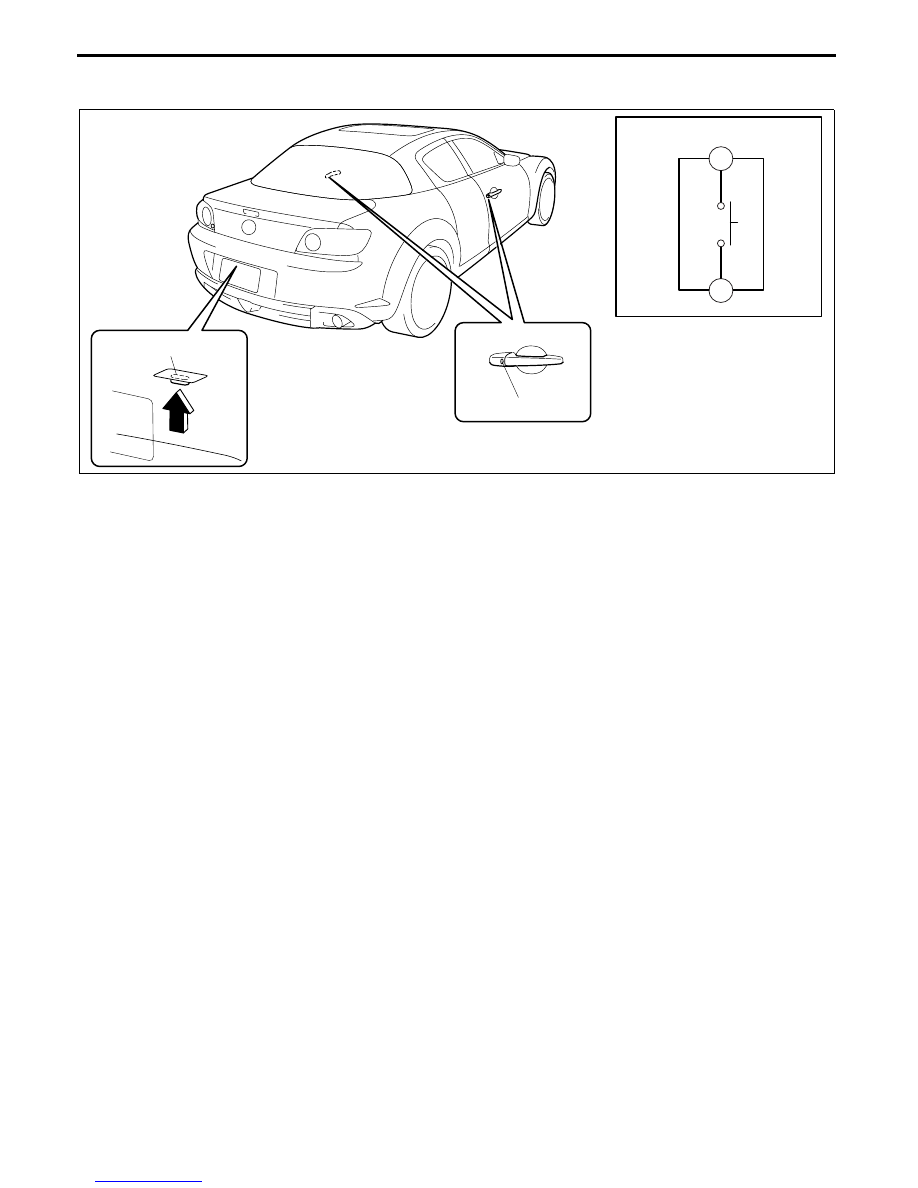

REQUEST SWITCH CONSTRUCTION

EHU091469000110

•

Installed on both doors and trunk lid.

End Of Sie

REQUEST SWITCH

INTERNAL CIRCUIT DIAGRAM

A

B

REQUEST SWITCH

EHU914AS8009
