INTAKE-AIR SYSTEM

01–13–1

01–13

2006 Mazda RX-8 Service Highlights (3409–1U–05J)

Added 4/2006 (Ref. No. R027/06)

01–13

INTAKE-AIR SYSTEM

INTAKE-AIR SYSTEM DIAGRAM . . . . . .  01–13–1

INTAKE-AIR SYSTEM HOSE

ROUTING DIAGRAM . . . . . . . . . . . . . . . 01–13–3

End of Toc

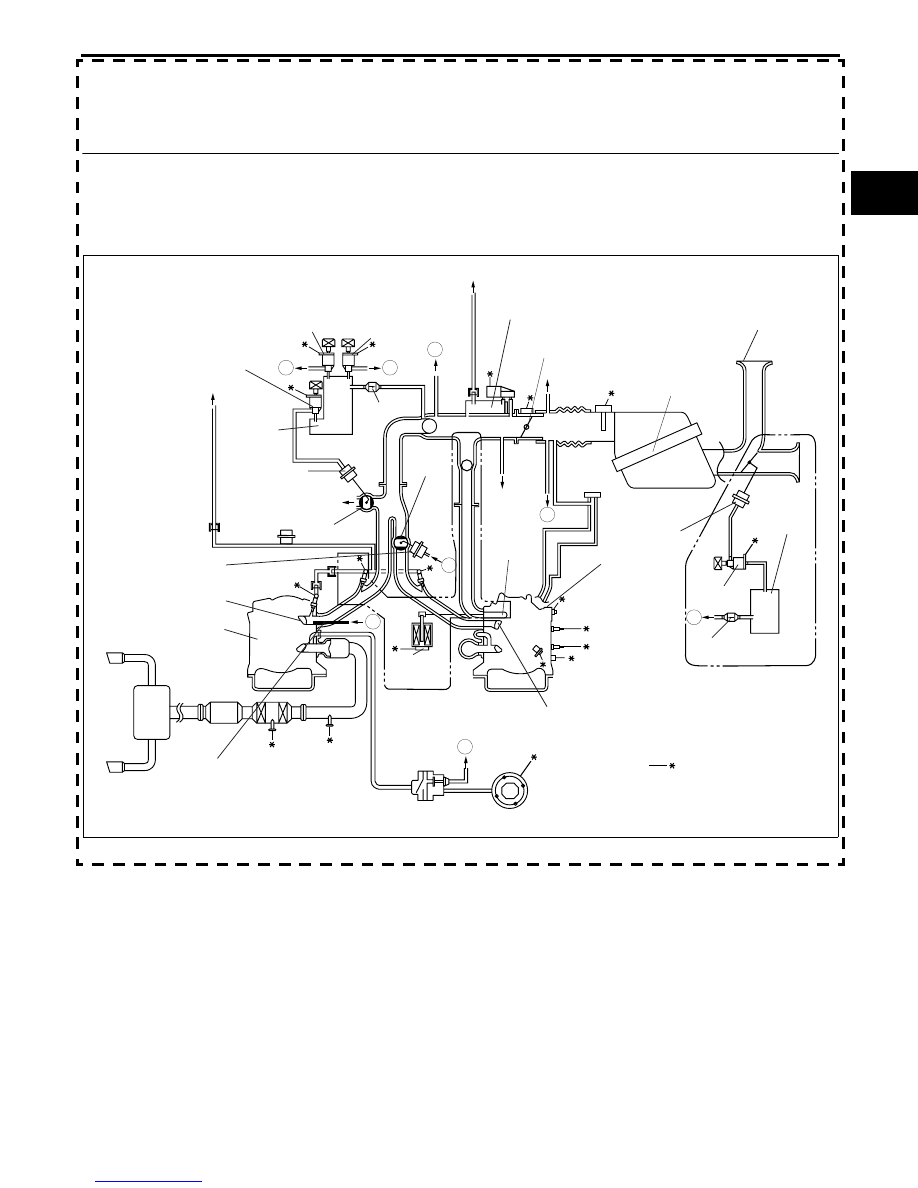

INTAKE-AIR SYSTEM DIAGRAM

EHU011300000101

Applied VIN (assumed):
JM1 FE173*6# 200001—JM1 FE173*6# 200011
JM1 FE17N*6# 200001—JM1 FE17N*6# 200011

VFAD

VFAD
SOLENOID
VALVE

VFAD
ACTUATOR

VACUUM
CHAMBER

CHECK VALVE

CATCH TANK

THROTTLE
VALVE

SSV
SOLENOID
VALVE

CHECK
VALVE

VDI
SOLENOID
VALVE

VACUUM
CHAMBER

VDI VALVE

TO REAR
PRIMARY/SECONDARY
PORTS

VDI ACTUATOR

SSV

SSV ACTUATOR

FRONT
HOUSING

/APV

SECONDARY
PORT

INTERMEDIATE
HOUSING

APV
MOTOR

PRIMARY PORT

A

A

B

B

C

C

D

D

TO POWER
BRAKE UNIT

TO FUEL TANK

TO CHARCOAL CANISTER

AUXILIARY
PORT

13B-MSP
(HIGH POWER)

13B-MSP
(HIGH POWER)

TO PCM

TO METERING OIL NOZZLE

JET AIR FUEL  MIXING NOZZLE

(ILLUSTRATION SHOWS 13B-MSP (HIGH POWER))

AIR CLEANER

AIR
SOLENOID
VALVE

CHU0113W001

INTAKE-AIR SYSTEM

01–13–2

2006 Mazda RX-8 Service Highlights (3409–1U–05J)

Added 4/2006 (Ref. No. R027/06)

Applied VIN (assumed):
JM1 FE173*6# 200012—
JM1 FE17N*6# 200012—

End Of Sie

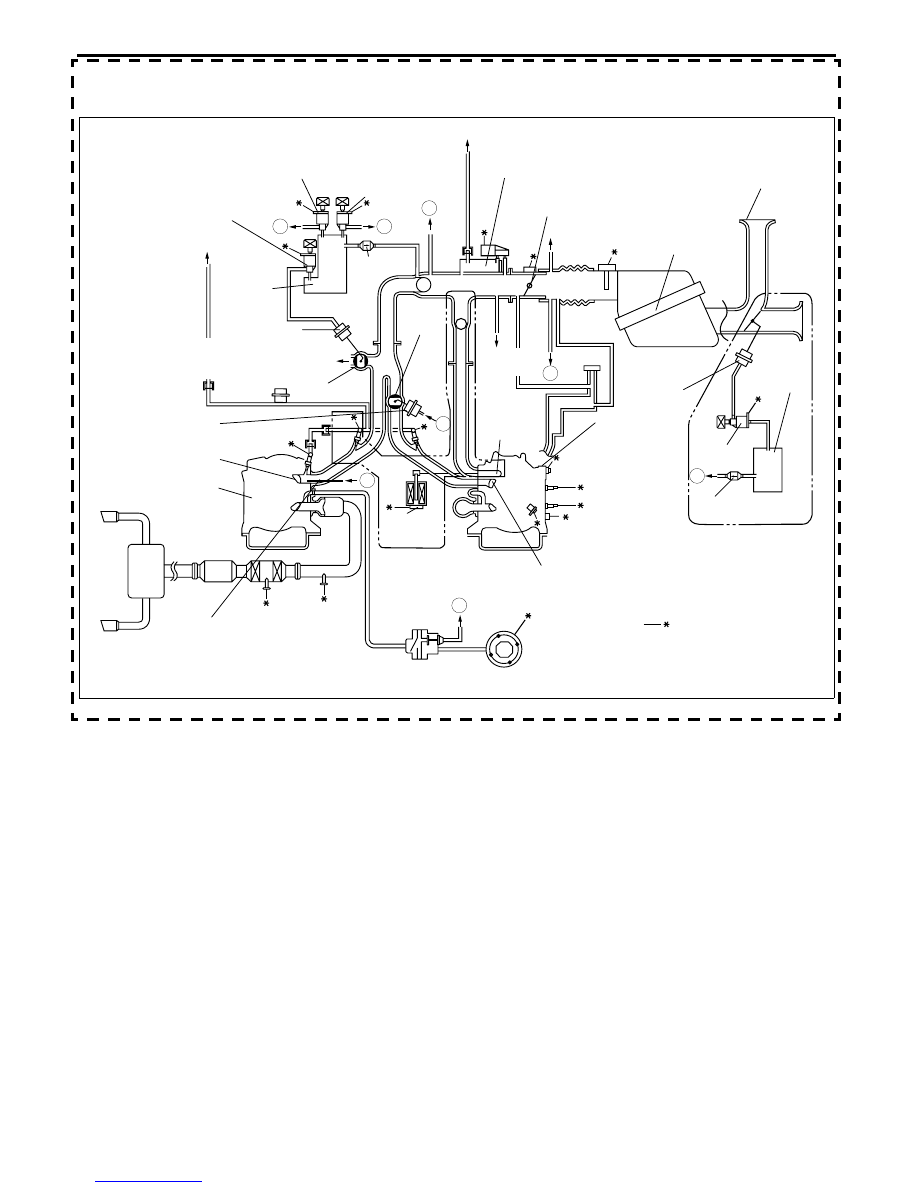

VFAD

CHECK
VALVE

SSV

A

A

B

B

C

C

D

D

AIR CLEANER

TO METERING OIL NOZZLE

THROTTLE
VALVE

CATCH TANK

TO CHARCOAL CANISTER

SSV
SOLENOID
VALVE

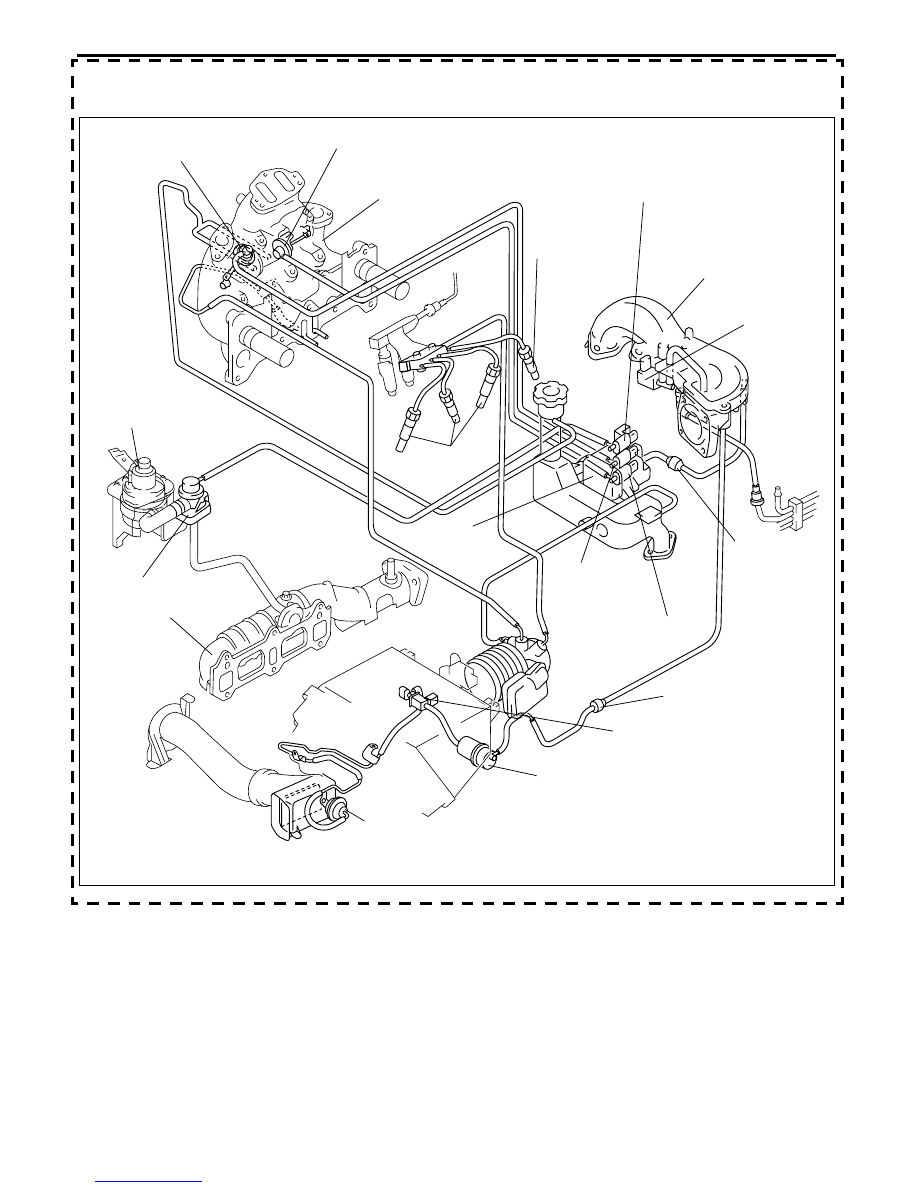

AIR SOLENOID
VALVE

VDI SOLENOID
VALVE

TO FUEL TANK

VACUUM
CHAMBER

VDI ACTUATOR

TO REAR
PRIMARY/SECONDARY
PORTS

VDI VALVE

SSV ACTUATOR

PRIMARY PORT

INTERMEDIATE
HOUSING

JET AIR FUEL  MIXING NOZZLE

(ILLUSTRATION SHOWS 13B-MSP (HIGH POWER))

TO PCM

13B-MSP (HIGH
POWER)

SECONDARY PORT

FRONT
HOUSING

VFAD
ACTUATOR

TO POWER
BRAKE UNIT

AUXILIARY
PORT/APV

APV
MOTOR

13B-MSP (HIGH
POWER)

CHECK VALVE

VFAD
SOLENOID
VALVE

VACUUM
CHAMBER

EHU113ZS4A02

INTAKE-AIR SYSTEM

01–13–3

01–13

2006 Mazda RX-8 Service Highlights (3409–1U–05J)

Added 4/2006 (Ref. No. R027/06)

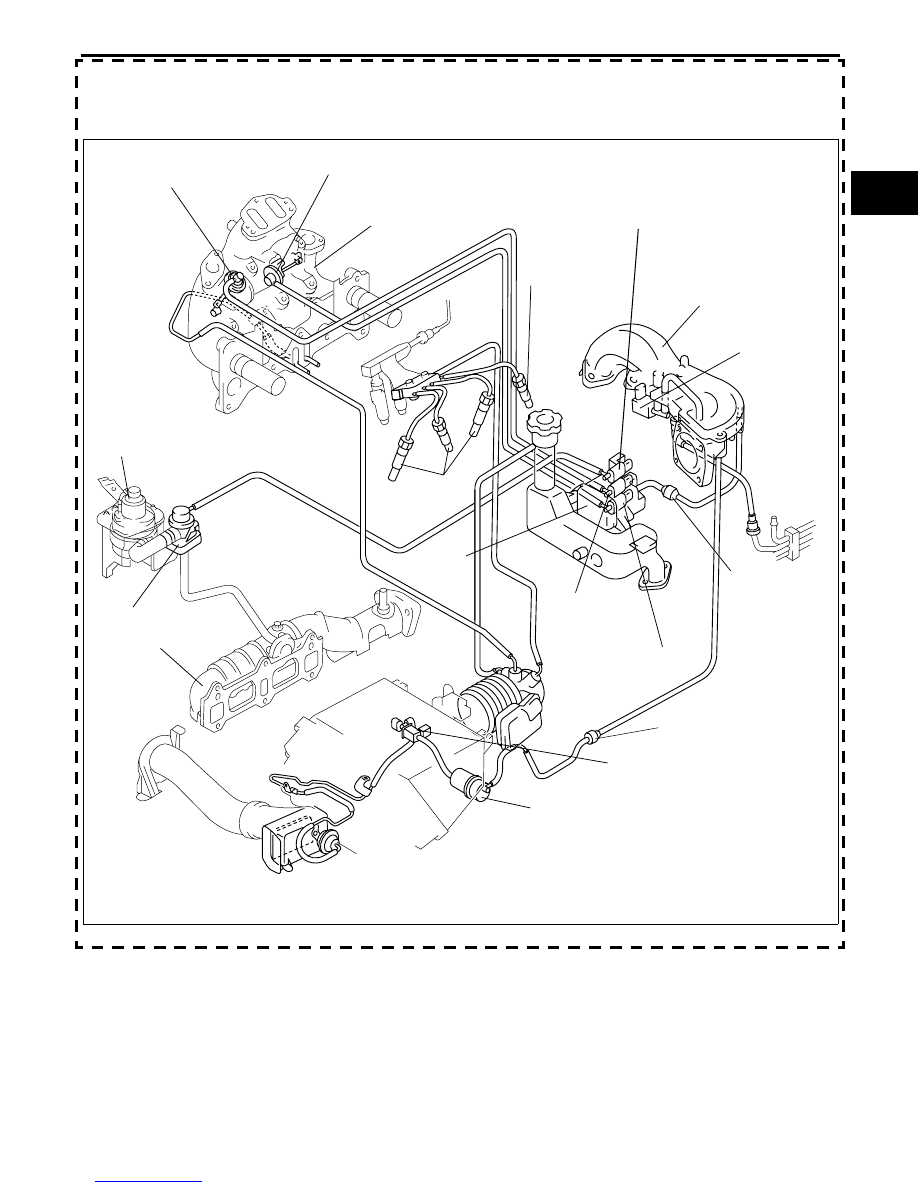

INTAKE-AIR SYSTEM HOSE ROUTING DIAGRAM

EHU011300000102

Applied VIN (assumed):
JM1 FE173*6# 200001—JM1 FE173*6# 200011
JM1 FE17N*6# 200001—JM1 FE17N*6# 200011

VDI ACTUATOR

SSV ACTUATOR

SSV SOLENOID
VALVE

VDI SOLENOID VALVE

VFAD SOLENOID VALVE

VFAD ACTUATOR

AIR SOLENOID
VALVE

AIR CONTROL VALVE

EXHAUST MANIFOLD

AIR PUMP

ONE-WAY
CHECK VALVE

ONE-WAY CHECK VALVE

VACUUM
CHAMBER

VACUUM CHAMBER

METERING
OIL NOZZLE

METERING
OIL NOZZLE

EXTENSION MANIFOLD
 (UPPER)

PURGE
SOLENOID VALVE

INTAKE MANIFOLD

(13B-MSP (HIGH POWER))

(13B-MSP (HIGH POWER))

(13B-MSP (HIGH POWER))

(13B-MSP (HIGH POWER))

(ILLUSTRATION SHOWS 13B-MSP (HIGH POWER))

CHU0113W002

INTAKE-AIR SYSTEM

01–13–4

2006 Mazda RX-8 Service Highlights (3409–1U–05J)

Added 4/2006 (Ref. No. R027/06)

Applied VIN (assumed):
JM1 FE173*6# 200012—
JM1 FE17N*6# 200012—

End Of Sie

AIR SOLENOID
VALVE

METERING OIL
NOZZLE

INTAKE MANIFOLD

VDI ACTUATOR

SSV ACTUATOR

AIR PUMP

AIR CONTROL VALVE

EXHAUST MANIFOLD

VFAD ACTUATOR (13B-MSP
(HIGH POWER))

(ILLUSTRATION SHOWS 13B-MSP (HIGH POWER))

VACUUM CHAMBER (13B-MSP
(HIGH POWER))

VFAD SOLENOID VALVE (13B-MSP
(HIGH POWER))

ONE-WAY CHECK VALVE
(13B-MSP (HIGH POWER))

SSV SOLENOID
VALVE

VDI SOLENOID VALVE

ONE-WAY
CHECK VALVE

PURGE SOLENOID
VALVE

EXTENSION MANIFOLD
(UPPER)

VACUUM
CHAMBER

METERING
OIL NOZZLE

EHU113ZS4A01
