WHEEL ALIGNMENT SPECIFICATIONS & PROCEDURES

Article Text

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, August 26, 2001  08:21PM

ARTICLE BEGINNING

         1983 Wheel Alignment
         MAZDA

         ADJUSTMENT

         TIRE INFLATION (COLD)

         Before attempting to check or adjust wheel alignment, make
sure tires are properly inflated. Refer to manufacturer's
specifications given in owner's manual.

         CASTER

         GLC
         Caster is not adjustable. If caster is not to
specifications, inspect suspension for excessive wear or damage.
Replace components as necessary.

         RX7 & 626
         1) Caster and camber angles are adjusted together by
changing position of strut support. Remove 4 nuts attaching strut
support to fender apron.
         2) Raise front of vehicle and support with jack stands.
Press strut downward and change position of support according to
Table and Fig. 1.
         3) Tighten strut support mounting nuts. Lower vehicle and
recheck caster and camber.

MacPHEARSON STRUT SUPPORT TABLE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Strut Position                  Caster                          Camber

A 0

ø

  .........................  0

ø

  .............................  0

ø

B 90

ø

  .......................  1/2

ø

  ............................  0

ø

C 180

ø

  ......................  1/2

ø

  ..........................  1/2

ø

D 270

ø

  .......................  0

ø

  ...........................  1/2

ø

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

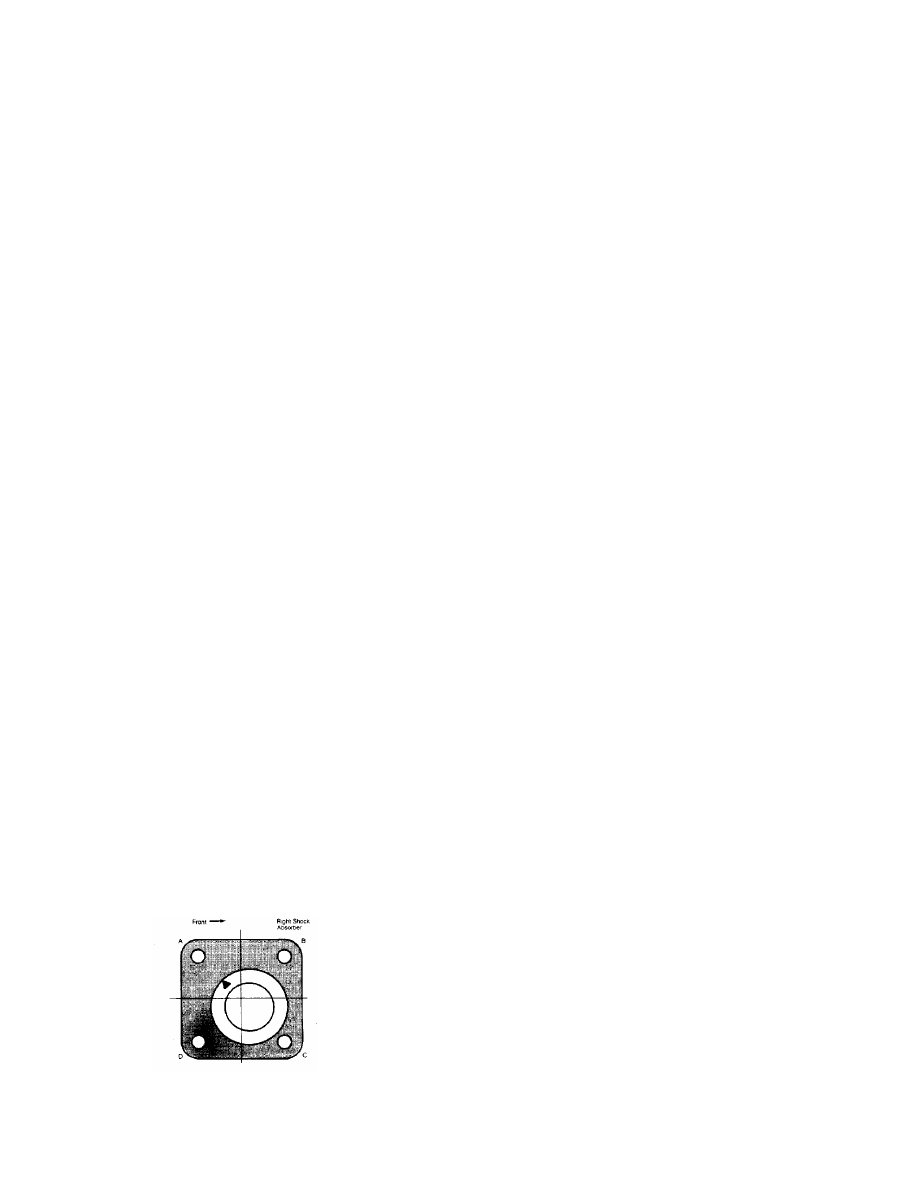

Fig. 1:  RX7 & 626 Caster & Camber Adjustment Using
MacPhearson Strut Support

WHEEL ALIGNMENT SPECIFICATIONS & PROCEDURES

Article Text (p. 2)

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, August 26, 2001  08:21PM

         Pickups
         Change shims between upper control arm shaft and support
bracket or turn upper control arm shaft until specifications are
obtained.

         CAMBER

NOTE:    On GLC wagon, camber is not adjustable. If camber is not
         within specifications, inspect suspension for excessive wear
         or damage. Replace components as necessary.

         GLC
         1) Raise front end, support with jack stands and open hood.
         2) Remove 2 mounting nuts holding strut support to fender
apron. Push mounting block down, turn 180

ø

 and tighten mounting nuts.

Note a triangular shaped mark on mounting block. Rotating mark away
from engine changes camber to the negative side and opposite
direction the opposite happens. Check camber angle.

         RX7 & 626

NOTE:    See procedure given under RX7 & 626 Caster adjustment.

         Pickups
         Change shims between upper arm shaft and support bracket
until specifications for camber are within limits.

         TOE-IN

         626 (Front)
         Loosen lock nuts and turn tie rods equal amounts. Both tie
rods are right-threaded, to increase turn right tie rod toward front
of vehicle and to decrease turn left one toward rear of vehicle by
the same amount. One full turn equals .24" (6 mm). If boot is twisted
or dented, loosen band and straighten boot.

         All Other Models (Front)
         1) Raise front of vehicle. Turn wheels by hand and mark a
line in center of each tire tread. Place vehicle in straight-ahead
position and lower vehicle to ground.
         2) Measure distance between marked lines at both front and
rear of wheel. Make sure measurements are made equal distances from
ground.
         3) Loosen lock nuts and turn tie rods until adjustment is
correct. Tighten lock nuts with bolts horizontal and below rod. This
procedure will prevent interference with center link.

         GLC FWD & 626 (Rear)
         1) Release emergency brake. Mark front and back of tire at
same height as center of wheel. Mark center lower section of
crossmember. Points marked on tires and crossmember form a triangle
and are reference points for adjusting rear toe-in.

WHEEL ALIGNMENT SPECIFICATIONS & PROCEDURES

Article Text (p. 3)

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, August 26, 2001  08:21PM

         2) Turn spacer (star wheel) to make the points from rear of
tire to center of crossmember equal. See Fig. 2. Turn both right and
left spacers the same amount to adjust toe-in.

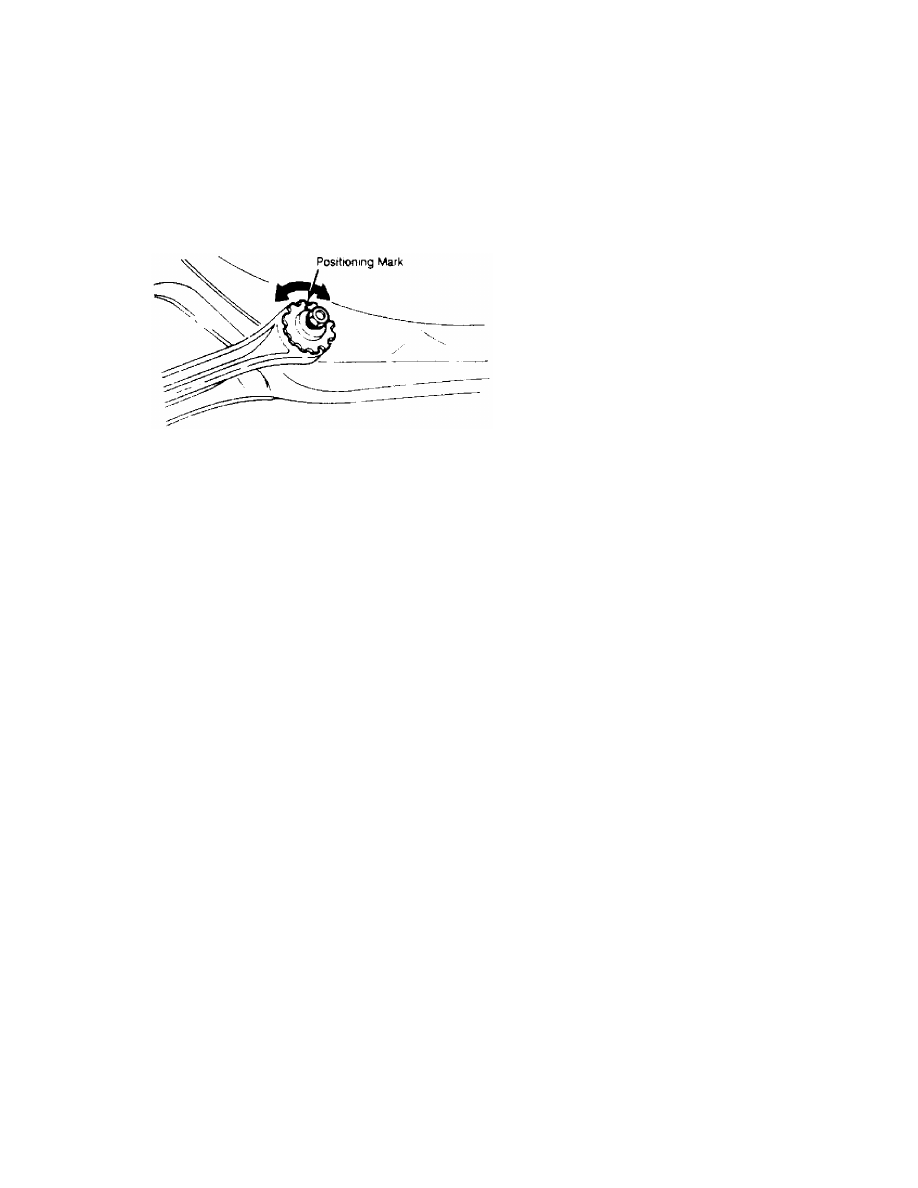

Fig. 2:  GLC & 626 Star Wheel Adjustment

         3) On GLC only, check parallelism of body and rear wheel.
Use existing mark on rear of tire and hole on each side member.
Measure from hole on one side to tire on the other. Repeat using
other hole and tire. If measurements are not equal, loosen 2
crossmember mounting nuts on each side. Move crossmember so
measurement is within .2" (5 mm).

         WHEEL ALIGNMENT

WHEEL ALIGNMENT SPECIFICATIONS TABLE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application

Mazda
  B2000 & B2200 Pickups
    Caster (Degrees)  .............................................  1
    Camber (Degrees)  .................................  +1/3 to 1 1/4
    Toe-in (Inches)  ......................................  0 to 1/64
    Toe-Out on Turns (Degrees)
      Inner  ..................................................  .....
      Outer  ..................................................  .....
  GLC
    Caster (Degrees)  ................................  +2 +/- 2/3 (1)
    Camber (Degrees)  ....................................  +1 +/- 1/2
    Toe-in (Inches)  ..................................  0 +/- 1/8 (2)
    Toe-Out on Turns (Degrees)
      Inner  ..................................................  .....
      Outer  ..................................................  .....
  GLC Wagon
    Caster (Degrees)  ...............................  +1 to 2 1/3 (1)
    Camber (Degrees)  .............................  +1/4 to 1 1/4 (1)
    Toe-in (Inches)  ......................................  0 to 9/32
    Toe-Out on Turns (Degrees)
      Inner  ..................................................  .....
      Outer  ..................................................  .....
  RX7

WHEEL ALIGNMENT SPECIFICATIONS & PROCEDURES

Article Text (p. 4)

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, August 26, 2001  08:21PM

    Caster (Degrees)  ............................  +3 2/3 +/- 1/2 (3)
    Camber (Degrees)  ....................................  +1 +/- 1/2
    Toe-in (Inches)  ......................................  0 to 9/32
    Toe-Out on Turns (Degrees)
      Inner  ..................................................  .....
      Outer  ..................................................  .....
  626
    Caster (Degrees)  ................................  +1 2/3 +/- 2/3
    Camber (Degrees)  ..................................  +1/3 +/- 1/2
    Toe-in (Inches)  ...............................  +1/8 +/- 1/8 (4)
    Toe-Out on Turns (Degrees)
      Inner  ..................................................  .....
      Outer  ..................................................  .....

(1) - Not adjustable.
(2) - Same for rear.
(3) - Left side only, right side specifications are 4 1/6 +/- 1/2.
(4) - Rear specifications are 0 +/- 1/8.

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

END OF ARTICLE
