MAINTENANCE INFORMATION

Article Text (p. 16)

1983 Mazda RX7

For www.iluvmyrx7.com

Sunday, August 26, 2001 06:13PM

Fuse & Circuit Breaker Identification

  1 - 30 Amp
Rear Defogger
  2 - 15 Amp
Headlights
  3 - 30 Amp
Power Windows, AAS System
  4 - 15 Amp
Cooling Fan System
  5 - 15 Amp
Front Foglight
  6 - 10 Amp
Power Door Lock, Power Antenna
  7 - 15 Amp
Turn Lights, Hazard Lights, Rear Window Defogger, Passive
Shoulder Belt
  8 - 15 Amp
Front Wiper & Washer, DRL System, Heater, A/C, Diagnostic
Module
  9 - 30 Amp
Passive Shoulder Belt
10 - 7.5 Amp
Courtesy Lights, Cargo & Interior Lights, Stoplight, Warning
& Buzzer Or Chime, Door Lock Cylinder & Ignition Key Cylinder
Light, EGI, Emission Control System, Warning & Clock System,
Theft System, ECAT
11 - 10 Amp
Back-Up Light, Cruise Control, Shift Lock System, ECAT,
Gauges, Clock, Cooling Fan
12 - 10 Amp
Rear Wiper/Washer (Coupe)
13 - 15 Amp
Anti-Lock Brake System
14 - 10 Amp
Turn Lights, Hazard Lights
15 - 15 Amp
ECAT, Fuel System, EGI & Emission Control System
16 - 30 Amp
Convertible Top System
17 - 10 Amp
Cigarette Lighter, Warning & Clock, Remote Control Mirror,
Heater & A/C
18 - 30 Amp
Heater & A/C
19 - 20 Amp
Stoplight, Cruise Control
20 - 10 Amp
Rear Window Defogger, Starter, Charge System, Shift Lock,
ECAT, Power Antenna & Steering, Horn, Stoplight
21 - 15 Amp
Air Bag, Diagnostic Module, (Conv.) Sun Roof, Anti-Lock Brake

MAINTENANCE INFORMATION

Article Text (p. 17)

1983 Mazda RX7

For www.iluvmyrx7.com

Sunday, August 26, 2001 06:13PM

System, AAS System (Coupe)
22 - 20 Amp
Audio System
23 - 60 Amp
BTN, Light Switch, Heater, A/C
24 - 30 Amp
Headlights
25 - 30 Amp
Headlight Retractor
26 - 30 Amp
EGI & Emission System
27 - 100 Amp
Starter & Charge System
28 - 60 Amp
Anti-Lock Brake System
29 - 30 Amp
Back-Up Battery (Air Bag)

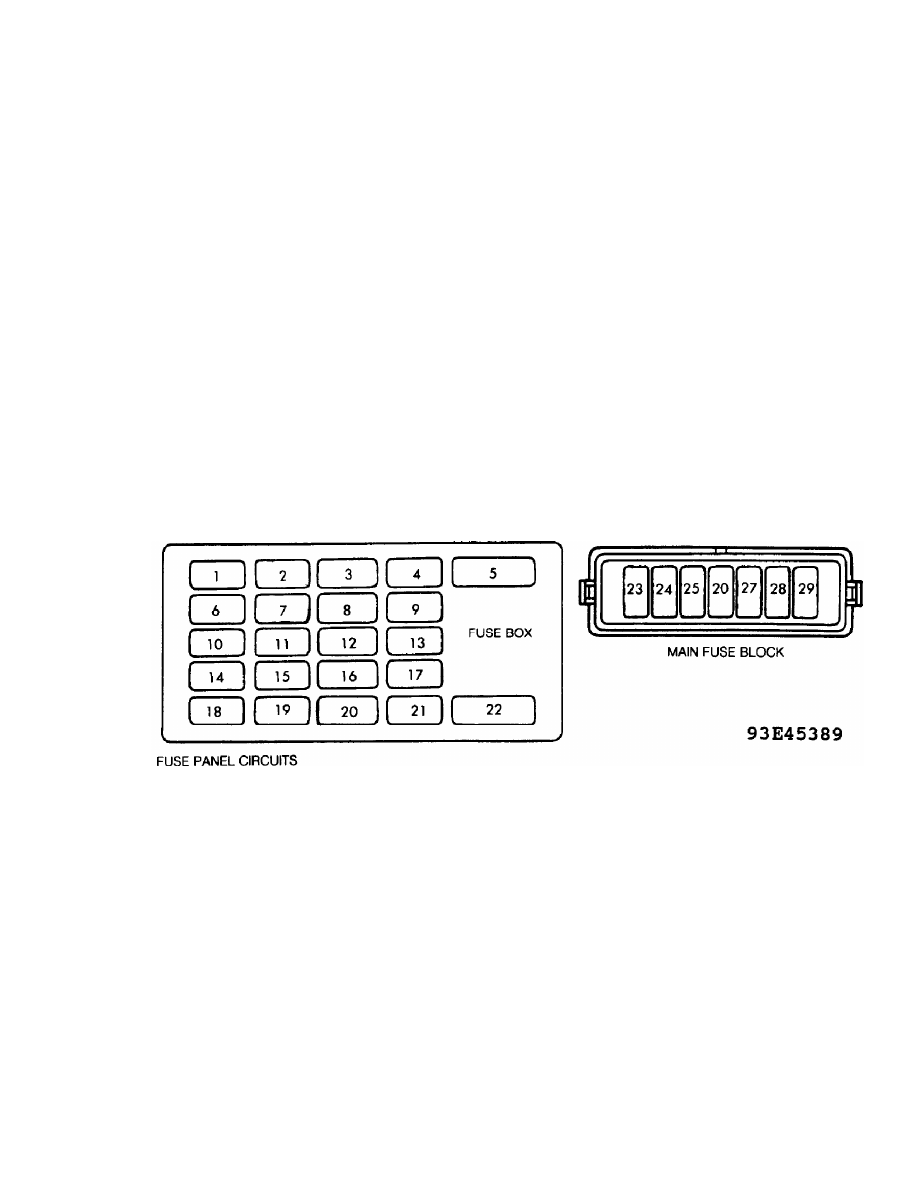

FUSE PANEL & FUSE BLOCK IDENTIFICATION (1991)

Fig. 9: Fuse Panel & Fuse Block Identification (1991)
Courtesy of Mazda Motor of America, Inc.

Fuse & Circuit Breaker Identification

  1 - 20 Amp
Audio System
  2 - 15 Amp
Sun Roof, Anti-Lock Brake System
  2 - 15 Amp (Convertible)
Air Bag, Diagnostic Module
  3 - 10 Amp
Rear Window Defogger, Starter, Charge System, Shift Lock
System, ECAT, Power Antenna, Horn, Stoplight, Power Steering
  4 - 20 Amp
Stoplight, Cruise Control System
  5 - 30 Amp
Heater & A/C
  6 - 10 Amp
Clock, Remote Control Mirror, Heater & A/C

MAINTENANCE INFORMATION

Article Text (p. 18)

1983 Mazda RX7

For www.iluvmyrx7.com

Sunday, August 26, 2001 06:13PM

  7 - 30 Amp
Convertible Top System
  8 - 15 Amp
ECAT, Fuel System, EGI & Emission Control System
  9 - 10 Amp
Turn Lights, Hazard Lights
10 - 15 Amp (Except Convertible)
Anti-Lock Brake System
11 - 10 Amp (Except Convertible)
Rear Wiper & Washer
12 - 10 Amp
Back-Up Light, Cruise Control System, Shift Lock System,
ECAT, Gauges, Clock, Cooling Fan
13 - 7.5 Amp
Cargo Light, Courtesy Lights, Interior Lights, Stoplights,
Warning & Buzzer Or Chime, Door Lock Cylinder & Ignition Key
Cylinder Light, EGI, Emission Control System, Warning Clock
System, Theft System, ECAT
14 - 30 Amp (Except Convertible)
Passive Shoulder Belt
15 - 15 Amp
Front Wiper & Washer, DRL System Heater & A/C Diagnostic
Module
16 - 15 Amp
Turn Lights, Hazard Lights, Rear Window Defroster, Passive
Shoulder Belt
17 - 10 Amp
Power Door Lock System & Antenna
18 - 15 Amp
Front Foglight
19 - 15 Amp
Cooling Fan
20 - 30 Amp
Power Window
21 - 15 Amp
Headlight
22 - 30 Amp
Rear Window Defroster
23 - 30 Amp
EGI
24 - Blank
24 - 30 Amp (Convertible)
Air Bag
25 - 30 Amp
Head
26 - 100 Amp
Main
27 - 60 Amp (Except Convertible)
Anti-Lock Brake System
28 - 60 Amp
BTN
29 - 30 Amp

MAINTENANCE INFORMATION

Article Text (p. 19)

1983 Mazda RX7

For www.iluvmyrx7.com

Sunday, August 26, 2001 06:13PM

Retractor

END OF ARTICLE
