FUSE & FLASHER LOCATIONS

Article Text (p. 2)

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, August 26, 2001  03:30PM

  Fuse Locations  ...............................................  (9)
  Flasher Locations..............................................  (8)
  Relay Locations
   Check & Choke, Hot Start, A/C  ...............................  (7)
   Horn, Antenna  ...............................................  (9)

 626
 Fuse Locations  ................................................  (9)
 Flasher Locations  .............................................  (9)
 Relay Locations
  Wipers, Horn  .................................................  (9)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

END OF ARTICLE

FUSES & CIRCUIT BREAKERS

Article Text

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, August 26, 2001  03:31PM

ARTICLE BEGINNING

         Fuses & Circuit Breakers
         1983-85 Mazda

         RX7

         FUSES & CIRCUIT BREAKERS

         FUSE PANEL LOCATION

         The main fuse block is located at the right rear side of the
engine compartment and contains high amperage fuses which protect
multiple circuits. Fuse box located above driver's left knee,
accessible through a removable cover, contains fuses for individual
circuits.

         FUSE PANEL & FUSE BLOCK IDENTIFICATION (1983-85)

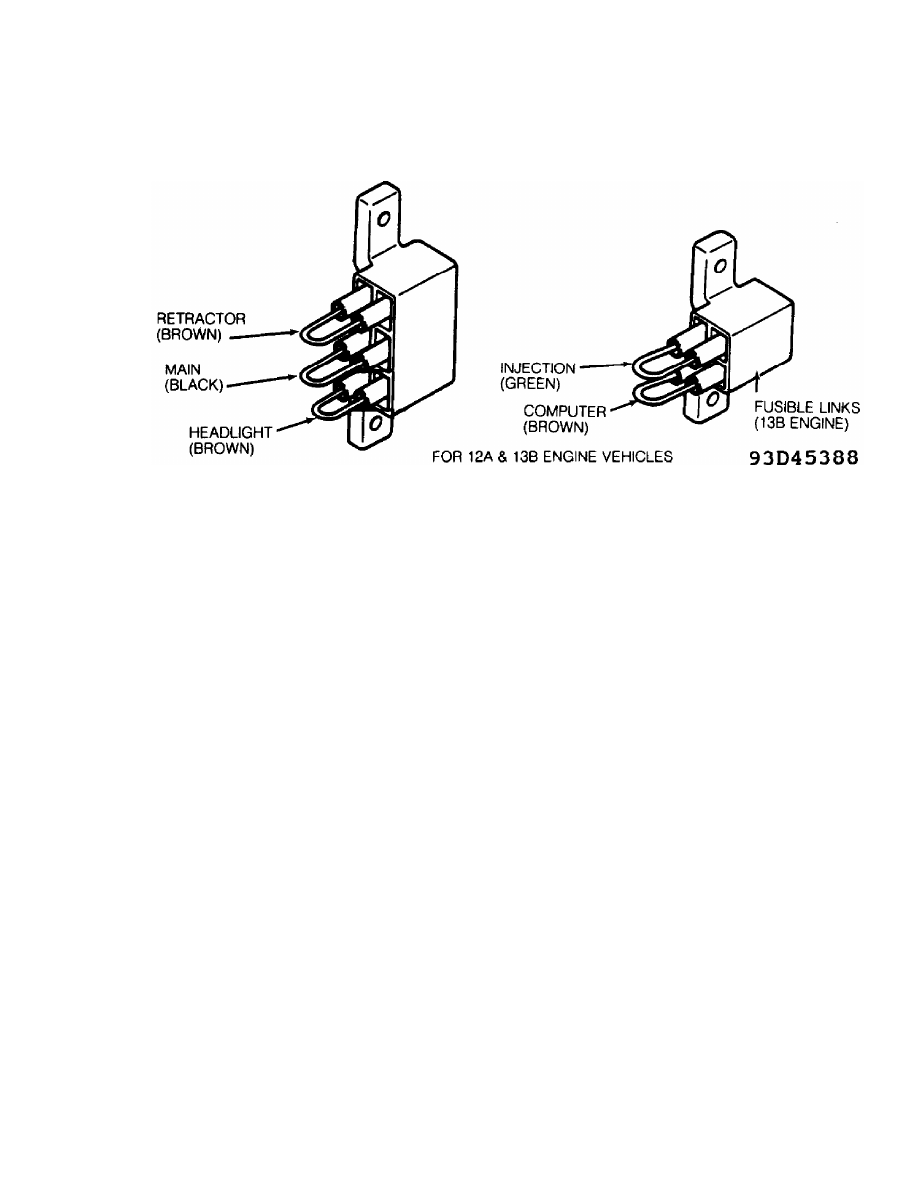

Fig. 1:  Fuse Panel Identification (1983-85)
Courtesy of Mazda Motor of America Inc.

FUSES & CIRCUIT BREAKERS

Article Text (p. 2)

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, August 26, 2001  03:31PM

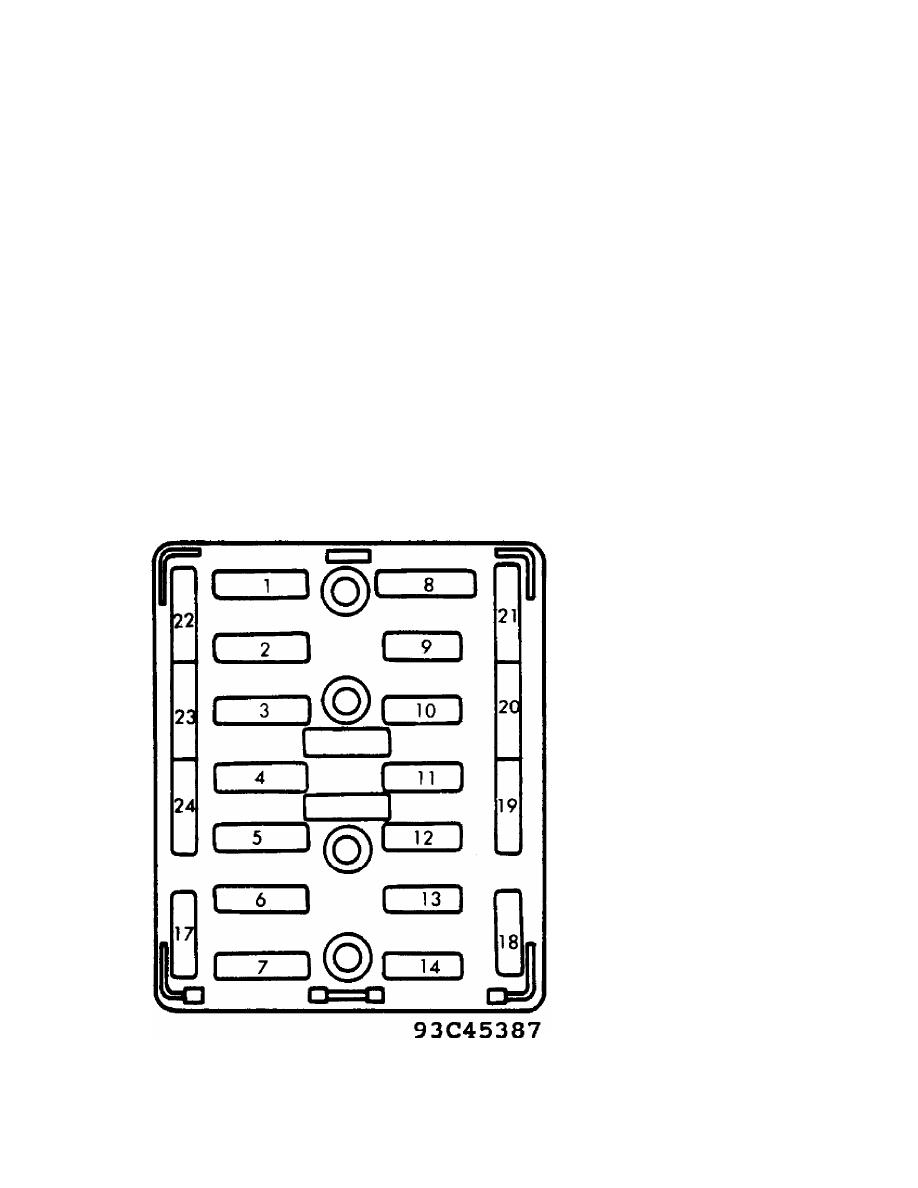

Fig. 2:  Fuse Block Identification (1983-85)
Courtesy of Mazda Motor of America Inc.

  1 - Empty
  2 - 15 Amp
         Horn
  3 - 15 Amp
         Hazard Warning Lights
  4 - 10 Amp
         Taillights
  5 - 20 Amp
         Roof Opener
  6 - 10 Amp
         Cigarette Lighter
  7 - 20 Amp
         Radio & Antenna
  8 - 15 Amp
         Gauges & Back-Up Lights
  9 - 20 Amp
         Engine
 10 - 30 Amp
         Power Windows
 11 - 20 Amp
         Heater Blower
 12 - 15 Amp
         Rear Defogger
 13 - 15 Amp
         Windshield Wipers
 14 - 10 Amp
         Rear Wiper
 15 - Empty
 16 - Empty
 17 - Empty
 18 - Empty
 19 - 15 Amp
         Air Conditioning
 20 - Empty

FUSES & CIRCUIT BREAKERS

Article Text (p. 3)

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, August 26, 2001  03:31PM

 21 - Empty
 22 - Empty
 23 - Empty
 24 - Empty

         CAUTIONS & WARNINGS

         BRAKE PAD WEAR INDICATOR

         Indicator will cause a squealing or scraping noise warning
that the pads need replacement.

         HEADLIGHT RETRACTOR

         Never operate headlight retractor when a person's hands, or
other objects are on or near the headlights. When working on the
headlights always remove the headlight retractor fuse.

         AIR BAG SYSTEM

         Always remove air bag system fuse when working on any
controls associated with the steering wheel or steering column.

END OF ARTICLE
