ENTERTAINMENT

WM: ANTENNA FEEDER

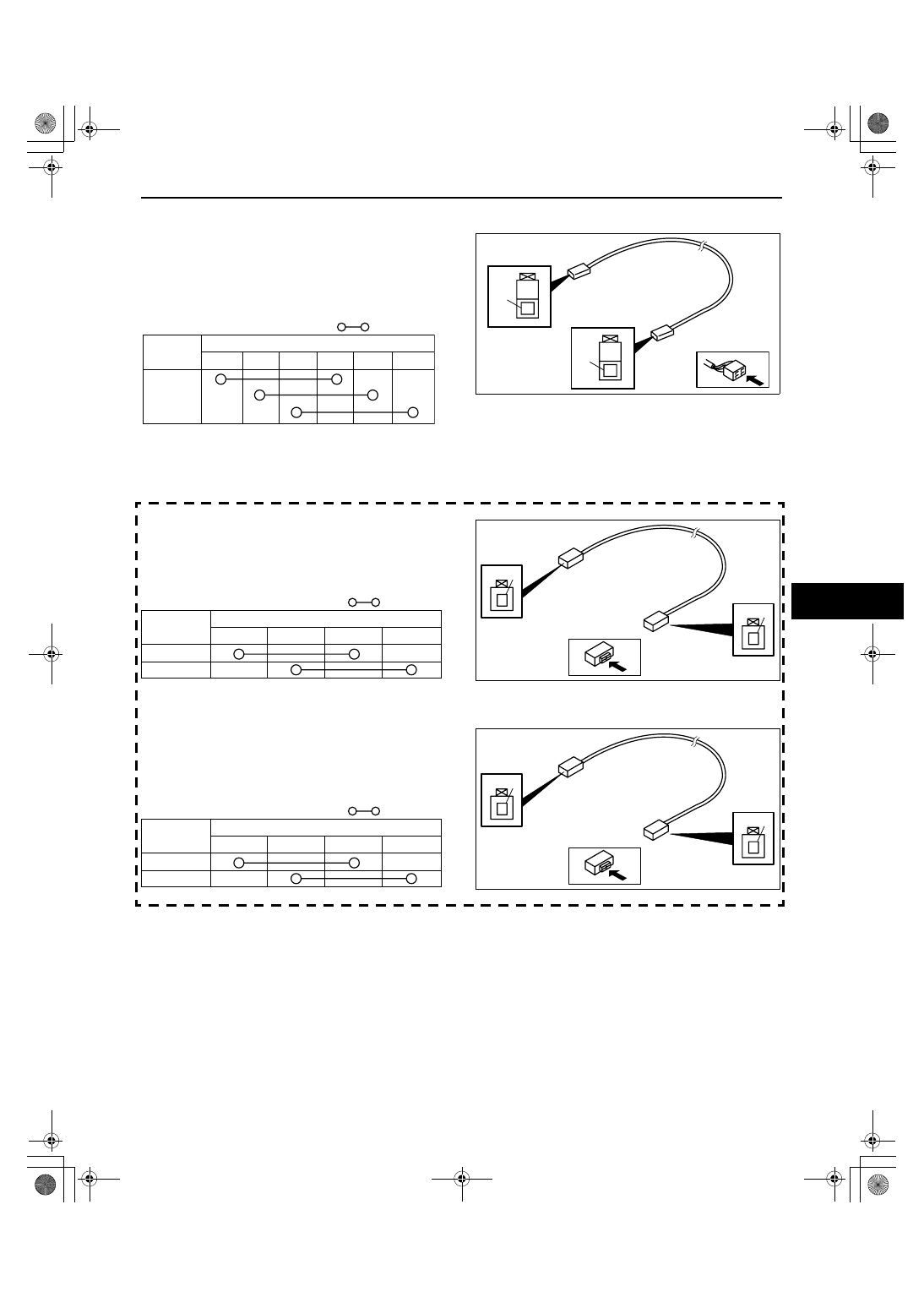

REAR ANTENNA FEEDER INSPECTION

id092000802000

1. Verify that the continuity is as indicated in the

table.

• If not as indicated in the table, replace the

rear antenna feeder.

End Of Sie

GPS ANTENNA FEEDER INSPECTION

id092000802100

GPS Antenna Feeder No.1

1. Verify that the continuity is as indicated in the

table.

• If not as indicated in the table, replace the

GPS antenna feeder No.1.

GPS Antenna Feeder No.2

1. Verify that the continuity is as indicated in the

table.

• If not as indicated in the table, replace the

GPS antenna feeder No.2.

End Of Sie

B

A

C

E

D

F

acxuuw00002072

B

C

D

E

F

A

: Continuity

Test

condition

Under

any

condition

Terminal

acxuuw00002073

A

B

C

D

acxuuw00002285

: Continuity

Step

1

2

Terminal

B

C

D

A

acxuuw00002286

A

B

C

D

acxuuw00002285

: Continuity

Step

1

2

Terminal

B

C

D

A

acxuuw00002286

ENTERTAINMENT

09–20–12–2

2007 Mazda CX-7 Workshop Manual (1871–1U–06B)

THIS PAGE INTENTIONALLY

LEFT BLANK

ENTERTAINMENT

09-20–13

09-20

2007 Mazda CX-7 Workshop Manual (1871–1U–06B)

09-20

ENTERTAINMENT

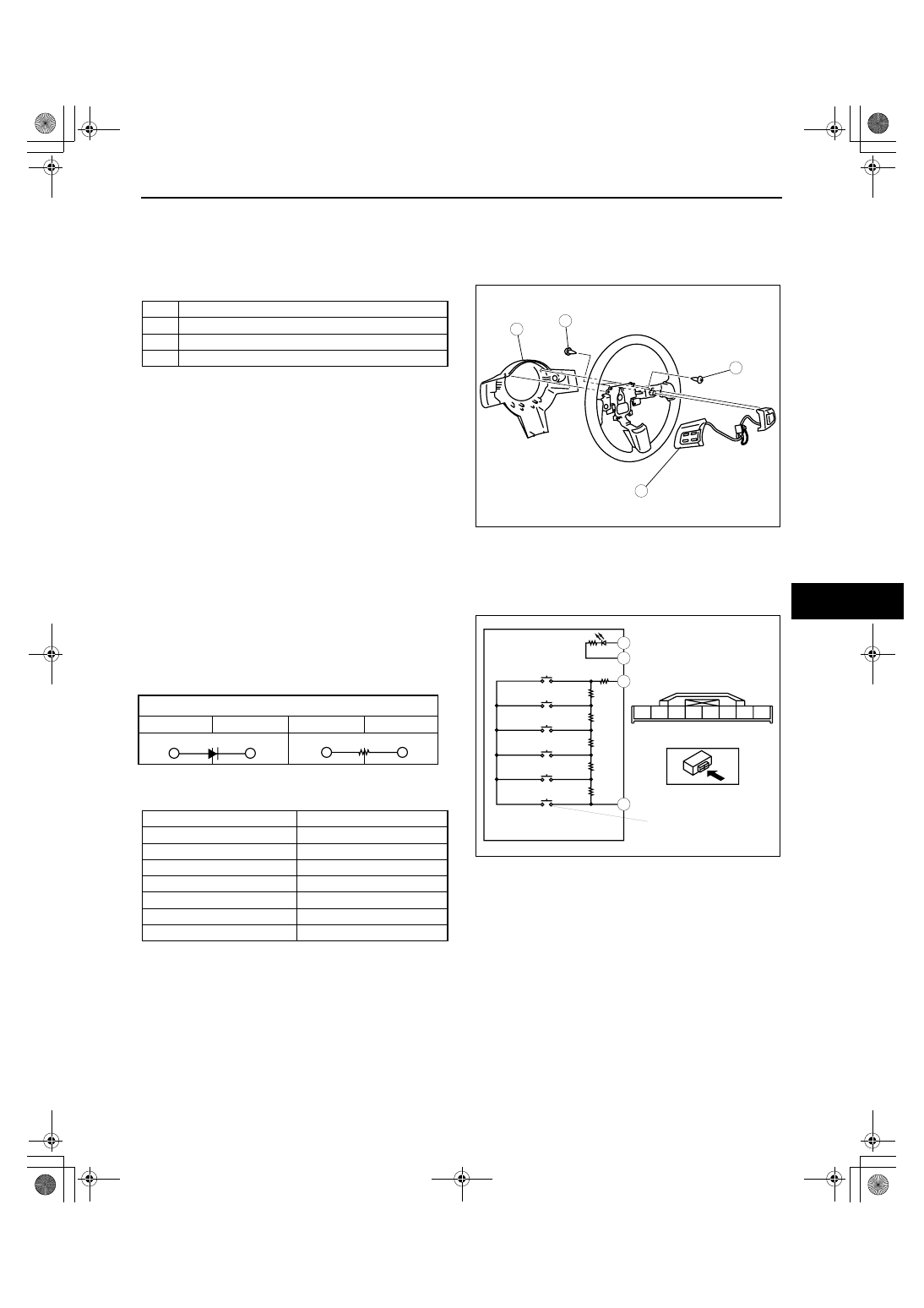

WM: AUDIO CONTROL SWITCH

AUDIO CONTROL SWITCH REMOVAL/INSTALLATION

id092000800200

1. Disconnect the negative battery cable.
2. Remove the driver-side air bag module. (See 08-10-6 DRIVER-SIDE AIR BAG MODULE REMOVAL/

INSTALLATION.)

3. Remove the steering wheel. (See 06-14-6 STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
4. Remove in the order indicated in the table.

.

5. Install in the reverse order of removal.

End Of Sie

AUDIO CONTROL SWITCH INSPECTION

id092000800300

1. Disconnect the negative battery cable.
2. Remove the driver-side air bag module. (See 08-10-6 DRIVER-SIDE AIR BAG MODULE REMOVAL/

INSTALLATION.)

3. Disconnect the audio control switch connector.
4. Verify the resistance and continuity between the

audio control switch terminals.

• If the resistance and continuity are not as

indicated in the tables, replace the audio
control switch.

R: : Resistance.See the table.

End Of Sie

WM: CAR-NAVIGATION CONTROL SWITCH

1

Screw A

2

Cover

3

Screw B

4

Audio control switch

4

1

2

3

acxuuw00000662

Switch position

Resistance (ohm)

VOL- button ON

51— 56

VOL+ button ON

140— 154

PRESET+ button ON

286— 316

PRESET- button ON

533— 590

MODE button ON

984— 1,089

MUTE button ON

1,934— 2,139

OFF

4,794— 5,300

VOICE BUTTON (WITH
CAR-NAVIGATION SYSTEM),
MUTE BUTTON (WITHOUT
CAR-NAVIGATION SYSTEM)

MODE BUTTON

PRESET- BUTTON

PRESET+ BUTTON

*

*

C

D E

G H

F

VOL+ BUTTON

VOL- BUTTON

F
E

C

D

acxuuw00001263

R

Terminal

F

E

C

D

Diode

acxuuw00001264

ENTERTAINMENT

09-20–14

2007 Mazda CX-7 Workshop Manual (1871–1U–06B)

MICROPHONE REMOVAL/INSTALLATION

id092000801400

1. Disconnect the negative battery cable.
2. Remove the map light. (See 09-18-22 MAP LIGHT REMOVAL/INSTALLATION.)
3. Disconnect the connector.
4. Remove in the order in the table.

5. Install in the reverse order of removal.

End Of Sie

WM: BACK MONITOR CAMERA

REAR MOUNT CAMERA REMOVAL/INSTALLATION

id092000805900

1. Remove the liftgate upper trim. (See 09-17-25 LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
2. Remove the liftgate side trim. (See 09-17-25 LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)
3. Remove the liftgate lower trim. (See 09-17-26 LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)
4. Remove in the order indicated in the table.

.

5. Install in the reverse order of removal.

End Of Sie

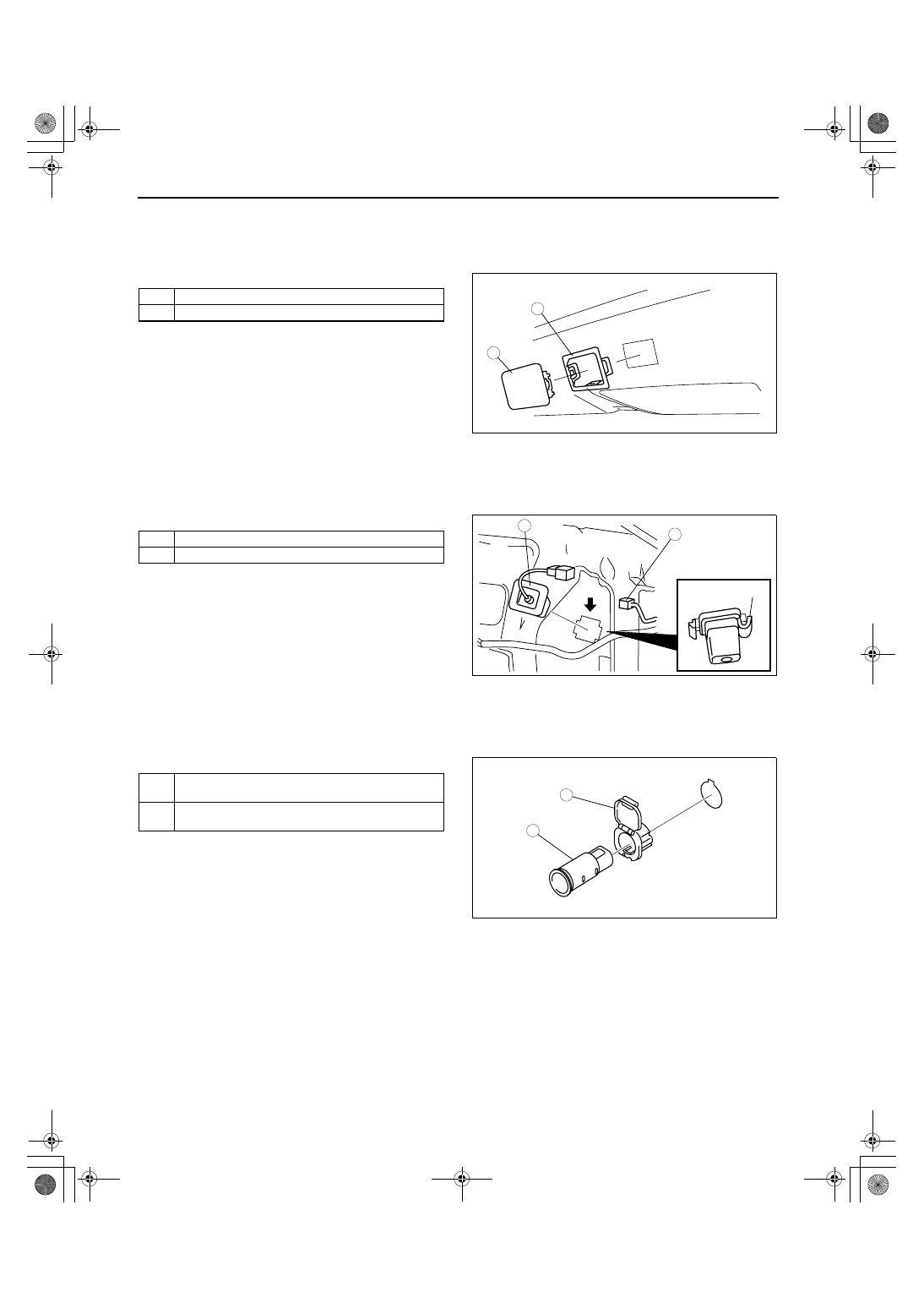

WM: ACCESSORY SOCKET

ACCESSORY SOCKET REMOVAL/INSTALLATION

id092000800400

1. Disconnect the negative battery cable.
2. Remove the console panel. (See 09-17-15 CONSOLE PANEL REMOVAL/INSTALLATION.)
3. Remove the console. (See 09-17-13 CONSOLE REMOVAL/INSTALLATION.)
4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

1

Microphone

2

Bracket

1

2

ampjjw00002142

1

Connector

2

Rear mount camera

TAB

1

A

2

A

acxuuw00001803

1

Accessory socket
(See 09-20-15 Accessory Socket Removal Note.)

2

Cap
(See 09-20-15 Cap Removal Note.)

1

2

acxuuw00001014
