Mazda CX 7. Manual - part 417





LIGHTING SYSTEMS

09-18–3

09-18

End Of Sie

3

Discharge headlight control module
(See 09-18-7 DISCHARGE HEADLIGHT
CONTROL MODULE REMOVAL/INSTALLATION.)
(See09-18-7 DISCHARGE HEADLIGHT SYSTEM
INSPECTION.)
(See 09-18-4 DISCHARGE HEADLIGHT SERVICE
WARNINGS.)

4

Front combination light
(See 09-18-5 FRONT COMBINATION LIGHT
REMOVAL/INSTALLATION.)
(See09-18-4 DISCHARGE HEADLIGHT SERVICE
WARNINGS.)
(See 09-18-5 HEADLIGHT AIMING.)
(See 09-18-6 HEADLIGHT BULB REMOVAL/
INSTALLATION.)
(See 09-18-9 PARKING/FRONT TURN LIGHT
BULB REMOVAL/INSTALLATION.)
(See 09-18-9 FRONT SIDE MARKER LIGHT BULB
REMOVAL/INSTALLATION.)

5

High-mount brake light
(See 09-18-12 HIGH-MOUNT BRAKE LIGHT
REMOVAL/INSTALLATION.)

6

License plate light
(See 09-18-12 LICENSE PLATE LIGHT REMOVAL/
INSTALLATION.)

7

Rear combination light
(See 09-18-11 REAR COMBINATION LIGHT
REMOVAL/INSTALLATION.)
(See 09-18-12 REAR COMBINATION LIGHT BULB
REMOVAL/INSTALLATION.)

8

Door switch
(See09-18-26 DOOR SWITCH REMOVAL/
INSTALLATION)
(See09-18-27 DOOR SWITCH INSPECTION.)

9

Cargo compartment light
(See09-18-25 CARGO COMPARTMENT LIGHT
REMOVAL/INSTALLATION.)
(See09-18-25 CARGO COMPARTMENT LIGHT
INSPECTION.)

10

Interior light
(See 09-18-23 INTERIOR LIGHT REMOVAL/
INSTALLATION.)
(See 09-18-23 INTERIOR LIGHT BULB REMOVAL/
INSTALLATION.)
(See 09-18-24 INTERIOR LIGHT INSPECTION.)

11

Spot light
(See 09-18-26 SPOT LIGHT REMOVAL/
INSTALLATION.)

12

Map light
(See 09-18-22 MAP LIGHT REMOVAL/
INSTALLATION.)
(See 09-18-23 MAP LIGHT INSPECTION.)

13

Headlight leveling switch
(See 09-18-16 HEADLIGHT LEVELING SWITCH
REMOVAL/INSTALLATION.)
(See 09-18-16 HEADLIGHT LEVELING SWITCH
INSPECTION.)

14

Auto light control module
(See 09-18-19 AUTO LIGHT CONTROL MODULE
REMOVAL/INSTALLATION.)
(See 09-18-20 AUTO LIGHT CONTROL MODULE
INSPECTION.)
(See 09-18-17 DRL AND AUTO LIGHT SYSTEM
WIRING DIAGRAM.)

15

Hazard warning switch
(See 09-18-15 HAZARD WARNING SWITCH
REMOVAL/INSTALLATION.)
(See 09-18-15 HAZARD WARNING SWITCH
INSPECTION.)

16

Auto light sensor
(See 09-18-19 AUTO LIGHT SENSOR REMOVAL/
INSTALLATION.)

17

Light switch
(See 09-18-13 LIGHT SWITCH REMOVAL/
INSTALLATION.)
(See 09-18-14 LIGHT SWITCH INSPECTION.)
(See 09-18-15 FRONT FOG LIGHT SWITCH
INSPECTION.)

18

Combination switch
(See 09-18-13 COMBINATION SWITCH
REMOVAL/INSTALLATION.)
(See 09-18-13 COMBINATION SWITCH
DISASSEMBLY/ASSEMBLY.)

LIGHTING SYSTEMS

09-18–4

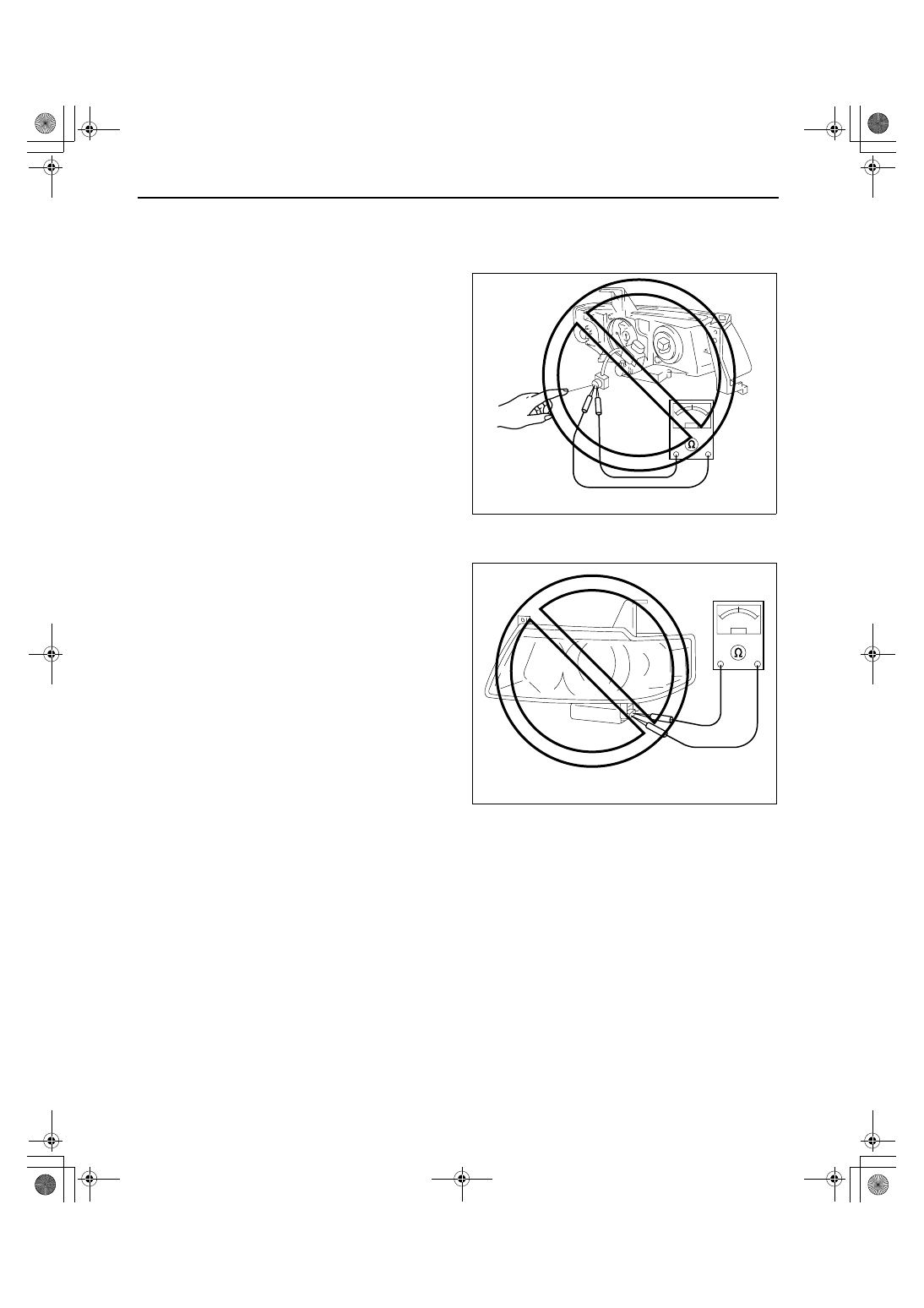

DISCHARGE HEADLIGHT SERVICE WARNINGS

id091800804900

DISCHARGE HEADLIGHT BULB SERVICE WARNINGS

• To prevent electrical shock when replacing the discharge headlight bulb, dry hands thoroughly, and

perform the work in an area out of rain.

• When the light switch is on, approx. 25,000 V

of high voltage passes through the discharge
headlight bulb socket. Because of the danger
of electrical shock, do not insert fingers or a
tester.

• When the headlights are on, high voltage

flows around the socket and bulb. When
turning on the discharge headlights while
working, always leave the headlights in the
vehicle-installed condition to prevent
electrical shock.

DISCHARGE HEADLIGHT CONTROL MODULE SERVICE WARNINGS

• Because of the danger of electrical shock,

when inspecting with a tester, do not inspect
the discharge headlight control module as a
single unit or disassemble it.

DISCHARGE HEADLIGHT CONTROL MODULE REUSE

• If the discharge headlight control module is dented or damaged in any way, replace the module with a

new one to prevent electrical shock and improper operation.

• Although the control module may temporarily operate normally even though it has received an impact,

it is possible that the interior may have been damaged. When reusing the control module, inspect the
following items regarding discharge headlight illumination to verify that there are no malfunctions.

— Verify that the discharge headlights illuminate normally by testing them several times under cold

illumination (headlights off for approx. 10 min or more and then turned on) and hot illumination
(headlights on for approx. 15 min or more, turned off for approx. 1 min, and then turned on again)
conditions.

— Inspect the headlight illumination in the period from directly after cold illumination until they are

uniformly illuminated (approx. 5 min) and verify that there is no flickering or inconsistent
brightness.

— Turn on the headlights for approx. 30 min with normal condition bulbs and verify that there is no

brightness difference between the right and left, and that illumination is consistent.

End Of Sie

WM: FRONT COMBINATION LIGHT

NO GOOD

acxuuw00001701

NO GOOD

acxuuw00001702

LIGHTING SYSTEMS

09-18–5

09-18

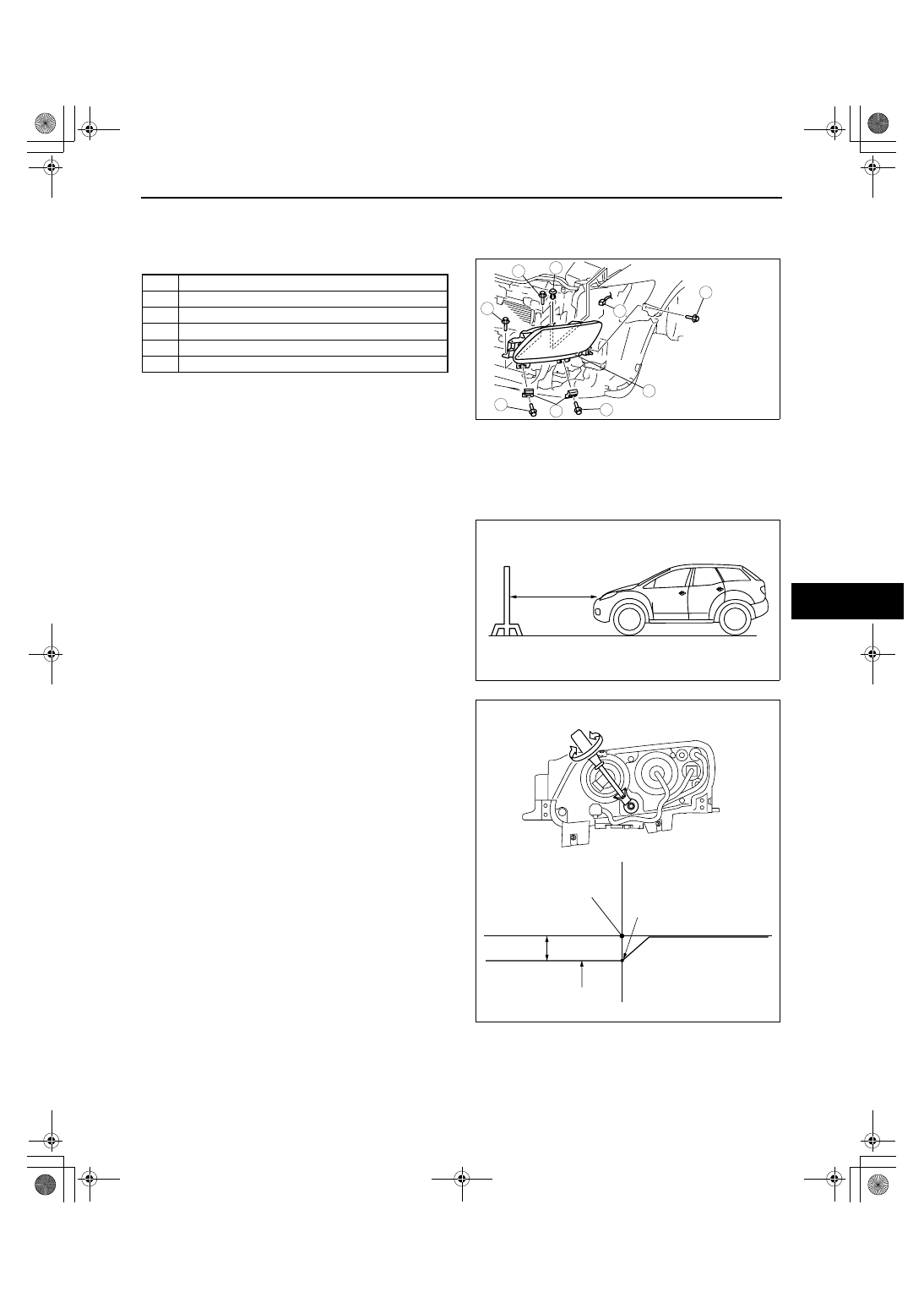

FRONT COMBINATION LIGHT REMOVAL/INSTALLATION

id091800800700

1. Disconnect the negative battery cable.
2. Remove the front bumper. (See 09-10-2 FRONT BUMPER REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.

.

4. Install in the reverse order of removal.
5. Adjust the headlight aiming. (See09-18-5

HEADLIGHT AIMING)

End Of Sie

WM: HEADLIGHT

HEADLIGHT AIMING

id091800800400

1. Adjust the tire pressure to the specification.
2. Position the unloaded vehicle on a flat, level surface.
3. Seat one person in the driver's seat.
4. Position the vehicle straight ahead and perpendicular to the white screen.
5. Set the headlights 3 m {9.8 ft} from the white

screen.

6. Place an object in front of the headlight not being

adjusted to block its light beam.

7. Start the engine so that the battery remains

charged.

8. Turn on the low-beam headlight.
9. Set the headlight leveling switch to the 0 position.

(Vehicles with headlight leveling switch)

10. Adjust by turning the aiming adjustment screw so

that elbow point is in the position shown in the
figure.

End Of Sie

1

Bolt  A

2

Fastener

3

Front combination light

4

Connector

5

Bolt  B

6

Brcket

5

5

4

4

3

1

2

6

BOLT :

4.0—9.8 N·m

{41—99 kgf·cm,
36—86 in·lbf}

1

1

acxuuw00001693

3 m {9.8 ft}

acxuuw00001694

DOWNWARD

UPWARD

CENTER OF
HEADLIGHT

30 mm

{1.2 in}

OUT OF LINE

ELBOW POINT

acxuuw00001695

LIGHTING SYSTEMS

09-18–6

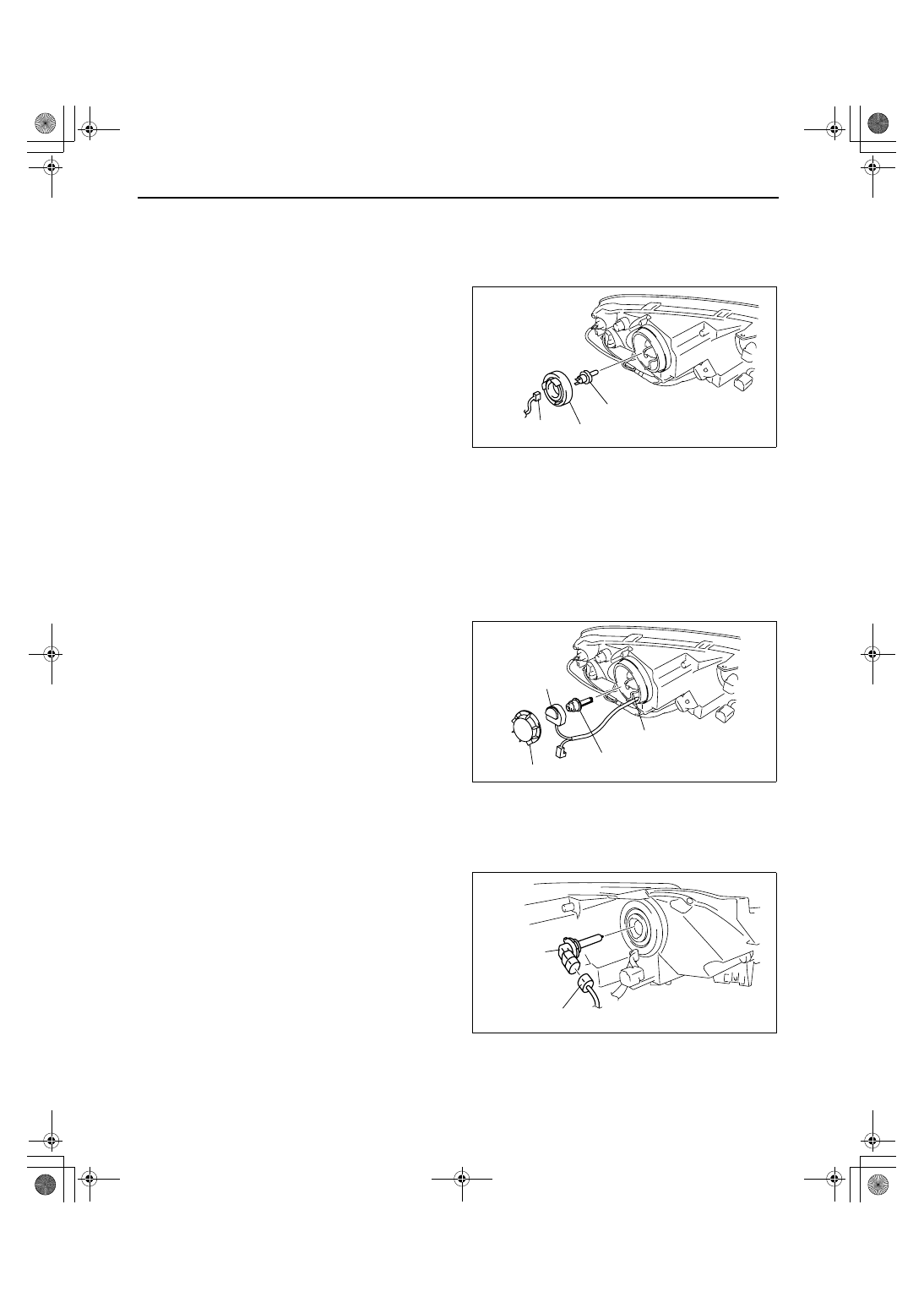

HEADLIGHT BULB REMOVAL/INSTALLATION

id091800800500

Low-beam
Halogen type

1. Disconnect the negative battery cable.
2. Remove the fasteners and slightly bend back the mudguard.
3. Disconnect the connector.

Caution

• A halogen bulb generates extremely high

heat when it is illuminated. If the surface
of the bulb is soiled, excessive heat will
build up and the life of the bulb will be
shortened. When replacing the bulb, hold
the metal flange, not the glass.

4. Remove the cover.
5. Remove the socket, then remove the headlight

bulb.

6. Install in the reverse order of removal.

Discharge type

Warning

• Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing

the discharge headlights, always refer to the discharge headlight service warnings. (See 09-18-4
DISCHARGE HEADLIGHT SERVICE WARNINGS.)

1. Disconnect the negative battery cable.
2. Remove the fasteners and slightly bend back the mudguard.
3. Remove the cover.

Caution

• The bulb generates extremely high heat

when it is illuminated. If the surface of the
bulb is soiled, excessive heat will build
up and the life of the bulb will be
shortened. When replacing the bulb, hold
the metal flange, not the glass.

4. Remove the connector, then remove the

discharge headlight bulb.

5. Install in the reverse order of removal.

High-beam

1. Disconnect the negative battery cable.
2. Remove the front bumper. (See 09-10-2 FRONT BUMPER REMOVAL/INSTALLATION.)
3. Remove the front combination light. (See 09-18-5 FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
4. Disconnect the connector.

Caution

• A halogen bulb generates extremely high

heat when it is illuminated. If the surface
of the bulb is soiled, excessive heat will
build up and the life of the bulb will be
shortened. When replacing the bulb, hold
the metal flange, not the glass.

5. Remove the socket, then remove the headlight

bulb.

6. Install in the reverse order of removal.

End Of Sie

WM: DISCHARGE HEADLIGHT

HALOGEN HEADLIGHT
BULB

COVER

CONNECTOR

acxuuw00001696

CONNECTOR

DISCHARGE
HEADLIGHT BULB

COVER

RETAINING WIRE

acxuuw00001697

HALOGEN
HEADLIGHT
BULB

CONNECTOR

acxuuw00001698
