INTERIOR TRIM

09-17–21

09-17

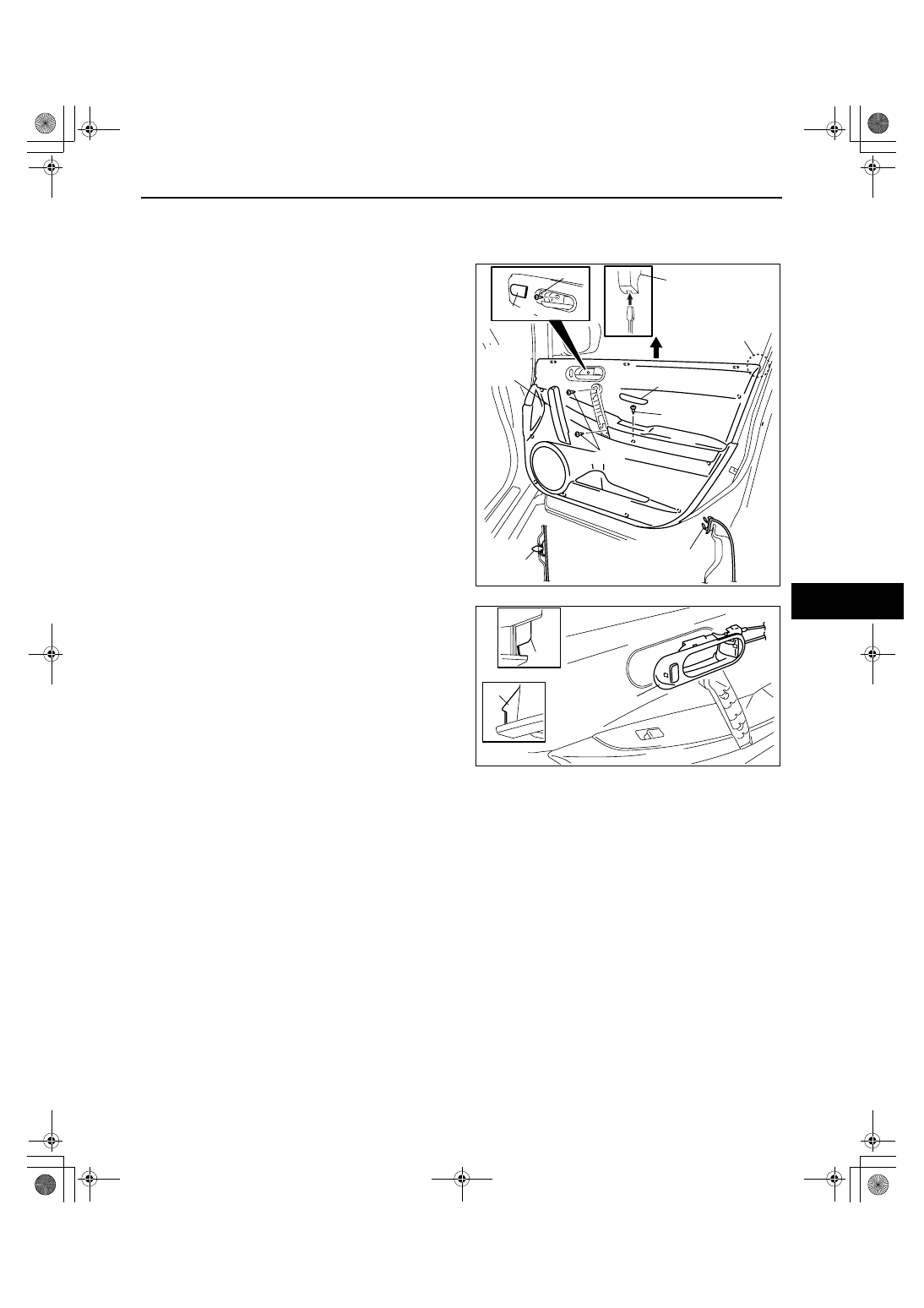

Passenger’s Side

1. Disconnect the negative battery cable.
2. Remove the inner garnish. (See 09-17-20 INNER GARNISH REMOVAL/INSTALLATION.)
3. Detach handle pull cover using a tape-wrapped flathead screwdriver as shown in the figure.
4. Remove the cover, then remove screws.
5. Detach clips A from the door trim using fastener

remover.

6. Pull the door trim upward and detach tabs B from

the door.

Caution

• Remove the front door trim being careful

not to scratch area C of the sash film.

7. Disconnect the power window subswitch

connector.

8. Disconnect the door lock switch connector.
9. Remove the inner handle cover.

10. Remove the front door trim.
11. Install in the reverse order of removal.

End Of Sie

COVER

SCREW

SCREW

SCREW

CLIP A

TAB B

HANDLE
PULL
COVER

COVER

A

A

A

A

A

A

A

A

B

B

B

C

HANDLE PULL
COVER

acxuuw00000752

INNER HANDLE
COVER

A

B

TAB A

TAB B

acxuuw00000753

INTERIOR TRIM

09-17–22

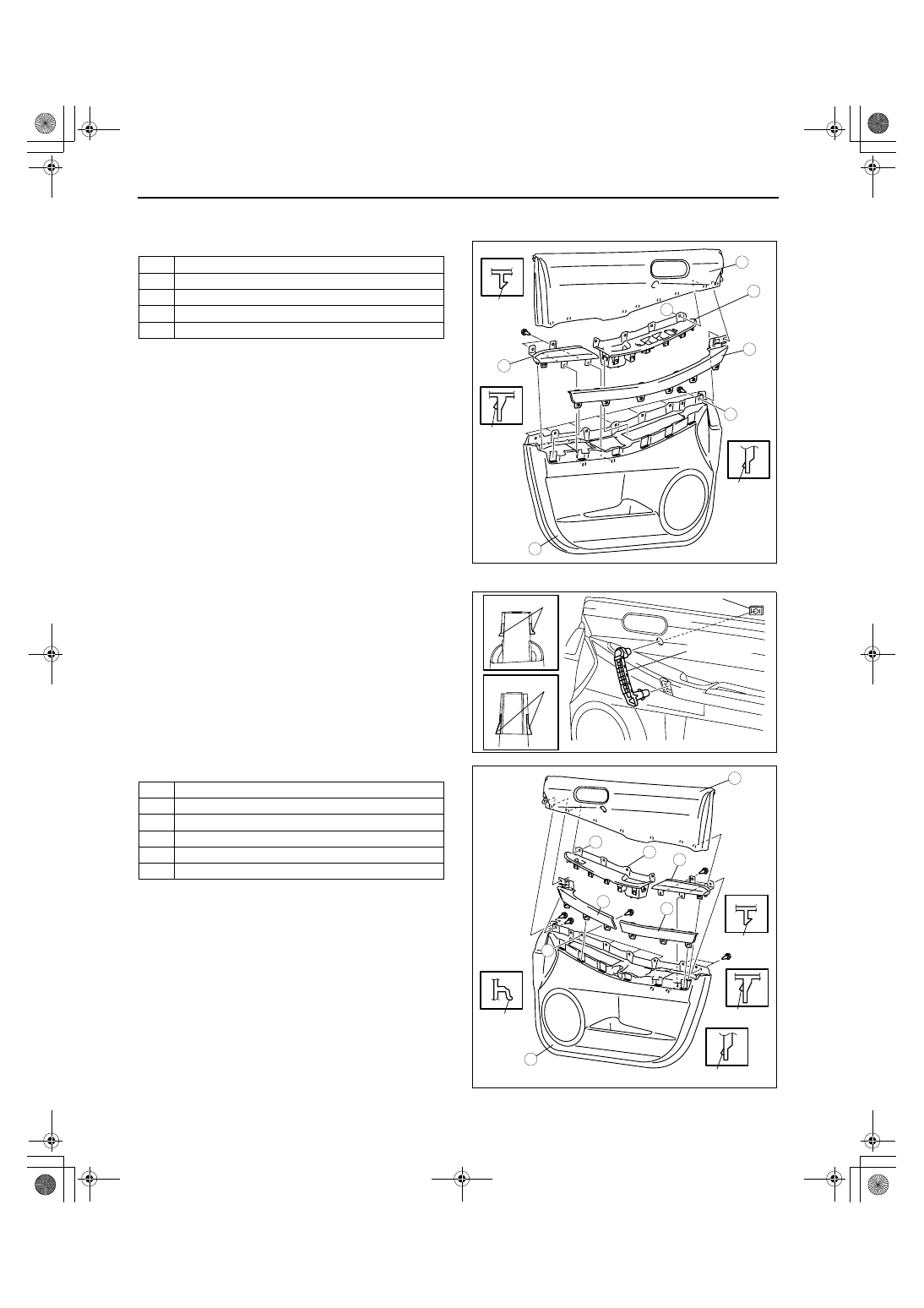

FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY

id091700804200

Driver’s Side

1. Disassemble in the order indicated in the table.

.

2. Assemble in the reverse order of disassembly.

Passenger’s Side

1. Remove the tab A and B.
2. Remove the bracket.
3. Remove the handle pull.

4. Disassemble in the order indicated in the table.

.

5. Assemble in the reverse order of disassembly.

End Of Sie

1

Front door trim upper

2

Armrest

3

Switch panel

4

Front door decoration panel

5

Front door trim lower

A

A

A

A

A

A

C

C

C

C

C

C

B

A

A

A

TAB B

CLIP C

CLIP A

4

3

2

5

1

A

acxuuw00000884

1

Front door trim upper

2

Armrest

3

Switch panel

4

Front door decoration panel  No.1

5

Front door decoration panel  No.2

6

Front door trim lower

TAB B

TAB A

A

A

B

B

HANDLE PULL

BRACKET

acxuuw00000917

TAB D

TAB B

CLIP C

CLIP A

A

A

A

A

A

A

A

C

C

C

C

D D

D

D

C

C

B

A

A

4

3

1

2

5

6

A

acxuuw00000885

INTERIOR TRIM

09-17–23

09-17

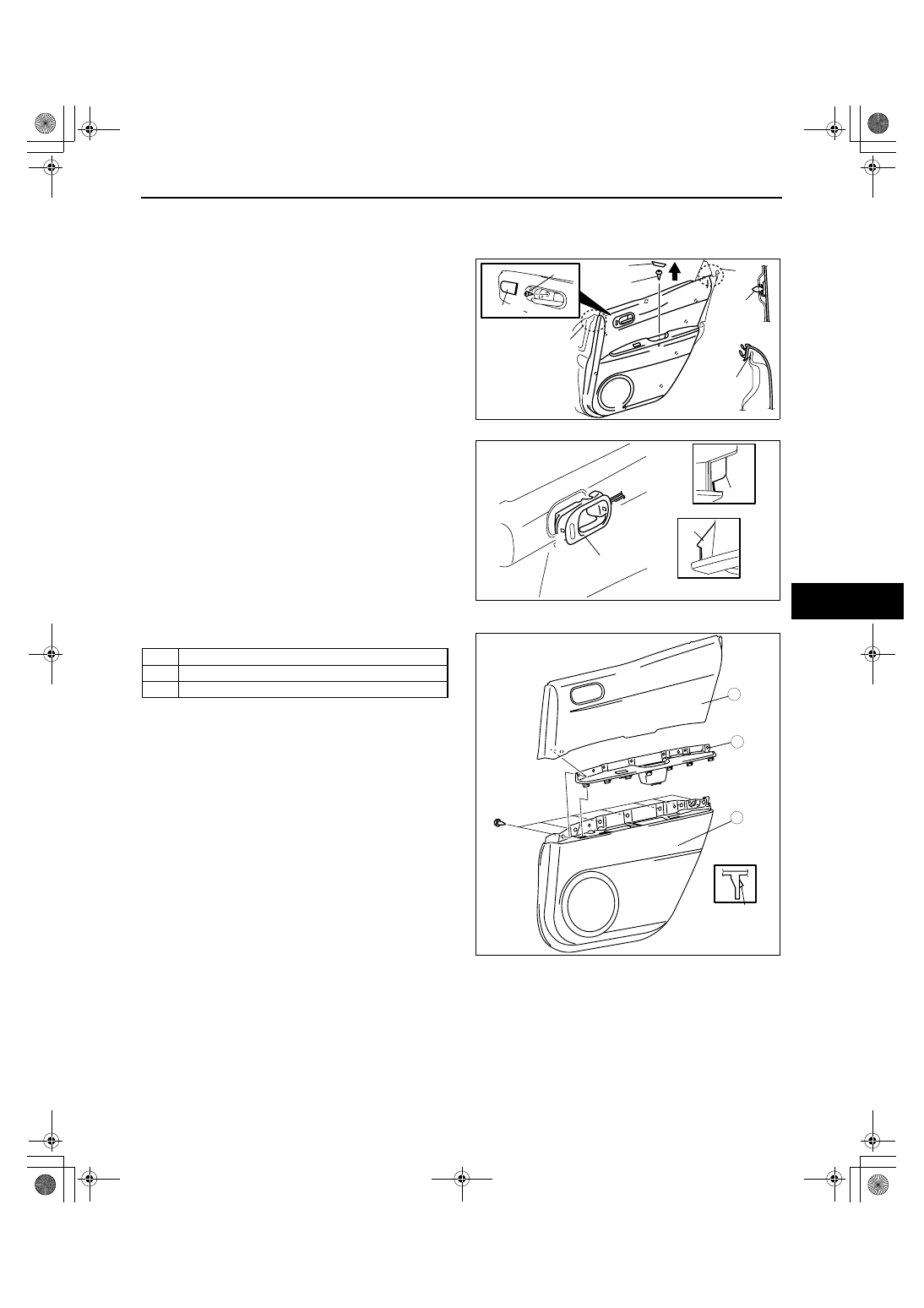

REAR DOOR TRIM REMOVAL/INSTALLATION

id091700802600

1. Disconnect the negative battery cable.
2. Remove the sail garnish. (See 09-17-12 SAIL GARNISH REMOVAL/INSTALLATION.)
3. Remove the covers.
4. Remove the screws.
5. Detach clips A from the door trim using fastener

remover.

6. Pull the door trim upward and detach tabs B from

the door.

Caution

• Remove the rear door trim being careful

not to scratch areas C of the sash film.

7. Disconnect the power window subswitch

connector.

8. Disconnect the door lock switch connector.
9. Remove the inner handle cover.

10. Remove the rear door trim.
11. Install in the reverse order of removal.

End Of Sie

REAR DOOR TRIM DISASSEMBLY/ASSEMBLY

id091700804300

1. Disassemble in the order indicated in the table.

.

2. Assemble in the reverse order of disassembly.

End Of Sie

WM: TRUNK TRIM

COVER

CLIP A

TAB B

SCREW

A

A

A

A

A

A

A

A

B

COVER

SCREW

C

C

acxuuw00000863

INNER HANDLE
COVER

A

B

TAB A

TAB B

acxuuw00000864

1

Rear door trim upper

2

Switch panel

3

Rear door trim lower

A

A

A

A

A

A

A

CLIP A

3

2

1

acxuuw00000886

INTERIOR TRIM

09-17–24

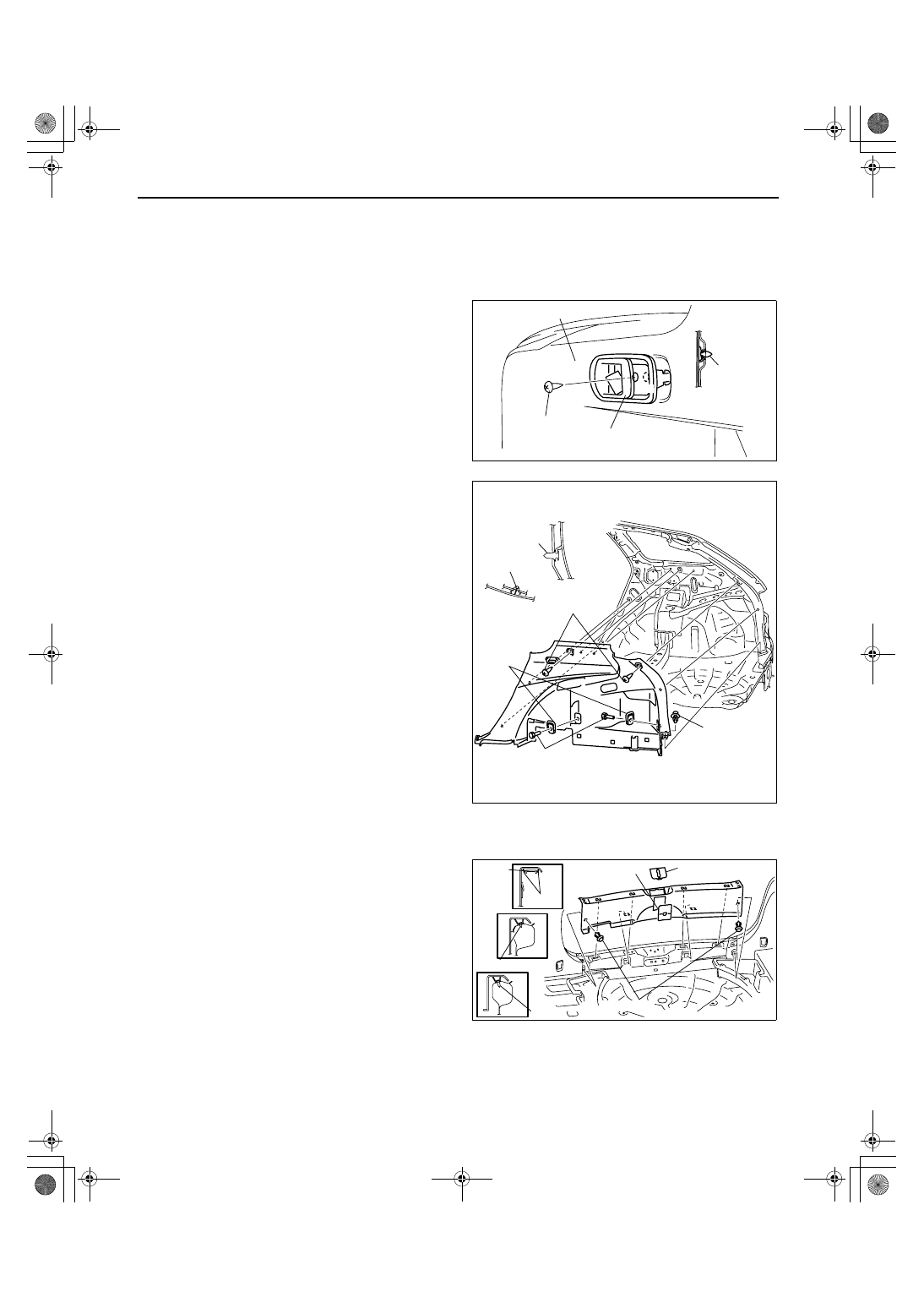

TRUNK SIDE TRIM REMOVAL/INSTALLATION

id091700803100

1. Remove the following parts:

(1) Rear seat (See 09-13-7 REAR SEAT REMOVAL/INSTALLATION.)
(2) Rear scuff plate inner. (See 09-17-19 REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(3) Sub trunk box (See 09-17-25 SUB TRUNK BOX REMOVAL/INSTALLATION.)
(4) Trunk end trim (See 09-17-24 TRUNK END TRIM REMOVAL/INSTALLATION.)

2. Remove the screw.
3. Pull the remote handle lever outward and detach

clip A.

4. Remove the screws and the fastener.
5. Remove the bolt, then remove the cargo net hook.
6. Pull the trunk side trim outward and detach clips A

and B.

7. Remove the trunk side trim.
8. Install in the reverse order of removal.

End Of Sie

TRUNK END TRIM REMOVAL/INSTALLATION

id091700803400

1. Remove the sub trunk box. (See 09-17-25 SUB TRUNK BOX REMOVAL/INSTALLATION)
2. Remove the fasteners.
3. Pull the trunk end trim upward, then disengage

tabs A, clips B and pins C.

4. Remove the tabs D.
5. Remove the trunk end trim.
6. Remove the bezel.
7. Remove the cover.
8. Install in the reverse order of removal.

End Of Sie

SCREW

A

CLIP A

TRUNK SIDE TRIM

REMOTE HANDLE LEVER

acxuuw00000883

CARGO NET
HOOK

SCREW

BOLT

FASTENER

A

A

A

A

B

CLIP A

CLIP B

acxuuw00000866

FASTENER

A

A

A

A

B

C

B

C

B

B

C

C

D

D

CLIP B

TAB A

TRUNK
SIDE
TRIM

COVER

BEZEL

PIN C

acxuuw00000867
