Mazda CX 7. Manual - part 411





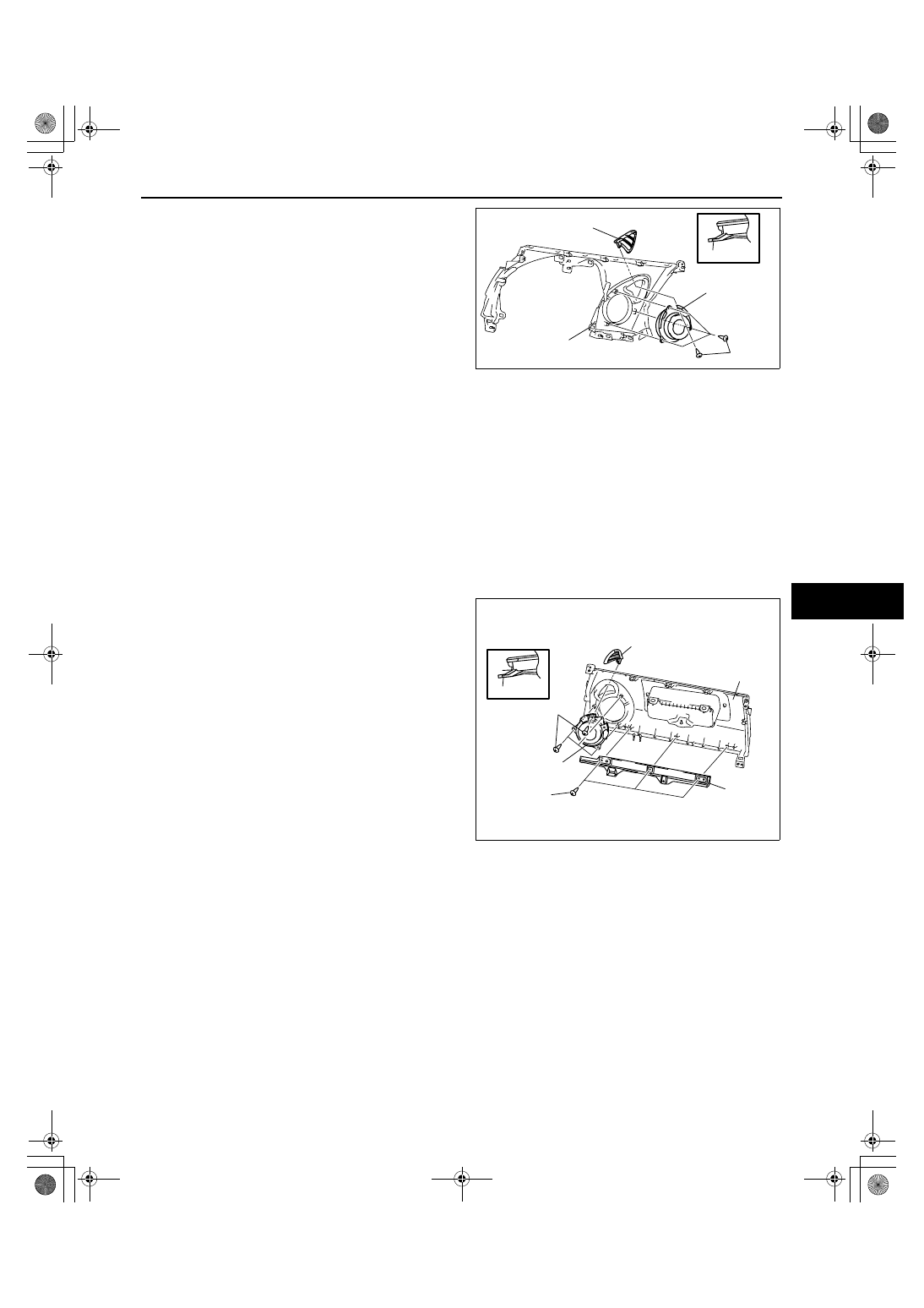

INTERIOR TRIM

09-17–11

09-17

2. Remove the screws.
3. Remove the ventilator grille.
4. Remove the tab A.
5. Remove the demister grille.
6. Install in the reverse order of removal.

Passenger’s Side

1. Disconnect the negative battery cable.
2. Remove the following parts:

(1) A-pillar lower trim (passenger's side) (See 09-17-16 A-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(2) A-pillar trim (passenger's side) (See 09-17-15 A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3) Front scuff plate inner (See 09-17-19 FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(4) Front side trim (See 09-17-18 FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(5) Console panel (See 09-17-15 CONSOLE PANEL REMOVAL/INSTALLATION.)
(6) Console (See 09-17-13 CONSOLE REMOVAL/INSTALLATION.)
(7) Hood release lever (See 09-14-25 HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
(8) Lower panel (See 09-17-9 LOWER PANEL REMOVAL/INSTALLATION.)
(9) Center panel (See 09-17-8 CENTER PANEL REMOVAL/INSTALLATION.)
(10)Passenger-side air bag module (See 08-10-7 PASSENGER-SIDE AIR BAG MODULE REMOVAL/

INSTALLATION.)

3. Remove the screws A.
4. Remove the bracket.
5. Remove the screws B.
6. Remove the ventilator grille.
7. Remove the tab C.
8. Remove the demister grille.
9. Install in the reverse order of removal.

SCREW

TAB A

DRIVER-SIDE
DEMISTER GRILLE

DRIVER-SIDE
VENTILATOR
GRILLE

DASH BOARD
GARNISH

A

acxuuw00000879

AIR BAG MODULE

BRACKET

SCREW A

SCREW B

TAB C

PASSENGER-SIDE
DEMISTER GRILLE

PASSENGER-SIDE
VENTILATOR GRILLE

C

acxuuw00000880

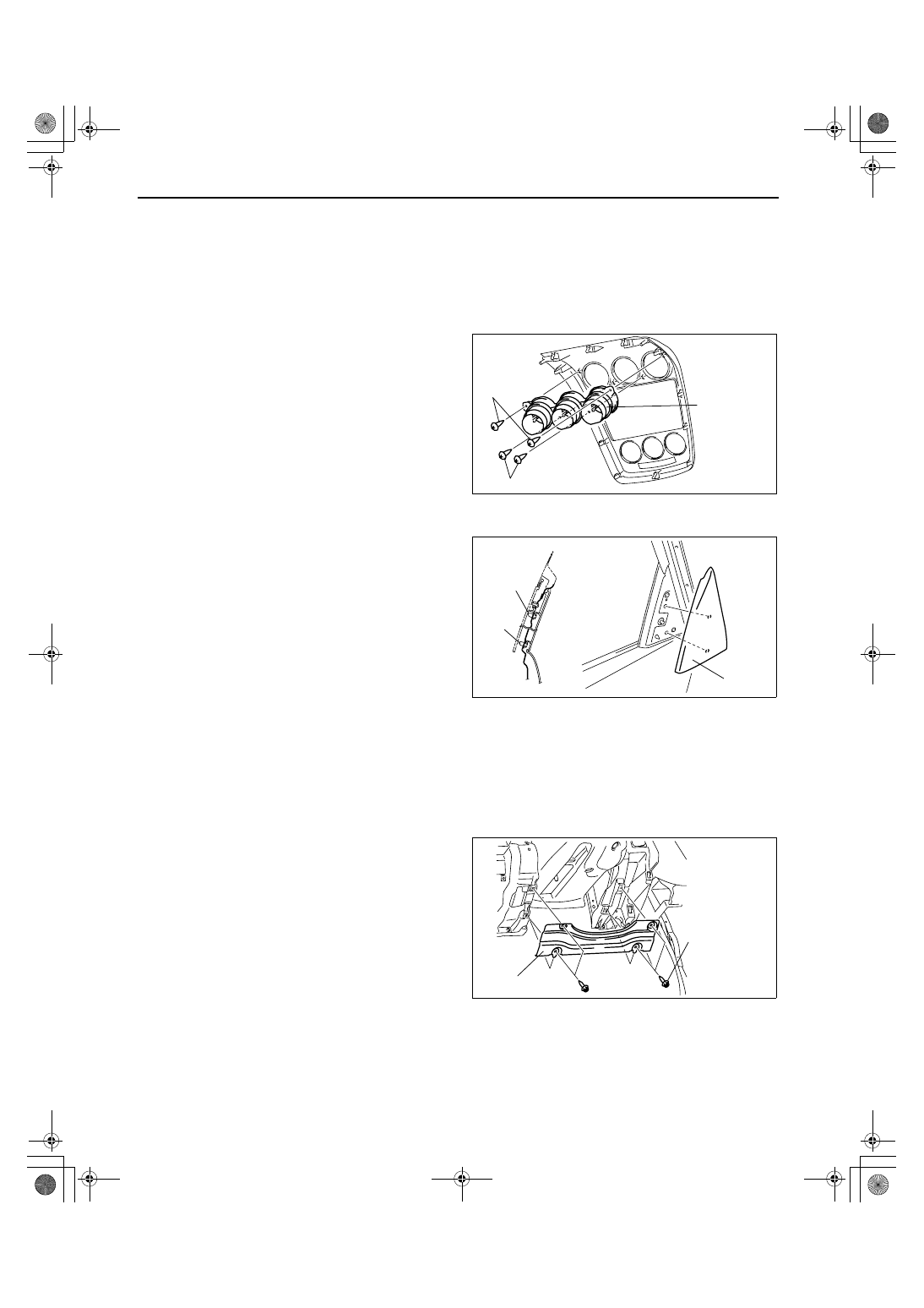

INTERIOR TRIM

09-17–12

Center

1. Remove the following parts:

(1) Front scuff plate inner (See 09-17-19 FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2) Front side trim (See 09-17-18 FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3) Console panel (See 09-17-15 CONSOLE PANEL REMOVAL/INSTALLATION.)
(4) Console (See 09-17-13 CONSOLE REMOVAL/INSTALLATION.)
(5) Hood release lever (See 09-14-25 HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
(6) Lower panel (See 09-17-9 LOWER PANEL REMOVAL/INSTALLATION.)
(7) Center panel (See 09-17-8 CENTER PANEL REMOVAL/INSTALLATION.)

2. Remove the screws.
3. Remove the ventilator grille.
4. Install in the reverse order of removal.

End Of Sie

SAIL GARNISH REMOVAL/INSTALLATION

id091700805000

1. Pull the sail garnish outward and detach clips A

and B.

2. Remove the sail garnish.
3. Install in the reverse order of removal.

End Of Sie

KNEE BOLSTER REMOVAL/INSTALLATION

id091700804000

1. Remove the following parts:

(1) Console panel (See 09-17-15 CONSOLE PANEL REMOVAL/INSTALLATION.)
(2) Console (See 09-17-13 CONSOLE REMOVAL/INSTALLATION.)
(3) Front scuff plate inner (driver’s side) (See 09-17-19 FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(4) Front side trim (driver’s side) (See 09-17-18 FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(5) Hood release lever (See 09-14-25 HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
(6) Lower panel (driver’s side) (See 09-17-9 LOWER PANEL REMOVAL/INSTALLATION.)

2. Remove the bolts.
3. Remove the knee bolster.
4. Install in the reverse order of removal.

End Of Sie

WM: CONSOLE

SCREW

SCREW

VENTILATOR
GRILLE

acxuuw00000881

CLIP A

CLIP B

A

B

SAIL GARNISH

acxuuw00000918

KNEE BOLSTER

BOLT

1.6—2.2 N·m
{16.4—22.4 kgf·cm,
14.2—19.4 in·lbf}

acxuuw00000794

INTERIOR TRIM

09-17–13

09-17

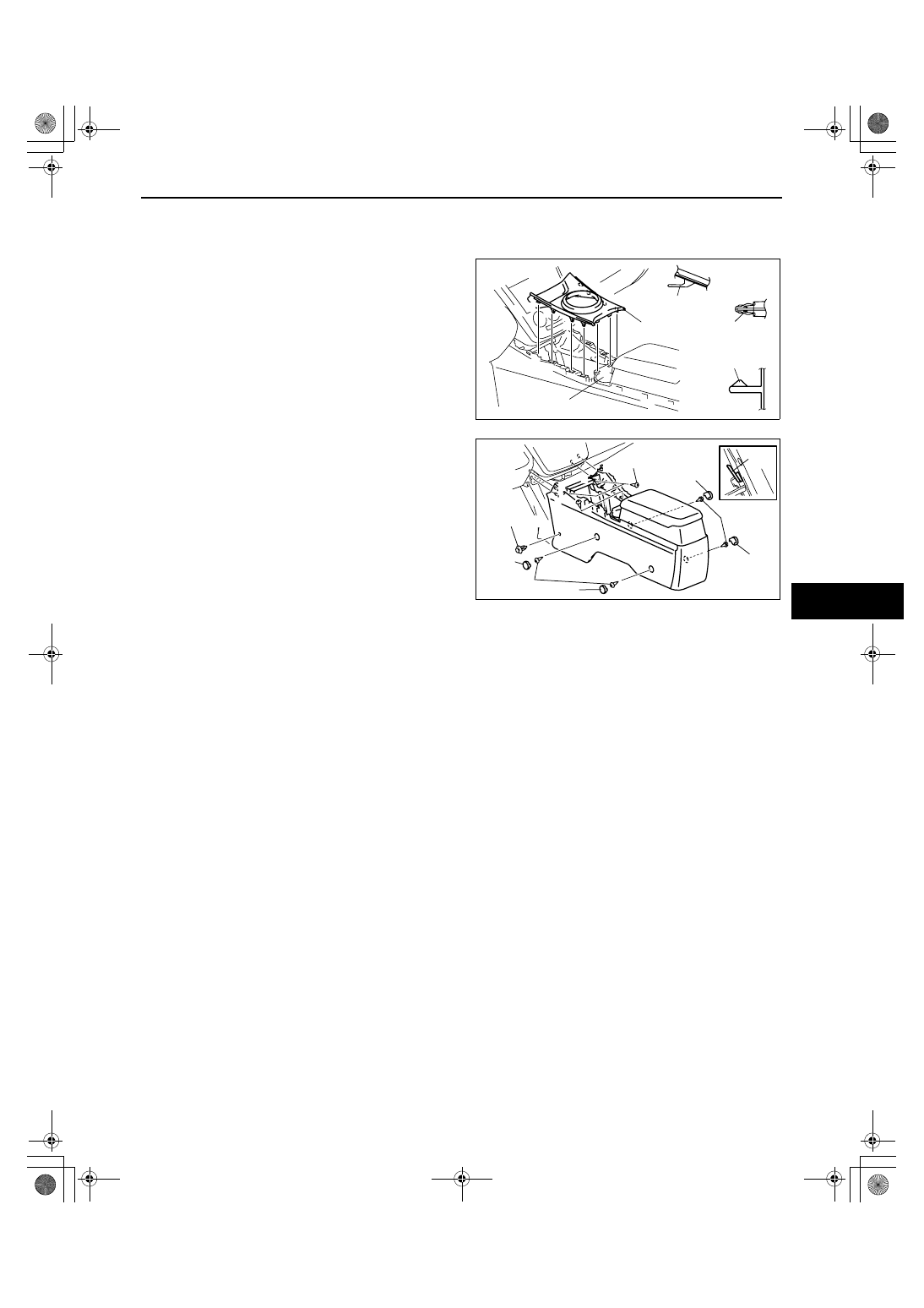

CONSOLE REMOVAL/INSTALLATION

id091700801200

1. Disconnect the negative battery cable.
2. Remove the console panel. (See 09-17-15 CONSOLE PANEL REMOVAL/INSTALLATION.)
3. Pull the panel upward and detach clips A, B and

tabs C.

4. Disconnect the accessory socket connector.
5. Disconnect the seat warmer switch connectors.

(vehicles with seat warmer system)

6. Remove the panel.

7. Remove the covers.
8. Remove the fasteners and screws.
9. Remove the pins A.

10. Remove the console.
11. Install in the reverse order of removal.

End Of Sie

B

B

B

B

A

A

B

B

C

C

CLIP B

CLIP A

TAB C

PANEL

CUP HOLDER

acxuuw00000666

SCREW

SCREW

COVER

COVER

COVER

COVER

PIN A

SCREW

FASTENER

A

A

A

A

acxuuw00000667

INTERIOR TRIM

09-17–14

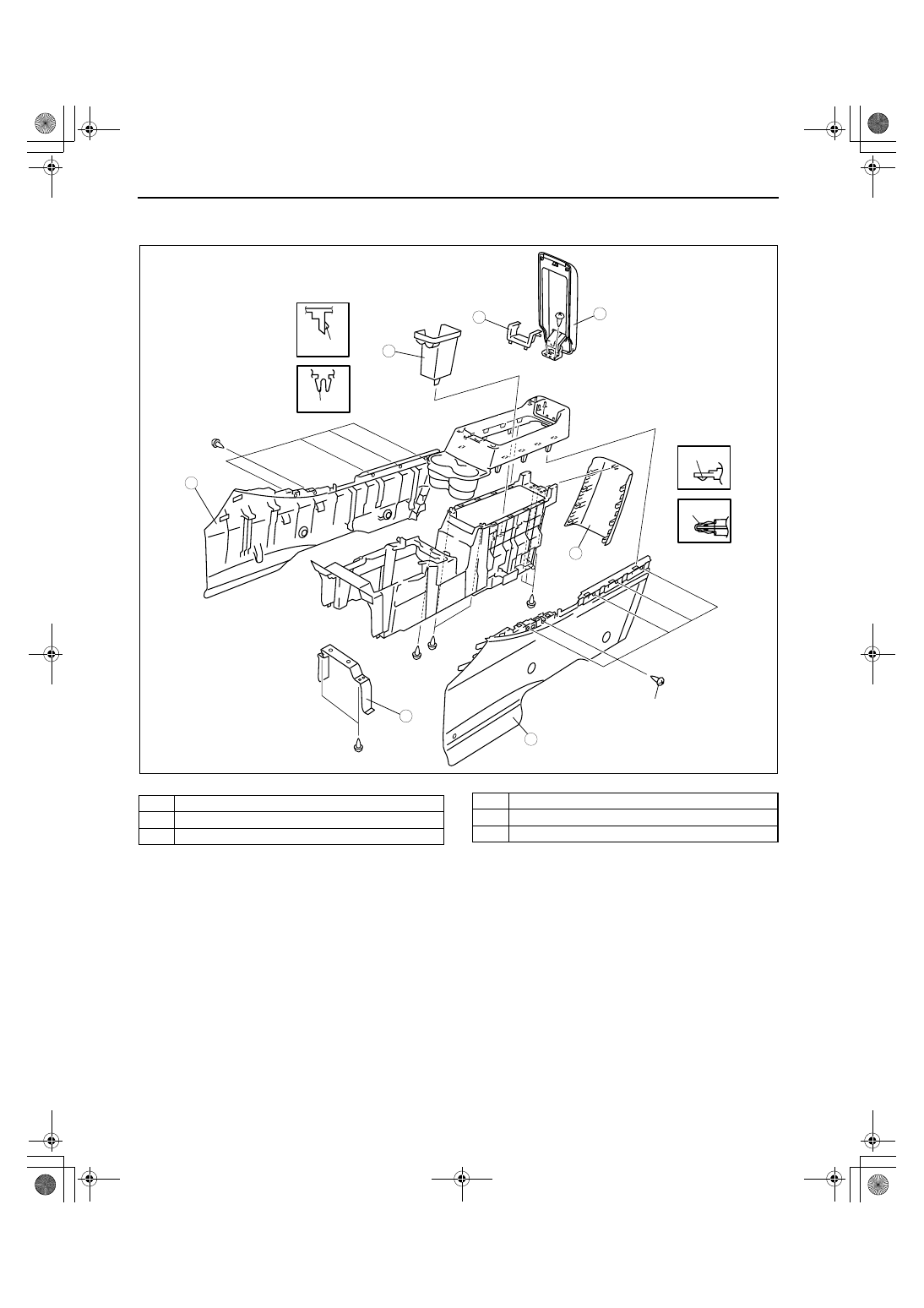

CONSOLE DISASSEMBLY/ASSEMBLY

id091700801300

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

End Of Sie

B

A

B

A

C

D

D

D

D

D

D

D

D

C

C

C

C

C

B

B

A

B

A

SCREW

1

4

5

3

2

CLIP A

CLIP D

CLIP C

TAB B

6

6

acxuuw00000668

1

Storage box

2

Console cover

3

Bracket

4

Hole cover

5

Console lid

6

Console
