SECURITY AND LOCKS

09-14–3

09-14

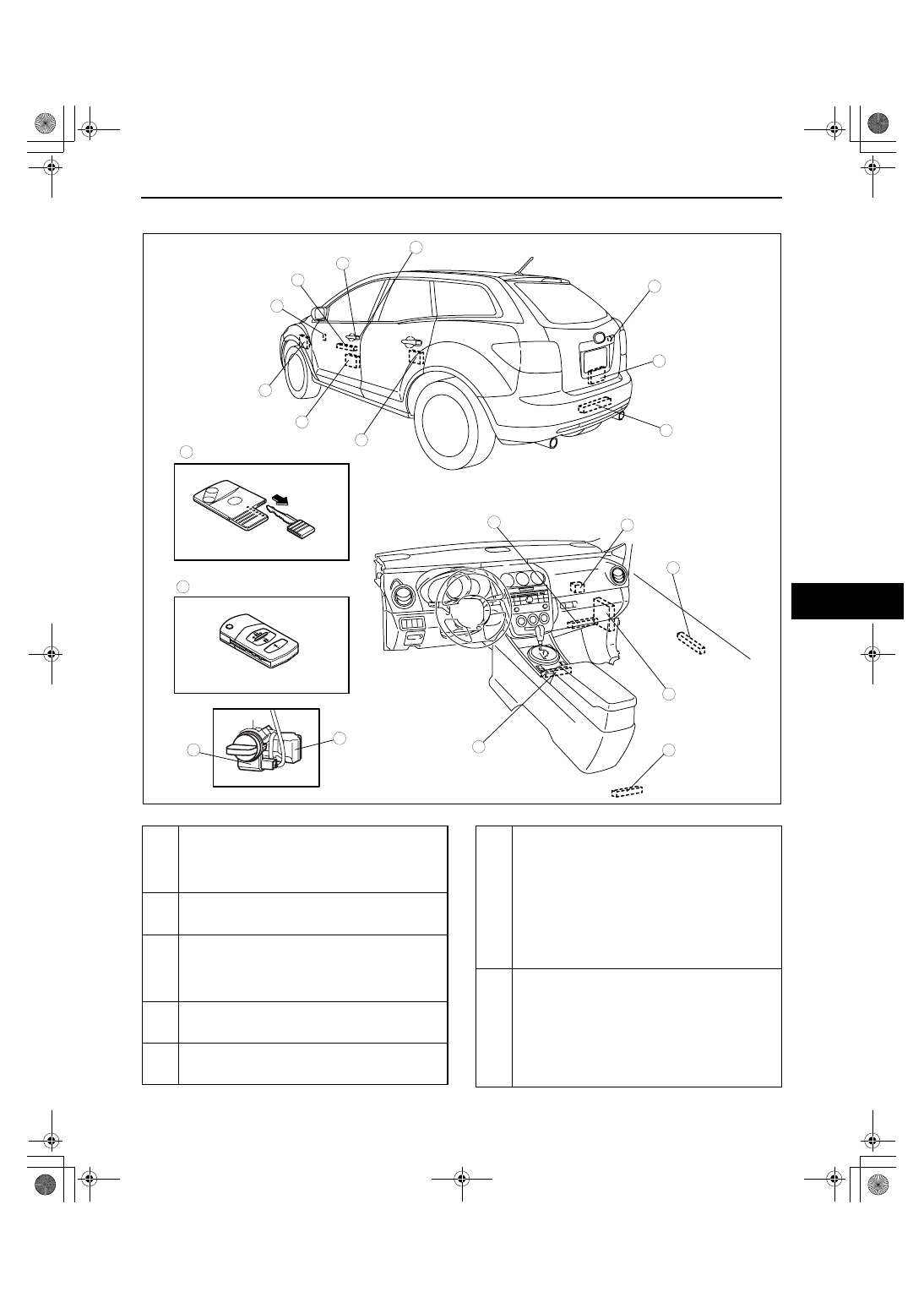

SECURITY AND LOCKS LOCATION INDEX

id091400800100

.

9

8

7

5

4

3

10

14

13

11

12

6

1

2

1

4

4

4

4

4

acxuuw00002463

1

Request switch
(See 09-14-39 REQUEST SWITCH REMOVAL/
INSTALLATION[ADVANCED KEYLESS SYSTEM].)
(See 09-14-40 REQUEST SWITCH
INSPECTION[ADVANCED KEYLESS SYSTEM].)

2

Front door key cylinder
(See 09-14-4 FRONT DOOR KEY CYLINDER
REMOVAL/INSTALLATION.)

3

Door lock switch
(See 09-14-8 DOOR LOCK SWITCH REMOVAL/
INSTALLATION.)
(See 09-14-8 DOOR LOCK SWITCH
INSPECTION.)

4

Keyless antenna
(See 09-14-37 KEYLESS ANTENNA REMOVAL/
INSTALLATION[ADVANCED KEYLESS SYSTEM].)

5

Keyless beeper
(See 09-14-39 KEYLESS BEEPER REMOVAL/
INSTALLATION[ADVANCED KEYLESS SYSTEM].)

6

Front door latch and lock actuator
(See 09-14-5 FRONT DOOR LATCH AND LOCK
ACTUATOR REMOVAL/INSTALLATION.)
(See 09-14-6 FRONT DOOR LATCH AND LOCK
ACTUATOR INSPECTION.)
(See 09-14-7 FRONT DOOR LOCK ACTUATOR
INSPECTION.)
(See 09-14-7 DOOR LOCK-LINK SWITCH
INSPECTION.)
(See 09-14-7 FRONT DOOR KEY CYLINDER
SWITCH INSPECTION.)

7

Rear door latch and lock actuator
(See 09-14-5 REAR DOOR LATCH AND LOCK
ACTUATOR REMOVAL/INSTALLATION.)
(See 09-14-6 REAR DOOR LATCH AND LOCK
ACTUATOR INSPECTION.)
(See 09-14-7 REAR DOOR LOCK ACTUATOR
INSPECTION.)
(See 09-14-7 DOOR LOCK-LINK SWITCH
INSPECTION.)

SECURITY AND LOCKS

09-14–4

End Of Sie

WM: DOOR LOCK AND OPENER

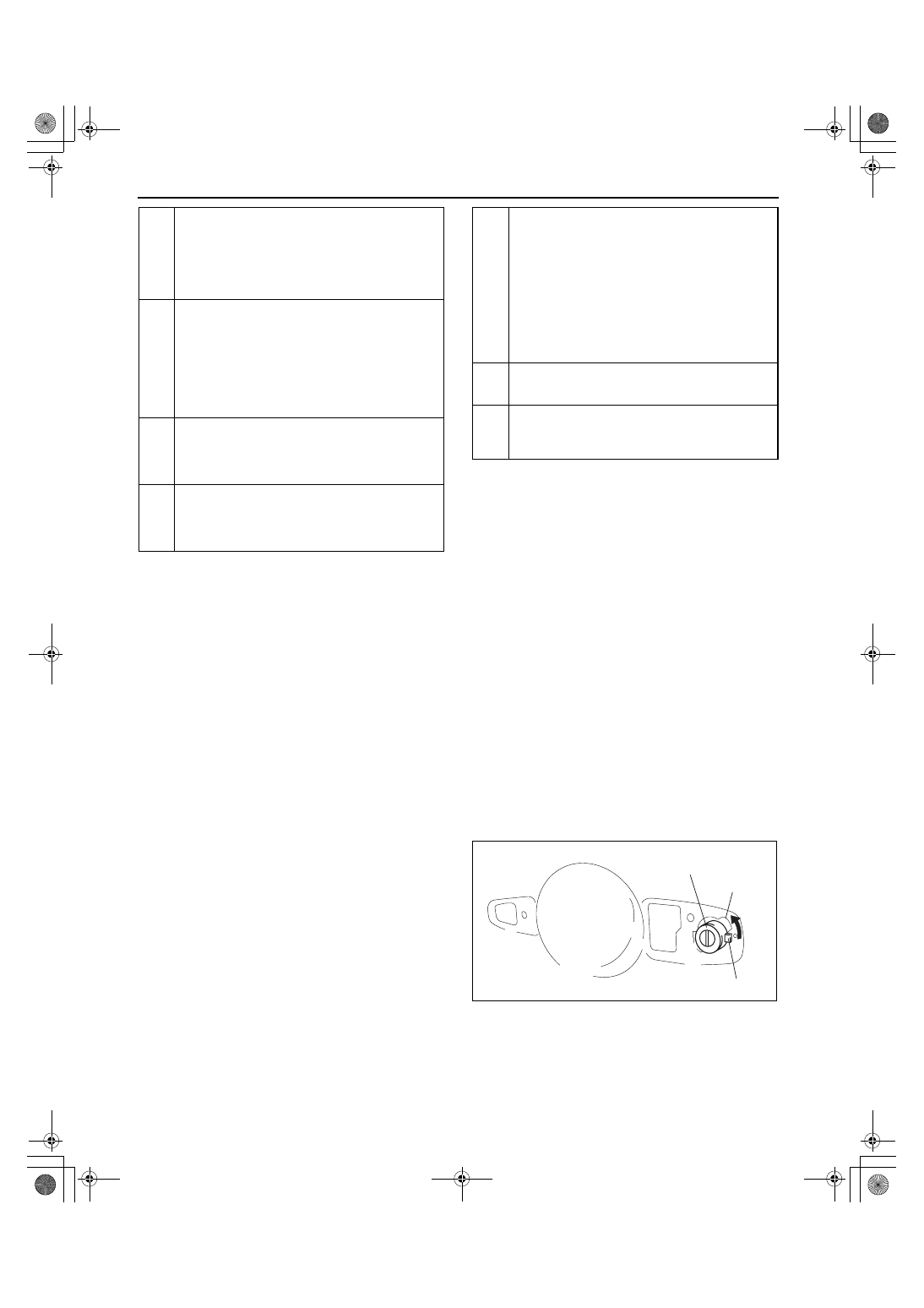

FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION

id091400800300

1. Disconnect the negative battery cable.
2. Remove the following parts:

(1) Inner garnish (See 09-17-20 INNER GARNISH REMOVAL/INSTALLATION.)
(2) Front door trim (See 09-17-20 FRONT DOOR TRIM REMOVAL/INSTALLATION.)
(3) Front outer handle (See 09-14-8 FRONT OUTER HANDLE REMOVAL/INSTALLATION.)

3. Remove the rod from the front door key cylinder.
4. Turn the key cylinder in the direction indicated by

the arrow and move the tab to the notch.

5. Pull the front door key cylinder outward to remove

it.

6. Install in the reverse order of removal.

End Of Sie

8

Liftgate latch and lock actuator
(See 09-14-10 LIFTGATE LATCH AND LOCK
ACTUATOR REMOVAL/INSTALLATION.)
(See 09-14-10 LIFTGATE LOCK ACTUATOR
INSPECTION.)
(See 09-14-10 LIFTGATE LATCH SWITCH
INSPECTION.)

9

Card  key
(See 09-14-29 CARD KEY BATTERY
REPLACEMENT[ADVANCED KEYLESS
SYSTEM].)
(See 09-14-33 CARD KEY ID CODE
REGISTRATION[ADVANCED KEYLESS
SYSTEM].)
(See 09-14-34 CLEARING CARD KEY[ADVANCED
KEYLESS SYSTEM].)

10

Transmitter
(See 09-14-26 TRANSMITTER BATTERY
REPLACEMENT[KEYLESS ENTRY SYSTEM].)
(See 09-14-28 TRANSMITTER ID CODE
REGISTRATION[KEYLESS ENTRY SYSTEM].)

11

Keyless receiver
(See 09-14-36 KEYLESS RECEIVER REMOVAL/
INSTALLATION.)
(See 09-14-36 KEYLESS RECEIVER
INSPECTION.)

12

Keyless control module
(See 09-14-30 KEYLESS CONTROL MODULE
REMOVAL/INSTALLATION[ADVANCED KEYLESS
SYSTEM].)
(See 09-14-30 KEYLESS CONTROL MODULE
INSPECTION[ADVANCED KEYLESS SYSTEM].)
(See 09-14-32 KEYLESS CONTROL MODULE
CONFIGURATION[ADVANCED KEYLESS
SYSTEM].)
(See 09-14-35 CUSTOMIZED FUNCTION
SETTING PROCEDURE[ADVANCED KEYLESS
SYSTEM].)

13

Coil antenna
(See 09-14-11 COIL ANTENNA REMOVAL/
INSTALLATION.)

14

Steering lock unit
(See 09-14-35 STEERING LOCK UNIT ID CODE
REGISTRATION[ADVANCED KEYLESS
SYSTEM].)

DOOR
KEY CYLINDER

TAB

NOTCH

acxuuw00002464

SECURITY AND LOCKS

09-14–5

09-14

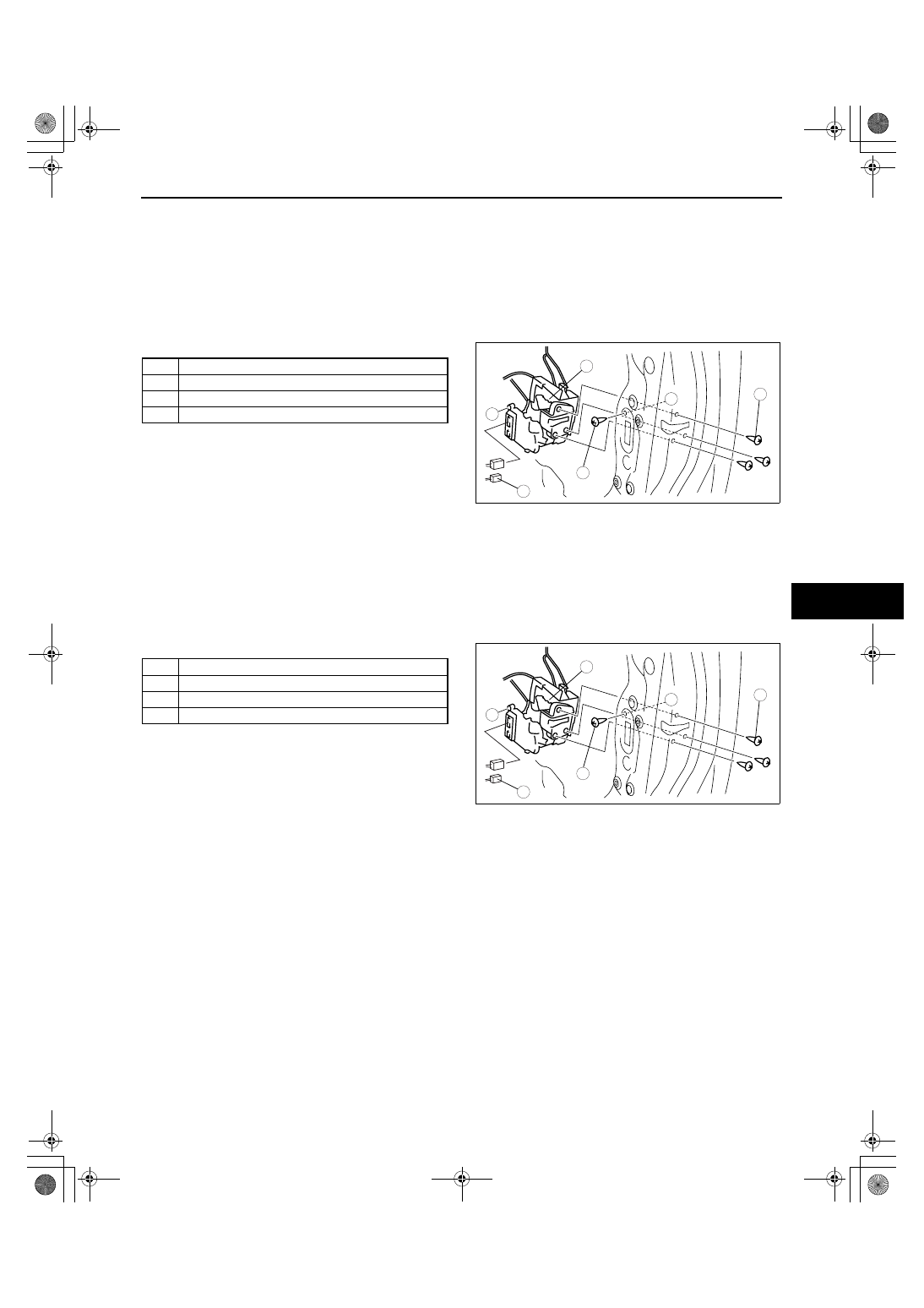

FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION

id091400800400

1. Disconnect the negative battery cable.
2. Remove the following parts:

(1) Inner garnish (See 09-17-20 INNER GARNISH REMOVAL/INSTALLATION.)
(2) Front door trim (See 09-17-20 FRONT DOOR TRIM REMOVAL/INSTALLATION.)
(3) Front door glass (See 09-12-3 FRONT DOOR GLASS REMOVAL/INSTALLATION.)
(4) Front door speaker (See 09-20-6 FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)
(5) Inner handle (See 09-14-9 INNER HANDLE REMOVAL/INSTALLATION.)
(6) Front door unit (See 09-11-4 FRONT DOOR UNIT REMOVAL/INSTALLATION.)

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

End Of Sie

REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION

id091400800500

1. Disconnect the negative battery cable.
2. Remove the following parts:

(1) Front door trim (See 09-17-23 REAR DOOR TRIM REMOVAL/INSTALLATION.)
(2) Front door glass (See 09-12-4 REAR DOOR GLASS REMOVAL/INSTALLATION.)
(3) Front door speaker (See 09-20-6 FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)
(4) Inner handle (See 09-14-9 INNER HANDLE REMOVAL/INSTALLATION.)
(5) Front door unit (See 09-11-4 REAR DOOR UNIT REMOVAL/INSTALLATION.)

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

End Of Sie

1

Connector

2

Screw A

3

Screw B

4

Front door latch and lock actuator

A

A

3

1

2

4

acxuuw00002465

1

Connector

2

Screw A

3

Screw B

4

Front door latch and lock actuator

A

A

3

1

2

4

acxuuw00002466

SECURITY AND LOCKS

09-14–6

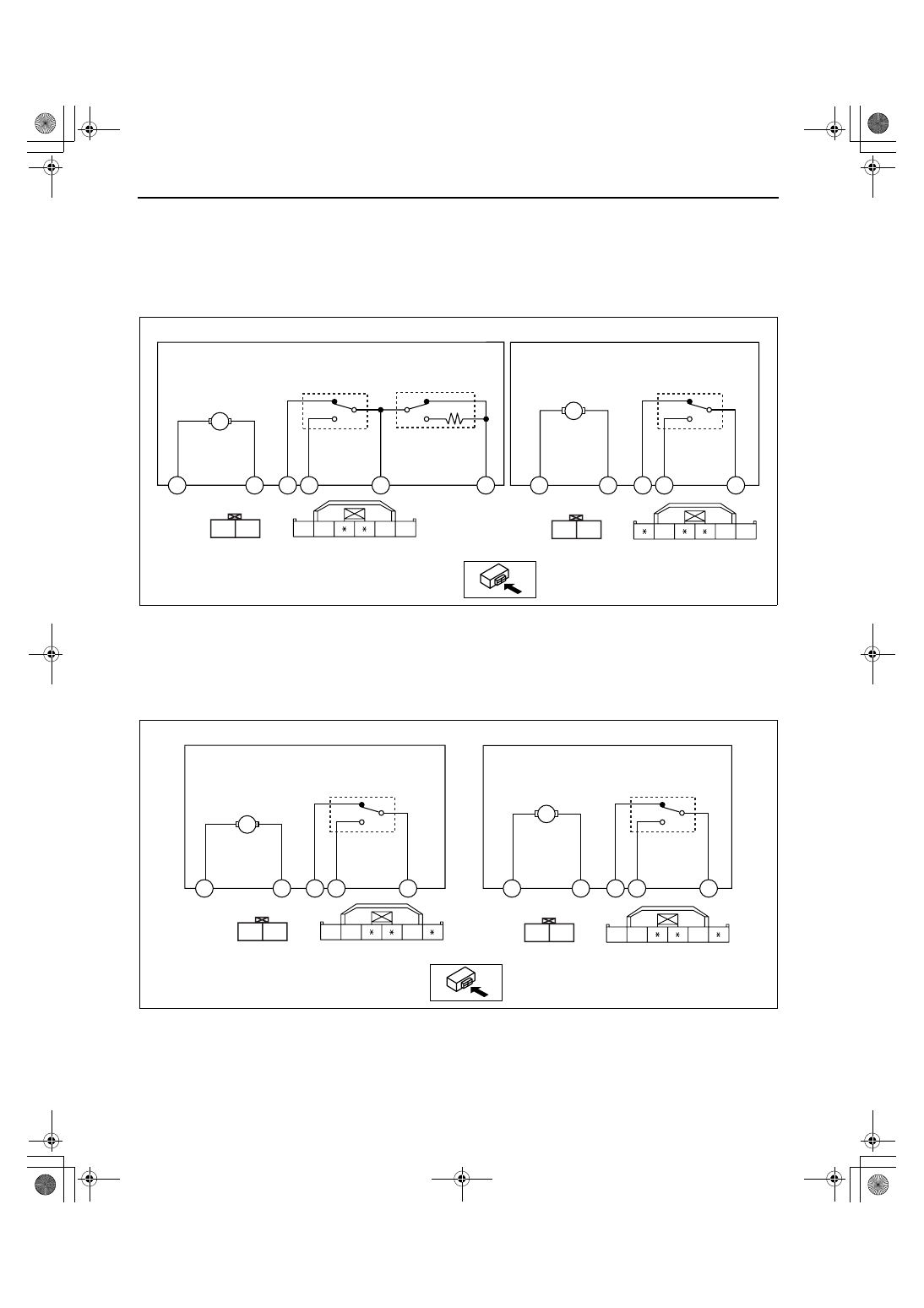

FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION

id091400800600

1. The following actuators and switches are integrated with the front door latch and lock actuator. Inspect the front

door latch and lock actuator according to each inspection procedure for the following items.

• Front door lock actuator (See 09-14-7 FRONT DOOR LOCK ACTUATOR INSPECTION.)

• Front door key cylinder switch (Driver’s side) (See 09-14-7 FRONT DOOR KEY CYLINDER SWITCH

INSPECTION.)

• Door lock-link switch (See 09-14-7 DOOR LOCK-LINK SWITCH INSPECTION.)

End Of Sie

REAR DOOR LATCH AND LOCK ACTUATOR INSPECTION

id091400800700

1. The following actuator and switch are integrated with the rear door latch and lock actuator. Inspect the rear door

latch and lock actuator according to each inspection procedure for the following items.

• Rear door lock actuator (See 09-14-7 REAR DOOR LOCK ACTUATOR INSPECTION.)

• Rear door latch switch (See 09-14-7 DOOR LOCK-LINK SWITCH INSPECTION.)

End Of Sie

M

M

1A

1B

1B

1A

LH

RH

2B

2E

2F

2B

2E

2A

2A

FRONT DOOR
LOCK ACTUATOR

DOOR LOCK-LINK
SWITCH

KEY CYLINDER
SWITCH

1A

1B

2E

2F

2A

2B

2E

2B 2A

1A

1B

FRONT DOOR
LOCK ACTUATOR

DOOR LOCK-LINK
SWITCH

acxuuw00002467

M

M

1A

1B

1B

1A

LH

RH

2B

2E

2F

2B

2E

2A

REAR DOOR
LOCK ACTUATOR

DOOR LOCK-LINK
SWITCH

1A

1B

2E

2F

2B

2E

2F

2B

1A

1B

REAR DOOR
LOCK ACTUATOR

DOOR LOCK-LINK
SWITCH

acxuuw00002468
