BODY PANELS

09-10–3

09-10

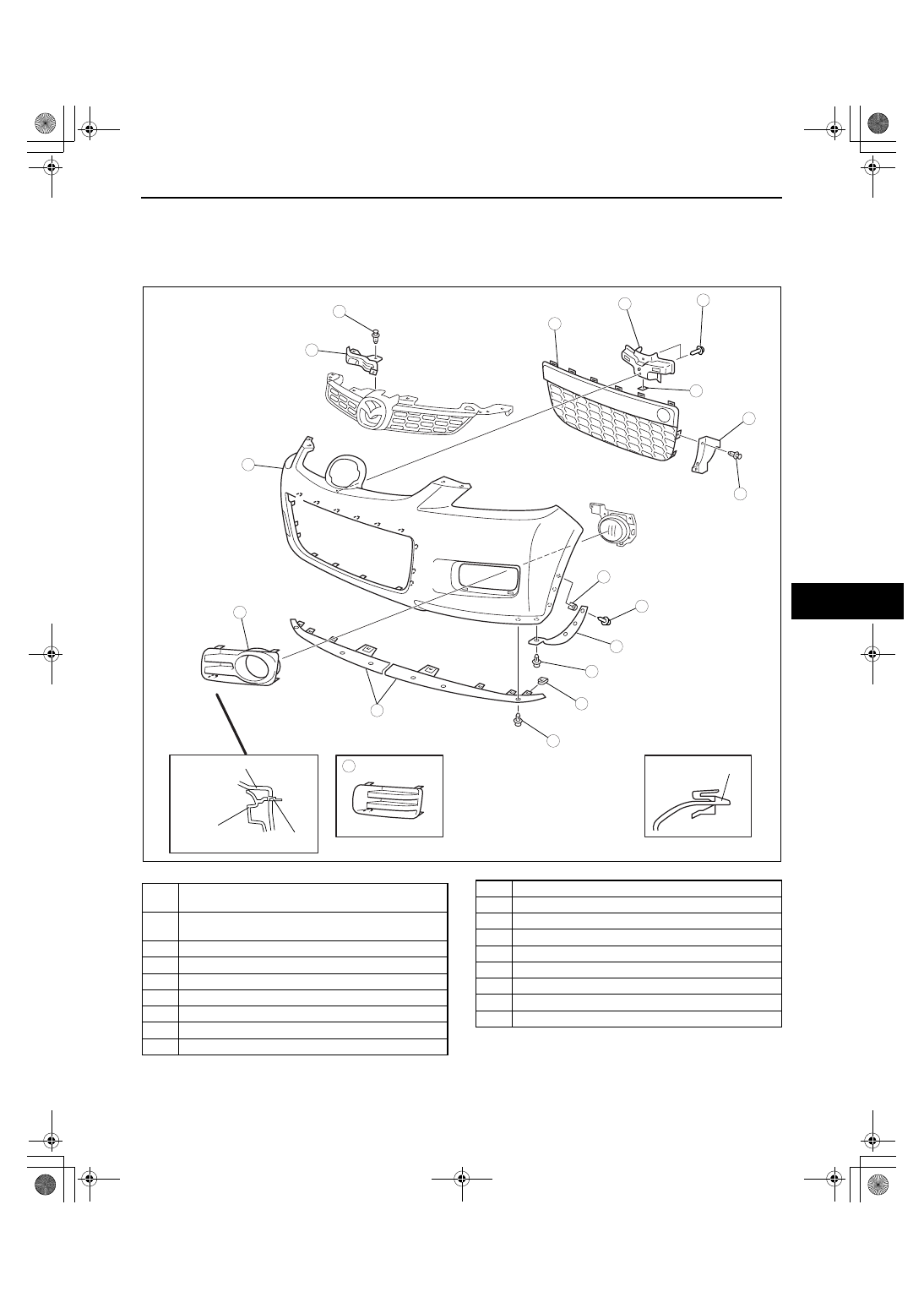

FRONT BUMPER DISASSEMBLY/ASSEMBLY

id091000800400

1. Remove the front fog light. (Vehicles with front fog lights) (See 09-18-9 FRONT FOG LIGHT REMOVAL/

INSTALLATION.)

2. Remove the radiator grille. (See 09-16-11 RADIATOR GRILLE REMOVAL/INSTALLATION.)
3. Disassemble in the order indicated in the table.

4. Assemble in the reverse order of disassembly.

End Of Sie

2

9

10

11

7

8

5

6

16

4

12

3

15

14

13

17

18

1

TAB A

TAB B

 B

 B

 B

 B

 B

 B

 B

 B

 B

 B

 B

 B

 B

 B

 B

 B

FRONT FOG LIGHT
HOLE COVER

FRONT BUMPER
FASCIA

A

A

A

A

A

A

A

A

acxuuw00001308

1

Front fog light hole cover (Vehicles with front fog
lights)

2

Front fog light hole cover (Vehicles without front fog
lights)

3

Screw A

4

Front bumper retainer

5

Screw B

6

Clip nut A

7

Fastener A

8

Screw C

9

Fastener B

10

Front airdam skirt

11

Clip nut B

12

Front bumper mesh

13

Seal plate

14

Fastener C

15

Seal rubber

16

Screw D

17

Air duct

18

Furnt bumper fascia

BODY PANELS

09-10–4

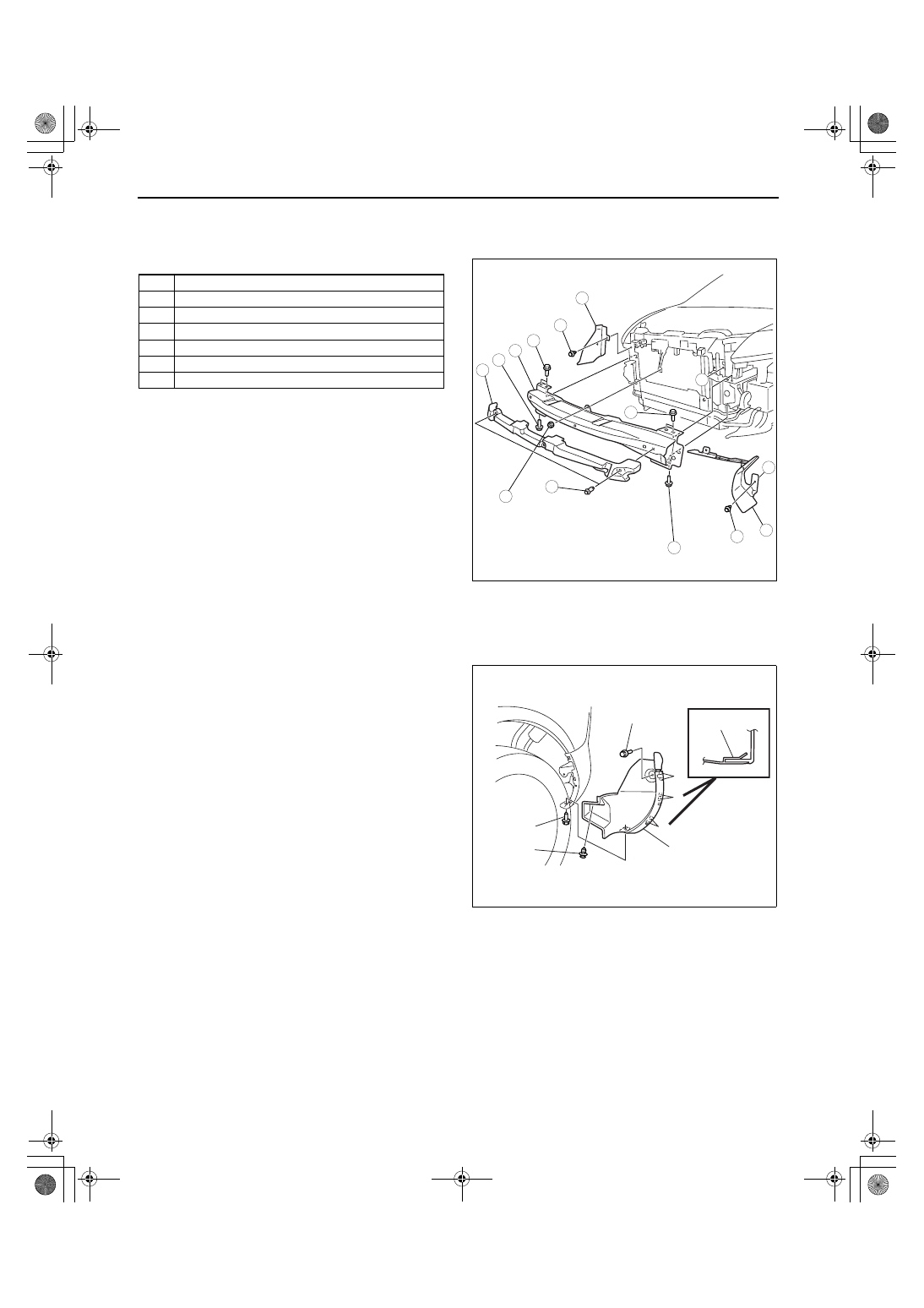

FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION

id091000800600

1. Disconnect the negative battery cable.
2. Remove the front bumper. (See 09-10-2 FRONT BUMPER REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

End Of Sie

REAR BUMPER REMOVAL/INSTALLATION

id091000800700

1. Disconnect the negative battery cable.
2. Remove the rear combination light. (See 09-18-11 REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)
3. Remove the screw and fastener.
4. Splash shield, detach tabs A, and then remove

the splash shield.

1

Fastener A

2

Front energy-absorbing foam

3

Fastener B

4

Seal plate

5

Bolt  A

6

Bolt  B

7

Front bumper reinforcement

A

A

5

5

5

5

7

2

3

4

3

4

56.1—78.5 N·m
 {5.72—8.00 kgf·m, 41.4—57.8 ft·lbf}

6

1

7.8—11.8 N·m
 {79.5—120.3 kgf·cm, 69.0—104.4 in·lbf}

acxuuw00001309

TAB A

SCREW

SCREW

FASTENER

SPLASH SHIELD

A

A

A

A

acxuuw00001310

BODY PANELS

09-10–5

09-10

5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.

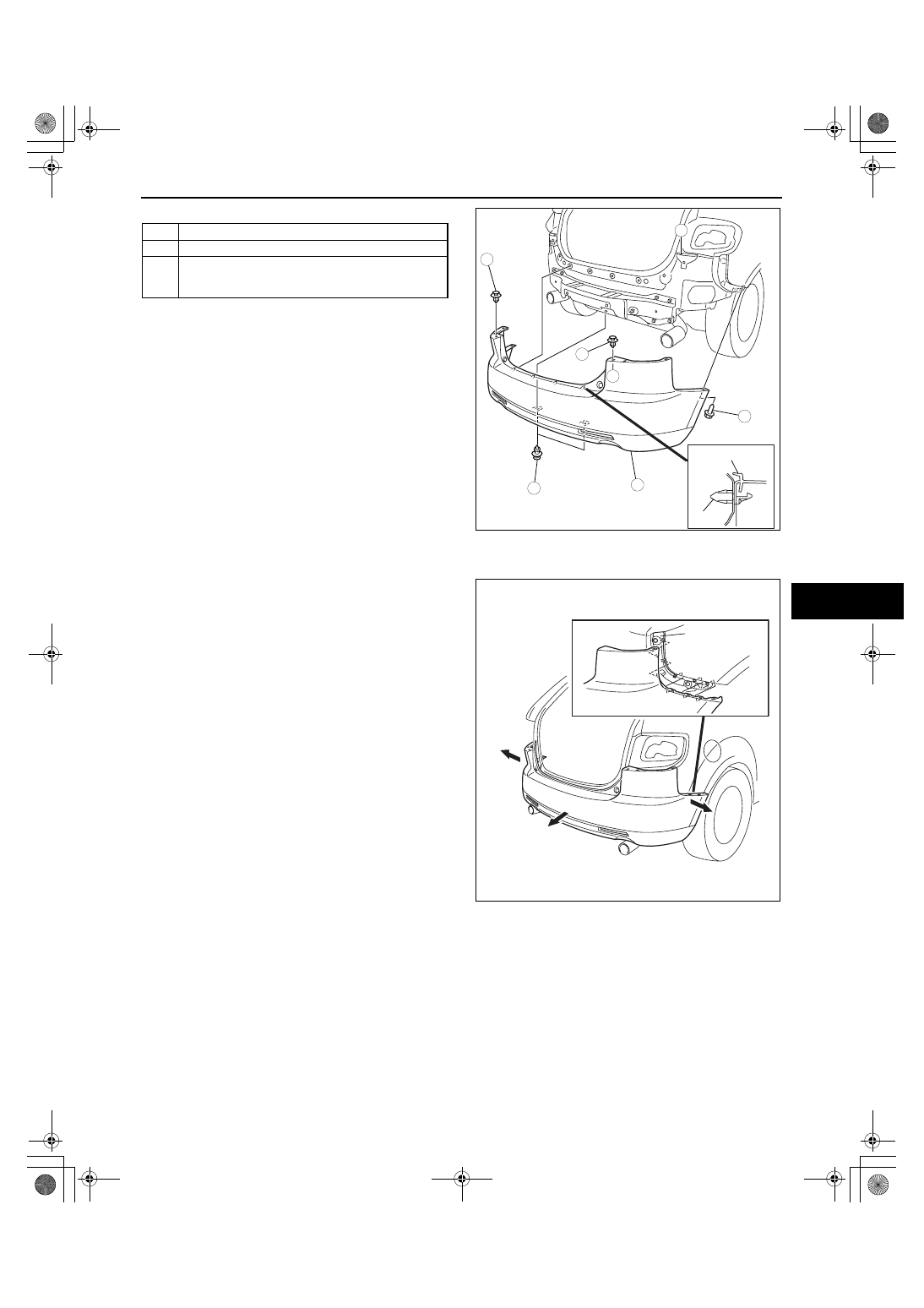

Rear Bumper Removal Note

1. Pull the rear bumper ends (wheel arch) outward

(1) to disengage from the bumper slider.

Caution

• When disengaging the rear bumper from

the bumper slider, the rear bumper could
fall and be damaged. Secure the rear
bumper so that it does not fall.

2. Remove the rear bumper (2).

Rear Bumper Installation Note

1. Spread the rear bumper ends apart.
2. Assemble the rear bumper to the body.
3. Press the rear bumper connecting area into the body to engage with the bumper slider.

End Of Sie

1

Fastener

2

Screw

3

Rear bumper
(See 09-10-5 Rear Bumper Removal Note)
(See 09-10-5 Rear Bumper Installation Note)

1

3

1

A

A

2

1

TAB

REAR BUMPER

acxuuw00001311

(1)

(1)

(2)

BUMPER SLIDER

REAR BUMPER

acxuuw00001312

BODY PANELS

09-10–6

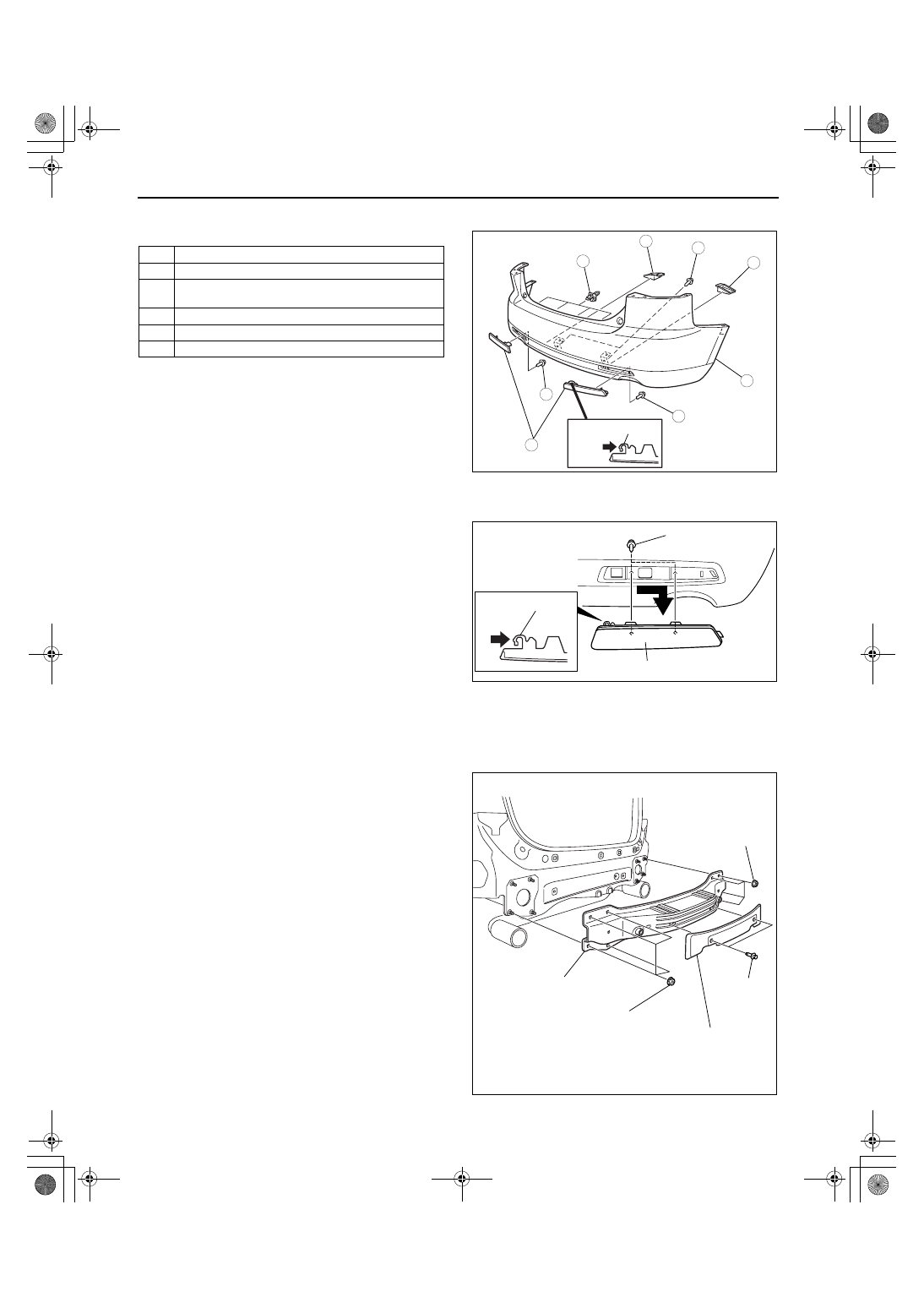

REAR BUMPER DISASSEMBLY/ASSEMBLY

id091000800800

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

Reflector Removal Note

1. Remove the screw.
2. Pull off the reflector from the rear bumper in the

direction shown by the arrow.

End Of Sie

REAR BUMPER REINFORCEMENT REMOVAL/INSTALLATION

id091000800900

1. Disconnect the negative battery cable.
2. Remove the rear combination light. (See 09-18-5 FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
3. Remove the rear bumper. (See 09-10-4 REAR BUMPER REMOVAL/INSTALLATION.)
4. Remove the fasteners, then remove the energy-

absorbing foam.

5. Remove the nuts, then remove the rear bumper

reinforcement.

6. Install in the reverse order of removal.

End Of Sie

WM: FRONT FENDER PANEL

1

Locator pin

2

Screw A

3

Rear reflector
(See 09-10-6 Reflector Removal Note)

4

Bumper guard

5

Screw B

6

Rear bumper fascia

1

4

5

4

2

6

3

2

PUSH

TAB

acxuuw00001313

PUSH

SCREW

REFLECTOR

TAB

acxuuw00001314

ENERGY-ABSORBING
FOAM

FASTENER

NUT

N·m {kgf·m, ft·lbf}

37.3—52.0
{3.81—5.30,
27.6—38.3}

37.3—52.0
{3.81—5.30,
27.6—38.3}

NUT

REAR BUMPER
REINFORCEMENT

acxuuw00001315
