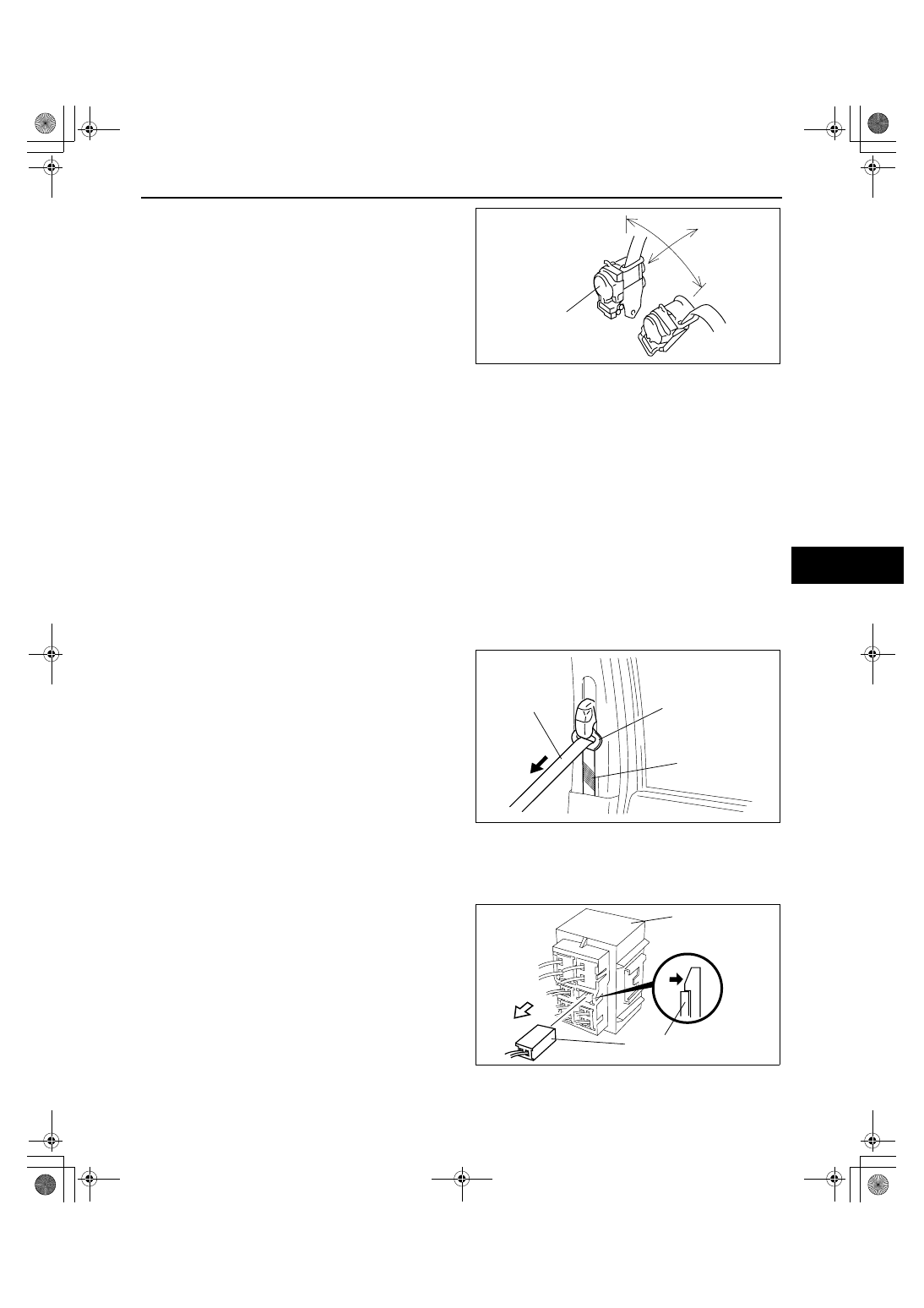

SEAT BELT

08-11–5

08-11

4. While pulling the seat belt out, make sure that the

seat belt does not lock when the retractor is tilted
slowly up to 15

° from the mounted position and

locks when the retractor is tilted 40

° or more.

• If there is any malfunction, replace the seat

belt.

ALR

1. Pull the belt out fully to change the lock mode from ELR to ALR.
2. Verify that retractor makes a clicking sound as the belt slowly retracts. If no sound is heard, the lock mode has

not changed to ALR. If necessary, repeat Step 1.

• If there is any malfunction, replace the seat belt.

3. Verify that the retractor locks when pulled.

• If there is any malfunction, replace the seat belt.

4. Verify that the lock mode changes to ELR when the belt is fully pulled out.

• If there is any malfunction, replace the seat belt.

Load Limiter Retractor

Warning

• When the load limiter operates, the belt and anchor rub against each other strongly leaving wear

tracks. If the seat belt is used in this state, the seat belt will not function at its full capability and
there is the possibility of serious injury to passengers. Be sure to replace the seat belt once the
load limiter operates.

1. If the vehicle has been subjected to a shock in an

accident, pull the belt from the retractor and
confirm that there are no wear tracks (the load
limiter has not operated) by visually inspecting
and feeling the belt.

• If there is any malfunction, replace the seat

belt.

End Of Sie

WM: FRONT BUCKLE

FRONT BUCKLE REMOVAL/INSTALLATION

id081100800400

1. Turn the ignition switch to the LOCK position.
2. Disconnect the negative battery cable.
3. Remove the front seat. (See 09-13-2 FRONT SEAT REMOVAL/INSTALLATION.)
4. Detach the tab as shown in the figure and remove

the connector from the front seat connector.

RETRACTOR

acxuuw00002084

ANCHOR

TRACE
OF WEAR

BELT

PULL

acxuuw00002085

FRONT SEAT
CONNECTOR

FRONT BUCKLE
CONNECTOR

TAB

acxuuw00001028

1871-1U-06B(08-11).fm  5 ページ  ２００６年３月１５日　水曜日　午前１１時３７分

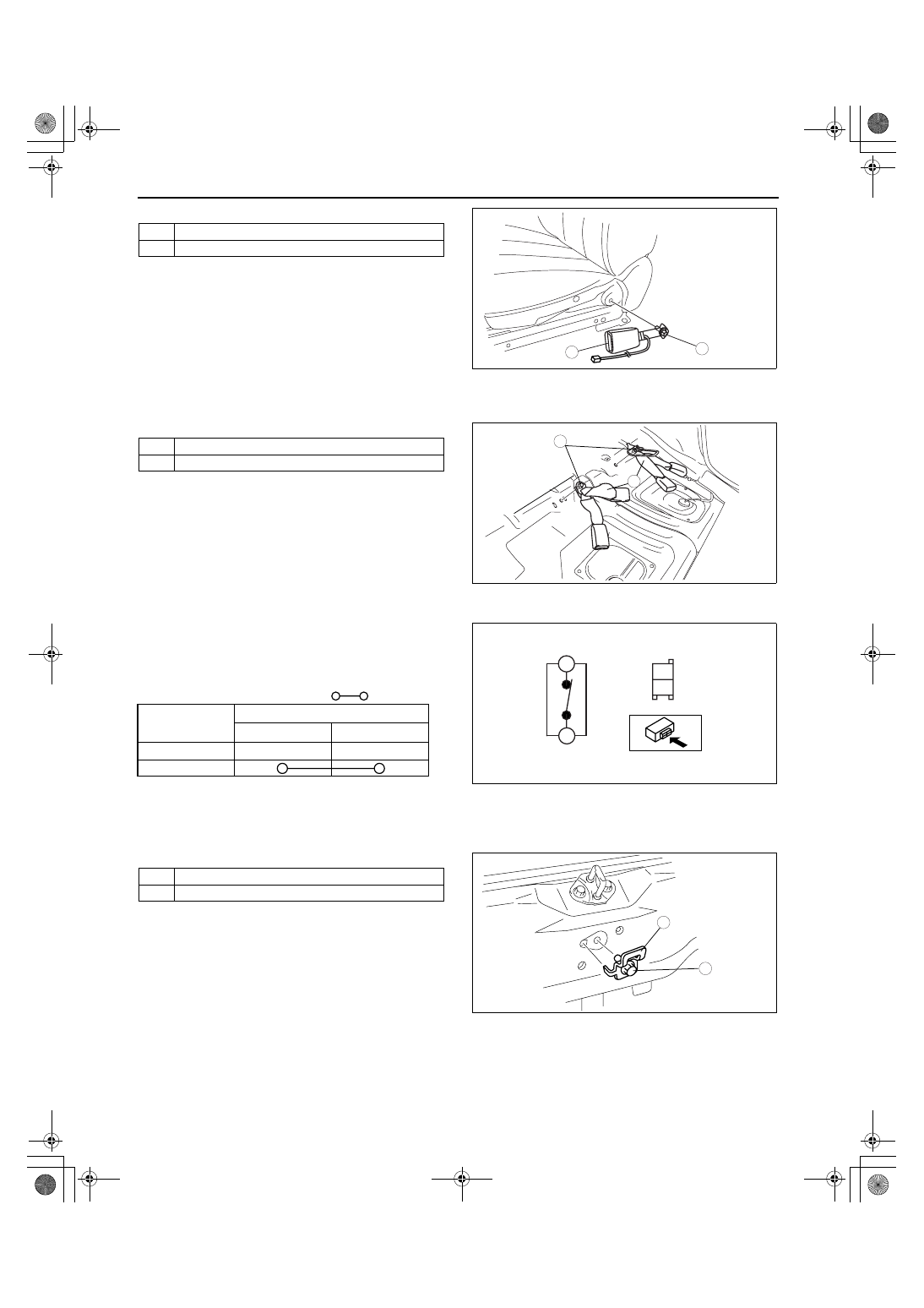

SEAT BELT

08-11–6

5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.

End Of Sie

WM: REAR BUCKLE

REAR BUCKLE REMOVAL/INSTALLATION

id081100800700

1. Remove the rear seat cushion. (See 09-13-7 REAR SEAT REMOVAL/INSTALLATION.)
2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

End Of Sie

WM: FRONT BUCKLE

BUCKLE SWITCH INSPECTION

id081100803000

1. Inspect for continuity between the buckle switch

terminals using a tester.

• If not as indicated in the table, replace the

front buckle.

End Of Sie

WM: CHILD-RESTRANT SEAT ANCHOR

CHILD-RESTRAINT SEAT ANCHOR REMOVAL/INSTALLATION

id081100800100

1. Remove the trunk end trim bezel.
2. Remove in the order indicated in the table.

.

3. Install in the reverse order of removal.

End Of Sie

1

Bolt

2

Front buckle

2

1

40.0—50.0 N·m
{4.08—5.09 kgf·m,
29.5—36.8 ft·lbf}

acxuuw00001029

1

Bolt

2

Rear  buckle

N·m {kgf·m, ft·lbf}

38.3—78.4
{3.90—7.99,
28.3—57.8}

1

2

acxuuw00001030

A

B

A
B

acxuuw00002101

: Continuity

Seat belt

Fastened

Unfastened

Terminal

B

A

acxuuw00002102

1

Bolt

2

Child-restraint seat anchor

1

2

18.0—27.0 N·m
{1.84—2.75 kgf·m,
13.3—19.9 ft·lbf}

acxuuw00001025

1871-1U-06B(08-11).fm  6 ページ  ２００６年３月１５日　水曜日　午前１１時３７分

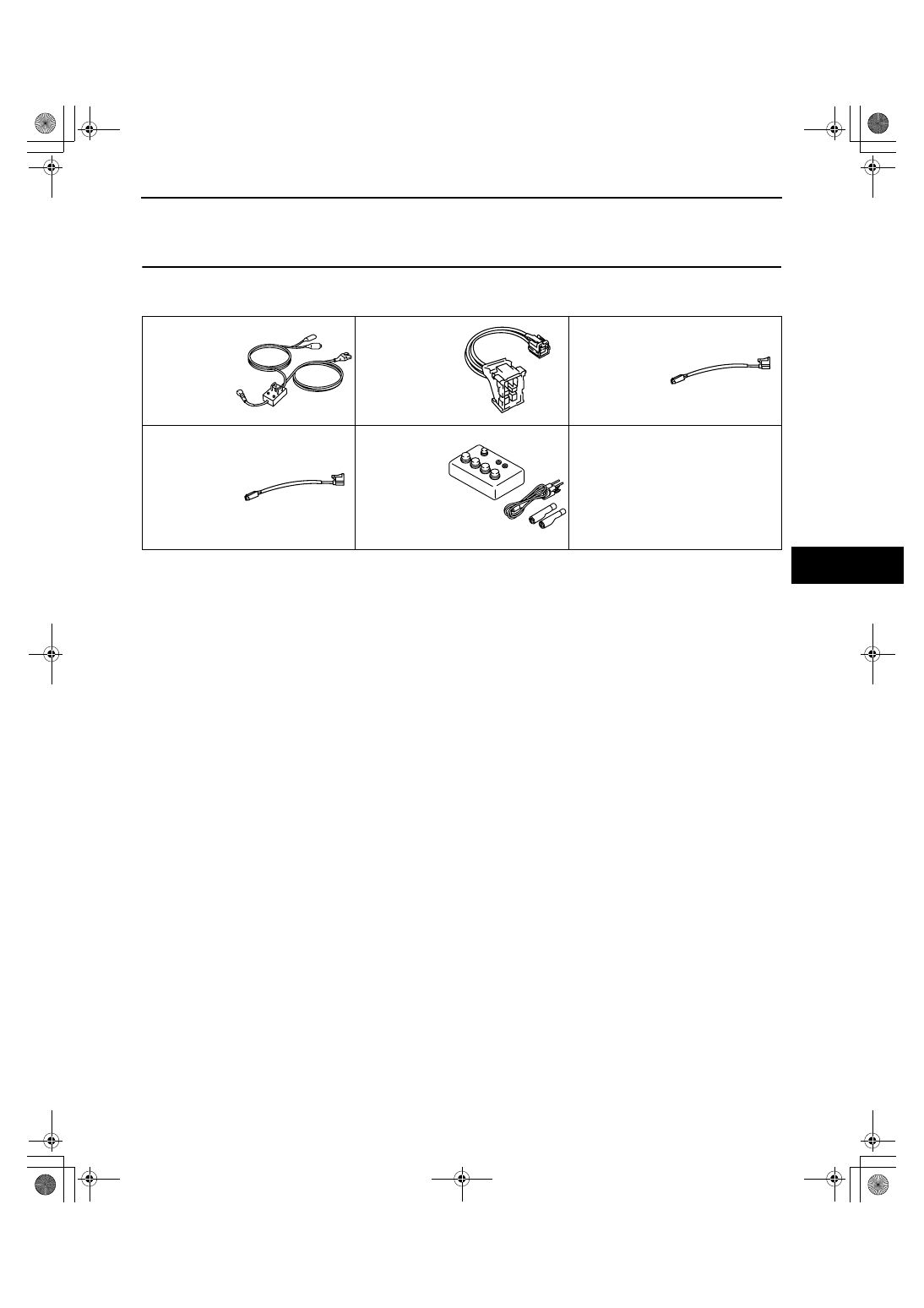

SERVICE TOOLS

08-60–1

08-60

08-60

SERVICE TOOLS

RESTRAINTS SST  . . . . . . . . . . . . . . . . .  08-60–1

End of Toc

WM: RESTRAINTS

RESTRAINTS SST

id086000800100

End Of Sie

49 H066 002

Deployment
tool

49 B066 004

Adapter
harness

49 L066 002

Adapter
harness

49 G066 003

Adapter
harness

49 N088 0A0

Fuel and
Thermometer
checker

-
