ON-BOARD DIAGNOSTIC

08-02–15

08-02

End Of Sie

DTC B1231

id080200801000

Diagnostic procedure

End Of Sie

2

INSPECT WIRING HARNESS BETWEEN
PASSENGER-SIDE SIDE AIR BAG SENSOR
NO. 2 AND SAS CONTROL MODULE

• Turn the ignition switch to the LOCK position.

• Disconnect the negative battery cable and

wait for 1 min or more.

• Disconnect the driver and passenger-side

front seat connectors.

• Remove the C-pillar trim.

(See 09-17-17 C-PILLAR TRIM REMOVAL/
INSTALLATION.)

• Remove the D-pillar trim.

(See 09-17-18 D-PILLAR TRIM REMOVAL/
INSTALLATION.)

• Disconnect the driver and passenger-side

curtain air bag module connectors.

• Remove the console.

(See 09-17-13 CONSOLE REMOVAL/
INSTALLATION.)

• Disconnect the SAS control module

connector.

• Disconnect the passenger-side side air bag

sensor No. 2 connector.

• Connect the negative battery cable.

• Inspect the wiring harnesses between SAS

control module terminal 3U and passenger-
side side air bag sensor No. 2 terminal A,
SAS control module terminal 3T and
passenger-side side air bag sensor No. 2
terminal B for the following:
— Short to ground

— Short to power supply

— Open circuit

• Is the wiring harness normal?

Yes

Replace the passenger-side side air bag sensor No. 2,
then go to the next step.
 (See 08-10-14 SIDE AIR BAG SENSOR NO. 2
REMOVAL/INSTALLATION.)

No

Replace the air bag wiring harness.

3

INSPECT SAS CONTROL MODULE

• Turn the ignition switch to the LOCK position.

• Disconnect the negative battery cable and

wait for 1 min or more.

• Connect the SAS control module connector.

• Connect the passenger-side side air bag

sensor No. 2 connector.

• Are DTCs B1146, B1147 indicated.

Yes

[Present malfunction diagnosis]

• Replace the SAS control module.

(See 08-10-10 SAS CONTROL MODULE REMOVAL/
INSTALLATION.)

[Past malfunction diagnosis]

• DTC troubleshooting completed.

No

DTC troubleshooting completed.

STEP

INSPECTION

ACTION

DTC B1231

SAS control module activation (deployment) control freeze

DETECTION

CONDITION

Warning
• Detection conditions are for understanding the DTC outline before performing an inspection.

Performing an inspection with only detection conditions may cause injury due to an
operating error, or damage the system. When performing an inspection, always follow the
inspection procedure.

• SAS control module determined collision

ACTION

Replace the SAS control module.
(See 08-10-10 SAS CONTROL MODULE REMOVAL/INSTALLATION.)

1871-1U-06B(08-02).fm  15 ページ  ２００６年３月１５日　水曜日　午前１１時３３分

ON-BOARD DIAGNOSTIC

08-02–16

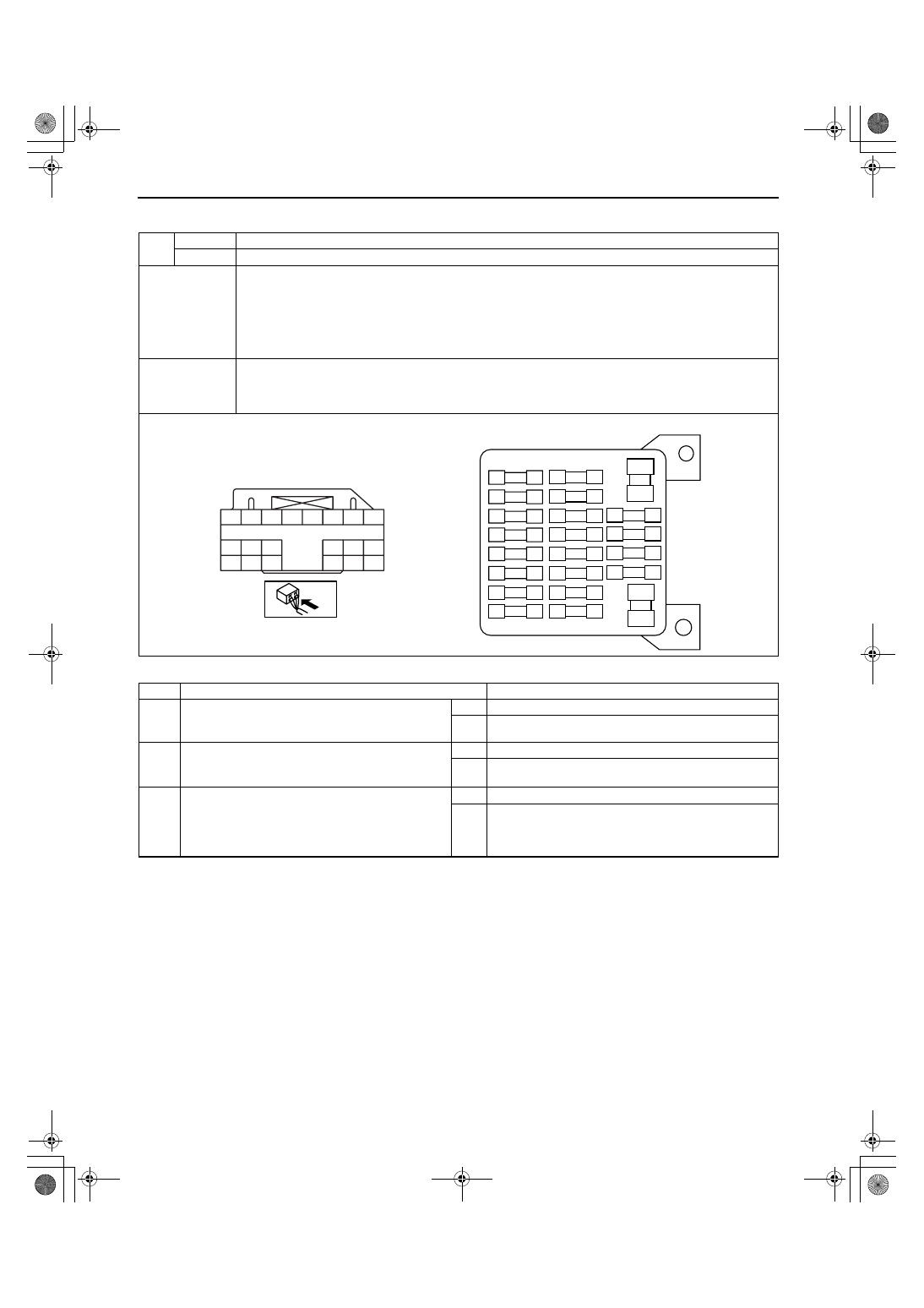

DTC B1317, B1318

id080200811500

Diagnostic procedure

DTC

B1317

SAS control module power supply voltage increases (16.1 V or more)

B1318

SAS control module power supply voltage decreases (less than 8 V)

DETECTION

CONDITION

Warning
• Detection conditions are for understanding the DTC outline before performing an inspection.

Performing an inspection according to only the detection conditions may cause injury due to
an operating error, or damage the system. When performing an inspection, always follow the
inspection procedure.

• When the SAS control module power supply voltage is not within 816 V.

POSSIBLE

CAUSE

• Open or short circuit in wiring harness between battery and SAS control module

• ARS 7.5 A fuse malfunction

• Battery malfunction

• SAS control module malfunction

STEP

INSPECTION

ACTION

1

INSPECT FUSE

• Remove the ARS 7.5 A fuse.

• Is the fuse normal?

Yes

Install the fuse, then go to the next step.

No

Replace the fuse.

2

INSPECT BATTERY

• Measure the battery positive voltage.

• Is the voltage 8 V16 V?

Yes

Go to the next step.

No

Battery is malfunctioning
Inspect the charge/discharge system.

3

INSPECT WIRING HARNESS BETWEEN
BATTERY AND FUSE BLOCK

• Turn the ignition switch to the ON position.

• Measure the fuse block terminal Y voltage.

• Is the voltage 8 V16 V?

Yes

Install the fuse, then go to the next step.

No

Repair the wiring harness between the battery and fuse
block.

1A

1B

1C

1D

1E

1F

1G

1H

1I

1J

1M

1P

1Q

1R

1S

1T

1U

1V

1W

1X

SAS CONTROL MODULE WIRING

HARNESS-SIDE CONNECTOR

FUSE BLOCK

AK

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

AA

AB

AC

AD

AE

AF

AG

AH

AI

AJ

AL

AM

AN

AO

AP

AQ

AR

1871-1U-06B(08-02).fm  16 ページ  ２００６年３月１５日　水曜日　午前１１時３３分

ON-BOARD DIAGNOSTIC

08-02–17

08-02

End Of Sie

DTC B1342

id080200801100

Diagnostic procedure

End Of Sie

4

INSPECT WIRING HARNESS BETWEEN FUSE
BLOCK AND SAS CONTROL MODULE

Warning
• Handling the air bag system components

improperly can accidentally deploy the air
bag modules and pre-tensioner front
buckles, which may seriously injure you.
Read the service warnings before handling
the air bag system components.
 (See 08-10-3 AIR BAG SYSTEM SERVICE
WARNINGS.)
 (See 08-10-5 AIR BAG SYSTEM SERVICE
CAUTIONS.)

• Turn the ignition switch to the LOCK position.

• Disconnect the negative battery cable and wait

for 1 min or more.

• Remove the column cover. (See 09-17-8

COLUMN COVER REMOVAL/INSTALLATION.)

• Disconnect the clock spring connector.

• Remove the glove compartment.(See 09-17-8

GLOVE COMPARTMENT REMOVAL/
INSTALLATION.)

• Disconnect the passenger-side air bag module

connector.

• Disconnect the driver and passenger-side seat

connectors.

• Remove the C-pillar lower trim. (See 09-17-17 C-

PILLAR TRIM REMOVAL/INSTALLATION.)

• Remove the D-pillar lower trim. (See 09-17-18 D-

PILLAR TRIM REMOVAL/INSTALLATION.)

• Disconnect the driver and passenger-side

curtain air bag module connector.

• Remove the B-pillar lower trim. (See 09-17-16 B-

PILLAR LOWER TRIM REMOVAL/
INSTALLATION.)

• Disconnect the driver and passenger-side pre-

tensioner seat belt connectors.

• Remove the console. (See 09-17-13 CONSOLE

REMOVAL/INSTALLATION.)

• Disconnect the SAS control module connector.

• Turn the ignition switch to the ON position.

• Is the voltage 8 V16 V?

Yes

[Present malfunction diagnosis]

• Replace the SAS control module.

(See 08-10-10 SAS CONTROL MODULE
REMOVAL/INSTALLATION.)

[Past malfunction diagnosis]

• DTC troubleshooting completed.

No

Replace the wiring harness between the fuse block and
SAS control module.

STEP

INSPECTION

ACTION

DTC B1342

SAS control module (internal circuit abnormal)

DETECTION

CONDITION

Warning
• Detection conditions are for understanding the DTC outline before performing an inspection.

Performing an inspection according to only the detection conditions may cause injury due to
an operating error, or damage the system. When performing an inspection, always follow the
inspection procedure.

• Malfunction in the SAS control module internal circuit

POSSIBLE

CAUSE

SAS control module malfunction

STEP

INSPECTION

ACTION

1

INSPECT SAS CONTROL MODULE

• Using the M-MDS, perform SAS control

module configuration.

• Is DTC B1342 indicated?

Yes

Replace the SAS control module.
(See 08-10-10 SAS CONTROL MODULE REMOVAL/
INSTALLATION.)

No

DTC troubleshooting completed.

1871-1U-06B(08-02).fm  17 ページ  ２００６年３月１５日　水曜日　午前１１時３３分

ON-BOARD DIAGNOSTIC

08-02–18

DTC B1868

id080200815000

Diagnostic procedure

End Of Sie

DTC B1877, B1878, B1879, B1885

id080200801400

Diagnostic procedure

DTC B1868

Air bag warning system light malfunction

DETECTION

CONDITION

Warning
• Detection conditions are for understanding the DTC outline before performing an inspection.

Performing an inspection with only detection conditions may cause injury due to an
operating error, or damage the system. When performing an inspection, always follow the
inspection procedure.

• Air bag warning system light malfunction.

ACTION

INSPECT INSTRUMENT CLUSTER
Peform the “INSTRUMENT CLUSTER INPUT/OUTPUT CHECK MODE”.
(See 09-22-5 INSTRUMENT CLUSTER INPUT/OUTPUT CHECK MODE.)

DTC

B1877

Driver-side pre-tensioner seat belt circuit resistance high

B1878

Driver-side pre-tensioner seat belt circuit short to power supply

B1879

Driver-side pre-tensioner seat belt circuit short to body ground

B1885

Driver-side pre-tensioner seat belt circuit resistance low

DETECTION

CONDITION

Warning
• Detection conditions are for understanding the DTC outline before performing an inspection.

Performing an inspection according to only the detection conditions may cause injury due to
an operating error, or damage the system. When performing an inspection, always follow the
inspection procedure.

• Abnormal resistance (other than 1.5— 3.7 ohms) detected in the driver-side pre-tensioner seat belt

circuit

• Malfunction in the wiring harness between the driver-side pre-tensioner seat belt and SAS control

module

POSSIBLE

CAUSE

• Open or short circuit in the wiring harness between the driver-side pre-tensioner seat belt and SAS

control module

• Driver-side pre-tensioner seat belt malfunction

• SAS control module malfunction

STEP

INSPECTION

ACTION

1

INSPECT DRIVER-SIDE PRE-TENSIONER
SEAT BELT

• Using the M-MDS, verify the following PID/

DATA monitor.
(See 08-02-8 PID/DATA MONITOR TABLE.)
— RES_PT_D

• Is driver-side pre-tensioner seat belt

resistance normal?
— Resistance: 1.5

3.7 ohms

Yes

Replace the SAS control module. (See 08-10-10 SAS
CONTROL MODULE REMOVAL/INSTALLATION.)

No

Go to the next step.

A

B

DRIVER-SIDE PRE-TENSIONER SEAT BELT

WIRING

HARNESS-SIDE

CONNECTOR
