Mazda CX 7. Manual - part 301

SERVICE TOOLS

07-60–1

07-60

SERVICE TOOLS

HVAC SST . . . . . . . . . . . . . . . . . . . . . . . . 07-60–1

End of Toc

WM: HEATER, VENTILATION AND AIR CONDITIONING (HVAC)

HVAC SST

id076000800100

End Of Sie

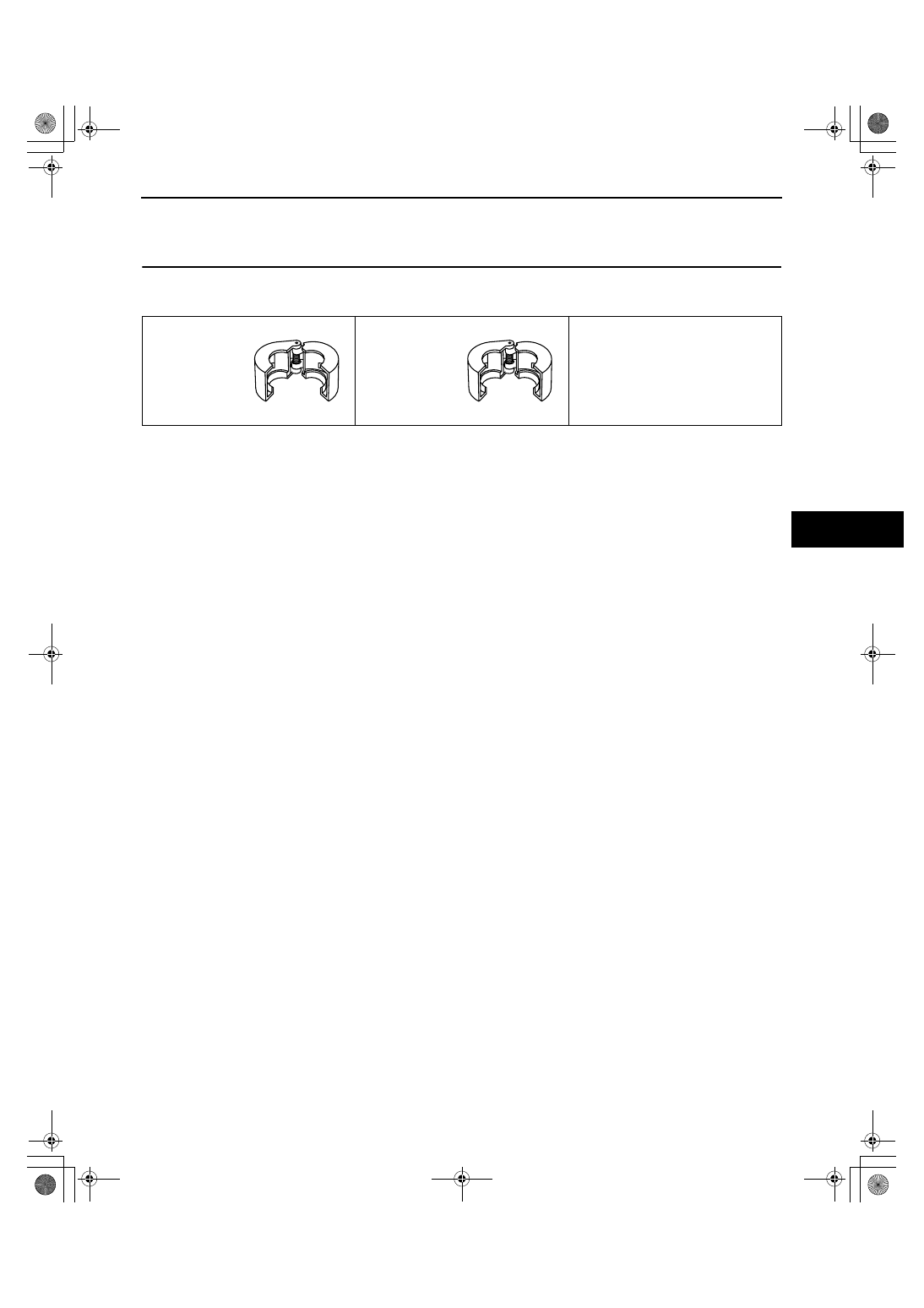

49 B061 014

Spring Lock
Coupling
Disconnect Tool

49 G061 001

Spring Lock
Coupling
Disconnect Tool

—

1871-1U-06B(07-60).fm 1 ページ２００６年３月１５日　水曜日　午前１１時３２分

08-02–1

RESTRAINTS

SECTION

08-02

Toc of SCT

ON-BOARD DIAGNOSTIC . . . . 08-02
SYMPTOM

TROUBLESHOOTING . . . . . . 08-03

AIR BAG SYSTEM . . . . . . . . . .  08-10
SEAT BELT. . . . . . . . . . . . . . . .  08-11
SERVICE TOOLS . . . . . . . . . . .  08-60

Toc of SCT

08-02

ON-BOARD DIAGNOSTIC

FOREWORD . . . . . . . . . . . . . . . . . . . . . . . 08-02–1

Outline. . . . . . . . . . . . . . . . . . . . . . . . . . 08-02–1

FLOWCHART . . . . . . . . . . . . . . . . . . . . . . 08-02–2
AIR BAG SYSTEM

WIRING DIAGRAM. . . . . . . . . . . . . . . . . 08-02–3

DTC DISPLAY. . . . . . . . . . . . . . . . . . . . . . 08-02–4
CLEARING DTC . . . . . . . . . . . . . . . . . . . . 08-02–4
DTC TABLE . . . . . . . . . . . . . . . . . . . . . . . 08-02–4
PID/DATA MONITOR DISPLAY . . . . . . . . 08-02–8
PID/DATA MONITOR TABLE . . . . . . . . . . 08-02–8
DTC B1013 . . . . . . . . . . . . . . . . . . . . . . . . 08-02–10
DTC B1017 . . . . . . . . . . . . . . . . . . . . . . . . 08-02–11
DTC B1144, B1145. . . . . . . . . . . . . . . . . . 08-02–12
DTC B1146, B1147. . . . . . . . . . . . . . . . . . 08-02–14
DTC B1231 . . . . . . . . . . . . . . . . . . . . . . . . 08-02–15
DTC B1317, B1318. . . . . . . . . . . . . . . . . . 08-02–16
DTC B1342 . . . . . . . . . . . . . . . . . . . . . . . . 08-02–17
DTC B1868 . . . . . . . . . . . . . . . . . . . . . . . . 08-02–18

DTC B1877, B1878, B1879, B1885. . . . .  08-02–18
DTC B1881, B1882, B1883, B1886. . . . .  08-02–20
DTC B1884, B1890 . . . . . . . . . . . . . . . . .  08-02–22
DTC B1913, B1916, B1932, B1934. . . . .  08-02–24
DTC B1913, B1925, B1933, B1935. . . . .  08-02–27
DTC B1992, B1993, B1994, B1995. . . . .  08-02–29
DTC B1996, B1997, B1998, B1999. . . . .  08-02–30
DTC B2228, B2230, B2232, B2234. . . . .  08-02–32
DTC B2229, B2231, B2233, B2235. . . . .  08-02–35
DTC B2290  . . . . . . . . . . . . . . . . . . . . . . .  08-02–37
DTC B2296  . . . . . . . . . . . . . . . . . . . . . . .  08-02–38
DTC B2444, U2017 . . . . . . . . . . . . . . . . .  08-02–40
DTC B2445, U2018 . . . . . . . . . . . . . . . . .  08-02–43
DTC B2477  . . . . . . . . . . . . . . . . . . . . . . .  08-02–45
DTC B2773, B2774, B2775, B2776. . . . .  08-02–45
DTC B2777, B2778, B2779, B2780. . . . .  08-02–47
DTC B2867  . . . . . . . . . . . . . . . . . . . . . . .  08-02–49
DTC C1947, C1948, C1981 . . . . . . . . . . .  08-02–50

End of Toc

WM: AIR BAG SYSTEM

FOREWORD

id080200800100

Outline

• The OBD (on-board diagnostic) system has the following functions:

— Malfunction detection function: Detects malfunctions in the air bag system and outputs DTCs.

— Data monitor function: Reads out specific input/output signals and the system status.

• Diagnostic DTCs can be read/cleared using the M-MDS.

Note

• When the air bag system is malfunctioning, turn the ignition switch to the ON position to display the

current DTC using the air bag system warning light on the instrument cluster. However this light is strictly
for reference. Make sure to inspect the system using the M-MDS.

End Of Sie

1871-1U-06B(08-02).fm 1 ページ２００６年３月１５日　水曜日　午前１１時３３分

ON-BOARD DIAGNOSTIC

08-02–2

FLOWCHART

id080200800200

• Use the following flowchart to verify the cause of the trouble.

Note

• While performing the inspection of the past malfunction code, the applicable DTCs may be added to

memory by removing or disconnecting the related parts. Inspect only the DTCs that were indicated before
inspecting.

• When DTCs of the present malfunction are no longer output after present or past malfunctions or both

have been repaired, be sure to perform past malfunction display cancellation to prevent repair of
malfunctions that have already been repaired.

End Of Sie

START

Turn ignition switch to ON position.
Does air bag system warning light illuminate for
approx. 6 s and then go off?

Yes

Present malfunction
Using M-MDS, verify if DTCs are present.
Is DTC displayed?

Past malfunction
Using M-MDS, verify if a DTC has been
stored in SAS control module.
Is DTC displayed?

Confirm malfunction symptom, then
troubleshoot warning light circuit of
applicable malfunction, referring to
TROUBLESHOOTING INDEX.

Present malfunction
Inspect DTCs one by one starting from
the smallest code, referring to DTC
TABLE.

Yes

Using M-MDS,
verify if DTCs are present.
Is DTC displayed?

Yes

Shake related applicable wiring harnesses of applicable malfunctions.
Is DTC displayed?

Note
For DTCs that are the same as DTCs displayed in past malfunction diagnosis, go to Yes.
For DTCs that are not displayed but were displayed in past malfunction diagnosis, go to No.

Past malfunction
Inspect all DTCs starting from the smallest code.
However, if inspection item for part that has already been repaired appears during
inspection, finish inspection for that DTC at that point in time.

Using M-MDS, clear any stored DTCs in SAS control module.

Yes

Using M-MDS, verify if a DTC has been stored in SAS control module.
Is DTC displayed?

END

Yes

acxuuw00001022
