Mazda CX 7. Manual - part 264





AUTOMATIC TRANSAXLE [AW6A-EL, AW6AX-EL]

05-17–45

05-17

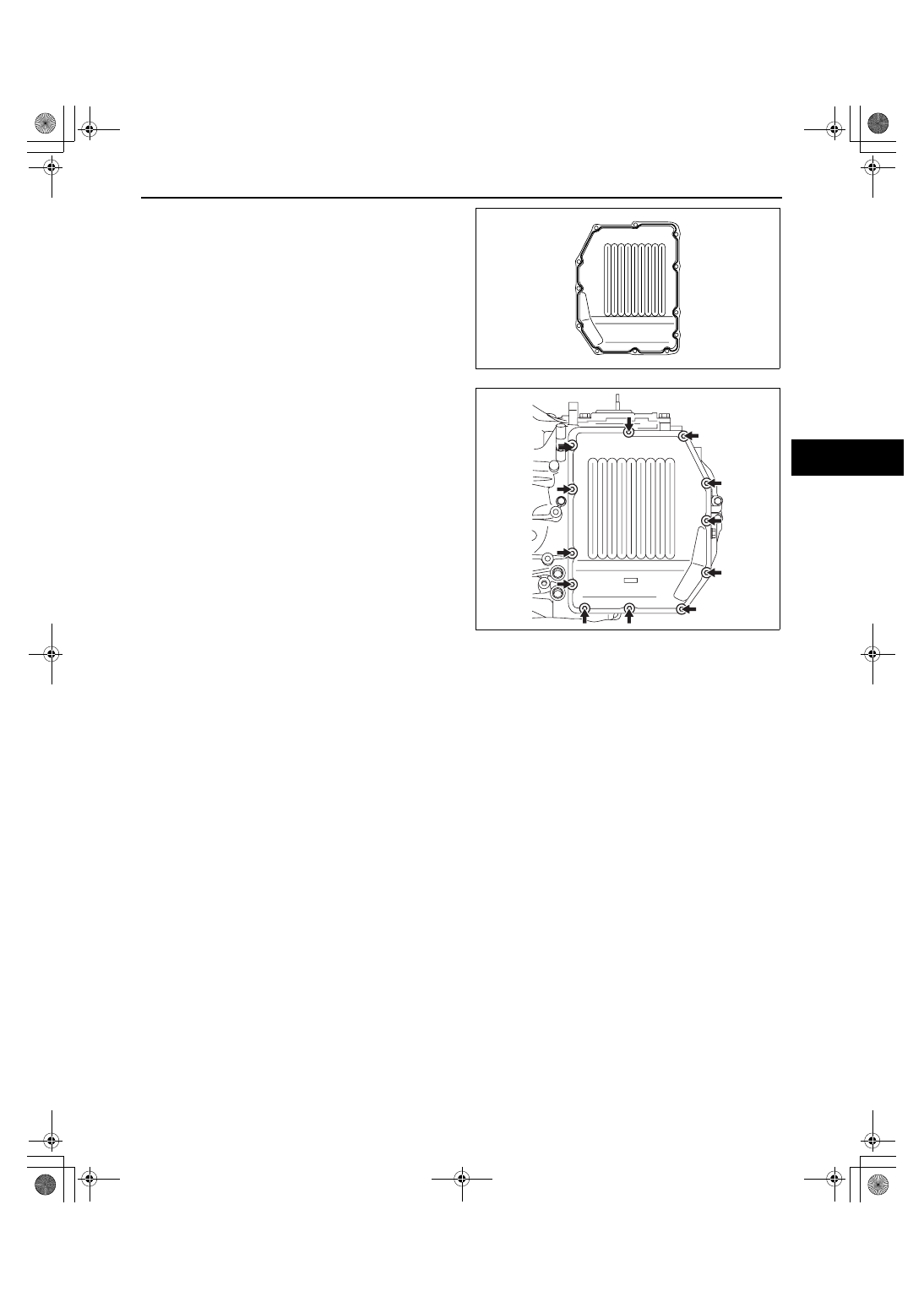

12. Apply sealant to the new control valve body cover

as shown in the figure.

Caution

• Be careful that the coupler component

will not become caught between the
control valve body cover and transaxle
case.

13. Install the new control valve body cover with new

seal bolts.

Tightening torque

9.8— 15.7 N·m {100— 160 kgf·cm, 87— 138

in·lbf}

14. Install the thermo valve. (See 05-17-47 OIL

COOLER REMOVAL/INSTALLATION[AW6A-EL,
AW6AX-EL].)

15. Install the resonance chamber. (See 01-13-5

INTAKE AIR SYSTEM REMOVAL/
INSTALLATION[L3 WITH TC].)

16. Install the TCM. (See 05-17-25 TCM REMOVAL/

INSTALLATION[AW6A-EL, AW6AX-EL].)

17. Add ATF to the specified level. (See 05-17-11

AUTOMATIC TRANSAXLE FLUID (ATF)
REPLACEMENT[AW6A-EL, AW6AX-EL].)

18. Install the under cover.
19. Install the air cleaner component. (See 01-13-5

INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH TC].)

20. Connect the negative battery cable.
21. Perform the mechanical system test. (See 05-17-3 MECHANICAL SYSTEM TEST[AW6A-EL, AW6AX-EL].)

End Of Sie

WM: TORQUE CONVERTER

OIL SEAL (OIL PUMP) REPLACEMENT[AW6A-EL, AW6AX-EL]

id051723800800

1. Remove the transaxle. (See 05-17-29 AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION[AW6A-EL,

AW6AX-EL].)

Caution

• The oil seal is easily damaged by the sharp edges of the torque converter splines. Do not let the

splines contact the oil seal.

• Do not drop the torque converter.

• Do not pinch fingers.

2. Remove the torque converter. (See 05-17-46 TORQUE CONVERTER REMOVAL/INSTALLATION[AW6A-EL,

AW6AX-EL].)

Caution

• Do not to damage the bushing on the oil pump body.

acxuuw00000603

acxuuw00000585

1871-1U-06B(05-17).fm  45 ページ  2006年3月15日 水曜日 午前11時20分

AUTOMATIC TRANSAXLE [AW6A-EL, AW6AX-EL]

05-17–46

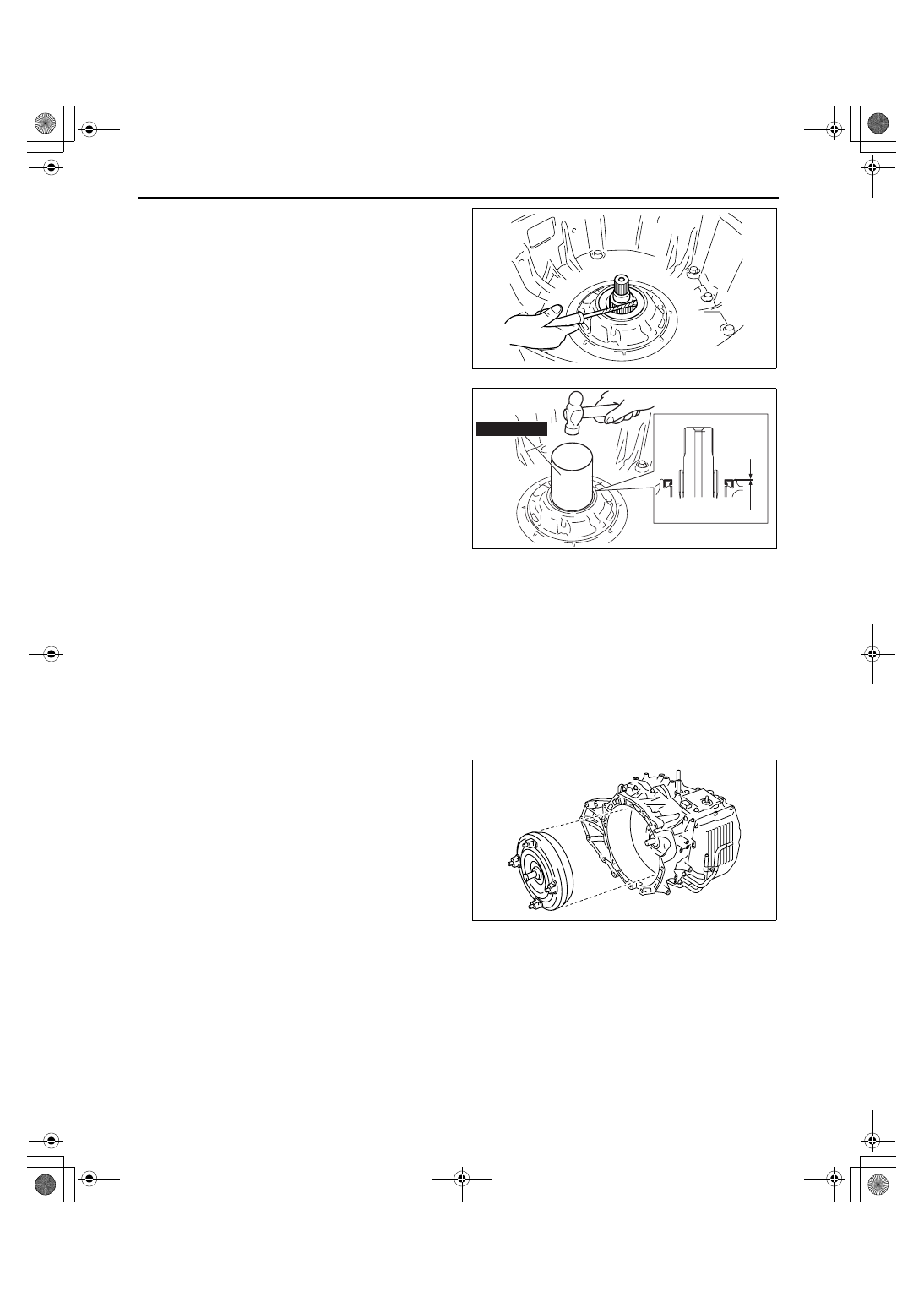

3. Using a tape-wrapped flathead screwdriver,

remove the oil seal from the oil pump body.

4. Using the SST and a hammer, install the oil seal

to the oil pump body.
Substitution SST

• 49 U027 003

Outer diameter: 67 mm {2.64 in} or more
Inner diameter: 54— 61 mm {2.13— 2.40 in}
Plate thickness: 2 mm {0.08 in} or more

5. Coat the lip of the oil seal with grease.
6. Install the torque converter. (See 05-17-46

TORQUE CONVERTER REMOVAL/
INSTALLATION[AW6A-EL, AW6AX-EL].)

7. Install the transaxle. (See 05-17-29 AUTOMATIC

TRANSAXLE REMOVAL/INSTALLATION[AW6A-
EL, AW6AX-EL].)

8. Perform the mechanical system test. (See 05-17-3 MECHANICAL SYSTEM TEST[AW6A-EL, AW6AX-EL].)

End Of Sie

TORQUE CONVERTER REMOVAL/INSTALLATION[AW6A-EL, AW6AX-EL]

id051723800700

1. Remove the transaxle. (See 05-17-29 AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION[AW6A-EL,

AW6AX-EL].)

Caution

• The oil seal is easily damaged by the sharp edges of the torque converter splines. Do not let the

splines contact the oil seal.

• Do not drop the torque converter.

• Do not pinch fingers.

2. Remove the torque converter, and immediately

turn it so that the hole faces upward. This will help
to keep any remaining fluid from spilling.

3. Drain any ATF remaining in the torque converter.
4. Using a flathead screwdriver, position the drive

gear on the oil pump component in the center.

5. Install the torque converter to the transaxle.

acxuuw00000605

-0.2

0.2 mm

{-0.00788

0.00788 in}

49 U027 003

acxuuw00000606

ampjjw00002212

1871-1U-06B(05-17).fm  46 ページ  2006年3月15日 水曜日 午前11時20分

AUTOMATIC TRANSAXLE [AW6A-EL, AW6AX-EL]

05-17–47

05-17

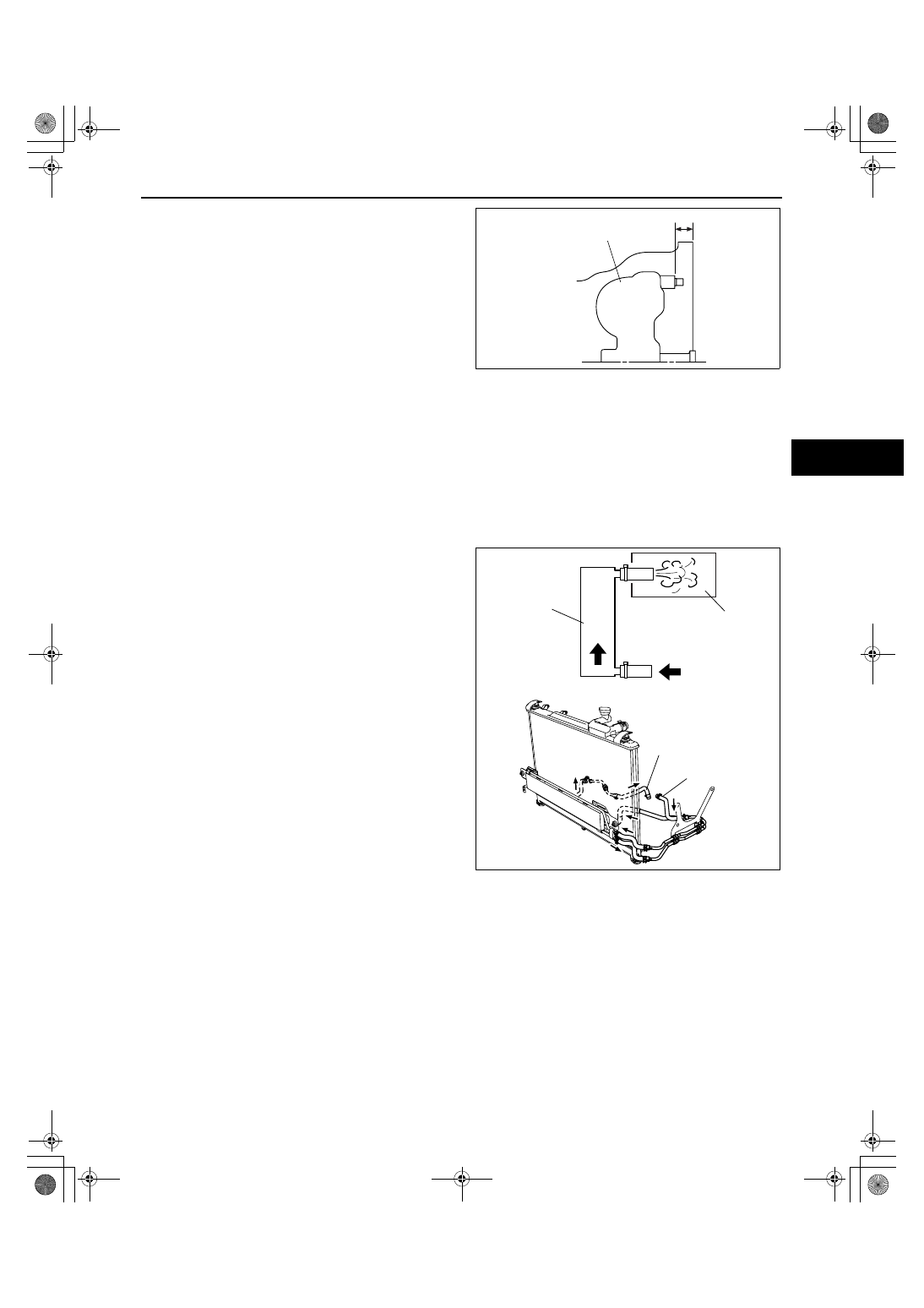

6. To ensure that the torque converter is installed

accurately, measure distance A between the end
of the torque converter and the end of the
converter housing.

Distance A ((between the end of the torque

converter and the end of the converter
housing))

31.4 mm {1.24 in}

7. Install the transaxle. (See 05-17-29 AUTOMATIC

TRANSAXLE REMOVAL/INSTALLATION[AW6A-
EL, AW6AX-EL].)

8. Perform the mechanical system test. (See 05-17-

3 MECHANICAL SYSTEM TEST[AW6A-EL, AW6AX-EL].)

End Of Sie

WM: OIL COOLER

OIL COOLER FLUSHING[AW6A-EL, AW6AX-EL]

id051723801500

Note

• If the automatic transaxle is replaced, flush and inspect the oil cooler.

• When replacing the automatic transaxle, inspect the oil cooler together with flushing it using the following

procedure, and with the oil cooler hose removed.

1. Disconnect the oil cooler hose.
2. Set a clean oil pan up to the oil cooler hose inlet.
3. Blow 491—882 kPa {5—9 kgf/cm

2

, 72—127 psi}

of compressed air from the oil cooler hose outlet
to drain remaining oil.

4. Add new ATF from the oil cooler hose outlet and

blow 491—882 kPa {5—9 kgf/cm

2

, 72—127 psi}

of compressed air to flush. (Repeat 2 or 3 times)

5. Verify that none of the following foreign material is

mixed in with the drained ATF:

• Large metal fragments of φ 0.5 mm {0.02 mm}

or more that cannot pass through the oil
strainer

• Fibrous clutch facing

6. Repeat the procedures from Step 1 to 2 and flush

the inside of the oil cooler.

7. If foreign material such as metal fragments or

clutch facing remains even after the oil cooler is
flushed repeatedly, replace the oil cooler
(radiator).

End Of Sie

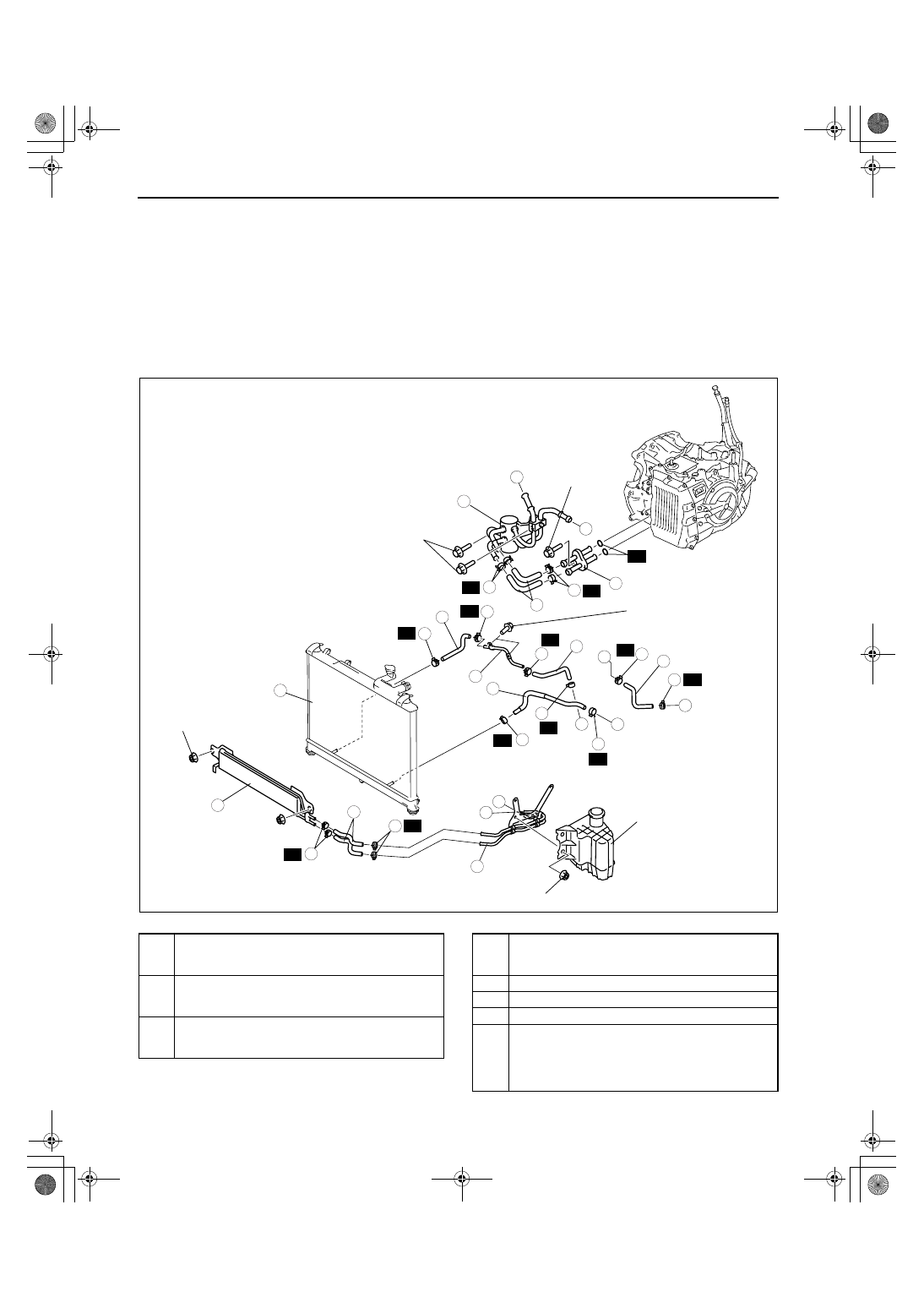

OIL COOLER REMOVAL/INSTALLATION[AW6A-EL, AW6AX-EL]

id051723801600

1. Disconnect the negative battery cable.
2. Remove the air cleaner component. (See 01-13-5 INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH

TC].)

3. Remove the under cover.
4. Drain the ATF into a container. (See 05-17-11 AUTOMATIC TRANSAXLE FLUID (ATF)

REPLACEMENT[AW6A-EL, AW6AX-EL].)

5. Drain the engine coolant. (See 01-12-5 ENGINE COOLANT REPLACEMENT[L3 WITH TC].)
6. Remove the following parts.

(1) Front bumper (See 09-10-2 FRONT BUMPER REMOVAL/INSTALLATION.)
(2) Splash shield
(3) Resonance chamber (See 01-13-5 INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH TC].)

7. Remove in the order indicated in the table.
8. Install in the reverse order of removal.
9. Add the engine coolant. (See 01-12-5 ENGINE COOLANT REPLACEMENT[L3 WITH TC].)

TORQUE CONVERTER

A

acxuuw00000604

FLUSHING IN

FLUSHING OUT

OIL COOLER

COMPRESSED
AIR

OIL PAN

acxuuw00000607

1871-1U-06B(05-17).fm  47 ページ  2006年3月15日 水曜日 午前11時20分

AUTOMATIC TRANSAXLE [AW6A-EL, AW6AX-EL]

05-17–48

10. Add ATF to the specified level. (See 05-17-11 AUTOMATIC TRANSAXLE FLUID (ATF)

REPLACEMENT[AW6A-EL, AW6AX-EL].)

11. Install the under cover.
12. Install the air cleaner component. (See 01-13-5 INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH

TC].)

13. Connect the negative battery cable.
14. Inspect for oil leakage from the oil pipes and oil hoses.
15. Inspect for coolant from the hoses.
16. Inspect for engine coolant leakage. (See 01-12-6 ENGINE COOLANT LEAKAGE INSPECTION[L3 WITH TC].)
17. Inspect the ATF level and condition. (See 05-17-10 AUTOMATIC TRANSAXLE FLUID (ATF)

INSPECTION[AW6A-EL, AW6AX-EL].)

18. Perform the line pressure test. (See 05-17-3 MECHANICAL SYSTEM TEST[AW6A-EL, AW6AX-EL].)

.

R

R

R

R

R

R

R

R

R

R

R

R

R

A

A

D

B

B

C

C

D

7

6

5

8

1

1

1

1

1

2

N·m {kgf·m, ft·lbf}

19.6—29.4
{2.00—2.99,
14.5—21.6}

1

2

2

2

2

2

2

2

2

4

3

5

4

3

7.8—10.8 N·m
{80—110 kgf·cm,
70—95 in·lbf}

7.8—10.8 N·m
{80—110 kgf·cm,
70—95 in·lbf}

18.6—25.5 {1.90—2.60, 13.8—18.8}

RESONANCE
CHAMBER

19.6—29.4
{2.00—2.99,
14.5—21.6}

acxuuw00000608

1

Oil hose
 (See05-17-49 Oil Pipe, Hose Clamp, Oil Hose
Installation Note.)

2

Hose clamp A
 (See05-17-49 Oil Pipe, Hose Clamp, Oil Hose
Installation Note.)

3

Hose clamp B
 (See05-17-49 Oil Pipe, Hose Clamp, Oil Hose
Installation Note.)

4

Hose clamp C
 (See05-17-49 Oil Pipe, Hose Clamp, Oil Hose
Installation Note.)

5

Oil  pipe

6

Thermo  valve

7

Oil cooler

8

Radiator (in tank oil cooler)
 (See 01-12-8 RADIATOR REMOVAL/
INSTALLATION[L3 WITH TC].)
 (See 05-17-49 Radiator (In Tank Oil Cooler)
Installation Note.)

1871-1U-06B(05-17).fm  48 ページ  2006年3月15日 水曜日 午前11時20分
