CONVENTIONAL BRAKE SYSTEM

04-11–3

04-11

AIR BLEEDING

id041100800200

Caution

• Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. If it is

spilled, wipe it off immediately.

Note

• Keep the fluid level in the reserve tank at 3/4 full or more during the air bleeding.

• Begin air bleeding with the brake caliper that is furthest from the master cylinder.

Brake fluid type

SAE J1703, FMVSS 116 DOT-3

1. Remove the bleeder cap on the brake caliper, and attach a vinyl tube to the bleeder screw.
2. Place the other end of the vinyl tube in a clear container and fill the container with fluid during air bleeding.
3. Working with two people, one should pump the brake pedal several times and depress and hold the pedal

down.

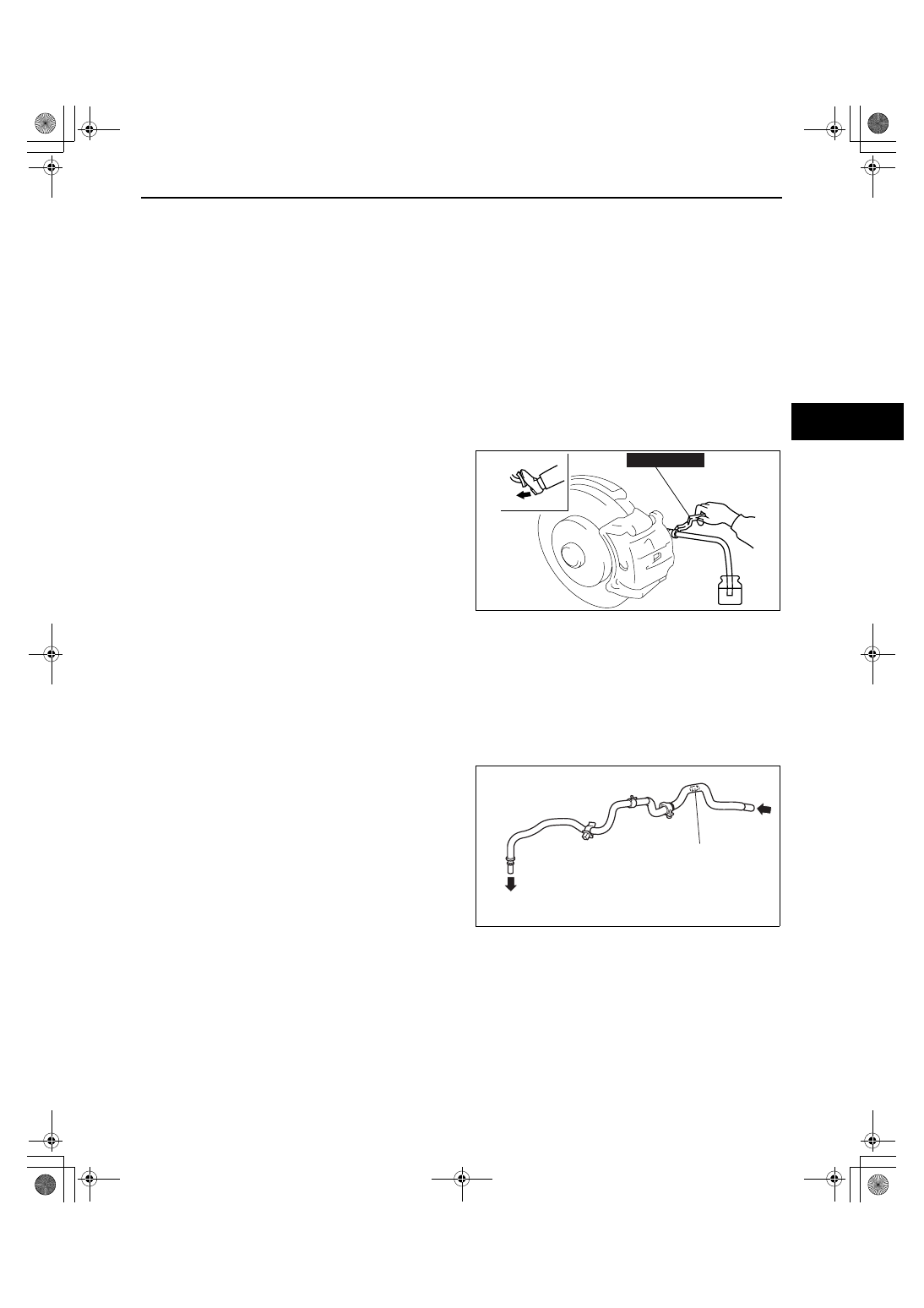

4. While the brake pedal is depressed, the other

should loosen the bleeder screw using the SST,
drain out any fluid containing air bubbles, and
tighten the bleeder screw.

Tightening torque

Front: 5.9— 9.8 N·m {61— 99 kgf·cm, 53— 86

in·lbf}

Rear: 6.9— 9.8 N·m {71— 99 kgf·cm, 61— 86

in·lbf}

5. Repeat Steps 3 and 4 until no air bubbles are

seen.

6. Perform air bleeding as described in the above

procedures for all brake calipers.

7. After air bleeding, inspect the following:

• Brake operation

• Fluid leakage

• Fluid level

End Of Sie

WM: VACUUM LINE

VACUUM LINE INSPECTION

id041100801500

1. Remove the vacuum hose. (See 04-11-4 VACUUM HOSE REMOVAL/INSTALLATION.)
2. Verify that air can be blown from the power brake

unit side of the vacuum hose towards the engine
side, and that air cannot be blown in the opposite
direction.

• If there is any malfunction of the inner check

valve, replace it together with the vacuum
hose as a single unit.

End Of Sie

49 0259 770B

acxuuw00001068

CHECK VALVE

TO INTAKE MANIFOLD

acxuuw00001745

1871-1U-06B(04-11).fm  3 ページ  ２００６年３月１５日　水曜日　午前１１時１３分

CONVENTIONAL BRAKE SYSTEM

04-11–4

VACUUM HOSE REMOVAL/INSTALLATION

id041100801600

1. Remove the clamps and vacuum hose (power brake unit side).

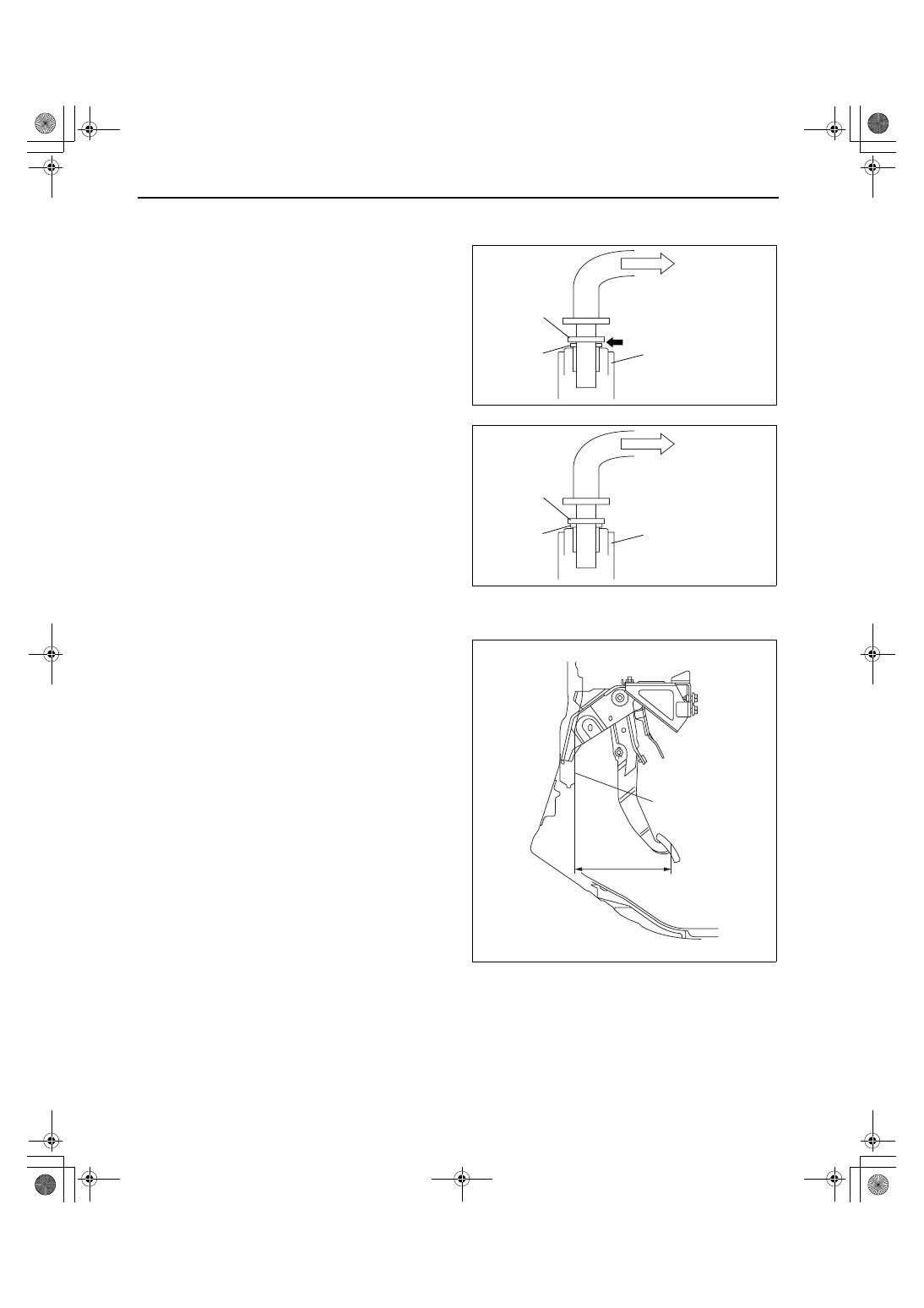

2. Insert a thin flathead screwdriver at the point

indicated by the arrow in the figure, push the ring
down and disconnect the vacuum hose from the
intake manifold.

3. Remove the vacuum hose.
4. Install in the reverse order of removal.

5. Verify that the vacuum hose is inserted so that the

joint contacts the intake manifold ring.

End Of Sie

WM: BRAKE PEDAL

BRAKE PEDAL INSPECTION

id041100801100

Pedal Height Inspection

1. Measure the distance from the center of the

upper surface of the pedal pad to the insulator
and verify that it is as specified.

• If not within the specification, inspect the

following items and repair or replace the
applicable part if there is any malfunction.

— Power brake unit installation condition

— Deformation of or damage to the power

brake unit fork

— Brake pedal installation condition

— Clevis pin wear

• If there is no malfunction in the above items,

replace the brake pedal.

Brake pedal height (reference value)

204.3 mm {8.043 in}

JOINT

RING

INTAKE MANIFOLD

POWER BRAKE UNIT

acxuuw00001109

JOINT

RING

INTAKE MANIFOLD

POWER BRAKE UNIT

acxuuw00001110

PEDAL HEIGHT

INSULATOR

acxuuw00001740

1871-1U-06B(04-11).fm  4 ページ  ２００６年３月１５日　水曜日　午前１１時１３分

CONVENTIONAL BRAKE SYSTEM

04-11–5

04-11

Pedal Play Inspection

1. Pump the pedal several times to release the vacuum in the power brake unit.
2. Gently depress the pedal by hand and measure the pedal play.

• If not within the specification, inspect the wear of the clevis pin. Replace it if there is any malfunction.

Brake pedal play

2— 5 mm {0.08— 0.19 in}

Note

• If there is no malfunction in the clevis pin, there is a possibility that the power brake unit has some

malfunction. Verify that there are no malfunctions, and replace it if necessary.

Pedal-to-floor Clearance Inspection

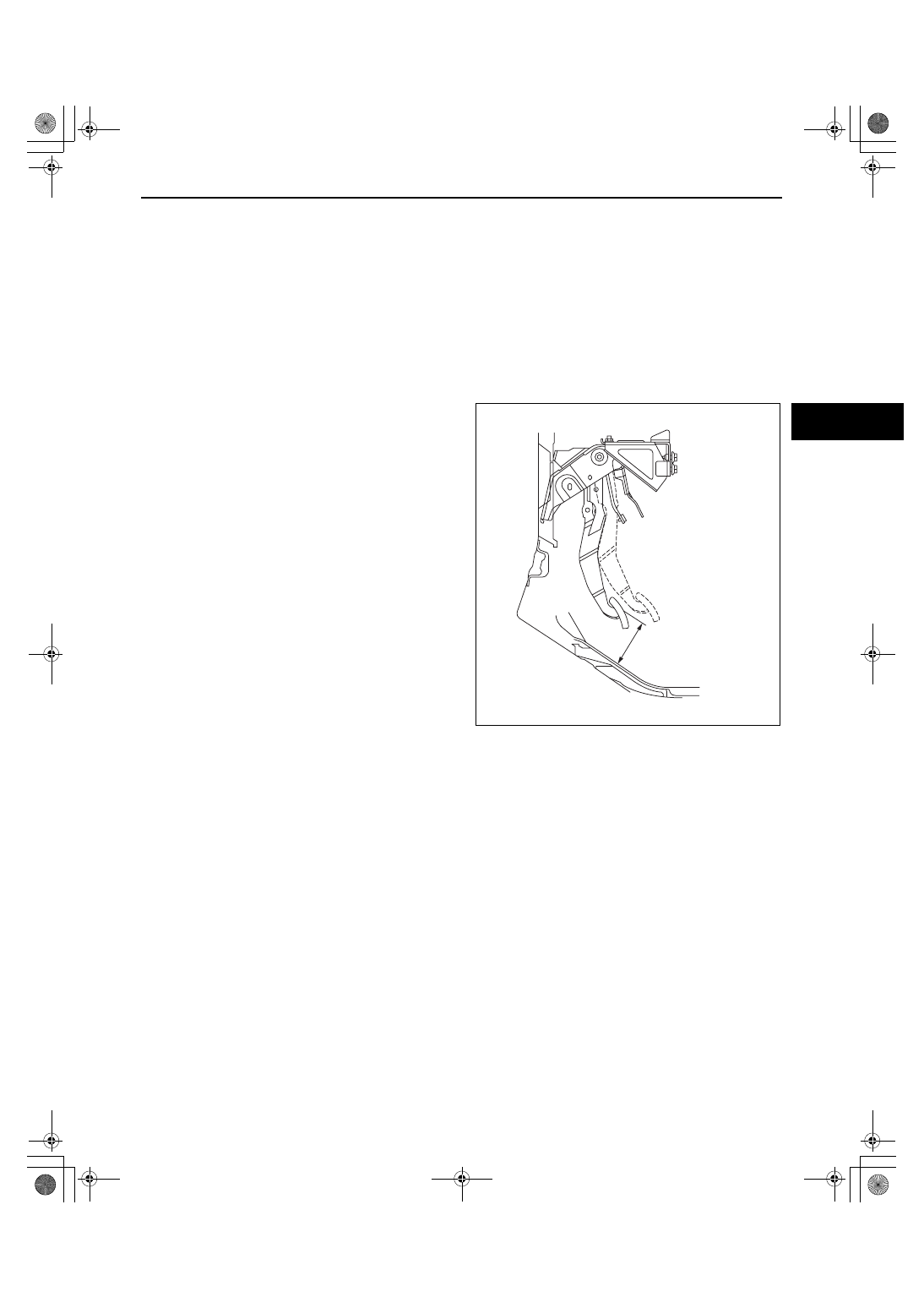

1. Start the engine and depress the brake pedal with a force of 147 N {15.0 kgf, 33.0 lbf}.
2. Measure the distance from the center of the

upper surface of the pedal pad to the floor
covering and verify that it is as specified.

• If it is less than the specification, inspect for

air in the brake line.

Brake pedal-to-floor clearance (Brake pedal

when depressed at 147 N {15.0 kgf, 33.0
lbf})

99.1 mm {3.91 in} or more

End Of Sie

PEDAL-TO-FLOOR
CLEARANCE

FLOOR
COVERING

acxuuw00001741

1871-1U-06B(04-11).fm  5 ページ  ２００６年３月１５日　水曜日　午前１１時１３分

CONVENTIONAL BRAKE SYSTEM

04-11–6

BRAKE PEDAL REMOVAL/INSTALLATION

id041100801200

Caution

• The clearance between the brake switch and the brake pedal is automatically adjusted to the

correct amount when the brake switch is inserted into the installation hole on the brake pedal and
rotated to fix in place. If the brake switch is not properly installed, the clearance may be incorrect,
causing a brake light malfunction. Therefore, always verify that the brake pedal is properly
installed and fully released before installing the brake switch to the pedal.

• Once the brake switch clearance has automatically been adjusted, it cannot be adjusted again.

Therefore, replace the switch with a new one when replacing the power brake unit or the pedal, or
performing any procedure that changes the pedal stroke.

1. Remove the battery and battery tray. (See 01-17-2 BATTERY REMOVAL/INSTALLATION[L3 WITH TC].)

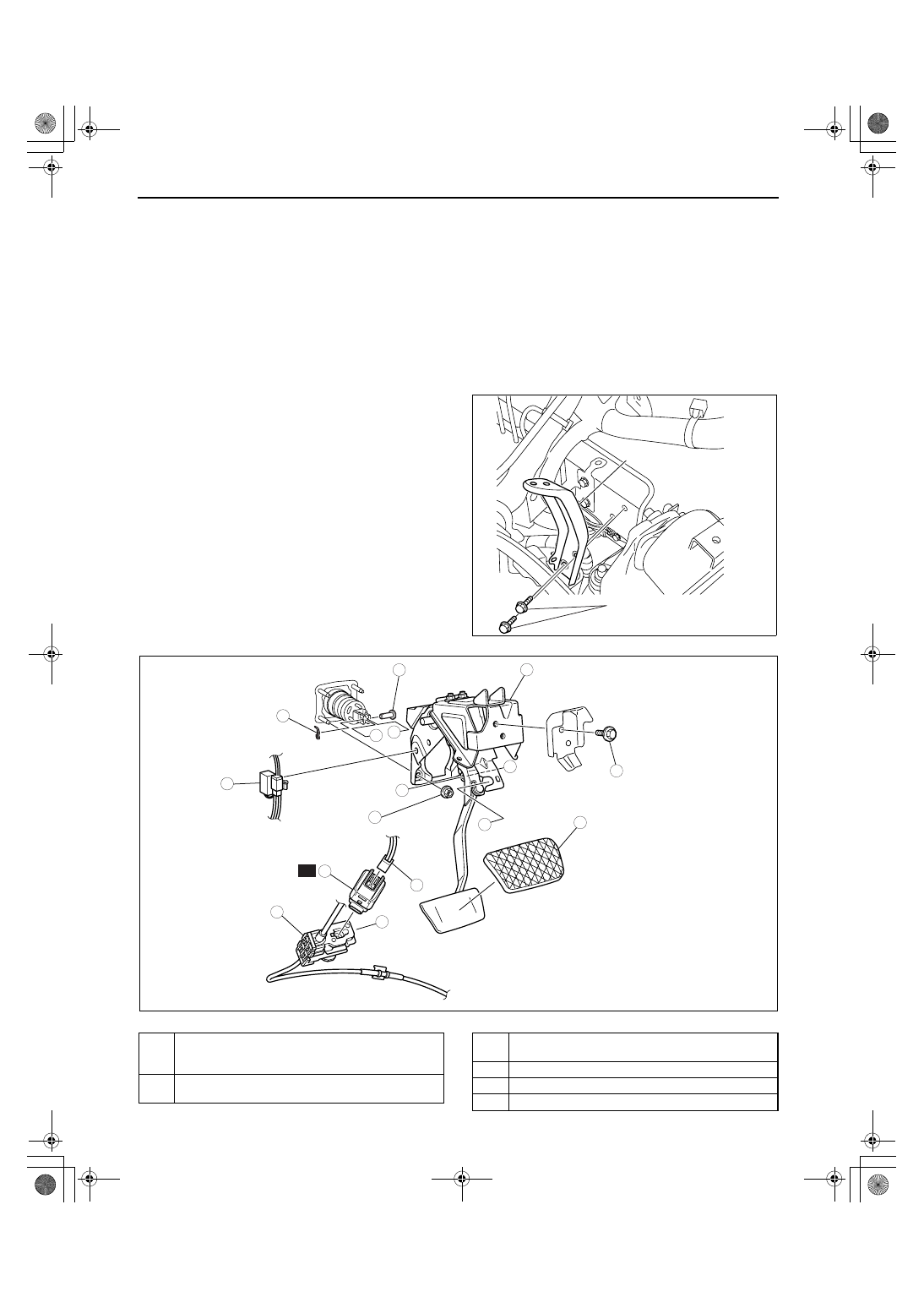

2. Remove the battery tray bracket as shown in the

figure.

3. Disconnect the brake fluid level sensor connector.
4. Remove the master cylinder reserve tank bracket

installation nuts. (See 04-11-10 MASTER
CYLINDER REMOVAL/INSTALLATION.)

5. Remove the accelerator pedal. (See 01-13-17

ACCELERATOR PEDAL REMOVAL/
INSTALLATION[L3 WITH TC].)

6. Remove in the order indicated in the table.
7. Install in the reverse order of removal.

.

BATTERY TRAY BRACKET

18—26 N·m
{1.9—2.6 kgf·m,
 14—19 ft·lbf}

acxuuw00001908

5

B

B

7

7

2

1

3

9

6

8

A

A

C

C

4

18.6—25.5
{1.90—2.60,
13.8—18.8}

18.6—25.5
{1.90—2.60,
13.8—18.8}

R

N·m {kgf·m, ft·lbf}

acxuuw00001743

1

Brake switch connector
(See 04-11-8 Brake Switch Connector Installation
Note.)

2

Brake switch
(See 04-11-8 Brake Switch Installation Note.)

3

Interlock cable
(See 05-18-2 INTERLOCK CABLE ADJUSTMENT.)

4

Noise filter

5

Snap pin

6

Clevis pin

1871-1U-06B(04-11).fm  6 ページ  ２００６年３月１５日　水曜日　午前１１時１３分
