DIFFERENTIAL

03-14–9

03-14

Ring Gear Disassembly Note

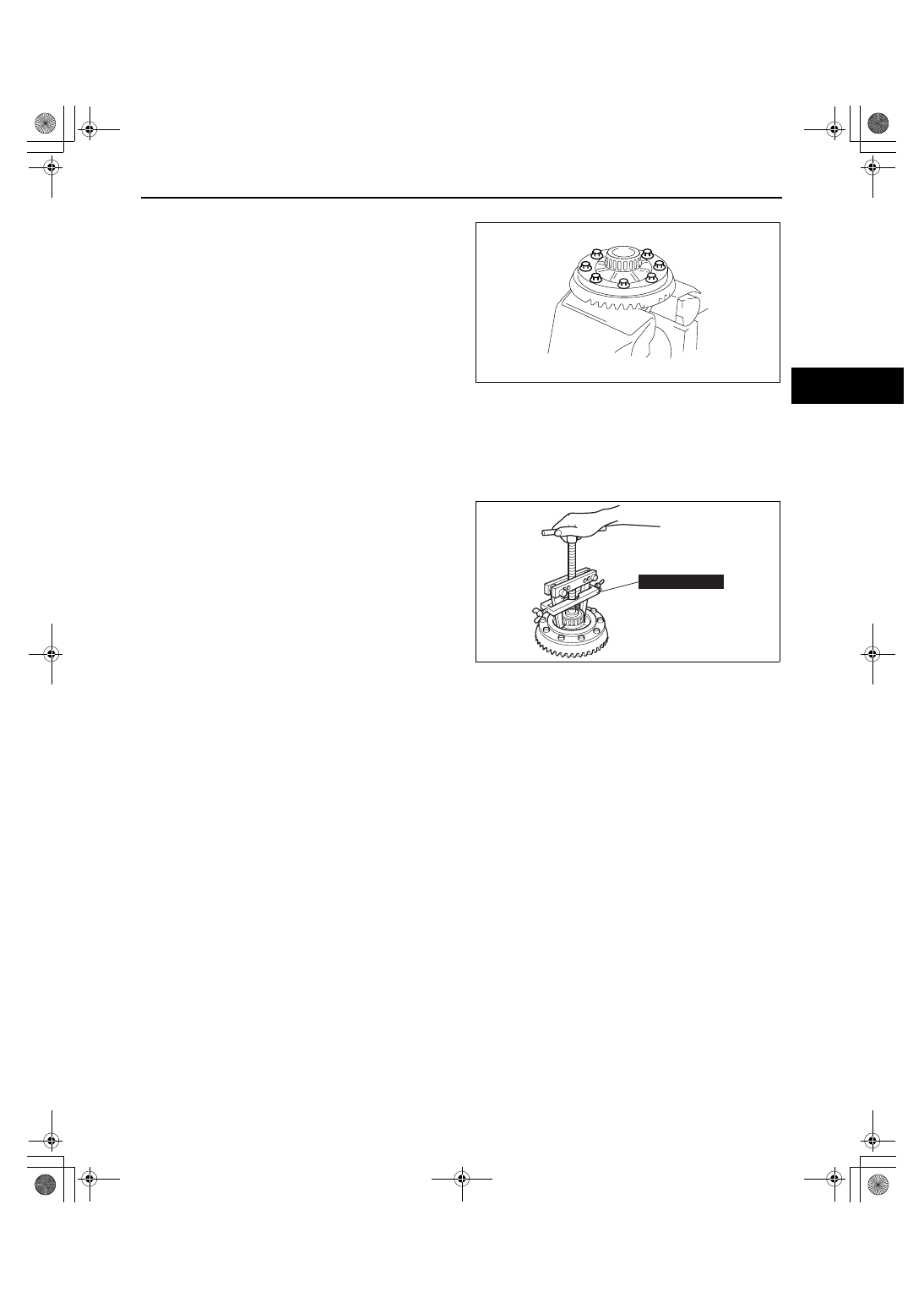

1. Secure the gear case in a vice and remove the

bolts.

2. Lightly tap around the ring gear using a plastic

hammer to remove the ring gear from the gear
case.

Side Bearing Inner Race Disassembly Note

Note

• Mark or otherwise distinguish between the left and right side bearings so that they are not mixed up at the

time of reassembly.

1. Remove the side bearing inner races from the

gear case using the SST and a press.

End Of Sie

acxuuw00001414

49 0839 425C

acxuuw00001415

1871-1U-06B(03-14).fm  9 ページ  ２００６年３月１５日　水曜日　午前１１時７分

DIFFERENTIAL

03-14–10

REAR DIFFERENTIAL ASSEMBLY

id031400800600

Warning

• The engine stand is equipped with a self-lock mechanism, however, if the rear differential is in a

tilted condition, the self-lock mechanism could become inoperative. If the rear differential
unexpectedly rotates it could cause injury, therefore do not maintain the rear differential in a tilted
condition. When turning the rear differential, grasp the rotation handle firmly.

Note

• Clean away the old sealant before applying the new sealant.

• Install the rear cover within 10 minutes after applying sealant.

• Allow the sealant to set at least 30 minutes after installation before filling the differential with the specified

oil.

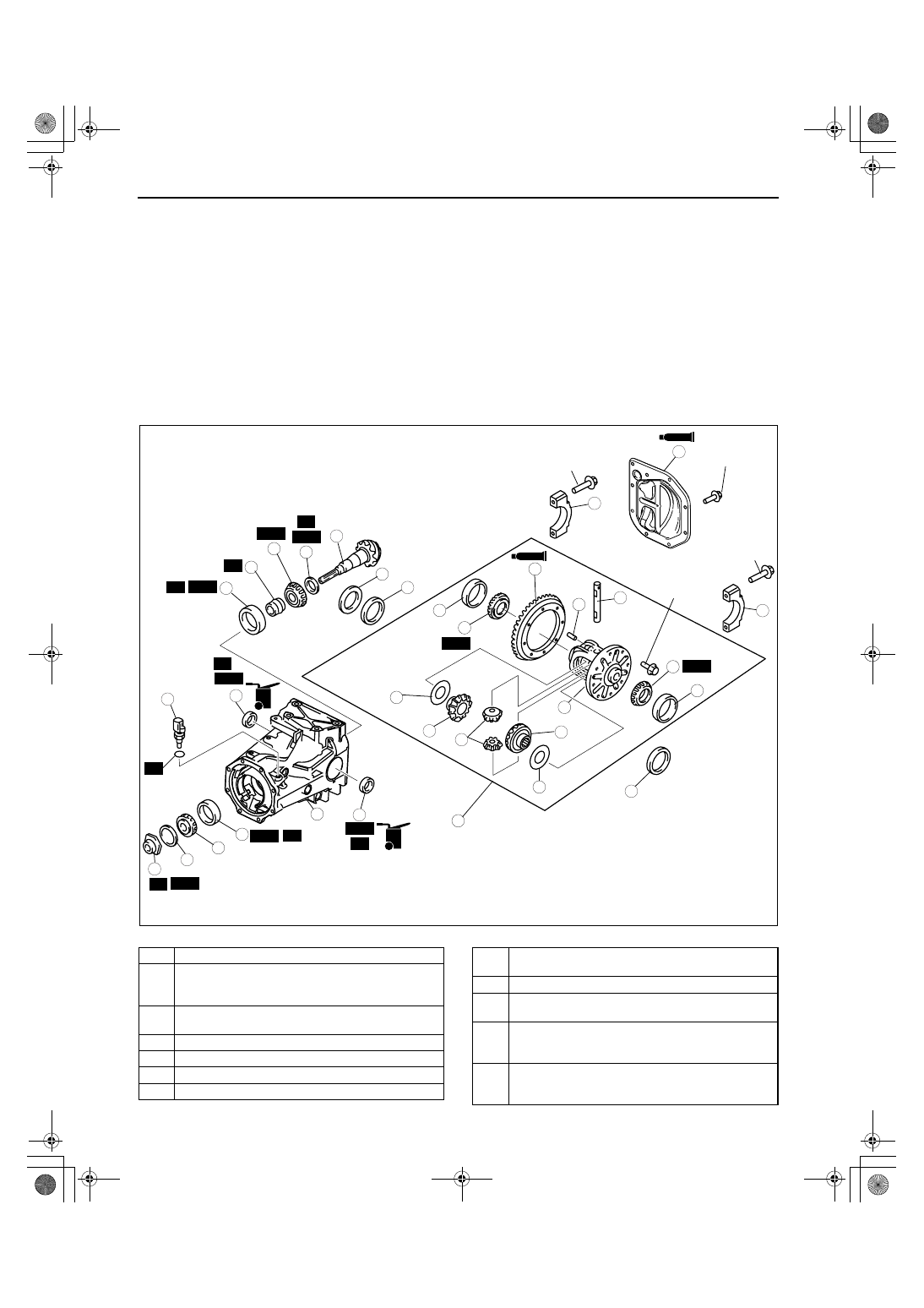

1. Assemble in the order indicated in the table.

.

SST

SST

SST

SST

SST

SST

SST

9

8

3

3

1

2

2

10

10

19

14

13

11

21

12

20

20

R

SST

R

R

R

SST

R

R

R

SEALANT

SEALANT

OIL

OIL

R

7

5

4

4

6

18

17

15

16

25

24

23

23

22

26

26

240—755
{24.5—76.9, 177—556}

12.7—17.3
{1.3—1.7,
9.4—12.7}

68.6—83.3
{9.0—8.49,
50.6—61.4}

15.7—22.6
{1.6—2.3,
11.6—16.6}

38—51
{3.9—6.2,
28.1—37.6}

38—51
{3.9—6.2,
28.1—37.6}

N·m {kgf·m,  ft·lbf}

acxuuw00002352

1

Gear case

2

Side bearing inner race
(See 03-14-11 Side Bearing Inner Race Assembly
Note)

3

Thrust washer
(See 03-14-11 Thrust washer Assembly Note)

4

Side gear

5

Pinion gear

6

Pinion shaft

7

Knock pin

8

Ring gear
(See 03-14-12 Ring Gear Assembly Note)

9

Differential carrier

10

Bearing outer race
(See 03-14-12 Bearing Outer Race Assembly Note)

11

Spacer
(See 03-14-13 Spacer, Bearing Inner Race
Assembly Note)

12

Bearing inner race (rear bearing)
(See 03-14-13 Spacer, Bearing Inner Race
Assembly Note)

1871-1U-06B(03-14).fm  10 ページ  ２００６年３月１５日　水曜日　午前１１時７分

DIFFERENTIAL

03-14–11

03-14

Side Bearing Inner Race Assembly Note

Caution

• Do not mix up the left and right side bearing inner races.

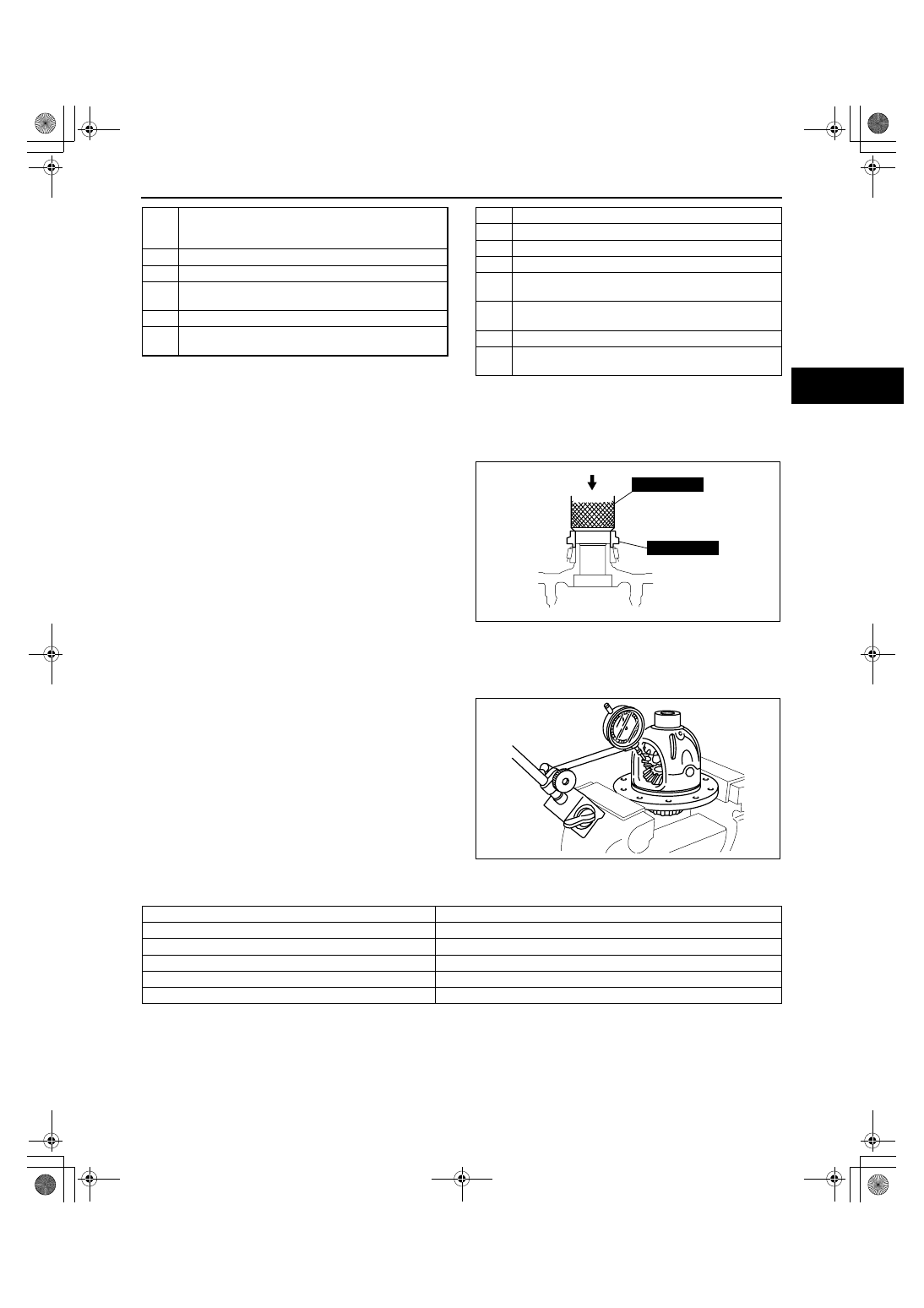

1. Press the side bearing inner races into the gear

case using the SSTs.
Substitution SST

• 49 G030 338

Outer diameter: 43— 45 mm {1.70— 1.77 in}
Inner diameter: 41 mm {1.61 in} or more
Inner depth: 3 mm {0.12 in} or more

Thrust washer Assembly Note

1. Assemble the side gears, thrust washers and pinion gears to the gear case, then assemble the knock pin.
2. After assembling the knock pin, make a crimp so that the pin will not come out of the gear case.
3. Set a dial gauge to the pinion gear as indicated in

the figure.

4. Secure one of the side gears.
5. Move the pinion gear and measure the backlash

at the end of the pinion gear.

• If the backlash exceeds the standard, use the

thrust washers to adjust.

Standard backlash

0.1 mm {0.004 in} or less

Thrust washer thickness

13

Bearing inner race (front bearing)
(See 03-14-13 Spacer, Bearing Inner Race
Assembly Note)

14

Collapsible spacer

15

Drive pinion

16

Locknut
(See 03-14-15 Locknut Assembly Note)

17

Washer

18

Adjusting shim (L)
(See 03-14-15 Adjusting Shim Assembly Note)

19

Spacer

20

Side bearing outer race

21

Rear differential component

22

Adjusting shim (R)

23

Bearing cap
(See 03-14-17 Bearing Cap Assembly Note)

24

Rear cover
(See 03-14-18 Rear Cover Assembly Note)

25

Differential oil temperature sensor

26

Oil seal
(See 03-14-18 Oil Seal Assembly Note)

49 F401 331

49 G030 338

acxuuw00001417

acxuuw00001418

Identification mark

Thickness

0

2.0 mm {0.079 in}

1

2.1 mm {0.083 in}

2

2.2 mm {0.086 in}

05

2.05 mm {0.081 in}

15

2.15 mm {0.084 in}

1871-1U-06B(03-14).fm  11 ページ  ２００６年３月１５日　水曜日　午前１１時７分

DIFFERENTIAL

03-14–12

Ring Gear Assembly Note

Caution

• The differential gear and ring gear could be damaged if the ring gear is installed with old thread-

locking compound remaining on the bolt threads. Before installing the ring gear, completely
remove the old thread-locking compound from the bolt threads.

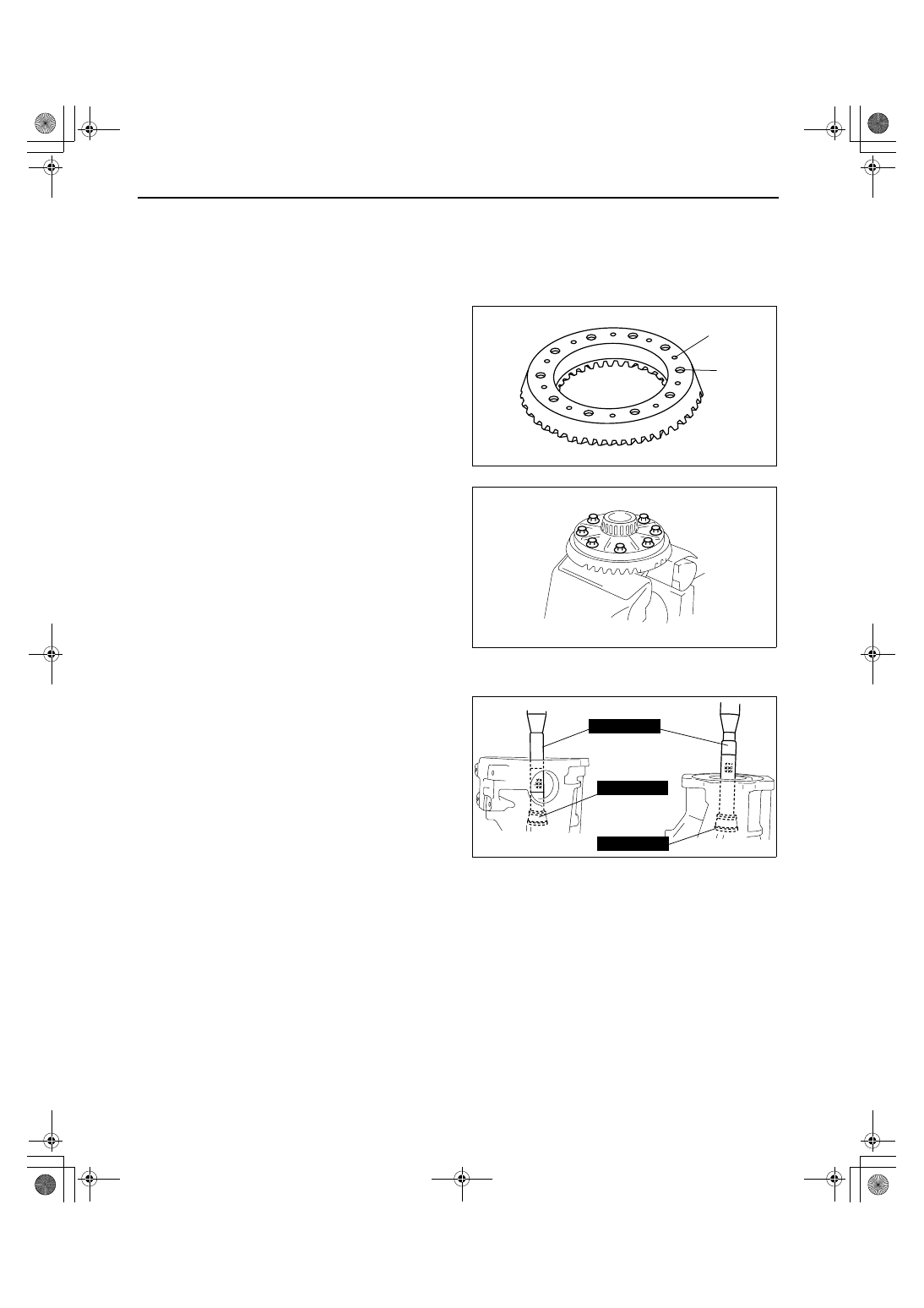

1. Apply a small amount of thread-locking
