REAR SUSPENSION

02-14–5

02-14

Nut Removal Note

1. Support the rear axle with the jack.

2. Remove the service hole cover on the trunk side

trim.

3. Remove the nuts.

End Of Sie

REAR SHOCK ABSORBER INSPECTION

id021400801400

1. Inspect the rear shock absorber in the same way as the front shock absorber. (See 02-14-5 REAR SHOCK

ABSORBER INSPECTION.)

End Of Sie

REAR SHOCK ABSORBER DISPOSAL

id021400801500

1. Dispose the rear shock absorber in the same way as the front shock absorber. (See 02-14-5 REAR SHOCK

ABSORBER DISPOSAL.)

End Of Sie

WM: REAR COIL SPRING

JACK

acxuuw00001975

SERVICE HOLE
COVER

acxuuw00001719

1871-1U-06B(02-14).fm  5 ページ  ２００６年３月１５日　水曜日　午前１１時１分

REAR SUSPENSION

02-14–6

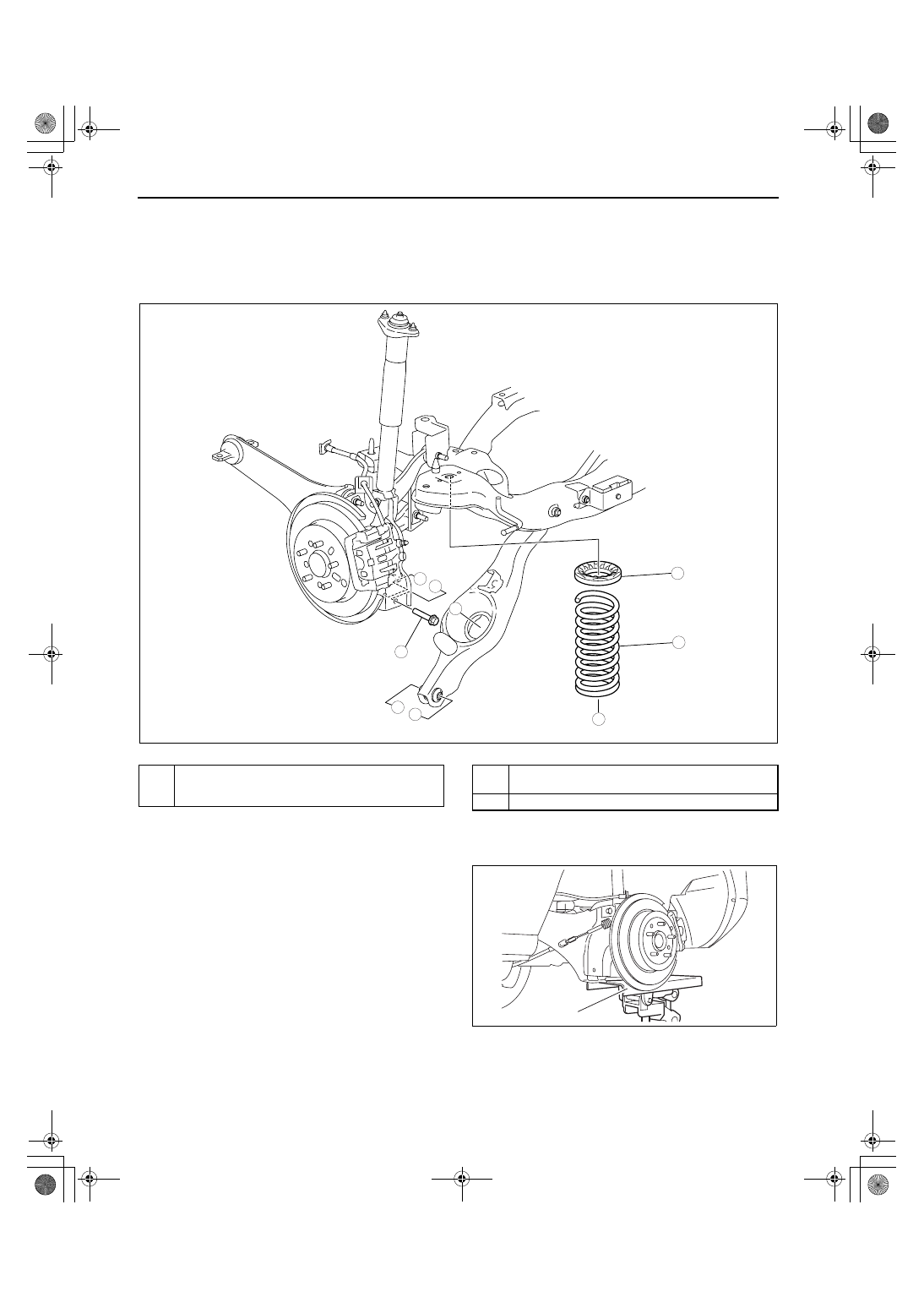

REAR COIL SPRING REMOVAL/INSTALLATION

id021400800700

1. Remove the middle pipe. (See 01-15-2 EXHAUST SYSTEM REMOVAL/INSTALLATION[L3 WITH TC].)
2. Remove the rear stabilizer. (See 02-14-11 REAR STABILIZER REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. Inspect the rear wheel alignment. (See 02-11-4 REAR WHEEL ALIGNMENT.)

.

Bolt (Rear Lower Arm Outer Side) Removal Note

1. Raise the rear trailing link to the unloaded

condition with a jack.

2. Loosen the inner and outer bolts of the lateral link.
3. Loosen the outer bolt of the upper arm.

C

C

B

A

B

A

2

1

3

75.5—102
{7.70—10.4, 55.7—75.2}

N·m {kgf·m, ft·lbf}

acxuuw00001681

1

Bolt (rear lower arm outer side)
 (See 02-14-6 Bolt (Rear Lower Arm Outer Side)
Removal Note)

2

Rear coil spring
 (See 02-14-7 Rear Coil Spring Installation Note)

3

Upper spring seat rubber

JACK

acxuuw00001976

1871-1U-06B(02-14).fm  6 ページ  ２００６年３月１５日　水曜日　午前１１時１分

REAR SUSPENSION

02-14–7

02-14

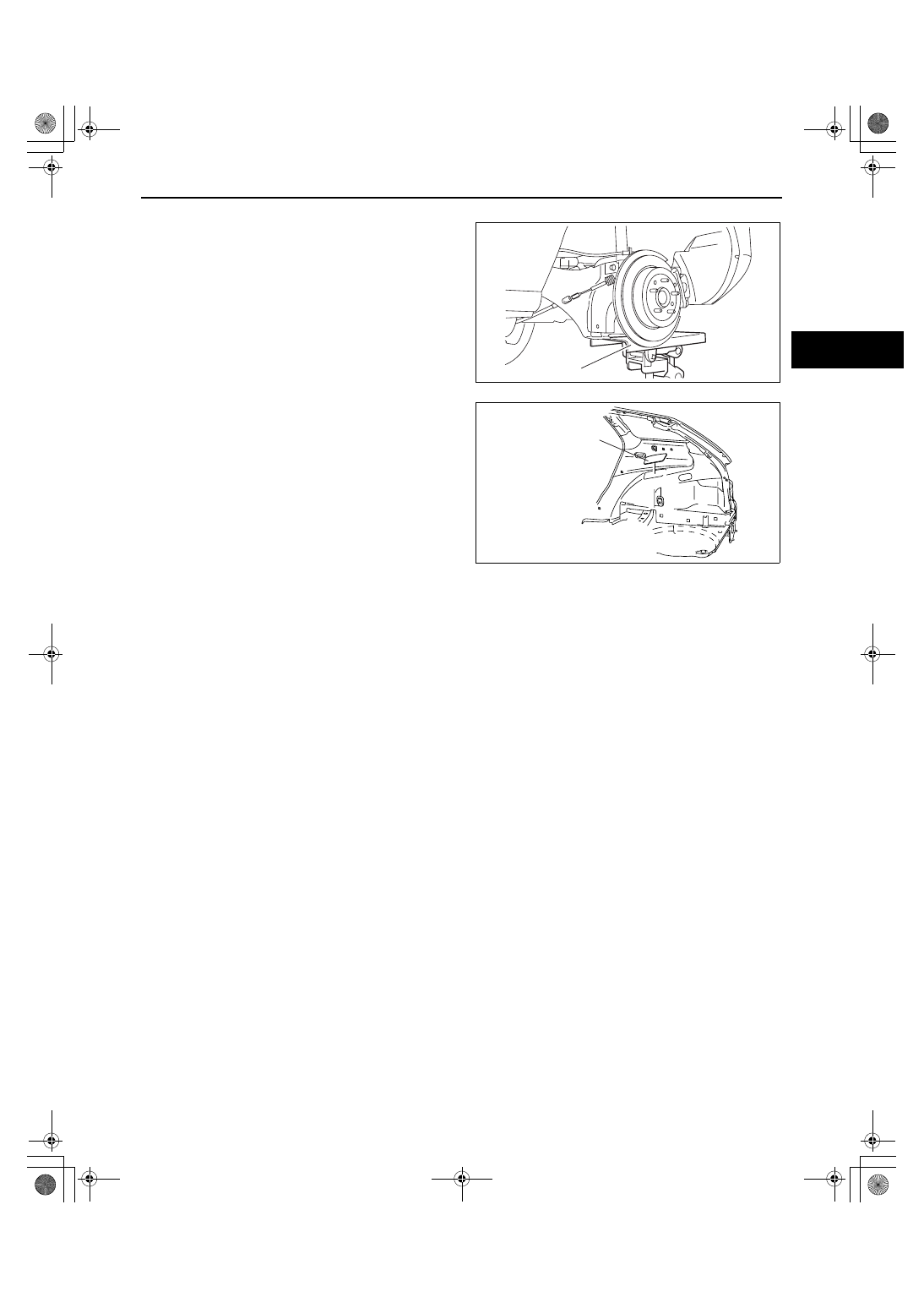

4. Support the lower arm with a jack.
5. Loosen the inner bolt of the lower arm.
6. Remove the outer bolt of the lower arm.
7. Jack down slowly and remove the coil spring.

Warning

• Removing the coil spring is dangerous.

The coil spring could fly off, the cause
serious injury or death.

Rear Coil Spring Installation Note

1. Position the jack under the lower arm and jack up slowly.

Warning

• Installing the coil spring is dangerous. The coil spring could fly off, and cause serious injury or

death.

2. Install the lower arm (outer side) bolt.
3. Raise the rear trailing link to the unloaded condition with a jack.
4. Tighten the outer bolt of the upper arm.

Tightening torque

• 75.5— 102 N·m {10.0— 12.2 kgf·m, 72.3— 75.2 ft·lbf}

5. Tighten the inner and outer bolts of the lateral link.

Tightening torque

• 75.5— 102 N·m {10.0— 12.2 kgf·m, 72.3— 75.2 ft·lbf}

End Of Sie

WM: REAR LOWER ARM

JACK

acxuuw00002442

1871-1U-06B(02-14).fm  7 ページ  ２００６年３月１５日　水曜日　午前１１時１分

REAR SUSPENSION

02-14–8

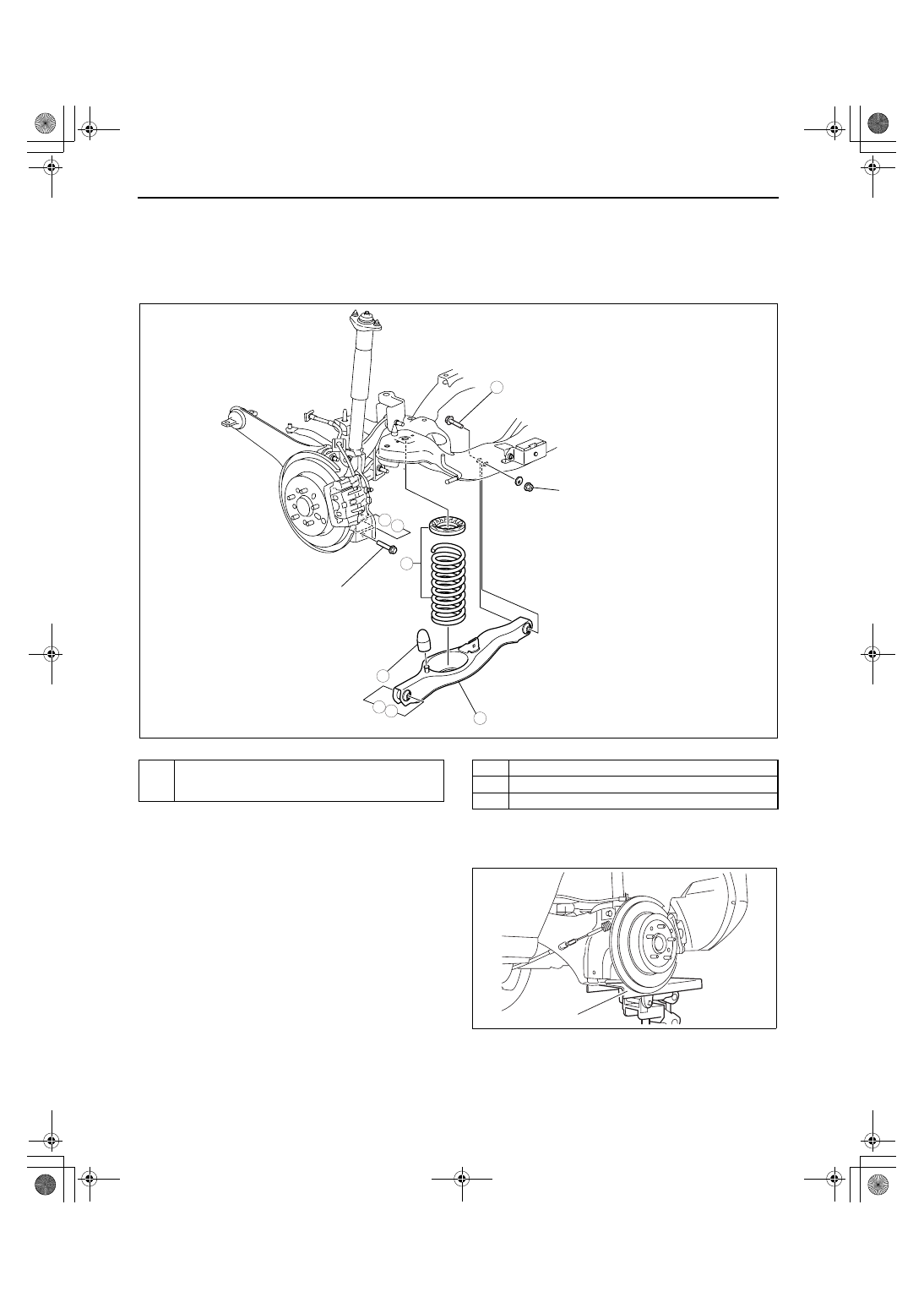

REAR LOWER ARM REMOVAL/INSTALLATION

id021400800900

1. Remove the middle pipe. (See 01-15-2 EXHAUST SYSTEM REMOVAL/INSTALLATION[L3 WITH TC].)
2. Remove the rear stabilizer. (See 02-14-11 REAR STABILIZER REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. Inspect the rear wheel alignment. (See 02-11-4 REAR WHEEL ALIGNMENT.)

.

End Of Sie

WM: REAR LATERAL LINKS

REAR LATERAL LINK REMOVAL/INSTALLATION

id021400801200

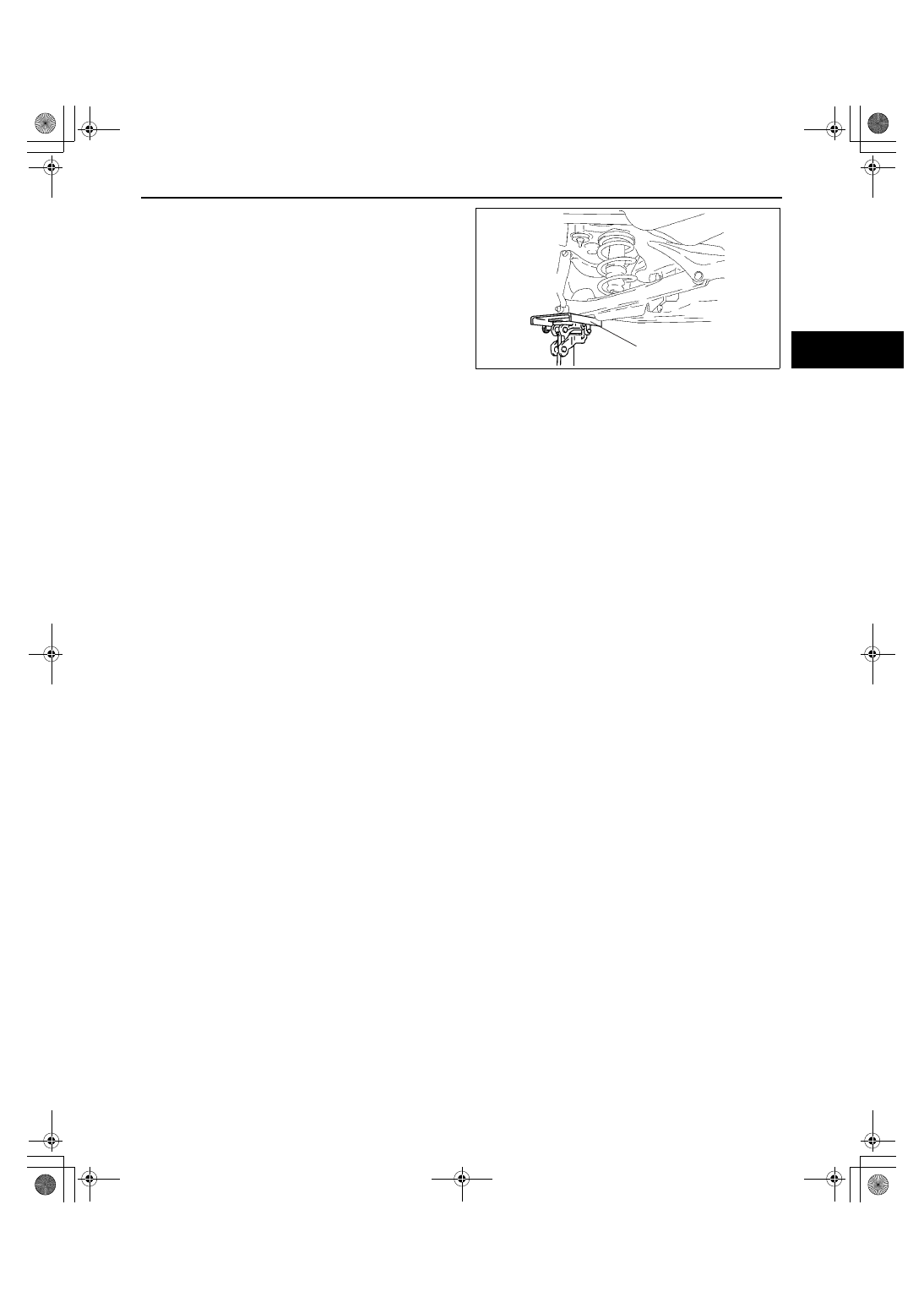

1. Raise the rear trailing link to the unloaded
