EMISSION SYSTEM [L3 WITH TC]

01-16–13

01-16

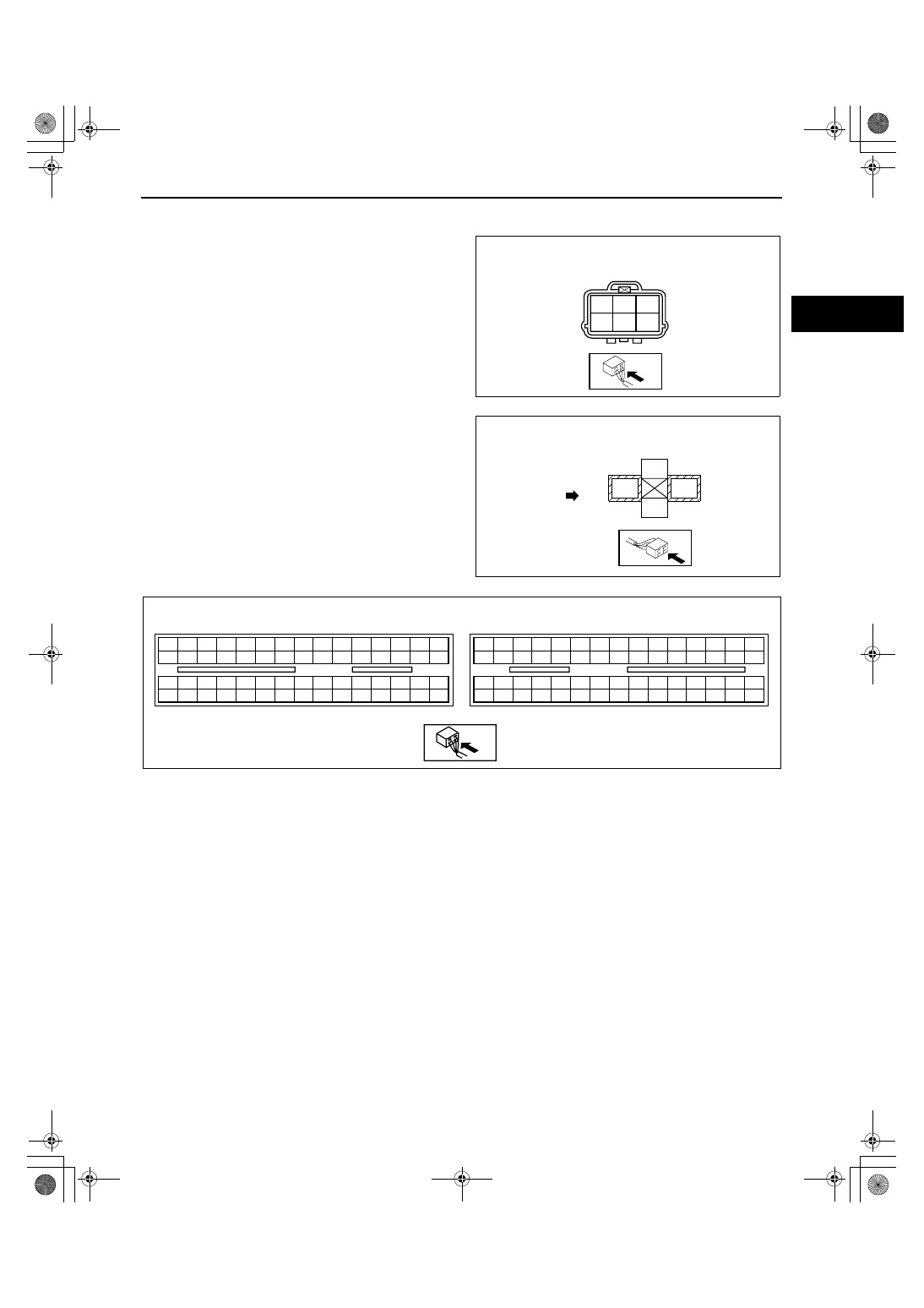

Circuit Open/Short Inspection

1. Disconnect the PCM connector. (See 01-40-6 PCM REMOVAL/INSTALLATION[L3 WITH TC].)
2. Inspect the following wiring harnesses for open or

short circuit (continuity check).

Open circuit

• If there is no continuity, there is an open circuit. Repair or replace the wiring harness.

— EGR valve terminal A and PCM terminal 2AM

— EGR valve terminal B and PCM terminal 2AR

— EGR valve terminal C or D and main relay terminal E

— EGR valve terminal E and PCM terminal 2AQ

— EGR valve terminal F and PCM terminal 2AN

Short circuit

• If there is continuity, there is a short circuit. Repair or replace the wiring harness.

— EGR valve terminal A and power supply

— EGR valve terminal A and body ground

— EGR valve terminal B and power supply

— EGR valve terminal B and body ground

— EGR valve terminal C or D and body ground

— EGR valve terminal E and power supply

— EGR valve terminal E and body ground

— EGR valve terminal F and power supply

— EGR valve terminal F and body ground

3. Remove the EGR valve, and inspect for any damage or clogging.

• If there is no damage or clogging, replace the EGR valve. (See 01-16-11 EGR VALVE REMOVAL/

INSTALLATION[L3 WITH TC])

End Of Sie

WM: PCV VALVE

EGR VALVE

WIRING HARNESS SIDE CONNECTOR

A

B

C

D

E

F

acxuuw00000051

FUSE BOX

(MAIN RELAY)

A

E

B

D

FRONT

acxuuw00002336

2BE 2BA 2AW 2AS 2AO 2AK 2AG 2AC 2Y 2U 2Q 2M

2E

2A

2I

2BH 2BD 2AZ 2AV 2AR 2AN 2AJ 2AF 2AB 2X 2T 2P

2H

2D

2L

2BG 2BC 2AY 2AU 2AQ 2AM 2AI 2AE 2AA 2W 2S 2O

2G

2C

2K

2BF 2BB 2AX 2AT 2AP 2AL 2AH 2AD 2Z

2V 2R 2N

2F

2B

2J

1BE 1BA 1AW 1AS 1AO 1AK 1AG 1AC 1Y 1U 1Q 1M

1E

1A

1I

1BH 1BD 1AZ 1AV 1AR 1AN 1AJ 1AF 1AB 1X

1T

1P

1H

1D

1L

1BG 1BC 1AY 1AU 1AQ 1AM 1AI 1AE 1AA 1W 1S 1O

1G

1C

1K

1BF 1BB 1AX 1AT 1AP 1AL 1AH 1AD 1Z

1V

1R 1N

1F

1B

1J

PCM

WIRING HARNESS-SIDE CONNECTOR

acxuuw00000052

1871-1U-06B(01-16).fm  13 ページ  2006年3月15日 水曜日 午前10時48分

EMISSION SYSTEM [L3 WITH TC]

01-16–14

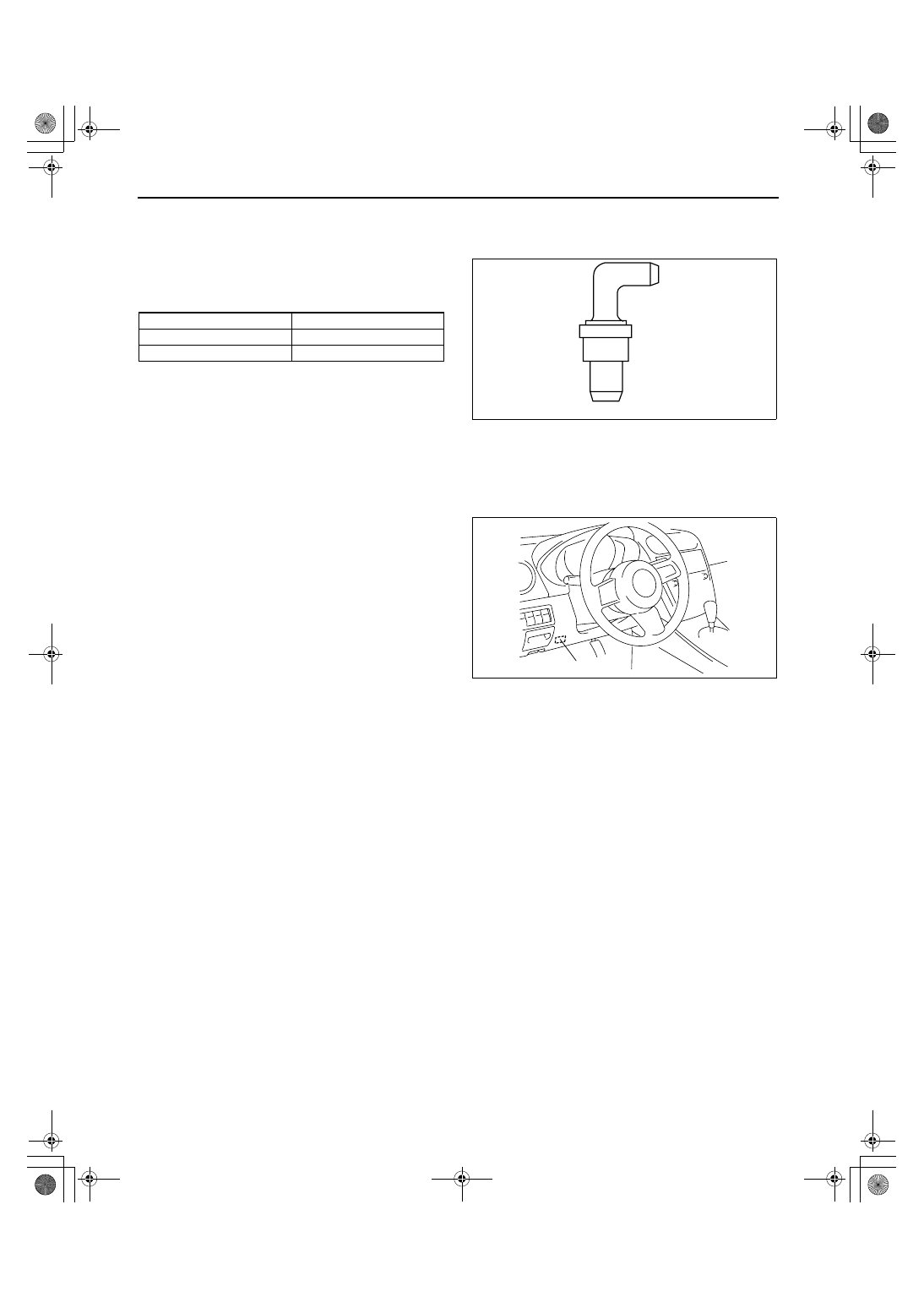

POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION[L3 WITH TC]

id011639800400

1. Remove the intake manifold. (See 01-13-5 INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH TC])
2. Remove the PCV valve.
3. Blow through the valve and verify that air flows as

specified.

• If not as specified, replace the PCV valve.

Specification

End Of Sie

WM: CATALYTIC CONVERTER

WARM-UP THREE-WAY CATALYTIC CONVERTER (WU-TWC) INSPECTION[L3 WITH TC]

id011639801200

Caution

• Perform the following procedures, DTC P0421 is indicated only.

1. Connect the M-MDS to the DLC-2.
2. Start the engine and warm it up to normal

operating temperature.

3. Turn off the engine.
4. Verify that the engine compression is within the

specification. (See 01-10-9 COMPRESSION
INSPECTION[L3 WITH TC].)

• If the compression pressure is not within the

specification, repair or replace the
malfunction part.

5. Drive the vehicle for 10 min at 65— 96 km/h

{40— 60 mph} to allow the WU-TWC to reach
operating

6. Stop the vehicle and leave it in a safe space.
7. Access Test ID 10:21:80 on the “Diagnostic Monitoring Test Result” function.
8. Verify that the test result is within the specified indicated on the M-MDS.

• If it is not as specified, replace the WU-TWC. (See01-15-2 EXHAUST SYSTEM REMOVAL/

INSTALLATION[L3 WITH TC].)

End Of Sie

Condition

Airflow

Air applied from port A to B

Yes

Air applied from port B to A

No

B

A

acxuuw00001930

DLC-2

acxuuw00000264

1871-1U-06B(01-16).fm  14 ページ  2006年3月15日 水曜日 午前10時48分

CHARGING SYSTEM [L3 WITH TC]

01-17–1

01-17

01-17

CHARGING SYSTEM [L3 WITH TC]

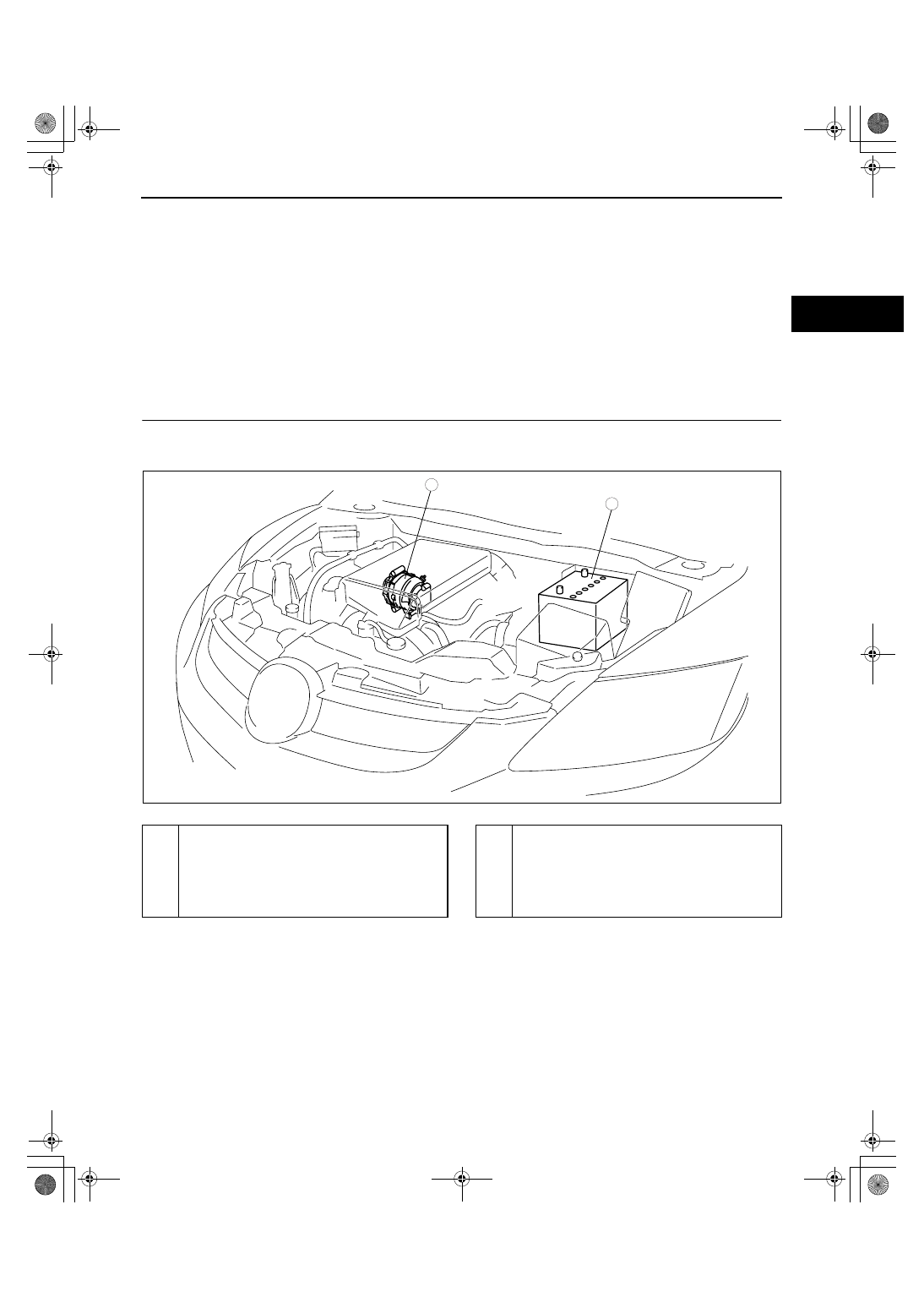

CHARGING SYSTEM LOCATION INDEX

[L3 WITH TC]  . . . . . . . . . . . . . . . . . . . .  01-17–1

BATTERY REMOVAL/INSTALLATION

[L3 WITH TC]  . . . . . . . . . . . . . . . . . . . .  01-17–2

Battery Box Installation Note . . . . . . . .  01-17–2

BATTERY INSPECTION

[L3 WITH TC]  . . . . . . . . . . . . . . . . . . . .  01-17–2

Electrolyte Specific Gravity  . . . . . . . . .  01-17–2
Battery Voltage. . . . . . . . . . . . . . . . . . .  01-17–3
Back-up Current . . . . . . . . . . . . . . . . . .  01-17–3

BATTERY RECHARGING

[L3 WITH TC]  . . . . . . . . . . . . . . . . . . . .  01-17–4

GENERATOR REMOVAL/INSTALLATION

[L3 WITH TC] . . . . . . . . . . . . . . . . . . . . . 01-17–4

Generator Removal Note  . . . . . . . . . . . 01-17–5
Generator Installation Note . . . . . . . . . . 01-17–5

GENERATOR INSPECTION

[L3 WITH TC] . . . . . . . . . . . . . . . . . . . . . 01-17–6

Generator Warning Light . . . . . . . . . . . . 01-17–6
Generator  . . . . . . . . . . . . . . . . . . . . . . . 01-17–6
Generator Inner Parts . . . . . . . . . . . . . . 01-17–8

GENERATOR

 DISASSEMBLY/ASSEMBLY
[L3 WITH TC] . . . . . . . . . . . . . . . . . . . . . 01-17–11

End of Toc

WM: CHARGING SYSTEM

CHARGING SYSTEM LOCATION INDEX[L3 WITH TC]

id011739800100

.

End Of Sie

WM: BATTERY

1

2

acxuuw00002015

1

Battery
(See 01-17-2 BATTERY REMOVAL/
INSTALLATION[L3 WITH TC].)
(See 01-17-2 BATTERY INSPECTION[L3 WITH
TC].)
(See 01-17-4 BATTERY RECHARGING[L3 WITH
TC].)

2

Generator
(See 01-17-4 GENERATOR REMOVAL/
INSTALLATION[L3 WITH TC].)
(See 01-17-6 GENERATOR INSPECTION[L3 WITH
TC].)
(See 01-17-11 GENERATOR DISASSEMBLY/
ASSEMBLY[L3 WITH TC].)

1871-1U-06B(01-17).fm  1 ページ  2006年3月15日 水曜日 午前10時49分

CHARGING SYSTEM [L3 WITH TC]

01-17–2

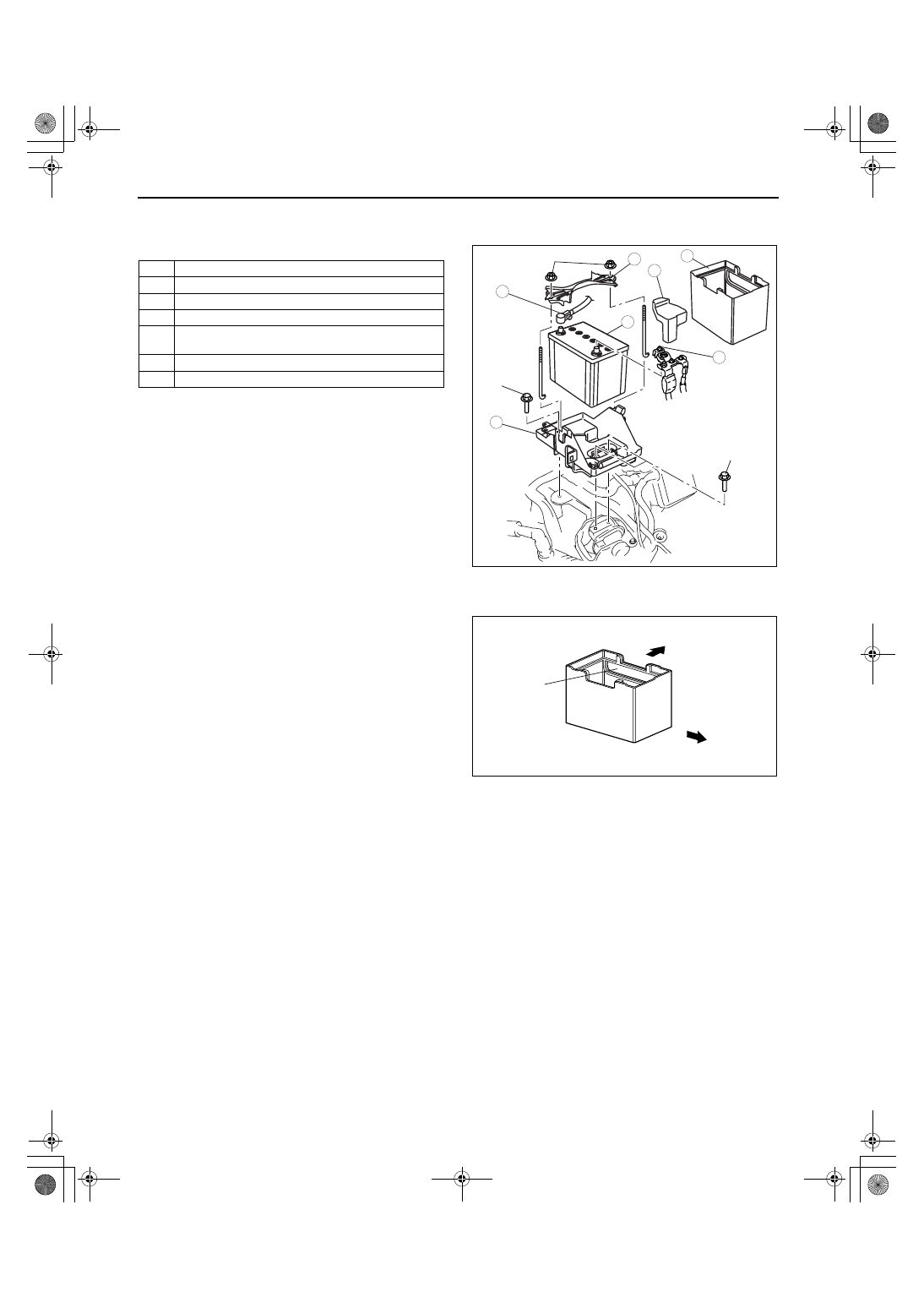

BATTERY REMOVAL/INSTALLATION[L3 WITH TC]

id011739800500

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

Battery Box Installation Note

1. Install the battery box so that the side with the

notch points toward the front fender (LH).

End Of Sie

BATTERY INSPECTION[L3 WITH TC]

id011739800600

Warning

• Since battery acid is toxic, be careful when handling the battery.

• Since battery acid is highly corrosive, be careful not to allow it to contact clothing or the vehicle.

• In case battery acid contacts skin, eyes, or clothing, flush it immediately with running water.

Especially if the acid gets in the eyes, flush with water for more than 15 min and get prompt
medical attention.

Electrolyte Specific Gravity

1. Measure the electrolyte specific gravity using a hydrometer.

• If it is less than the specification, recharge the battery. (See 01-17-4 BATTERY RECHARGING[L3 WITH

TC].)

Battery electrolyte specific gravity [20

°C {68 °F}]

1.22— 1.29

1

Negative battery cable

2

Positive battery cable cap

3

Positive battery cable

4

Battery clamp

5

Battery box
(See 01-17-2 Battery Box Installation Note.)

6

Battery

7

Battery tray

7

6

2

3

4

1

5

8.8—12.7
{89.8—129.5,
78.0—112.4}

2.9—4.9
{29.6—49.9,
25.7—43.3}

5.0—6.9 {51.0—70.3,
44.3—61.0}

N·m {kgf·cm, in·lbf}

2.9—4.9
{29.6—49.9,
25.7—43.3}

8.8—12.7
{89.8—129.5,
78.0—112.4}

acxuuw00002031

LH FRONT FENDER

FRONT

NOTCH

acxuuw00002032
