INTAKE-AIR SYSTEM [L3 WITH TC]

01-13–3

01-13

End Of Sie

INTAKE AIR SYSTEM FLOW DIAGRAM[L3 WITH TC]

id011339800200

End Of Sie

TURBOCHARGER

RESONANCE
CHAMBER

INTAKE MANIFOLD

COMBUSTION
CHAMBERS

: INTAKE AIR FLOW

VARIABLE SWIRL
SHUTTER VALVE

AIR
CLEANER

FRESH-AIR
DUCT

CHARGE AIR
COOLER

AIR  BYPASS
VALVE

THROTTLE
VALVE

THROTTLE BODY

acxuuw00000282

1871-1U-06B(01-13).fm  3 ページ  ２００６年３月１５日　水曜日　午前１０時４４分

INTAKE-AIR SYSTEM [L3 WITH TC]

01-13–4

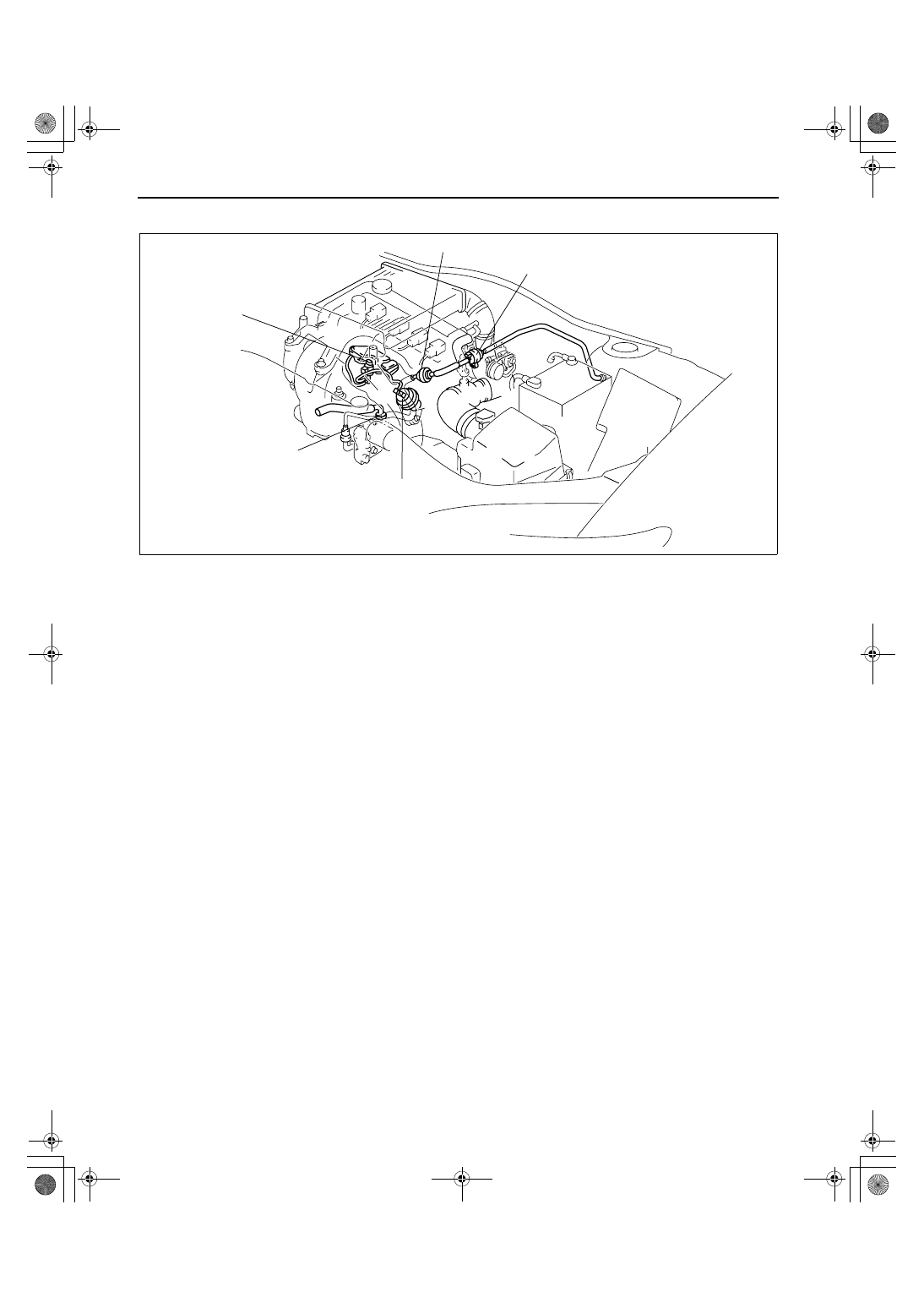

VACUUM HOSE ROUTING DIAGRAM[L3 WITH TC]

id011339800300

End Of Sie

INTAKE AIR SYSTEM MANIFOLD VACUUM INSPECTION[L3 WITH TC]

id011339804200

1. Verify that the intake air hoses are installed securely.
2. Warm up the engine.
3. Disconnect the vacuum hose connected between the check valve and the intake manifold from the intake

manifold and install the vacuum gauge. (See 01-14-19 QUICK RELEASE CONNECTOR REMOVAL/
INSTALLATION[L3 WITH TC])

4. Measure the intake manifold vacuum while idling (no load) using the vacuum gauge.

• If not within the specification, perform the following inspections.

— Accelerator cable play

— Compression pressure (See 01-10-9 COMPRESSION INSPECTION[L3 WITH TC].)

— Air suction (installation areas of throttle body, fuel injector, PCV valve, intake manifold)

Note

• If any air suction exists, the change in engine speed can be made apparent by spraying the penetrant

lubricating spray on the applicable part.

Standard

 –71 kPa {–533 mmHg, –21 inHg} or more

End Of Sie

CHECK VALVE

PURGE SOLENOID VALVE

PCV VALVE

VARIABLE SWIRL SHATTER
VALVE ACTUATOR

VARIABLE SWIRL
SOLENOID VALVE

acxuuw00000153

1871-1U-06B(01-13).fm  4 ページ  ２００６年３月１５日　水曜日　午前１０時４４分

INTAKE-AIR SYSTEM [L3 WITH TC]

01-13–5

01-13

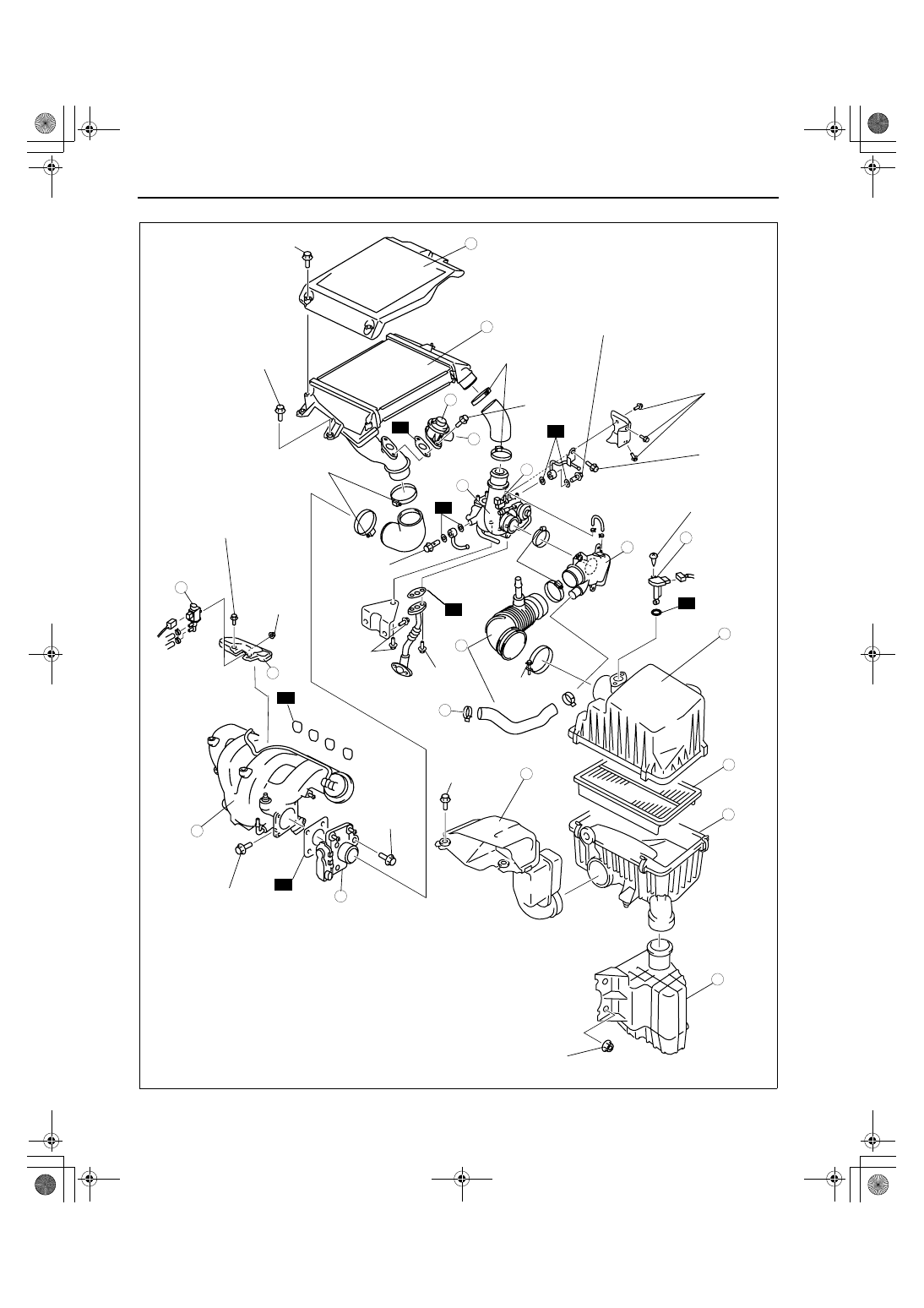

INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH TC]

id011339800400

Warning

• A hot engine and intake air system can cause severe burns. Turn off the engine and wait until they

are cool before removing the intake air system.

• Fuel vapor is hazardous. It can easily ignite, causing serious injury and damage. Always keep

sparks and flames away from fuel.

• Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and

damage. Fuel can also irritate skin and eyes. To prevent this, always complete the “Fuel Line
Safety Procedure”. (See01-14-4 BEFORE REPAIR PROCEDURE[L3 WITH TC].)

1. Disconnect the negative battery cable.
2. Remove the charge air cooler duct.
3. Remove the battery and battery tray. (See01-17-2 BATTERY REMOVAL/INSTALLATION[L3 WITH TC].)
4. Remove the under cover.
5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.

1871-1U-06B(01-13).fm  5 ページ  ２００６年３月１５日　水曜日　午前１０時４４分

INTAKE-AIR SYSTEM [L3 WITH TC]

01-13–6

7. Complete the “AFTER REPAIR PROCEDURE”. (See01-14-4 AFTER REPAIR PROCEDURE[L3 WITH TC].)

.

8

5

6

4

1

2

A

A

3

7

9

R

R

R

R

R

R

R

R

R

R

R

10

12

13

15

14

11

18.6—25.5 N·m
{1.90—2.60 kgf·m,
13.8—18.8 ft·lbf}

8—11.5
{82—117,
71—101}

17—23 N·m
{1.8—2.3 kgf·m,
13—16 ft·lbf}

37.2—51.9 N·m
{3.80—5.29 kgf·m,
27.5—38.2 ft·lbf}

7.8—10.8
{80—110, 70—95}

4.9 {50—43}

18.6—25.5 N·m
{1.90—2.60 kgf·m,
13.8—18.8 ft·lbf}

4.9 {50—43}

23.5—35.3 N·m
{2.40—3.59 kgf·m,
17.4—26.0 ft·lbf}

7.9—10.7
{81—109,
70—94}

7.8—10.8
{80—110,
70—95}

7.8—10.8
{80—110,
70—95}

0.55—0.85
{5.7—8.6,
4.9—7.5}

2.5—3.4
{26—34,
23—30}

N·m {kgf·cm, in·lbf}

8—11.5
{82—117,
71—101}

3.9—5.9
{40—60, 35—52}

17

16

23.5—35.3 N·m
{2.40—3.59 kgf·m,
17.4—26.0 ft·lbf}

2.5—3.4
{26—34,
23—30}

7.8—10.8
{80—110, 70—95}

7.8—10.8
{80—110,
70—95}

acxuuw00000205
