Mazda CX 7. Manual - part 110





LUBRICATION [L3 WITH TC]

01-11–5

01-11

WM: OIL FILTER

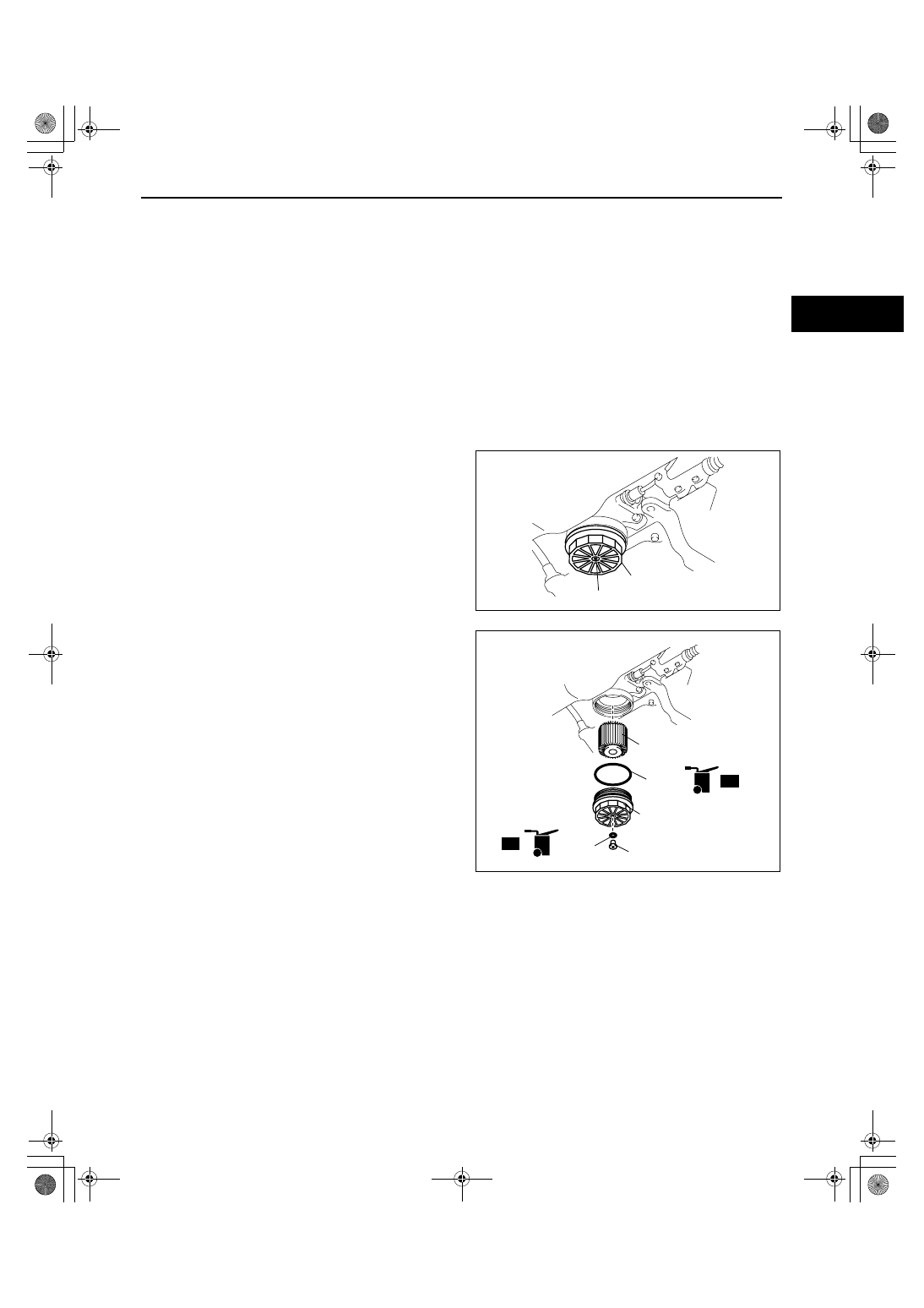

OIL FILTER REPLACEMENT[L3 WITH TC]

id011139800700

Warning

• Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the

engine oil have cooled.

• A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall,

causing death or serious injury. Never work around or under a lifted vehicle if it is not securely
supported on safety stands.

• Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your

skin by washing with soap and water immediately after working with engine oil.

Caution

• If engine oil is spilled on the exhaust system, wipe it off completely. If you fail to wipe the spilled

engine oil, it will produce fumes because of the heat.

• To avoid damage to the oil filter, use only specified oil filter.

1. Remove the under cover.
2. Loosen the oil filter drain plug. (Do not remove.)
3. Loosen the filter cover for 1 turn using a

commercially available, cup-type oil filter wrench
(74 mm {2.9 in} diameter, 14 sided).

4. Remove the oil filter drain plug, and drain the

engine oil.

Note

• Oil could be easily drained when the air is in

the filter.

5. Loosen the oil filter cover for another 1 turn.

6. Remove the oil filter cover and the oil filter.
7. Use a clean rag to wipe off the mounting surface

on the oil filter adapter and the oil filter cover.

8. Apply clean engine oil to a new O-ring of the oil

filter cover.

9. Apply clean engine oil to a new O-ring of the oil

filter drain plug.

10. Install the oil filter, oil filter drain plug, and oil filter

cover.

11. Tighten the oil filter cover and the oil filter drain

plug.

Tightening torque

Oil filter cover: 30— 35 N·m {3.1— 3.5
kgf·m, 22.2— 25.8 ft·lbf}
Oil filter drain plug: 9— 11 N·m {91.8—
112.2 kgf·cm, 79.6— 97.2 in·lbf}

12. Start the engine and confirm that there is no oil

leakage.

• If there is oil leakage, repair or replace the applicable part.

13. Inspect the oil level. (See 01-11-3 ENGINE OIL LEVEL INSPECTION[L3 WITH TC].)
14. Install the under cover.

End Of Sie

WM: OIL COOLER

OIL FILTER COVER

OIL FILTER DRAIN PLUG

acxuuw00002007

OIL

OIL

OIL FILTER COVER

OIL FILTER

OIL FILTER DRAIN PLUG

O-RING

O-RING

R

R

acxuuw00002008

1871-1U-06B(01-11).fm  5 ページ  2006年3月15日 水曜日 午前10時42分

LUBRICATION [L3 WITH TC]

01-11–6

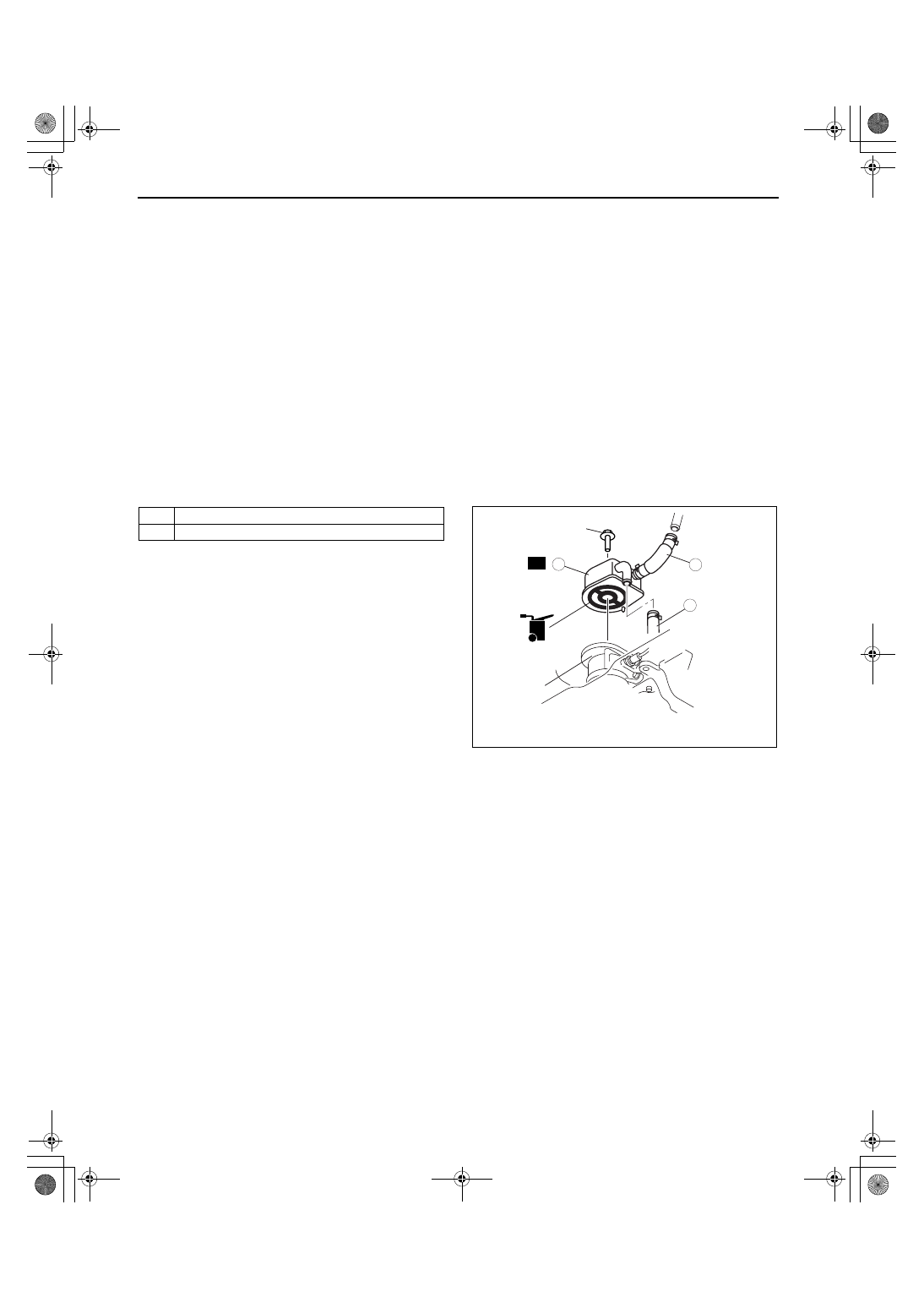

OIL COOLER REMOVAL/INSTALLATION[L3 WITH TC]

id011139800800

Warning

• Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the

engine oil have cooled.

• A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall,

causing death or serious injury. Never work around or under a lifted vehicle if it is not securely
supported on safety stands.

• Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your

skin by washing with soap and water immediately after working with engine oil.

1. Disconnect the negative battery cable.
2. Remove the under cover.
3. Drain the engine coolant. (See 01-12-5 ENGINE COOLANT REPLACEMENT[L3 WITH TC].)
4. Remove in the order indicated in the table.
5. Use a clean rag to wipe off the mounting surface on the oil filter adapter and the oil cooler.
6. Install in the reverse order of the removal.
7. Refill the engine coolant. (See 01-12-5 ENGINE COOLANT REPLACEMENT[L3 WITH TC].)
8. Start the engine and confirm that there is no oil leakage.

• If there is oil leakage, repair or replace the applicable part.

9. Inspect the oil level. (See 01-11-3 ENGINE OIL LEVEL INSPECTION[L3 WITH TC].)

.

End Of Sie

WM: OIL PAN

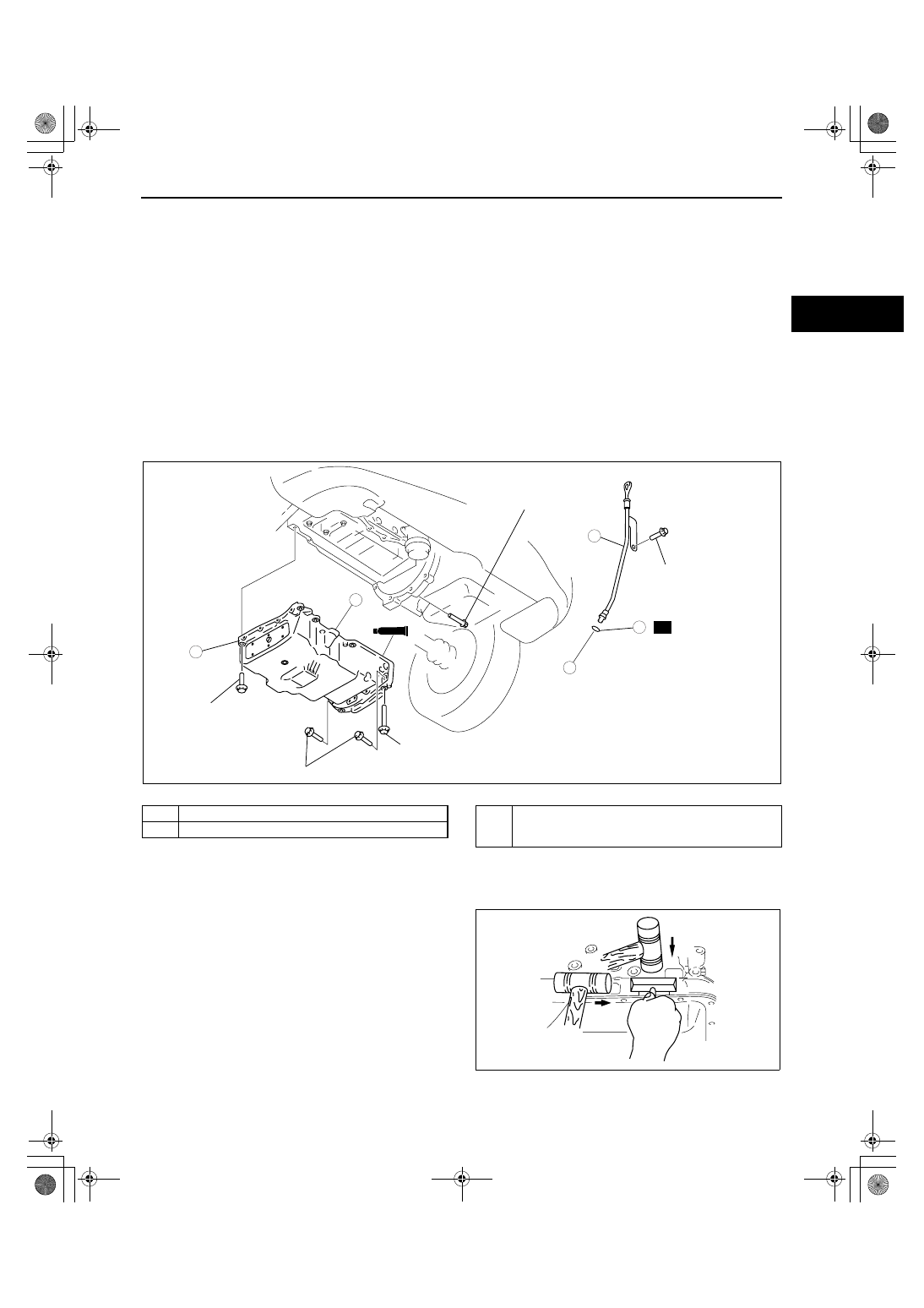

OIL PAN REMOVAL/INSTALLATION[L3 WITH TC]

id011139800200

Warning

• Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the

engine oil have cooled.

• A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall,

causing death or serious injury. Never work around or under a lifted vehicle if it is not securely
supported on safety stands.

• Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your

skin by washing with soap and water immediately after working with engine oil.

1. Complete the “BEFORE REPAIR PROCEDURE”. (See 01-14-4 BEFORE REPAIR PROCEDURE[L3 WITH

TC].)

2. Remove the battery and battery tray. (See 01-17-2 BATTERY REMOVAL/INSTALLATION[L3 WITH TC].)
3. Remove the under cover.
4. Remove the splash shield (RH).
5. Drain the engine oil. (See 01-11-4 ENGINE OIL REPLACEMENT[L3 WITH TC].)
6. Drain the engine coolant. (See 01-12-5 ENGINE COOLANT REPLACEMENT[L3 WITH TC].)
7. Remove the charge air cooler, air cleaner and fresh air duct component, and air hose. (See 01-13-5 INTAKE

AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH TC].)

8. Disconnect the quick release connector on the high pressure fuel pump. (See 01-14-19 QUICK RELEASE

CONNECTOR REMOVAL/INSTALLATION[L3 WITH TC].)

9. Remove the high pressure fuel pump. (See 01-14-16 HIGH PRESSURE FUEL PUMP REMOVAL/

INSTALLATION[L3 WITH TC].)

1

Water hose

2

Oil cooler

2

OIL

1

1

N·m {kgf·m, ft·lbf}

34—40 {3.5—4.0, 25.1—29.4}

OIL FILTER
ADAPTER

R

acxuuw00002009

1871-1U-06B(01-11).fm  6 ページ  2006年3月15日 水曜日 午前10時42分

LUBRICATION [L3 WITH TC]

01-11–7

01-11

10. Remove the ignition coils. (See 01-18-2 IGNITION COIL REMOVAL/INSTALLATION[L3 WITH TC].)
11. Loosen the water pump pulley bolts before removing the drive belt.
12. Remove the drive belt. (See 01-10-3 DRIVE BELT REMOVAL/INSTALLATION[L3 WITH TC].)
13. Remove the P/S oil pump with hose and pipe still connected. Position the P/S oil pump out of the way. (See 06-

14-21 POWER STEERING OIL PUMP REMOVAL/INSTALLATION.)

14. Remove the crankshaft position (CKP) sensor. (See 01-40-42 CRANKSHAFT POSITION (CKP) SENSOR

REMOVAL/INSTALLATION[L3 WITH TC].)

15. Remove the engine front cover. (See 01-10-10 TIMING CHAIN REMOVAL/INSTALLATION[L3 WITH TC].)
16. Remove in the order indicated in the table.
17. Install in the reverse order of removal.
18. Refill with the specified type and amount of the engine oil. (See 01-11-4 ENGINE OIL REPLACEMENT[L3

WITH TC].)

19. Refill the engine coolant. (See 01-12-5 ENGINE COOLANT REPLACEMENT[L3 WITH TC].)
20. Start the engine and confirm that there is no oil leakage.

• If there is oil leakage, repair or replace the applicable part.

21. Inspect the oil level. (See 01-11-3 ENGINE OIL LEVEL INSPECTION[L3 WITH TC].)
22. Inspect for engine coolant leakage. (See 01-12-6 ENGINE COOLANT LEAKAGE INSPECTION[L3 WITH TC].)
23. Inspect for the ignition timing and idle speed. (See 01-10-35 ENGINE TUNE-UP[L3 WITH TC].)

.

Oil Pan Removal Note

1. Remove the oil pan using a separator tool.

A

A

8.0—11.5

N·m



{82—117

kgf·cm

71—101

in·lbf

}

17—23 {1.8—2.3, 12.6—16.9}

R

37—52 {3.8—5.3,
28—38}

17—23 {1.8—2.3, 12.6—16.9}

N·m {kgf·m, ft·lbf}

SEALANT

37—52 {3.8—5.3, 28—38}

3

1

2

acxuuw00001991

1

Dipstick pipe

2

O-ring

3

Oil pan
(See 01-11-7 Oil Pan Removal Note.)
(See 01-11-8 Oil Pan Installation Note.)

acxuuw00001992

1871-1U-06B(01-11).fm  7 ページ  2006年3月15日 水曜日 午前10時42分

LUBRICATION [L3 WITH TC]

01-11–8

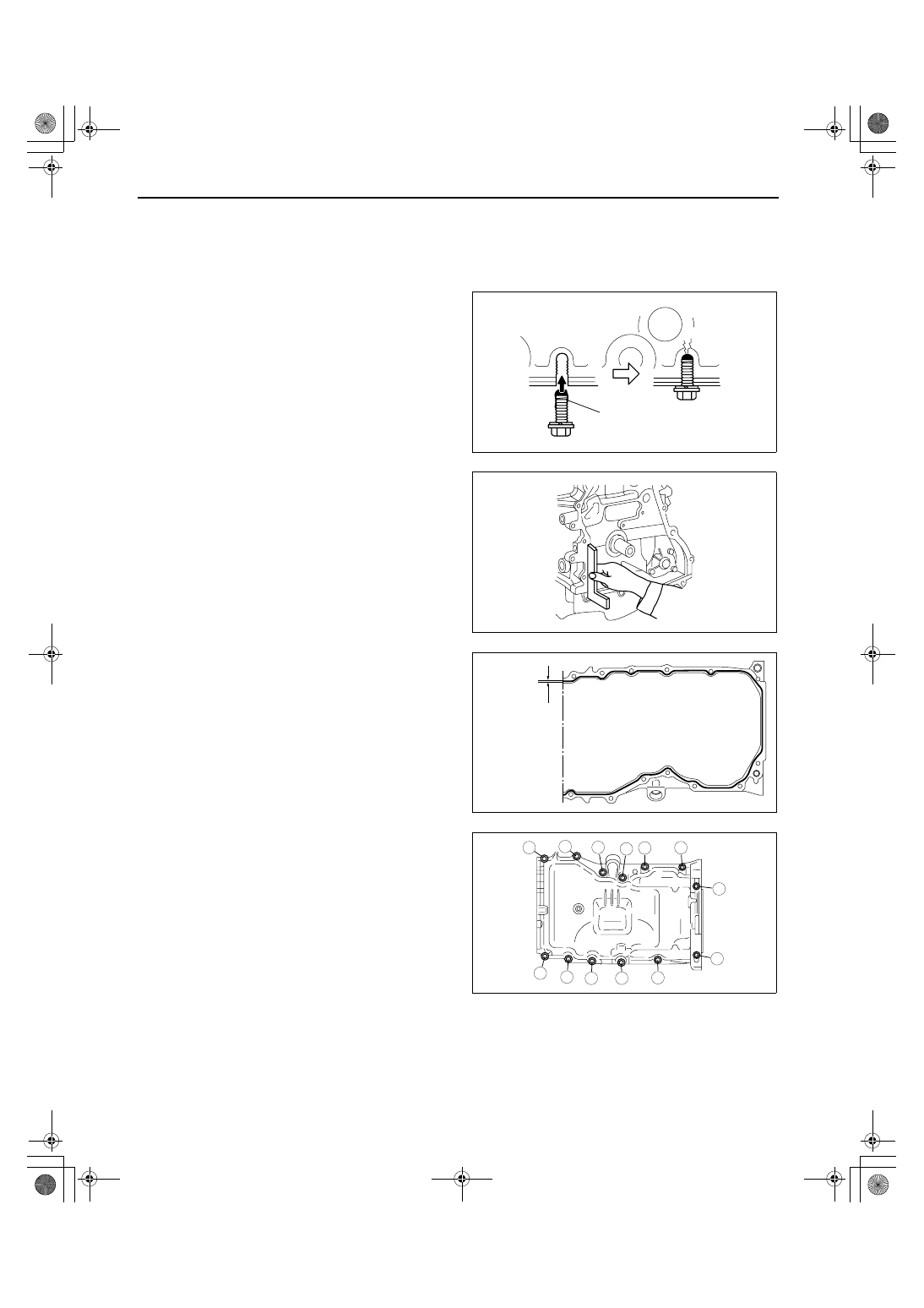

Oil Pan Installation Note

Caution

• Apply the silicon sealant in a single, unbroken line around the whole perimeter.

• Using bolts with the old seal adhering could cause cracks in the housing.

1. Completely clean and remove any oil, dirt, sealant

or other foreign material that may be adhering to
the housing and oil pan.

2. When reusing the oil pan installation bolts, clean

any old sealant from the bolts.

3. Use a square ruler to align the oil pan and the

cylinder block junction side on the engine front
cover side.

4. Apply silicone sealant to the oil pan along the

inside of the bolt holes as shown in the figure.

Thickness

2.2— 3.2 mm {0.087— 0.126 in}

5. Tighten the bolts in the order shown in the figure.

Tightening torque

17— 23 N·m {1.8— 2.3 kgf·m, 12.6— 16.9

ft·lbf}

OLD SEALANT

DAMAGE

acxuuw00001993

acxuuw00001994

2.2—3.2 mm
{0.087—0.126 in}

acxuuw00001995

9

8

7

5

4

3

1

2

10

6

13

11

12

acxuuw00001996

1871-1U-06B(01-11).fm  8 ページ  2006年3月15日 水曜日 午前10時42分
