ON-BOARD DIAGNOSTIC [L3 WITH TC]

01-02–11

01-02

EGR System Repair Verification Drive Mode

1. Perform “PCM Adaptive Memory Production Drive Mode” first.
2. Verify all accessory loads (A/C, headlights, blower fan, rear window defroster) are off.

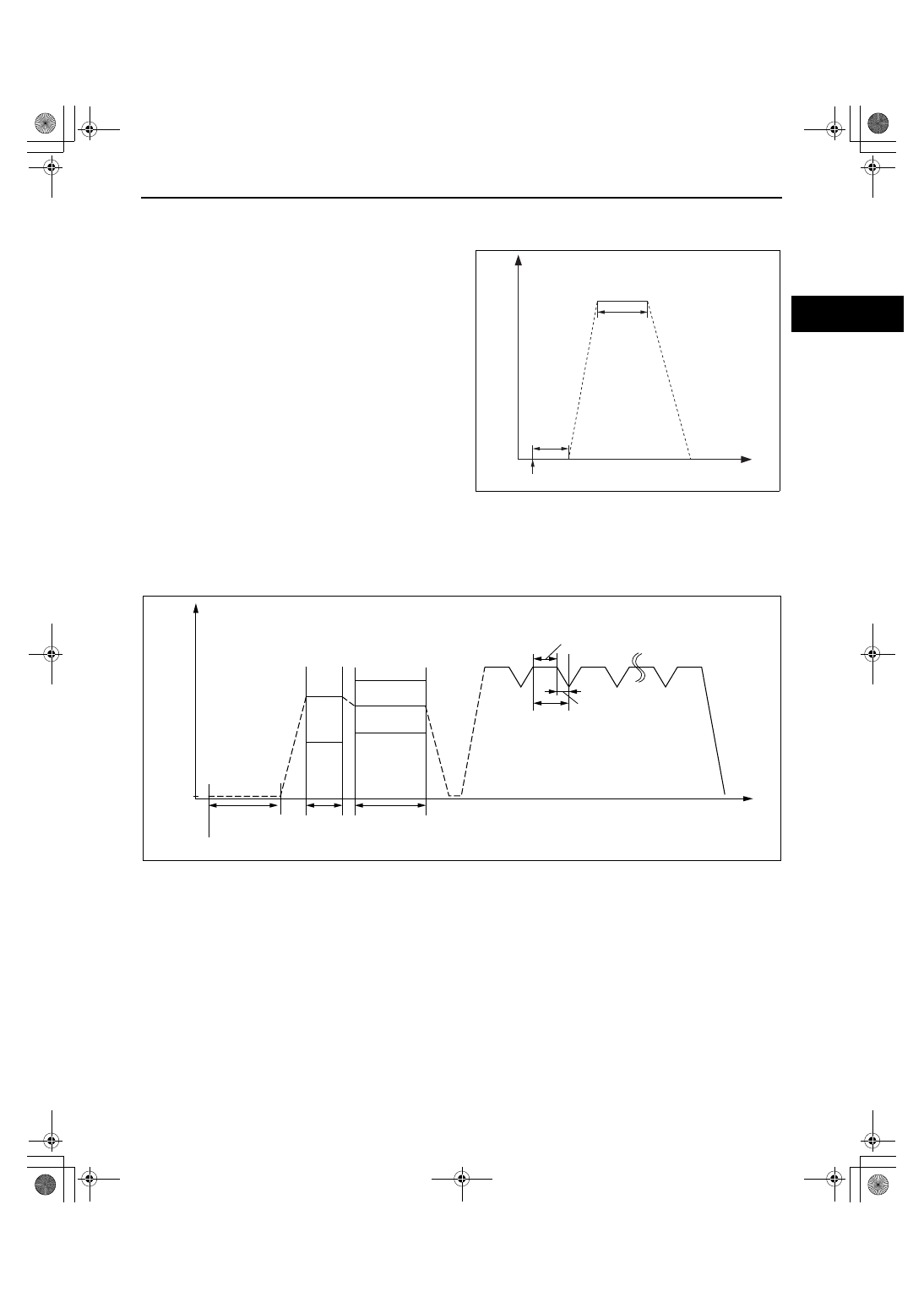

3. Drive the vehicle as shown in the graph.
4. Stop the vehicle and access ON BOARD

SYSTEM READINESS menu of GENERIC OBD-
II FUNCTION to verify the OBD monitoring status.

• If completed, the OBD monitoring status

items change from non-completed to
completed.

• If not completed, turn the ignition switch off

then repeat from Step 3.

5. Access DIAGNOSTIC MONITORING TEST

RESULTS menu of GENERIC OBD-II
FUNCTIONS to verify the monitor results.

• If detected values are not within specification,

repair has not been completed.

6. Verify no DTCs are available.

HO2S heater, HO2S, and TWC Repair Verification Drive Mode

1. Perform “PCM Adaptive Memory Production Drive Mode” first.
2. Verify all accessory loads (A/C, headlights, blower fan, rear window defroster) are off.
3. Drive the vehicle as shown in the graph. The driving conditions before driving at constant speed are not

specified.

4. Stop the vehicle and access ON BOARD SYSTEM READINESS menu of GENERIC OBD-II FUNCTION to

verify the OBD monitoring status.

• If completed, the OBD monitoring status items change from non-completed to completed.

• If not completed, turn the ignition switch off then repeat from Step 3.

5. Access DIAGNOSTIC MONITORING TEST RESULTS menu of GENERIC OBD-II FUNCTIONS to verify the

monitor results.

• If detected values are not within the specification, repair has not been completed.

6. Verify no DTCs are available.

START
ENGINE

IDLE

MORE
THAN 60 s

68—80 km/h {42—50 mph}
WITH D RANGE

TIME

VEHICLE SPEED

acxuuw00001894

ABOVE 89 km/h
{55 mph}
WITH D RANGE

65—80 km/h
{40—50 mph}
WITH D RANGE

APPROX. 10 s

ABOVE 5 min

1 min

3 min

START ENGINE

TIME

VEHICLE SPEED

0

*:10 TIMES

APPROX. 10 s

*: Decelerate for approx. 10 s by engine braking only while driving with an

vehicle speed of around 80 km/h (50 mph) for approx. 10 s

acxuuw00001895

1871-1U-06B(01-02).fm  11 ページ  2006年3月15日 水曜日 午前10時32分

ON-BOARD DIAGNOSTIC [L3 WITH TC]

01-02–12

EVAP System Repair Verification Drive Mode

Note

• If “EVAP System Repair Verification Drive Mode” cannot be performed (it is impossible to drive the vehicle

under this drive mode condition), perform the EVAP system test procedure as an alternative.

1. Verify that all of the following PIDs are within the following specifications. All PIDs must be within specifications

before the engine is started to initiate the EVAP system test.

• BARO: above 72.2 kPa {542 mmHg, 21.3 inHg}

• IAT: 5— 35 °C {41— 95 °F}

• FTL: 15— 85%

• B+: above 10.9 V

2. Clear the DTC from the PCM memory using the M-MDS.
3. Turn the ignition switch off.
4. Leave the vehicle for 5 hours or more.
5. Start the engine and idle it for more than 5 min.
6. Drive the vehicle at an engine speed of 65— 80 km/h {40— 50 mph} for more than 5 min.
7. Stop the vehicle and the turn ignition switch off.
8. Leave vehicle as it is for 5.5 hours or more.
9. Start the engine.

10. Access the ON BOARD SYSTEM READINESS to verify the OBD monitoring status.

• If completed, the OBD monitoring status items change from non-completed to completed.

• If not completed, turn the ignition switch off then go back to Step 1.

11. Access the DIAGNOSTIC MONITORING TEST RESULTS to verify the monitor results.

• If detected values are not within specification, the repair has not been completed.

12. Verify that no DTCs are present.

PCM Adaptive Memory Production, EGR, HO2S heater, HO2S, TWC, and EVAP System Repair Verification

Drive Mode

1. Start the engine and warm it up completely.
2. Clear the DTC from the PCM memory using the M-MDS.
3. Verify the following conditions and correct if necessary:

• All accessory loads (A/C, headlights, blower fan, rear window defroster) are off.

4. Verify that all of the following PIDs are within the following specifications. All PIDs must be within specifications

from Step 5 to 6.

• BARO: above 72.2 kPa {542 mmHg, 21.3 inHg}

• IAT: 5— 35 °C {41— 95 °F}

• FTL: 15— 85%

• B+: above 10.9 V

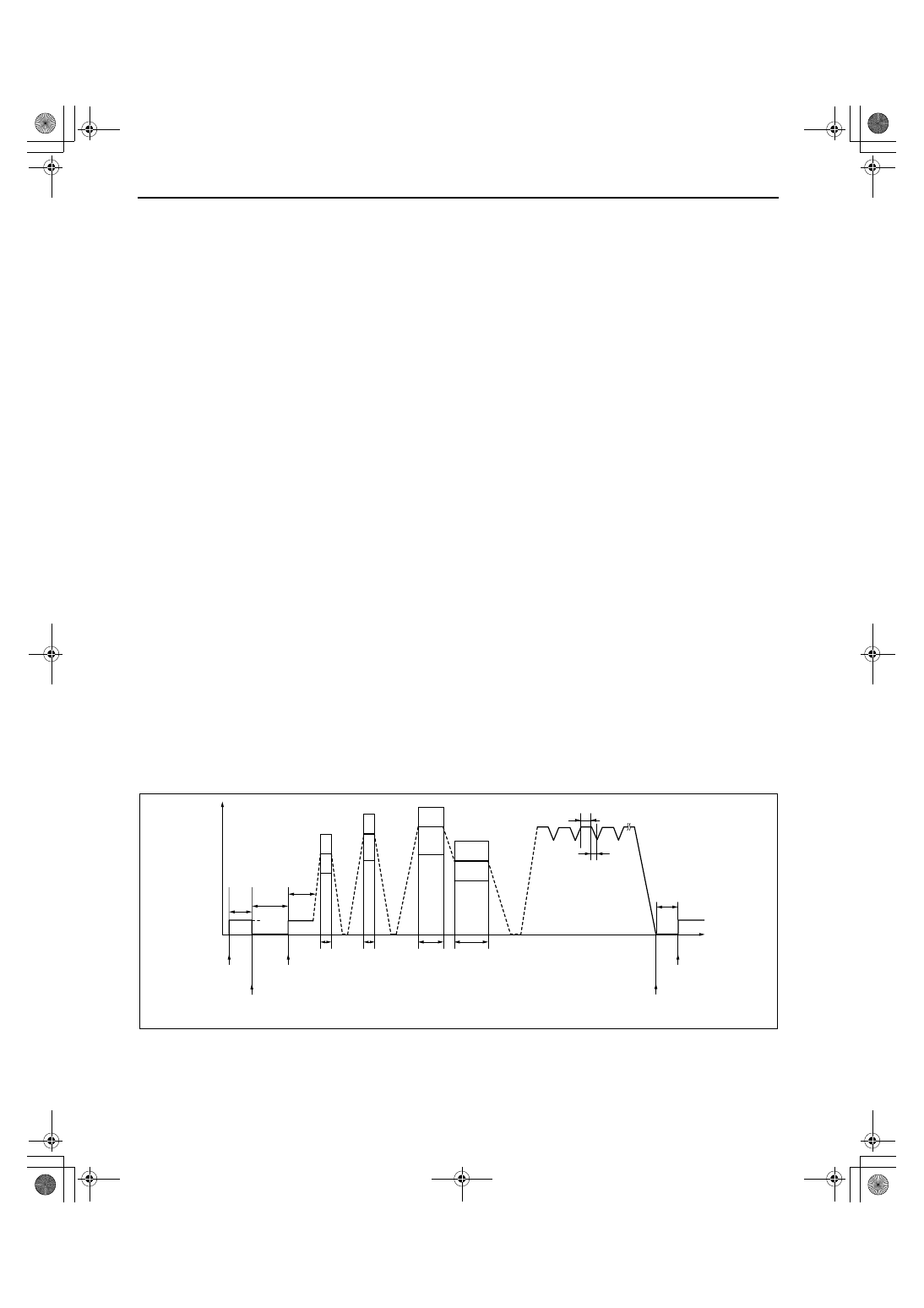

5. With the vehicle stopped, race the engine at the engine speed indicated, and then drive the vehicle as shown in

the graph. The driving conditions before driving at constant speed are not specified. If possible, monitor RPM
PID for engine speed during this procedure.

VEHICLE SPEED

T1

T2

T3

V1

V2

V3

V4

T8

T9

T10

T4

T5

T6

T7

START
ENGINE

START
ENGINE

STOP
ENGINE

START
ENGINE

STOP
ENGINE

TIME

IDLE

acxuuw00002357

1871-1U-06B(01-02).fm  12 ページ  2006年3月15日 水曜日 午前10時32分

ON-BOARD DIAGNOSTIC [L3 WITH TC]

01-02–13

01-02

2007 Mazda CX-7 Workshop Manual (1871–1U–06B)

Revised 8/2006 (Ref. No. R087/06)

6. Turn the ignition switch off.
7. Access the ON BOARD SYSTEM READINESS to verify the OBD monitoring status.

• If completed, all of the OBD monitoring status items change from non-completed to completed.

• If not completed, turn the ignition switch off, then perform the applicable specific drive mode for any

monitoring item that was not in the detection condition.

8. Access the DIAGNOSTIC MONITORING TEST RESULTS to verify the monitor results.

• If detected values are not within specification, the repair has not been completed.

End Of Sie

DTC TABLE[L3 WITH TC]

id010239801500

×: Applicable

— : Not applicable

Step

Time

Engine speed

 (rpm)

Vehicle speed

 (km/h {mph})

Vehicle condition

1

T1:  More than 10 s

N3:  Idle

0 {0}

Idle the engine after the cooling fan
has stopped

2

T2:  More than 5 h

0

0 {0}

Keep the ignition switch off

3

T3:  More than 5 min

Idle

V1:  0 {0}

—

4

T4:  5 min

—

V2:  65— 80 {40— 50}

D RANGE

5

T5:  1 min

—

V3:  70— 78 {43— 49}

D RANGE

6

T6:  1 min

—

V4:  Above 89 {55}

D RANGE

7

T7:  3 min

—

V5:  65— 80 {40— 50}

D RANGE

8

T8:  Approx. 10 s

Approx. 80 km/h

(50mph)

— —

9

T9:  Approx. 10 s

—

—

Decelerate by engine braking only
(10 times)

10

T10:  More than 5.5 h

0

0 {0}

Keep the ignition switch off

DTC No.

Condition

MIL

DC

Monitor item

Self-test

type

*2

Memory

function

Page

B1342

PCM malfunction

OFF

1

CCM

C, O

×

 (See01-02-21
DTC B1342[L3
WITH TC].)

P0011

CMP Timing over-advanced

ON

2

CCM

C, R

×

 (See01-02-22
DTC P0011[L3
WITH TC].)

P0012

CMP Timing over-retarded

ON

2

CCM

C, R

×

 (See01-02-23
DTC P0012[L3
WITH TC].)

P0016

CKP-CMP correlation

ON

2

CCM

C

×

 (See01-02-25
DTC P0016[L3
WITH TC].)

P0030

Front HO2S heater control circuit
problem

ON

2

HO2S heater

C, O, R

×

 (See01-02-26
DTC P0030[L3
WITH TC].)

P0031

Front HO2S heater circuit low input

ON

2

HO2S heater

C, O, R

×

 (See01-02-28
DTC P0031[L3
WITH TC])

P0032

Front HO2S heater circuit high input

ON

2

HO2S heater

C, O, R

×

 (See01-02-30
DTC P0032[L3
WITH TC].)

P0037

Rear HO2S heater circuit low input

ON

2

HO2S heater

C, O, R

×

 (See01-02-32
DTC P0037[L3
WITH TC].)

P0038

Rear HO2S heater circuit high input

ON

2

HO2S heater

C, O, R

×

 (Se01-02-34
DTC P0038[L3
WITH TC].)

P0069

Manifold absolute pressure/
atmospheric pressure correlation

ON

2

CCM

C

×

 (See01-02-36
DTC P0069[L3
WITH TC].)

ON-BOARD DIAGNOSTIC [L3 WITH TC]

01-02–14

2007 Mazda CX-7 Workshop Manual (1871–1U–06B)

P0089

Fuel pressure regulator performance

OFF

1

Other

C, O, R

×

 (See01-02-37
DTC P0089[L3
WITH TC].)

P0091

Fuel pressure regulator control circuit
low

ON

1

CCM

C, O, R

×

 (See01-02-38
DTC P0091[L3
WITH TC])

P0092

Fuel pressure regulator control circuit
high

ON

1

CCM

C, O, R

×

 (See01-02-40
DTC P0092[L3
WITH TC].)

P0096

IAT sensor 2 circuit range/
performance problem

ON

2

CCM

C

×

 (See01-02-42
DTC P0096[L3
WITH TC].)

P0097

IAT sensor 2 circuit low

ON

1

CCM

C, O, R

×

 (See01-02-44
DTC P0097[L3
WITH TC].)

P0098

IAT sensor 2 circuit high

ON

1

CCM

C, O, R

×

 (See01-02-46
DTC P0098[L3
WITH TC].)

P0101

MAF circuit range/performance
problem

ON

2

CCM

C

×

 (See01-02-48
DTC P0101[L3
WITH TC].)

P0102

MAF circuit low input

ON

1

CCM

C, O, R

×

 (See01-02-50
DTC P0102[L3
WITH TC].)

P0103

MAF circuit high input

ON

1

CCM

C, O, R

×

 (See01-02-52
DTC P0103[L3
WITH TC].)

P0107

MAP sensor circuit low input

ON

1

CCM

C, O, R

×

 (See01-02-54
DTC P0107[L3
WITH TC].)

P0108

MAP sensor circuit high input

ON

1

CCM

C, O, R

×

 (See01-02-56
DTC P0108[L3
WITH TC].)

P0111

IAT circuit performance problem

ON

2

CCM

C

×

 (See01-02-58
DTC P0111[L3
WITH TC].)

P0112

IAT circuit low input

ON

1

CCM

C, O, R

×

 (See01-02-59
DTC P0112[L3
WITH TC].)

P0113

IAT circuit high input

ON

1

CCM

C, O, R

×

 (See01-02-61
DTC P0113[L3
WITH TC].)

P0116

ECT circuit range/performance
problem

ON

1

Engine cooling

system

C

×

 (See01-02-63
DTC P0116[L3
WITH TC].)

P0117

ECT circuit low input

ON

1

Engine cooling

system

C, O, R

×

 (See01-02-64
DTC P0117[L3
WITH TC].)

P0118

ECT circuit high input

ON

1

Engine cooling

system

C, O, R

×

 (See01-02-66
DTC P0118[L3
WITH TC].)

P0122

TP sensor No.1 circuit low input

ON

1

CCM

C, O, R

×

 (See01-02-68
DTC P0122[L3
WITH TC].)

P0123

TP sensor No.1 circuit high input

ON

1

CCM

C, O, R

×

 (See01-02-70
DTC P0123[L3
WITH TC].)

P0125

Excessive time to enter closed loop
fuel control

ON

2

Engine cooling

system

C

×

 (See01-02-72
DTC P0125[L3
WITH TC].)

DTC No.

Condition

MIL

DC

Monitor item

Self-test

type

*2

Memory

function

Page
