09 BODY & ACCESSORIES

74

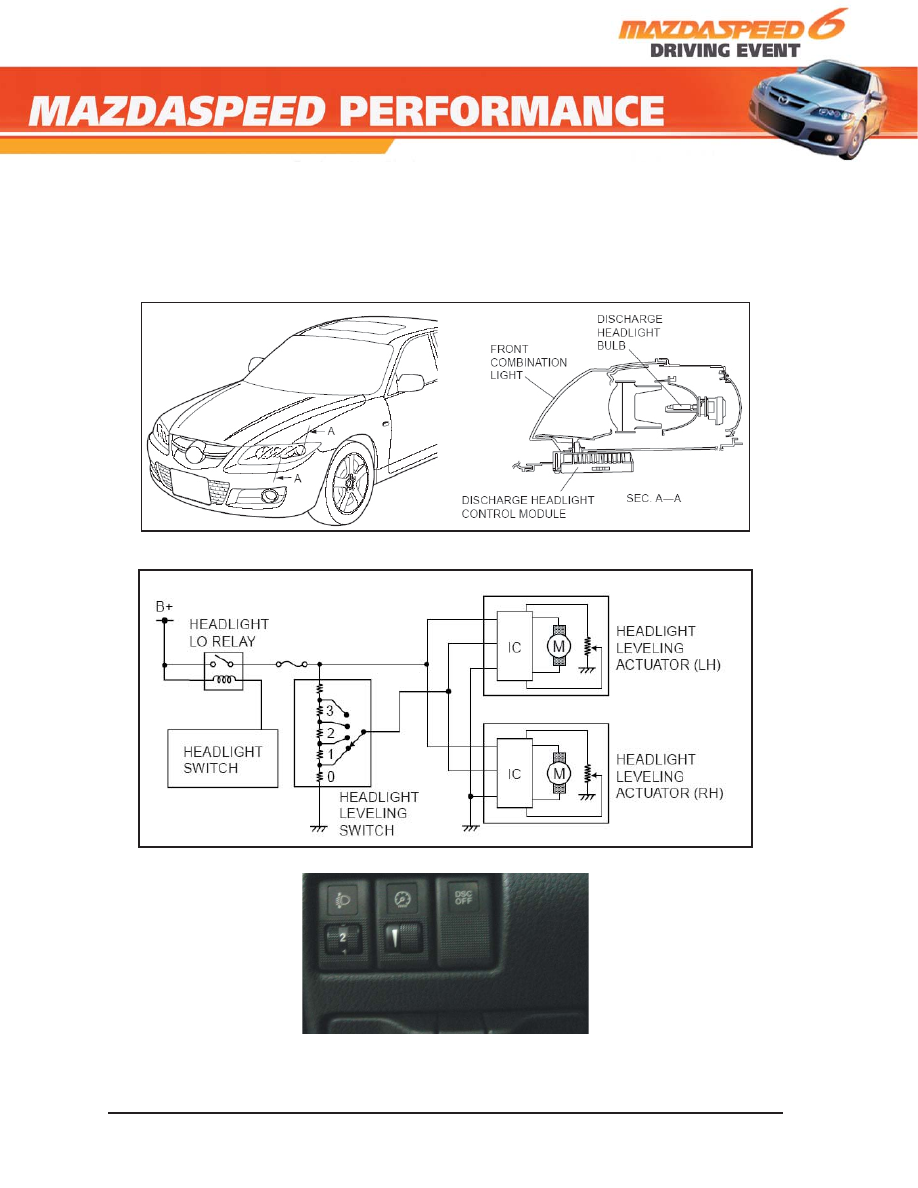

High Intensity Discharge (HID) Headlights
The high intensity discharge headlights are Xenon gas charged with 25,000 volts.
The driver can adjust the height of the headlights using a 4-position leveling switch.
Headlights will automatically shut off.

HID

HID Leveling

09 BODY & ACCESSORIES

75

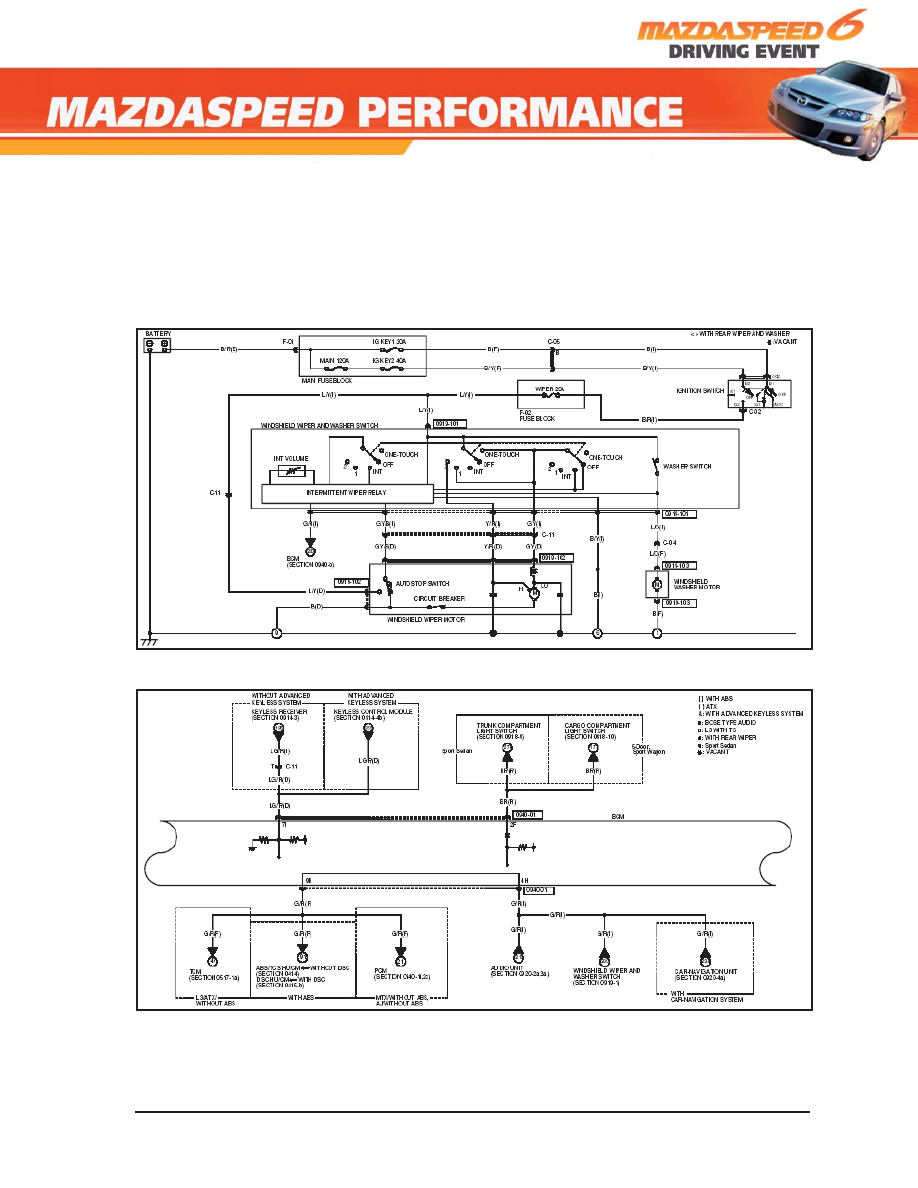

Wiper Washer: Speed Sensing Wipers

In the intermittent position, the windshield wiper motor changes frequency of wipes
based on vehicle speed.  The wiper motor receives wiper speed control from the
Body Control Module (BCM).  The BCM receives vehicle speed information from the
DSC HU/CM.

09 BODY & ACCESSORIES

76

Audio
Standard BOSE® modular audio with:

In-dash 6-CD changer
2-tweeters
4-speakers
Trunk mounted subwoofer
Sirius® satellite radio compatible
Illuminated steering wheel audio and cruise controls

The in-dash 6-Disc CD changer can be swapped for an accessory option single CD
player capable of playing MP3 fi les.

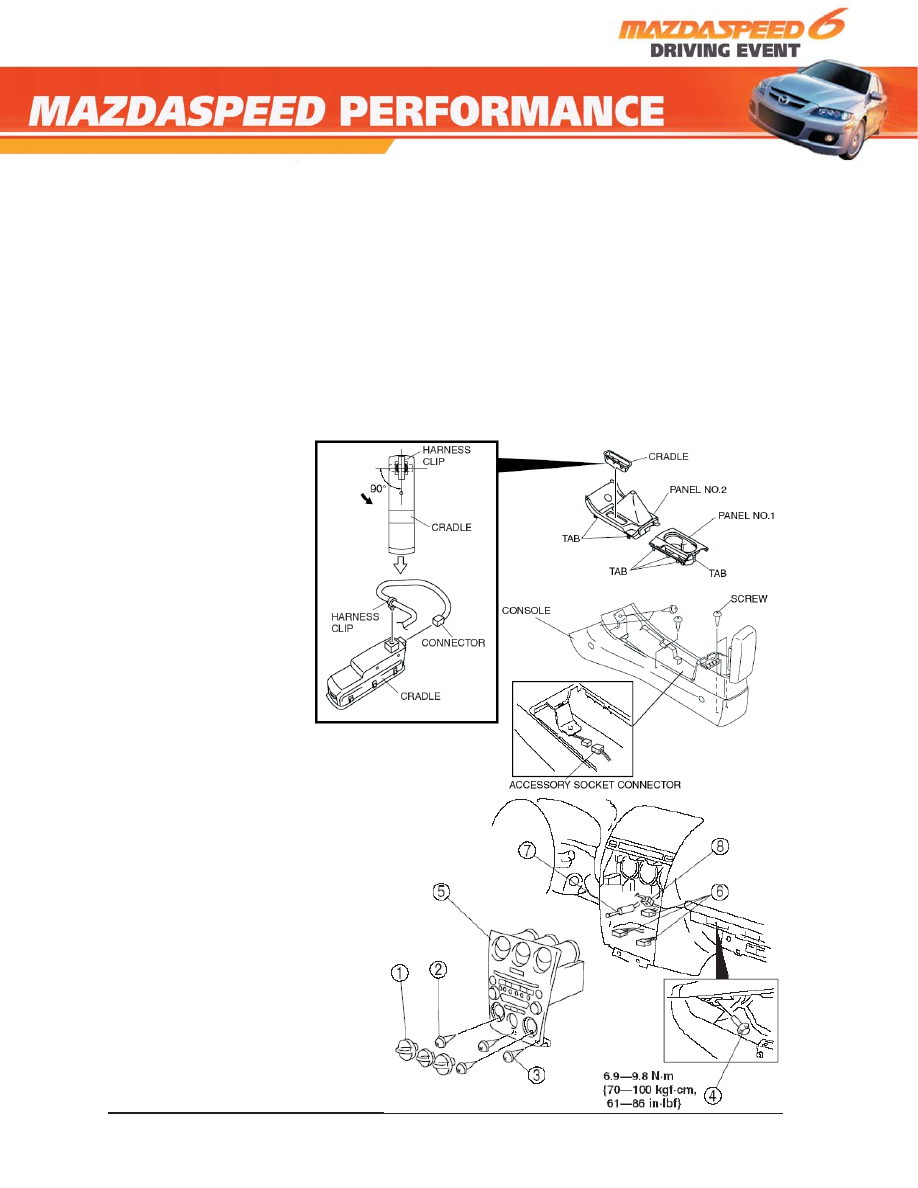

Audio System
Removal

1. Remove the glove
box damper clip and
bend the stoppers
inward.

2. Remove the center
console.

3. Disconnect the
cigarette lighter,
illumination from the
ashtray and the NAVI
cradle



connector.

4. Remove the seat warmer
switch.

5. Disconnect the accessory
socket connector.

6. Remove the screws holding
the fi nisher.






09 BODY & ACCESSORIES

77

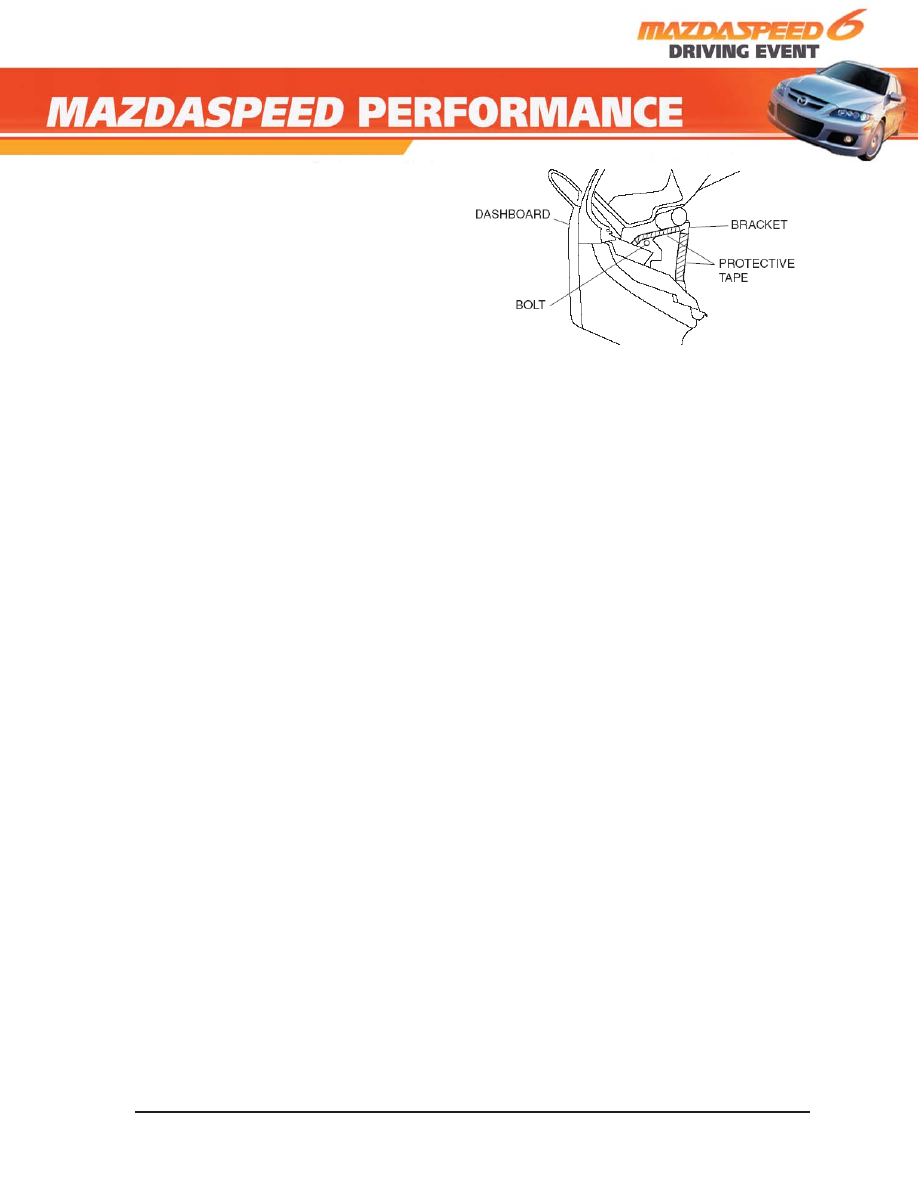

7. Remove bolt hidden  behind the
driver side of the dash (use protective
tape to





prevent cuts

from sharp metal edges).

8. Remove the center panel #5.

9. Disconnect the electrical connectors.
