09 BODY & ACCESSORIES

70

Reception Range

Transmitter

Advanced Keyless Back-up
If the transmitter battery fails, the advanced keyless system fails or the battery dies,
you can still access the vehicle and start the vehicle.  There is an auxiliary key
hidden inside the advanced keyless transmitter.  This key will unlock the mechanical
key cylinders/locks on the driver door, trunk, and glove box.  This vehicle is also
equipped with an auxiliary ignition cylinder.  Remove the start knob by pressing the
release buttons on each side of the start knob while pulling.  Insert the key and turn.

Red indicator light

Auxiliary Key

Start Knob

09 BODY & ACCESSORIES

71

Advanced Keyless System Operation

Driver Request Switch (person must have the transmitter)

Entering the vehicle

Exiting the vehicle

Press once to unlock just the driver
door*
Press twice to unlock all doors
Press a third time to lock all doors

•

•
•

Press once to lock all doors
If you continue to hold the
button in, all windows roll up

•
•

Passenger Request Switch (person must have the transmitter)

Entering the vehicle

Exiting the vehicle

Press once to unlock just the
passenger door*
Press twice to unlock all doors
Press a third time to lock all doors

•

•
•

Press once to lock all doors
(hold the button in to roll all
windows up)

•

*Each time a request switch is pressed, a programed remotes

 indicator light

will fl ash

Trunk Request Switch (person must have the transmitter)

Press once to unlock the trunk and all doors
Press a second time to lock the trunk and all doors

Or

Press and hold until the trunk lock actuates to lock or unlock the trunk

•
•

•

Advanced Keyless System Buzzer and Warning Lights

Transmitter recognized

When the start knob is pressed and held,

the

green “KEY” light illuminates for up to 2.5
seconds

Note: if the

green “KEY”

 light fl ashes, replace the

remote batteries.
After the door is opened and when the transmitter
is inside the vehicle

a red light

on the upper corner

of the transmitter will fl ash approximately every 3
seconds

Transmitter not recognized

When the start knob is pressed,

the red “KEY”

light fl ashes

Advanced Keyless
transmitter left inside vehicle

The power door locks will not lock

Ignition left on (Advanced
Keyless transmitter removed
from vehicle)

The buzzer inside the driver door sounds 3-times
and

the red security light fl ashes

09 BODY & ACCESSORIES

72

Automatic Relocking
If the keyless transmitter moves outside the reception zone, all doors will
automatically re-lock after 2-seconds.  If no doors are opened (even if the transmitter
is in the reception zone), the doors will re-lock after 30-seconds. This functions are
turned off when the vehicle arrives and must be switched on using WDS.

Advanced Keyless Diagnosis, Transmitter & Key Programming
All diagnosis and programming of up to six-transmitters for the advanced keyless
system is done with WDS or M-MDS and ESI or the new Mazda Service Support
System (MS3), the replacement for ESI, for In-Codes .  You can program keys and
remotes separately.

Answer Back Buzzer (RKE): during lock/unlock (factory default is ON)
Automatic Locks (RKE): If the doors are unlocked and a door is not
opened within 30 seconds, all doors relock.  If the doors are unlocked and
the transmitter leaves the 2.5 foot reception zone, the doors will relock
after 3-seconds (factory default is OFF)
Card Key Battery Low Warning: Green Key  Light Flashes if the remote
battery is weak (factory default is ON)

To change these features:

1. ID the vehicle
2. Select: Toolbox
3. Select: Module Programming
4. Select: Programmable Parameters
5. Select: RKE
6. Select the function and change it to ON or OFF as desired

Perimeter Alarm
Standard perimeter alarm sounds the horn and fl ashes parking lights if any access
points are opened after locking (doors, hood and trunk).  An accessory shock kit is
available as a dealer installed option.

Trunk Valet Function
All vehicles with advanced keyless come with tfi ve keys; two advanced keyless
remotes, two full access keys (one hidden inside each advanced keyless remote),
and 1 valet key with (grey plastic head).  Pressing and holding the the trunk request
switch for 5 seconds allows you to enter and exit the valet mode.  Valet mode
causes the trunk to stop locking and unlocking with the doors.

•
•

•

09 BODY & ACCESSORIES

73

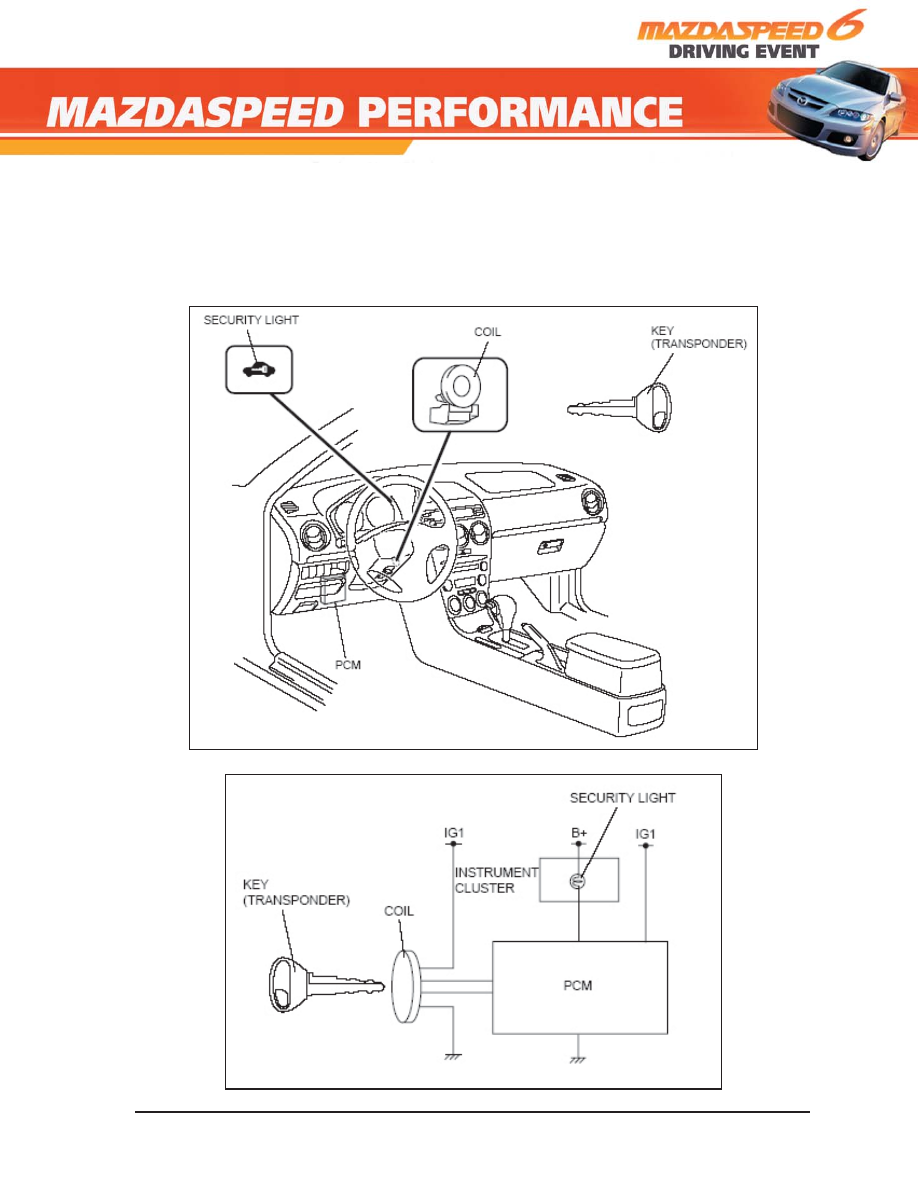

Immobilizer (iPATS)
The PCM, ignition coil, and keys are the main components.  When a key or
transmitter is recognized the engine will start.  When a key or transmitter is not
recognized, the engine will not start.  This system requires WDS or M-MDS for
diagnosis and key programming functions as well as access to ESI for In-Codes.
