04 BRAKES

50

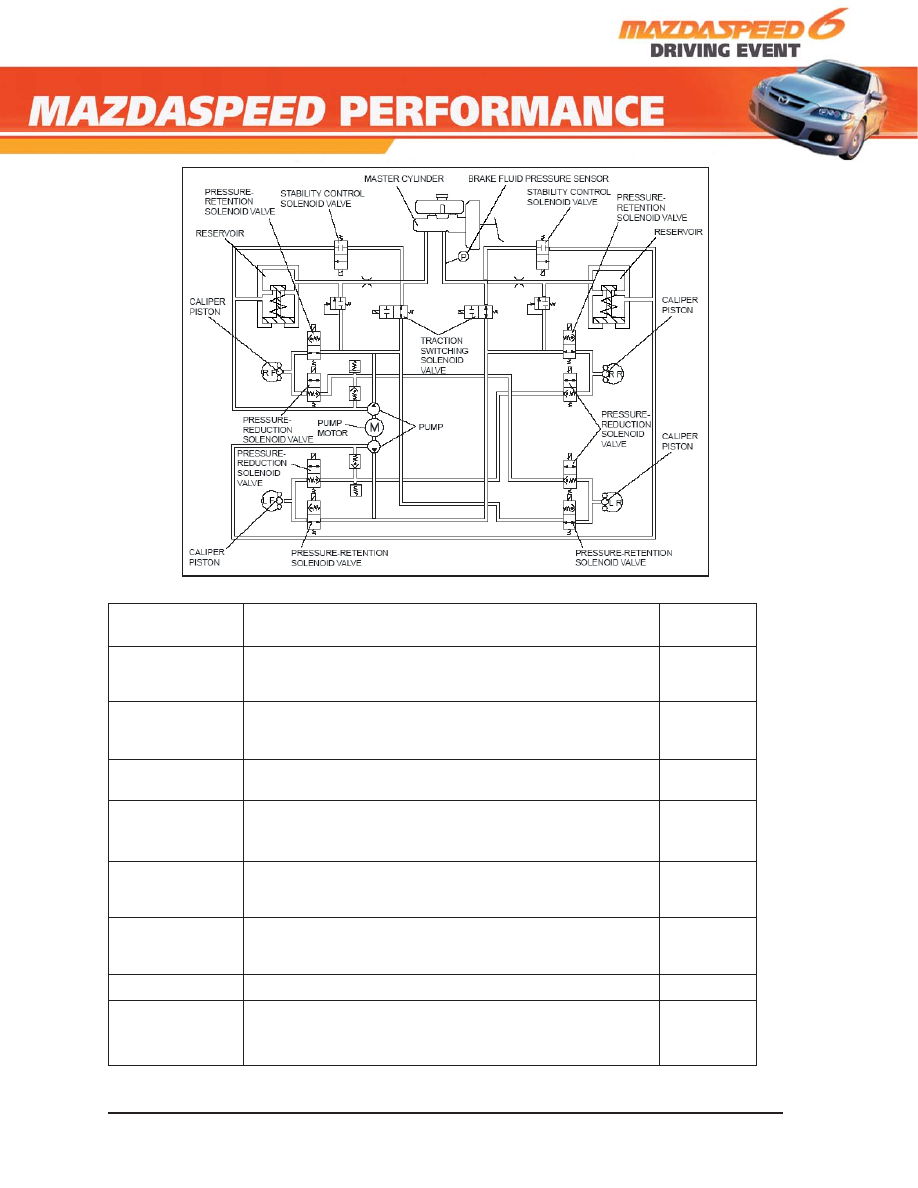

Part name

Function

Normal
Position

Pressure-
retention solenoid
valve

Adjusts the fl uid pressure in each brake system according
to DSC HU/CM signals.

OFF =
Open

Stability control
solenoid valve

Switches the brake hydraulic circuits during and according
to normal braking, ABS and EBD control, TCS control and
DSC control.

OFF =
Closed

Brake fl uid
pressure sensor

Monitors brake fl uid pressure build up to determine hard
braking to use ABS pump for assist

Not
applicable

Reservoir

Temporarily stores brake fl uid from the caliper piston to
ensure smooth pressure reduction during ABS and EBD
control, TCS control and DSC control.

Not
applicable

Pressure-
reduction
solenoid valve

Adjusts the fl uid pressure in each brake system according
to DSC HU/CM signals.

OFF =
Closed

Traction switching
solenoid valve

Switches the brake hydraulic circuits during and according
to normal braking, ABS and EBD control, TCS control and
DSC control.

OFF =
Open

Pump motor

Operates the pump according to DSC HU/CM signals.

Stopped

Pump

Returns the brake fl uid stored in the reservoir to the master
cylinder during ABS and DSC control.
Increases brake fl uid pressure and sends brake fl uid to
each caliper piston during TCS control and DSC control.

Not
applicable

04 BRAKES

51

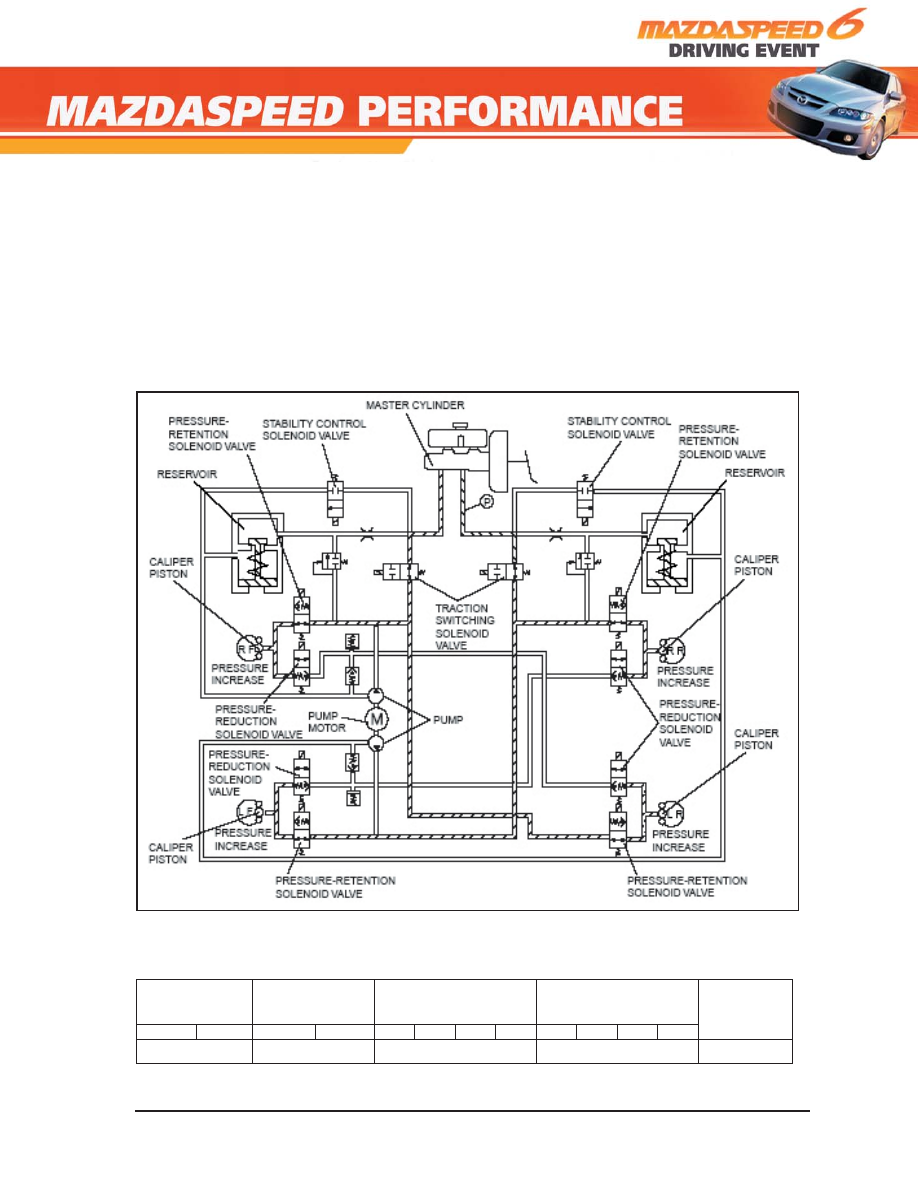

Normal Braking
Fluid pressure passes from the master cylinder through all HU/CM solenoids directly
to the front and rear brake calipers.

The following happens at the same time:

•

Right Front Brake Applies

•

Left Rear Brake Applies

•

Right Rear Brake Applies

•

Left Front Brake Applies

Solenoid Valve Operation Table

Traction

switching

solenoid valve

Stability control

solenoid valve

Pressure-retention

solenoid valve

Pressure-reduction

solenoid valve

Pump motor

LF - RR

RF-LR

LF - RR

RF-LR

LF

RF

LR

RR

LF

RF

LR

RR

OFF (Open)

OFF (Closed)

OFF (Open)

OFF (Closed)

Stopped

04 BRAKES

52

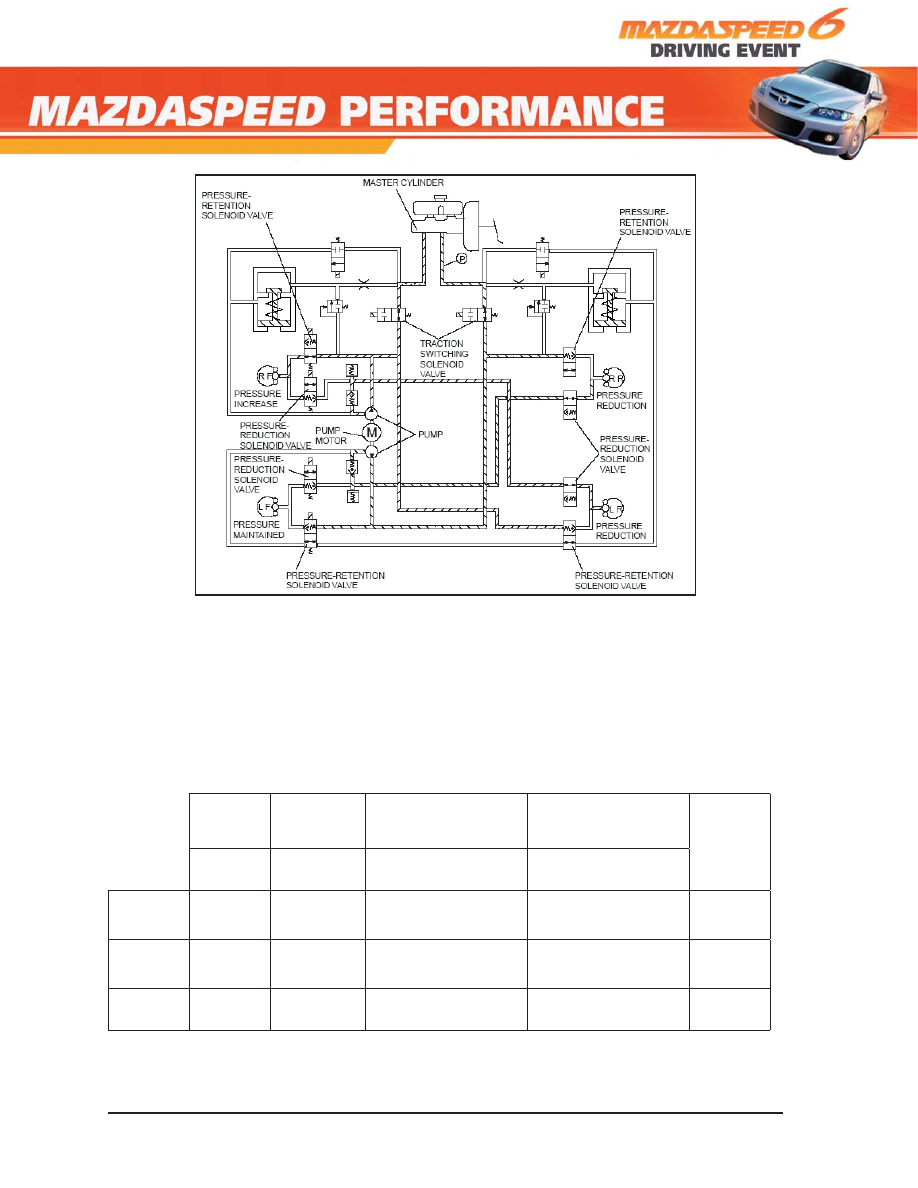

ABS/EBD Application

•

Right Front Pressure Increases

•

Left Front Pressure Maintains

•

Both Rear Wheels Pressure Decreases. During pressure reduction, bled-
off pressure is stored in the accumulators

•

After pressure reduction, the pump returns unused pressure from the
accumulators back to the brake master cylinder

Traction

switching

solenoid

Stability

control

solenoid

Pressure-retention

solenoid

Pressure-reduction

solenoid

Pump
motor

LF - RR

RF-LR

LF - RR

RF-LR

LF-RF-LR-RR

LF-RF-LR-RR

Pressure

Increase

OFF

(Open)

OFF (Closed)

ON (Closed)

OFF (Closed)

Stopped

 Pressure

Maintain

OFF

(Open)

OFF (Closed)

ON (Closed)

OFF (Closed)

Stopped

Pressure

Reduction

OFF

(Open)

OFF (Closed)

ON (Closed)

ON (Open)

Operating

04 BRAKES

53

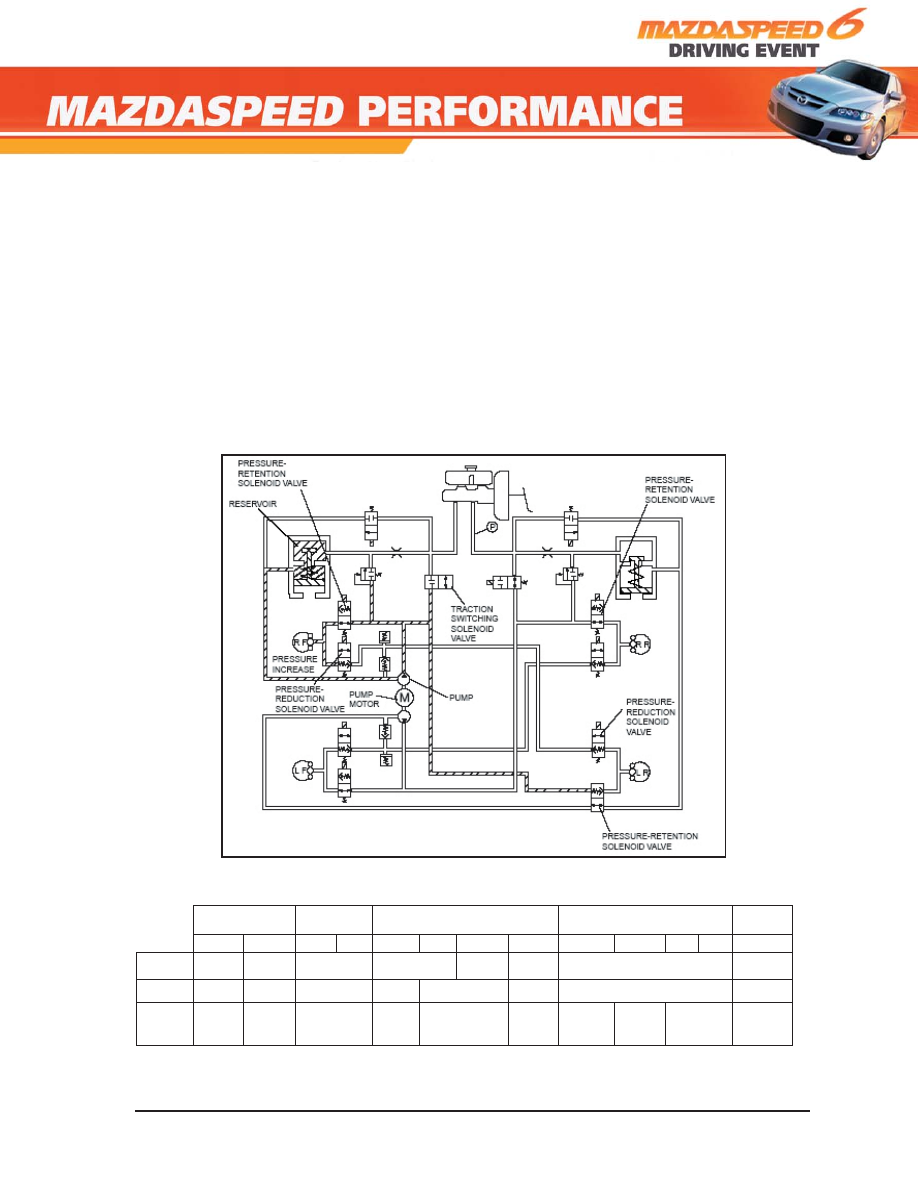

DSC: Oversteer Correction

•

Left turn, the right front wheel is slipping, resulting in oversteer

•

The pump, traction switching and stability control solenoids are
energized

•

Brake pressure is applied to the slipping outer front wheel or slipping
drive wheel

•

The inlet solenoid of the inner rear wheel is energized, closing its
hydraulic circuit

•

The right front wheel is slowed to correct oversteer

•

Additional pressure charges the accumulator/reservoir

Solenoid operation during a left turn to control right front wheel spin

Traction switching

solenoid

Stability

control

solenoid

Pressure-retention solenoid

Pressure-reduction solenoid

Pump
motor

LF - RR

RF-LR

LF

- RR

RF-

LR

LF

RF

LR

RR

LF

RF

LR

RR

 Pressure

Increase

OFF

(Open)

ON

(Closed)

OFF (Closed)

OFF (Closed)

On

(Closed)

OFF

(Open)

OFF (Closed)

Operating

Pressure

Maintain

OFF

(Open)

ON

(Closed)

OFF (Closed)

OFF

(Open)

On (Closed)

OFF

(Open)

OFF (Closed)

Stopped

Pressure

Reduction

OFF

(Open)

ON

(Closed)

OFF (Closed)

OFF

(Open)

On (Closed)

OFF

(Open)

OFF

(Closed)

On

(Open)

OFF

(Closed)

Operating
