Overhaul data - Cylinder head

MAZDA - KF

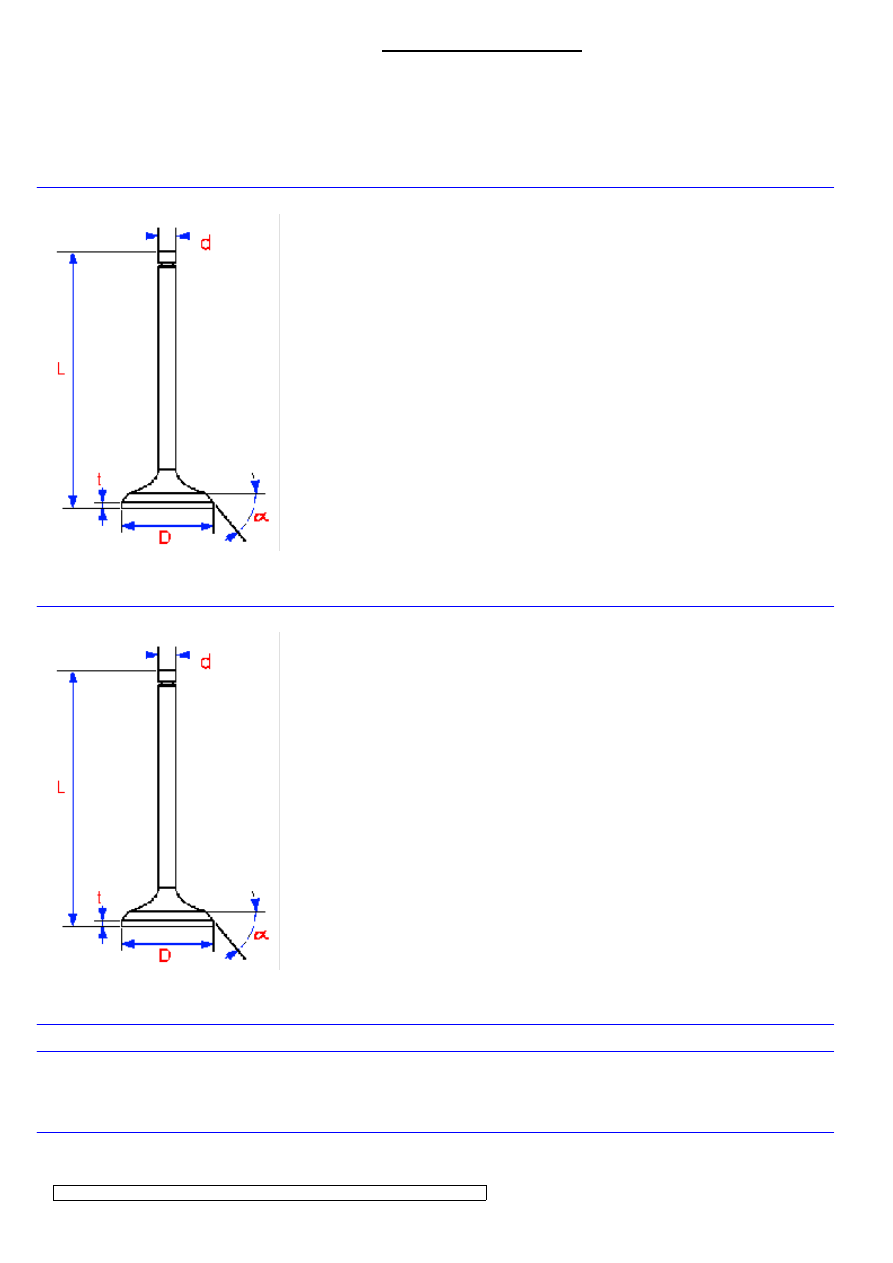

Valve length (L)

    Intake new

94.11

mm

    Limit

93.61

mm

    Outlet new

95.19

mm

    Limit

94.69

mm

Valve stem diameter (d) intake

    Standard

5.970 - 5.985

mm

    Limit

5.920

mm

’ Data from secondary source; No manufacturer's information

© Copyright, Wessels + Mьller AG

26.03.2007

Description

Values

Units

Note

3/7

Overhaul data - Cylinder head

MAZDA - KF

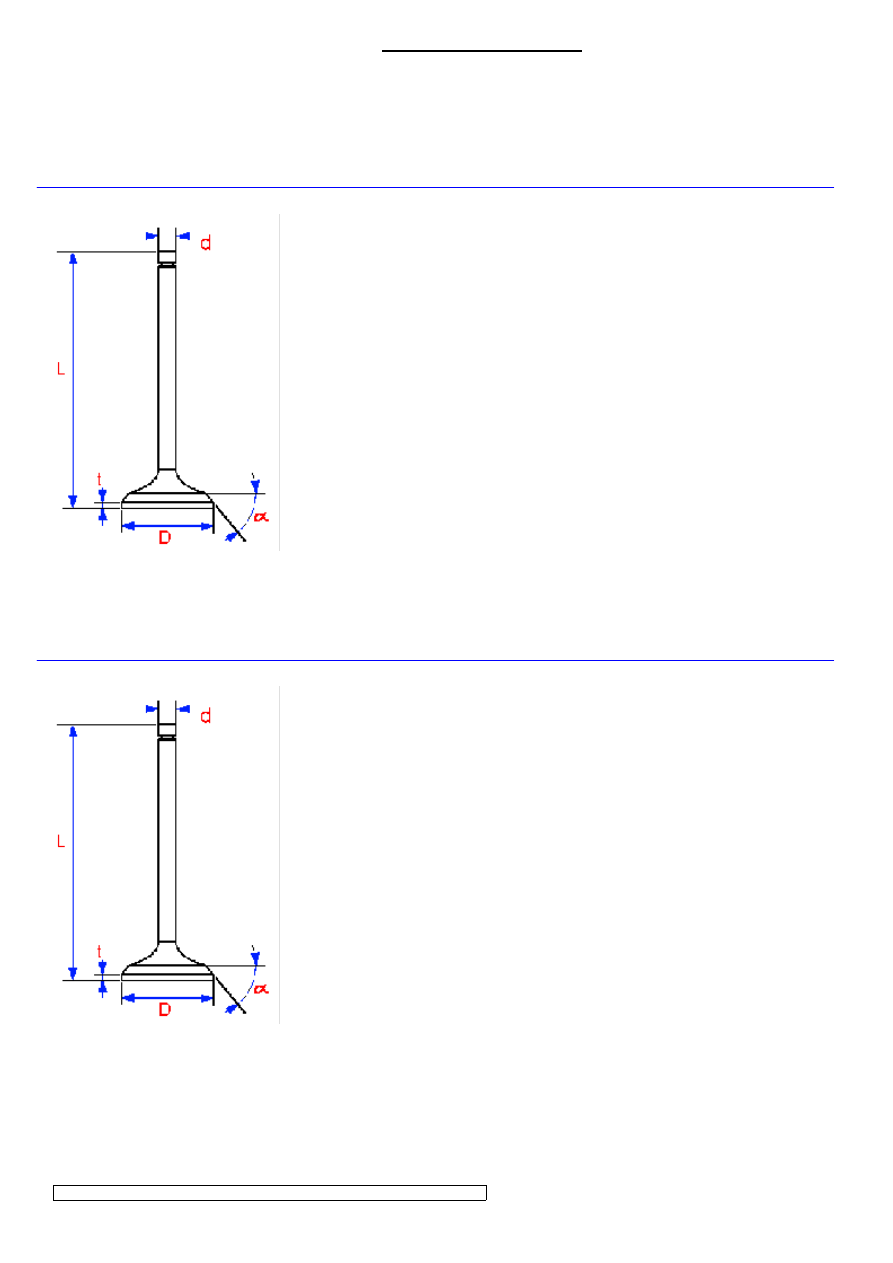

Valve stem diameter (d) outlet

    Standard

5.965 - 5.980

mm

    Limit

5.915

mm

Valve dish thickness (t)

    Intake

> 0.9

mm

    Outlet

> 1.0

mm

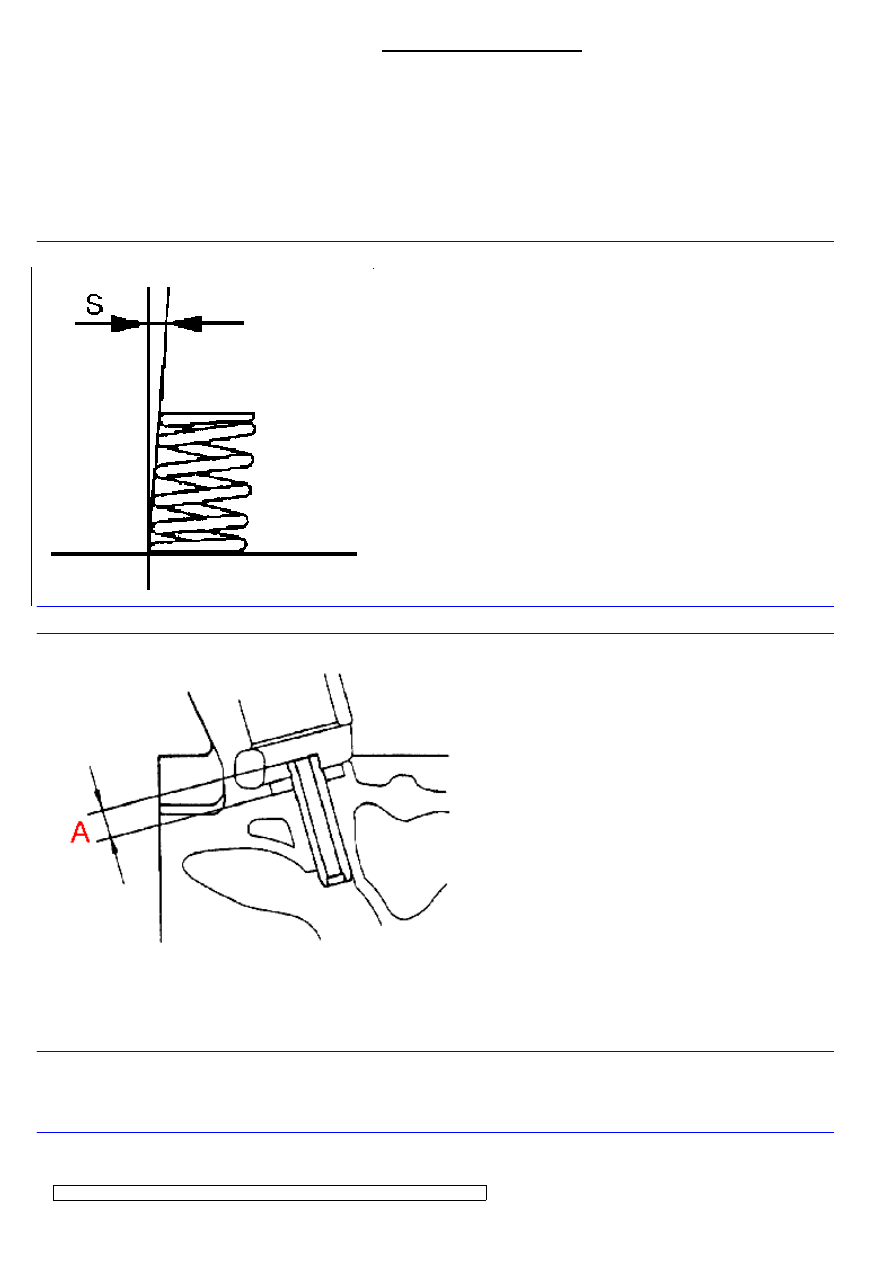

Valve springs

Length unladen

    Intake

46.92

mm

    Outlet

46.92

mm

Min. length at prescribed force 1

’ Data from secondary source; No manufacturer's information

© Copyright, Wessels + Mьller AG

26.03.2007

Description

Values

Units

Note

4/7

Overhaul data - Cylinder head

MAZDA - KF

    Intake

233 - 263 N: 38.7

mm

    Outlet

233 - 263 N: 38.7

mm

Inclination(s)

1.63

mm

Valve guides

Fitting height

    Intake

A = 14.7 - 15.3

mm

    Outlet

A = 12.2 - 12.8

mm

Inner diameter, standard

    Intake

6.01 - 6.03

mm

    Outlet

6.01 - 6.03

mm

Clearance between valve stem and guide

’ Data from secondary source; No manufacturer's information

© Copyright, Wessels + Mьller AG

26.03.2007

Description

Values

Units

Note

5/7

Overhaul data - Cylinder head

MAZDA - KF

    Intake

0.025 - 0.060

mm

    Limit

0.20

mm

    Outlet

0.030 - 0.065

mm

    Limit

0.20

mm

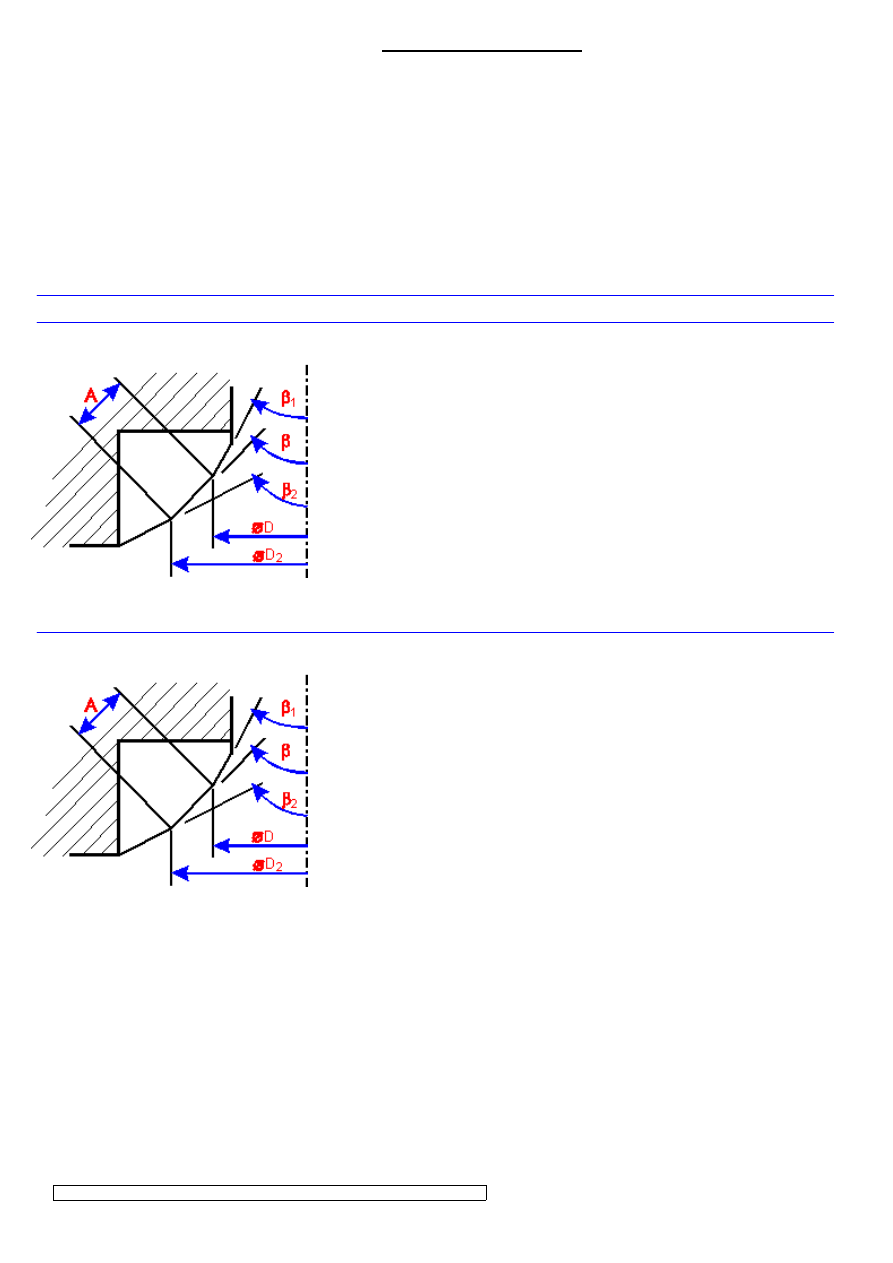

Valve seats

Seating angle (Я)

    Intake

45

°

    Outlet

45

°

Seating size (A)

    Intake

0.8 - 1.4

mm

    Outlet

0.8 - 1.4

mm

’ Data from secondary source; No manufacturer's information

© Copyright, Wessels + Mьller AG
