Mazda Xedos 6. Handbuch - teil 194





Notes

Specified value

Measured value

Vehicle identification

No. of cylinders

Type 6/DOHC

Capacity (Fiscal)

cc 1995 (1978)

Compression ratio

:1 9,5

Suitable for unleaded petrol

Yes

Minimum octane rating

RON 95

Ignition system

Type ESA

Ignition system

Description Map-i

Trigger location

Distributor/ Crankshaft

Fuel system

Make Mazda

Fuel System

Type VRIS

Fuel System

Description MFI-s

Air metering

Type Flow

Combined ignition and fuel ECM

Yes

Diagnostic socket

Yes

Ignition system

Ignition coil

Make Denso

Ignition coil supply voltage

+ with ballast V 11,0

Primary resistance

Ohm 0,81-0,99

Secondary resistance

Ohm 10000-15000

Firing order

1-2-3-4-5-6

Tuning and emissions

7

Tuning conditions
Ignition timing - basic BTDC

°Engine/rpm 10/670

Ignition advance checks

°Engine/rpm ECM Controlled

Idle speed

rpm 670±50

Oil temperature for CO test

°C 60

CO level at idle speed - tailpipe

Vol. % CO 0,5 Max Not adjustable

HC level at idle speed

ppm 100

CO2 level at idle speed

Vol. % CO2 14,5-16

O2 level at idle speed

Vol. % O2 0,1-0,5

Increased idle speed for CO test

rpm 2500-2800

CO content at increased idle speed

Vol. % 0,3

Lambda at increased idle

λ 0,97-1,03

Spark plugs

Spark plugs

Original equipment Denso

Spark plug

Type K20PR-U11

Electrode gap

mm 1,1

Spark plugs

Make Autolite

Spark plug

Type AP3923

Electrode gap

mm 1,1

Spark plugs

Make Beru

Spark plug

Type 14FR-7DUX

Electrode gap

mm 1,1

Spark plugs

Make Bosch

Spark plug

Type FR7DCX

Electrode gap

mm 1,1

Spark plugs

Make Champion

Spark plug

Type RC9YCC4

Electrode gap

mm 1,1

Spark plugs

Make NGK

Spark plug

Type BKR6E-11

Electrode gap

mm 1,1

Fuel system

Fuel pump delivery pressure

bar 4,9-6,3

System pressure without vacuum

bar 2,6-3,2

Manufacturer: Mazda

Model: Xedos 6 (CA) 2,0

Engine code: KF

Output: 103 (140) 6000

Tuned for: R-Cat

Year: 1995-00

© Autodata Limited 2004

26.03.2007

V5.500-

Engine coolant temperature (ECT) sensor

Ohm/°C 290-350/80

RPM/TDC sensor

Ohm 520-580

Injector

Ohm 12-16

Idle speed control valve

Ohm 11-12

Oxygen sensor heater

Ohm 6

Service checks and adjustments

Valve clearance -INLET

mm Hydraulic

Valve clearance -EXHAUST

mm Hydraulic

Compression pressure

bar 14,7

Oil pressure

bar/rpm 3,4/3000

Radiator cap

bar 1,0

Thermostat opens

°C 88

Lubricants and capacities

Engine oil grade - cold climate

SAE 5W/30

Engine oil grade - moderate climate

SAE 10W/30

Engine oil grade - hot climate

SAE 20W/40

Engine oil classification

API/ACEA SJ/A2-96

Engine oil grade - alternative - moderate climate

SAE 10W/40

Engine oil classification - alternative - moderate climate

API/ACEA SJ/A2-96

Engine with filter

litres 4,0

Gearbox oil grade

SAE 75W/90

Gearbox 4/5 speed

litres 2,7

Automatic transmission fluid

Type Dexron II

Cooling system

litres 7,5

Brake fluid

Type DOT 3

Power steering fluid

Type Dexron II

Power steering fluid

litres 1,2-1,3

Tightening torques

Cylinder head instructions

Cylinder head

Maximum bolt length 135 mm

Stage 1

Tighten 23-26 Nm

Stage 2

Tighten 90°

Stage 3

Tighten 90°

Other tightening torques

16

Big end bearings

Stage 1

Oil pump to cylinder block

20-25 Nm

61

Sump bolts
Sump drain bolt

30-40 Nm

Flywheel/driveplate

64 Nm/64 Nm

Clutch to flywheel

18-26 Nm

Crankshaft pulley/damper

157-166 Nm

Camshaft sprocket/gear

123-140 Nm

Camshaft carrier/cap

11-14 Nm

Camshaft/rocker cover

5-9 Nm

Inlet manifold to cylinder head

20-25 Nm

Exhaust manifold to cylinder head

20-25 Nm

Spark plugs

15-22 Nm

Oxygen sensor (Lambda)

30-49 Nm

Knock sensor (KS)

20-34 Nm

Front hub

236-318 Nm

Rear hub

177-230 Nm

Steering track rod end

31-44 Nm

Brake caliper to carrier

Front 47 Nm

Brake caliper carrier to hub

Front 90 Nm

Brake caliper to carrier

Rear 37 Nm

Brake caliper carrier to hub

Rear 51 Nm

ABS sensor

Front 20 Nm

Manufacturer: Mazda

Model: Xedos 6 (CA) 2,0

Engine code: KF

Output: 103 (140) 6000

Tuned for: R-Cat

Year: 1995-00

© Autodata Limited 2004

26.03.2007

V5.500-

ABS sensor

Rear 20 Nm

Road wheels

87-117 Nm

Starting and charging

Battery

V/RC(Ah) 12/90 (58)

Maximum cranking amps

157-191

Alternator output at engine speed

A/V/rpm 90/14,5/3000

Brake disc and drum dimensions

Minimum disc thickness - ventilated

Front 22 mm

Minimum disc thickness

Rear 8 mm

Disc runout

Front 0,10 mm

Disc runout

Rear 0,10 mm

Minimum pad thickness

Front 1 mm

Minimum pad thickness

Rear 1 mm

Handbrake travel

No. of notches 5-7

Air conditioning

Air conditioning refrigerant

Type R134a

Air conditioning refrigerant quantity

grams 700

Air conditioning oil

Type Atmos GU10

Air conditioning oil quantity

cmі 175

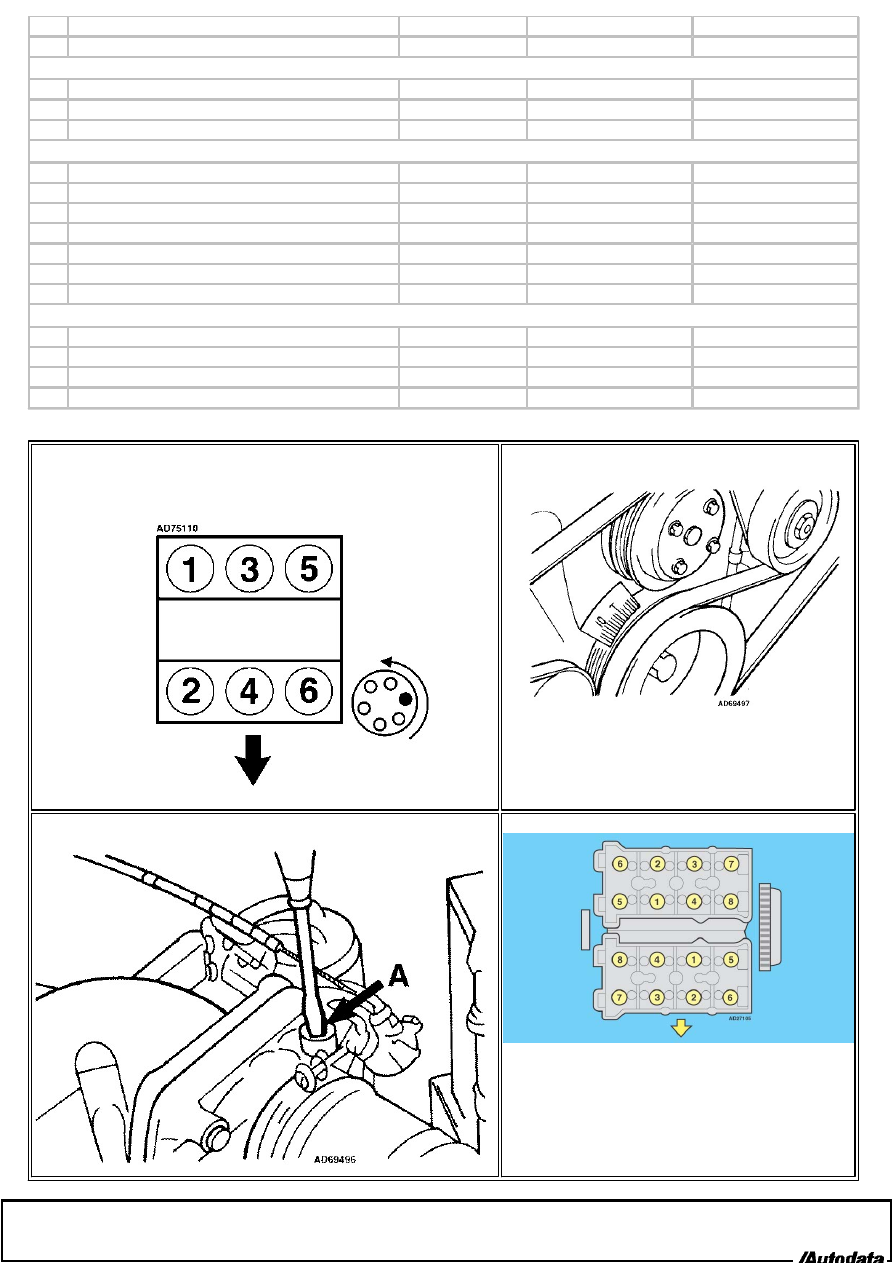

Cylinder layout

Timing mark

Idle speed adjustment (A)

Tightening sequence

Manufacturer: Mazda

Model: Xedos 6 (CA) 2,0

Engine code: KF

Output: 103 (140) 6000

Tuned for: R-Cat

Year: 1995-00

© Autodata Limited 2004

26.03.2007

V5.500-

Description

Values

Units

Note

1/7

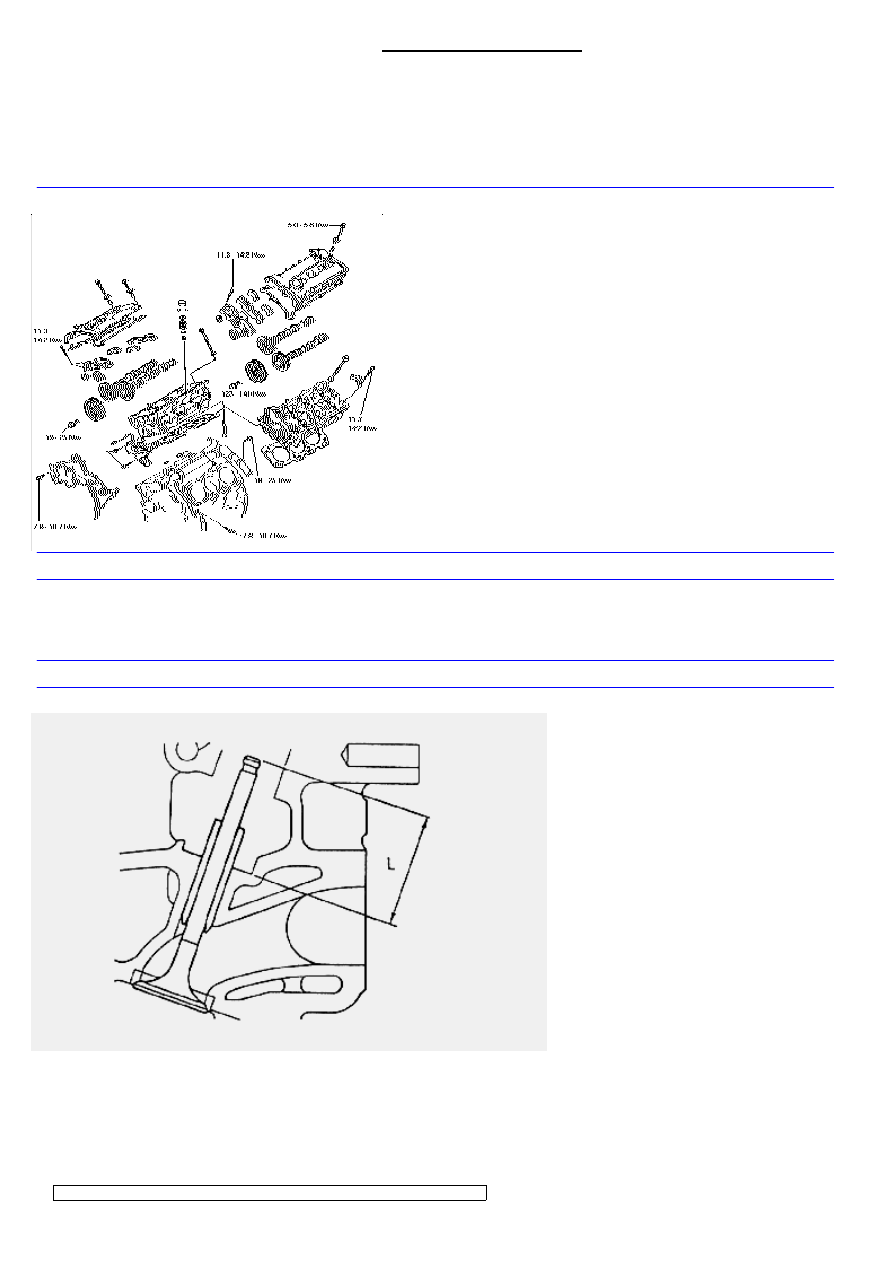

Overhaul data - Cylinder head

MAZDA - KF

General cylinder head data

Cylinder head height

133.4 - 133.6

mm

Warpage cylinder head fitting face

    Limit

0.10

mm

    Max. grinding allowance

0.15

mm

Valves

Valve build-in height

L = 41.5

mm

    Limit

L = 42.0

mm

’ Data from secondary source; No manufacturer's information

© Copyright, Wessels + Mьller AG

26.03.2007
