S–22

BODY SHELL

OUTLINE

A6E775407000T01

•

The body shell has been designed to increase vehicle structural rigidity and reduce shock to the body, thus
improving safety.

•

The crushable zone, an H-shaped frame (triple-H structure), absorbs impact energy and prevents it from
reaching the occupants.

•

A steel bumper reinforcement has been adopted for improved safety.

•

A resin shroud panel has been adopted for improved serviceability.

End Of Sie

STRUCTURAL VIEW

A6E775407000T02

.

End Of Sie

BODY SHELL

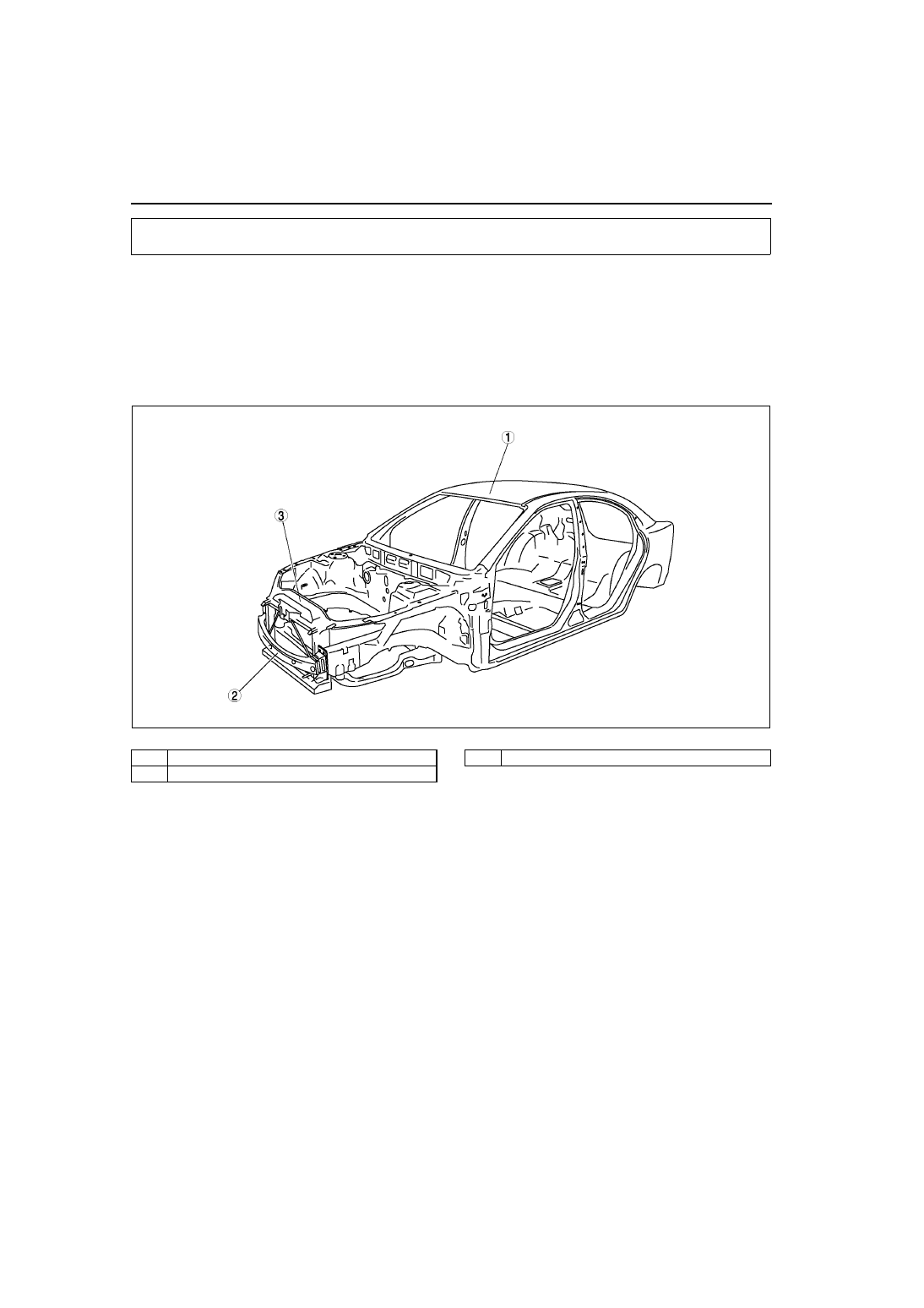

A6E7754T001

1

Body shell

2

Front bumper reinforcement

3

Shroud panel

BODY SHELL

S–23

S

CRUSHABLE ZONE

A6E775407000T03

•

To reduce cabin damage, the front and rear of the frame are designed to deform when incurring an impact, and
effectively absorb/disperse energy from a collision.
— In moderate collisions at the front bumper reinforcement, impact is diffused to the front side frames and

front suspension members.

— If the collision comes close to the cabin, impact is diffused to the side sills and front B frames through the

torque box, reducing impact to the cabin.

.

End Of Sie

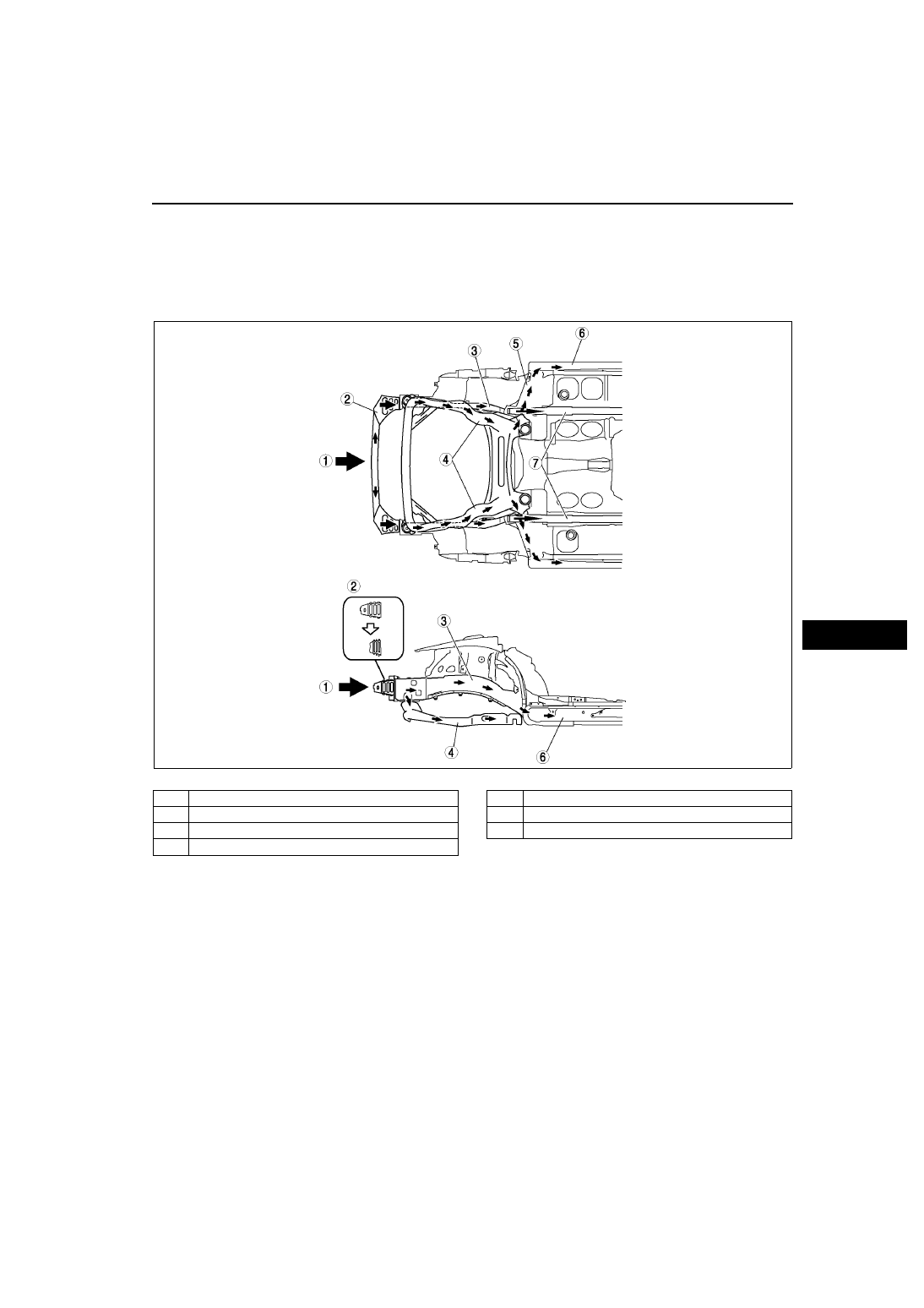

A6E7754T002

1

Collision energy

2

Front bumper reinforcement

3

Front side frame

4

Front crossmember

5

Torque box

6

Side sill

7

Front B-frame

S–24

BODY SHELL

CABIN

A6E775407000T04

•

The floor, the side frame and the roof form three rigid, H-shaped frames (triple-H structure) that resist impact
forces in the event of a side collision.

•

Handling stability is improved by preventing body torsion.

.

End Of Sie

SHROUD PANEL

A6E775453140T01

Outline

•

The shroud panel is a glass-fiber impregnated strong plastic.

•

Easily replaced for improved serviciblity.

•

Recycled materials are used in consideration of the environment.

Structural View

.

End Of Sie

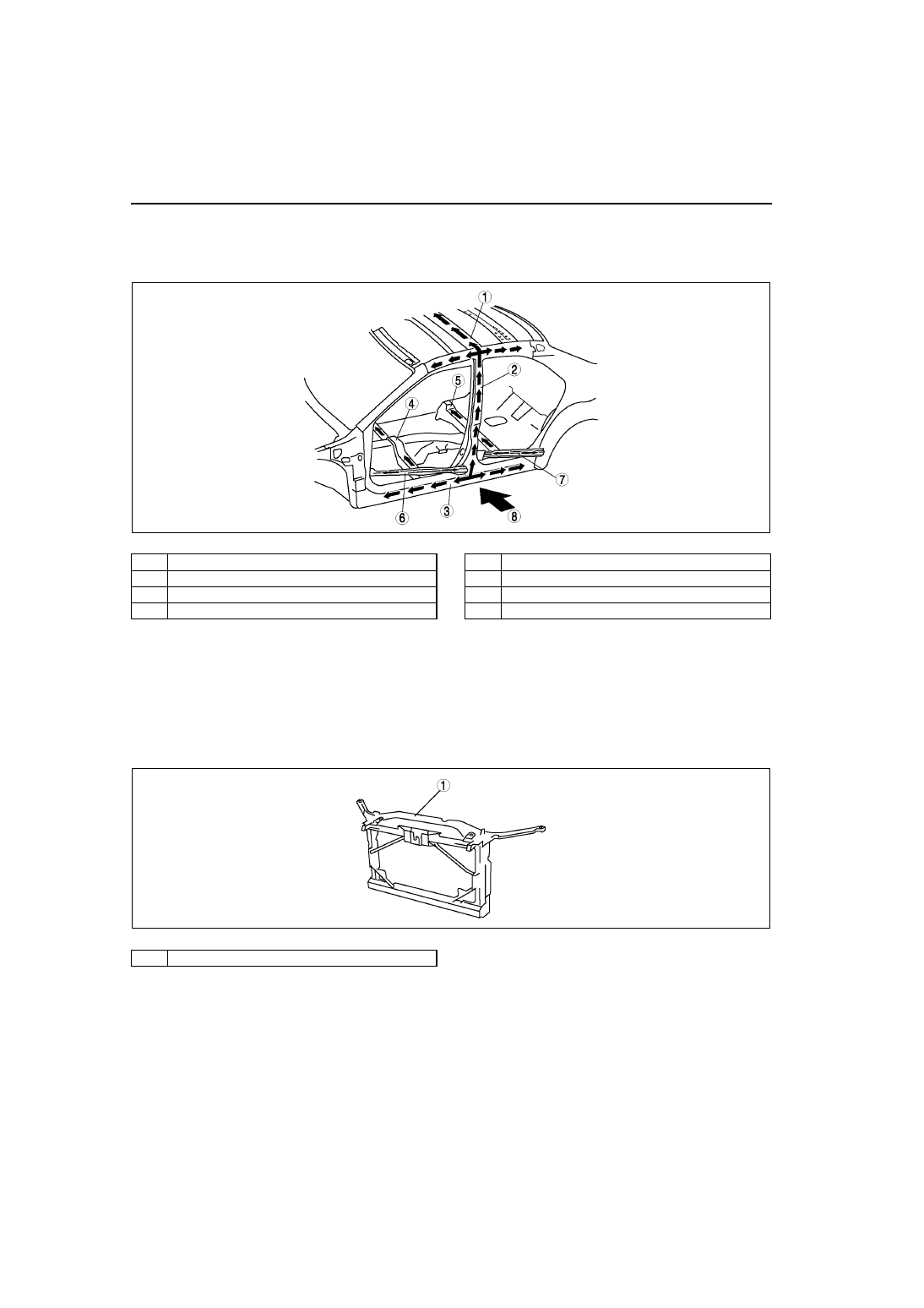

A6E7754T003

1

Roof reinforcement

2

B-pillar

3

Side sill

4

Crossmember No. 2

5

Crossmember No. 3

6

Front door impact bar

7

Rear door impact bar

8

Collision energy

A6E7754T004

1

Shroud panel

BODY SHELL

S–25

S

FRONT BUMPER REINFORCEMENT

A6E775450031T01

Outline

•

A large sectional form has been adopted for improved strength.

•

The frame and connection area have adopted a crushable structure. At low-speed collisions, impact is
absorbed and diffused, reducing impact to the frame and other parts.

Structural View

.

End Of Sie

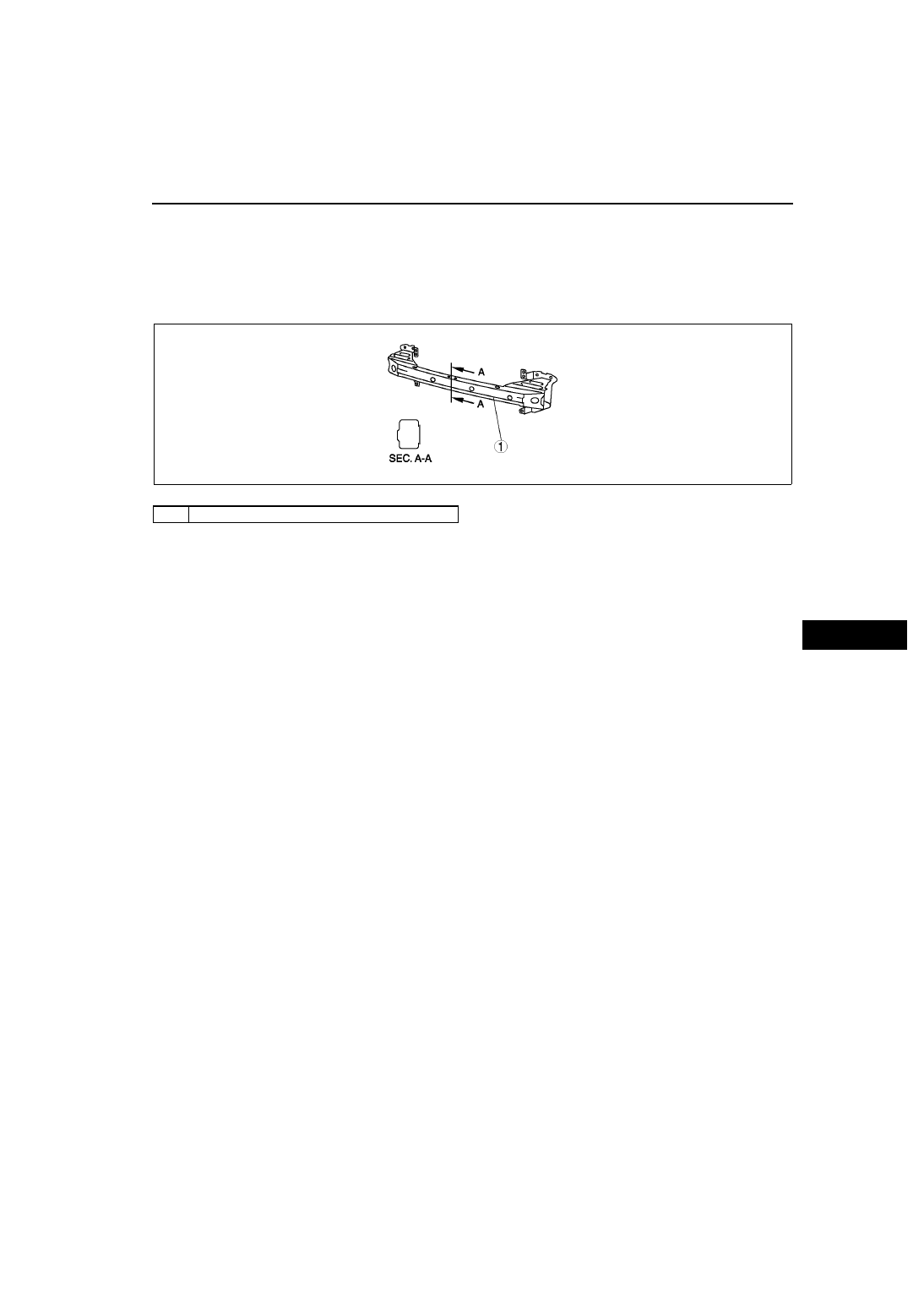

A6E7754T005

1

Front bumper reinforcement
