SLIDING SUNROOF

OUTLINE

A6E774001049T01

•

The construction and operation (slide open/close and tilt up/down) are the same as the 626 (GF) 5HB model.

×

: Available

–: Not available

End Of Sie

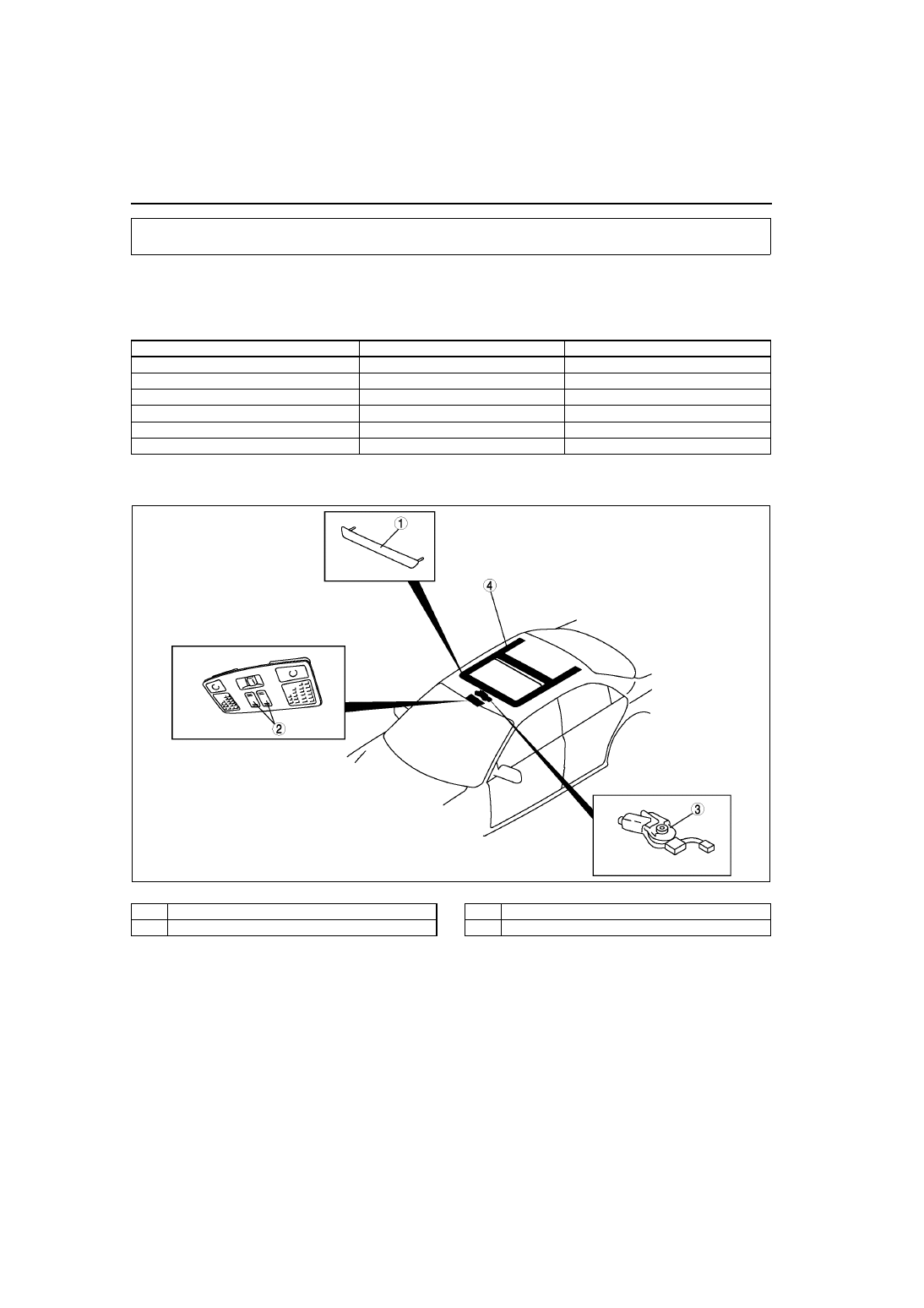

STRUCTURAL VIEW

A6E774001049T02

.

End Of Sie

SLIDING SUNROOF

Item

Mazda6 (GG)

626 (GF) 5HB

Slide open/close function

×

×

Auto-stop function (when closing)

–

×

Tilt up/down function

×

×

Number of limit switch

3

←

Sliding amount (mm {in})

285 {11.2}

360 {14.1}

Tilt up amount (mm {in})

28 {1.1}

←

A6E7740T001

1

Deflector

2

Sunroof switch

3

Sunroof motor

4

Sunroof unit

SLIDING SUNROOF

S–15

S

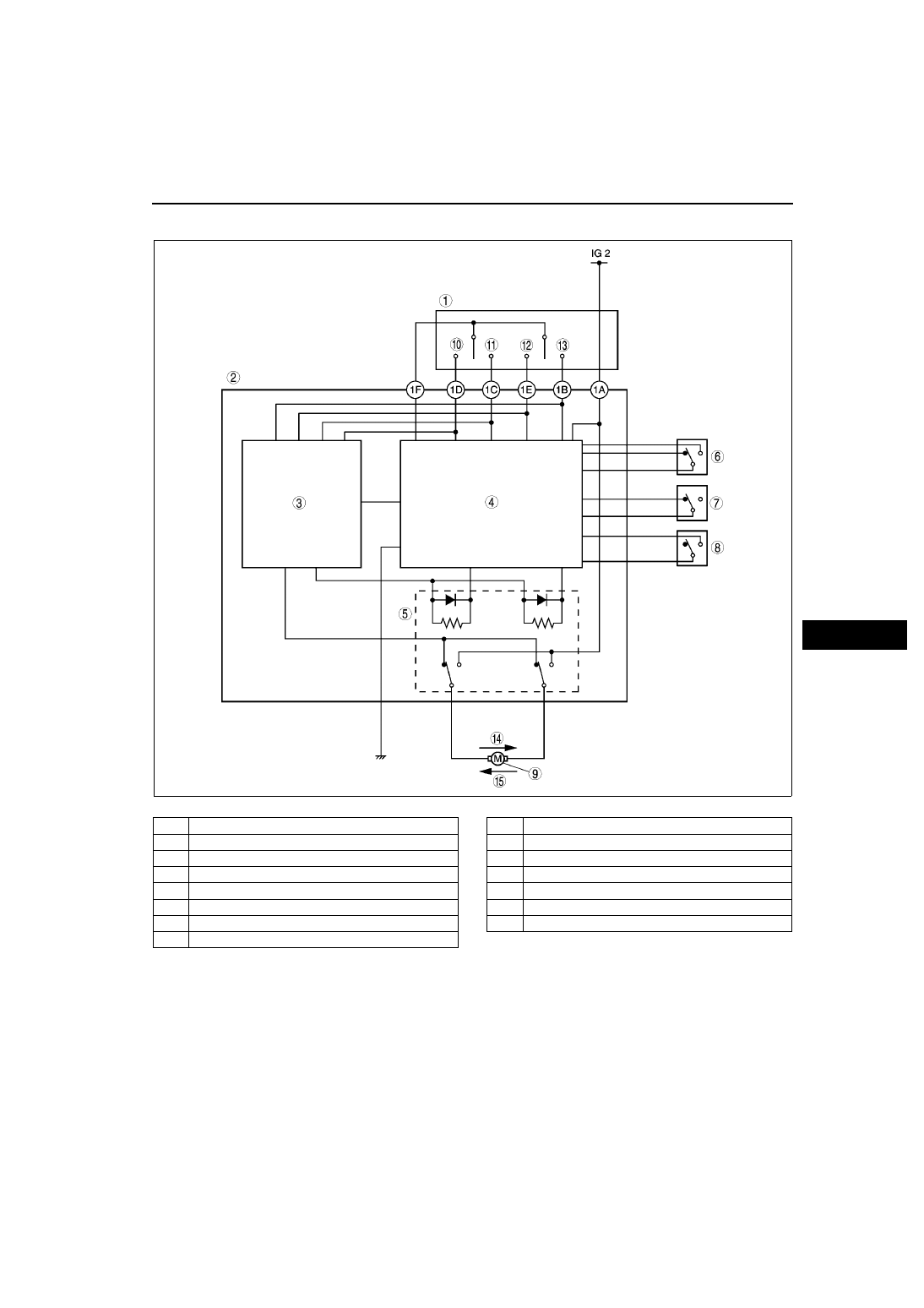

SYSTEM WIRING DIAGRAM

A6E774001049T03

.

End Of Sie

A6E7740T002

1

Sunroof switch

2

Sunroof relay

3

Motor control circuit

4

Motor lock current detection circuit

5

Relay

6

Limit switch No. 1

7

Limit switch No. 2

8

Limit switch No. 3

9

Sunroof motor

10

Slide open

11

Slide close

12

Tilt down

13

Tilt up

14

Slide open/tilt down

15

Slide close/tilt up

S–16

DASHBOARD AND CONSOLE

OUTLINE

A6E774255000T01

•

The center module, which integrates the audio and climate control units, is located at the center of the
dashboard panel. This improves the functionality and gives it a unified appearance.

•

Various storage spaces have been kept.

End Of Sie

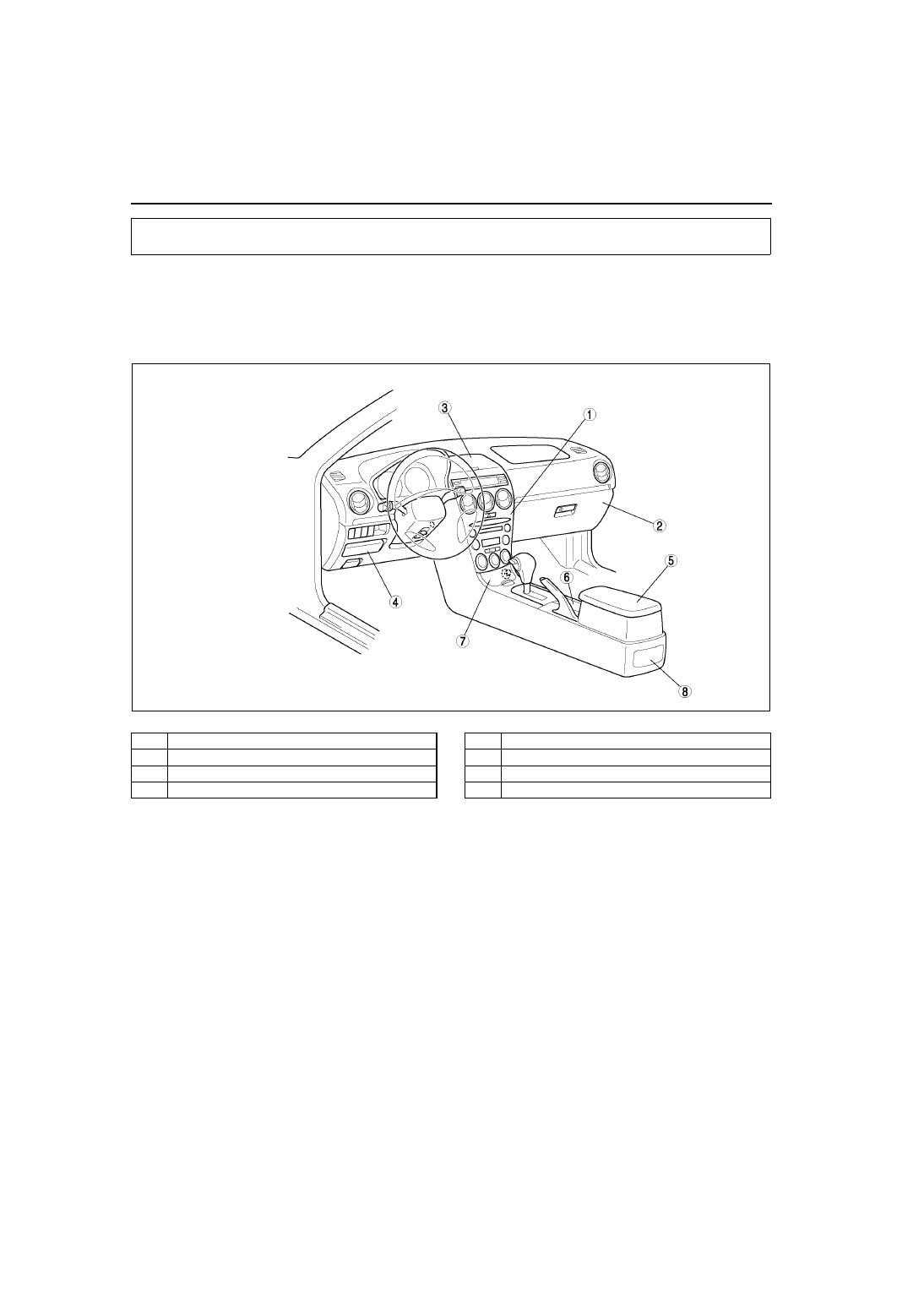

STRUCTURAL VIEW

A6E774255000T02

.

End Of Sie

DASHBOARD AND CONSOLE

A6E7742T001

1

Center module

2

Glove compartment

3

Center box (without car-navigation system)

4

Storage pocket

5

Console box

6

Cup holder

7

Front ashtray

8

Rear ashtray

SEAT

S–17

S

OUTLINE

A6E775257100T01

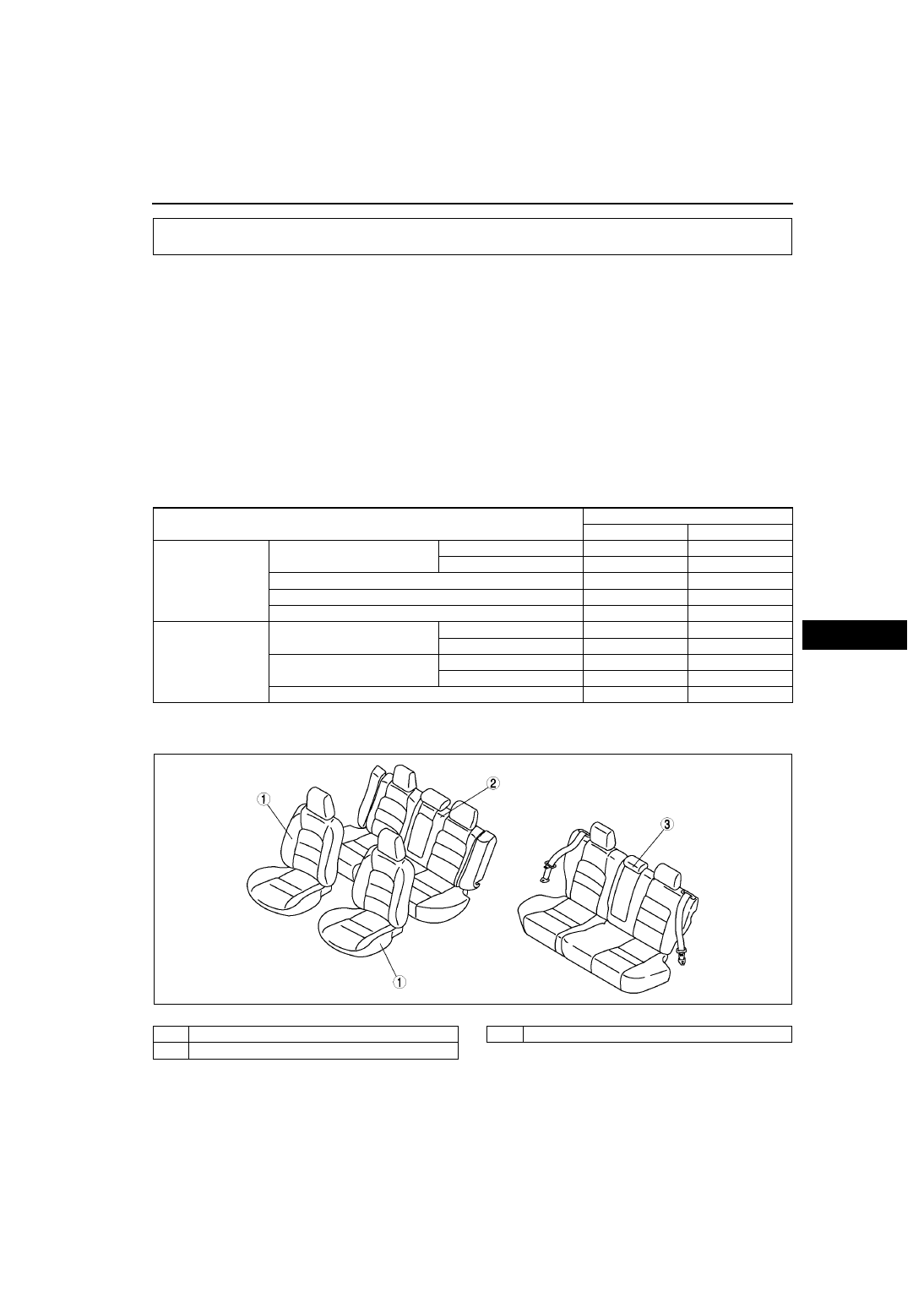

Front Seat

•

Three types of seats are available:
— Manual seat with seat lifter (driver’s side)
— Manual seat without seat lifter (passenger’s side)
— Power seat

•

A lumber support has been adopted for driver’s seat.

Rear seat

•

An easy fold-down function has been adopted.

•

Child restraint seat anchors have been adopted. There are two types of anchors used for child restraint
systems: the ISOFIX and tether strap anchors.

Specifications

×

: Available

–: Not available

End Of Sie

STRUCTURAL VIEW

A6E775257100T02

.

End Of Sie

SEAT

Item

Body type

4SD

5HB

Front seat

Type

Manual

×

×

Power

×

×

Lumber support (Driver’s side only)

×

×

Seat lifter (Driver’s side only)

×

×

Side air bag

×

×

Rear seat

Easy fold-down type

Remote handle lever

×

×

Push knob

–

×

Child restraint seat anchor type

ISOFIX

×

×

Tether strap

×

×

Armrest

×

×

A6E7752T001

1

Front  seat

2

Rear seat (4SD)

3

Rear seat (5HB)
