Mazda Protege 5. Manual - part 351





POWER SYSTEMS

09–21–5

09–21

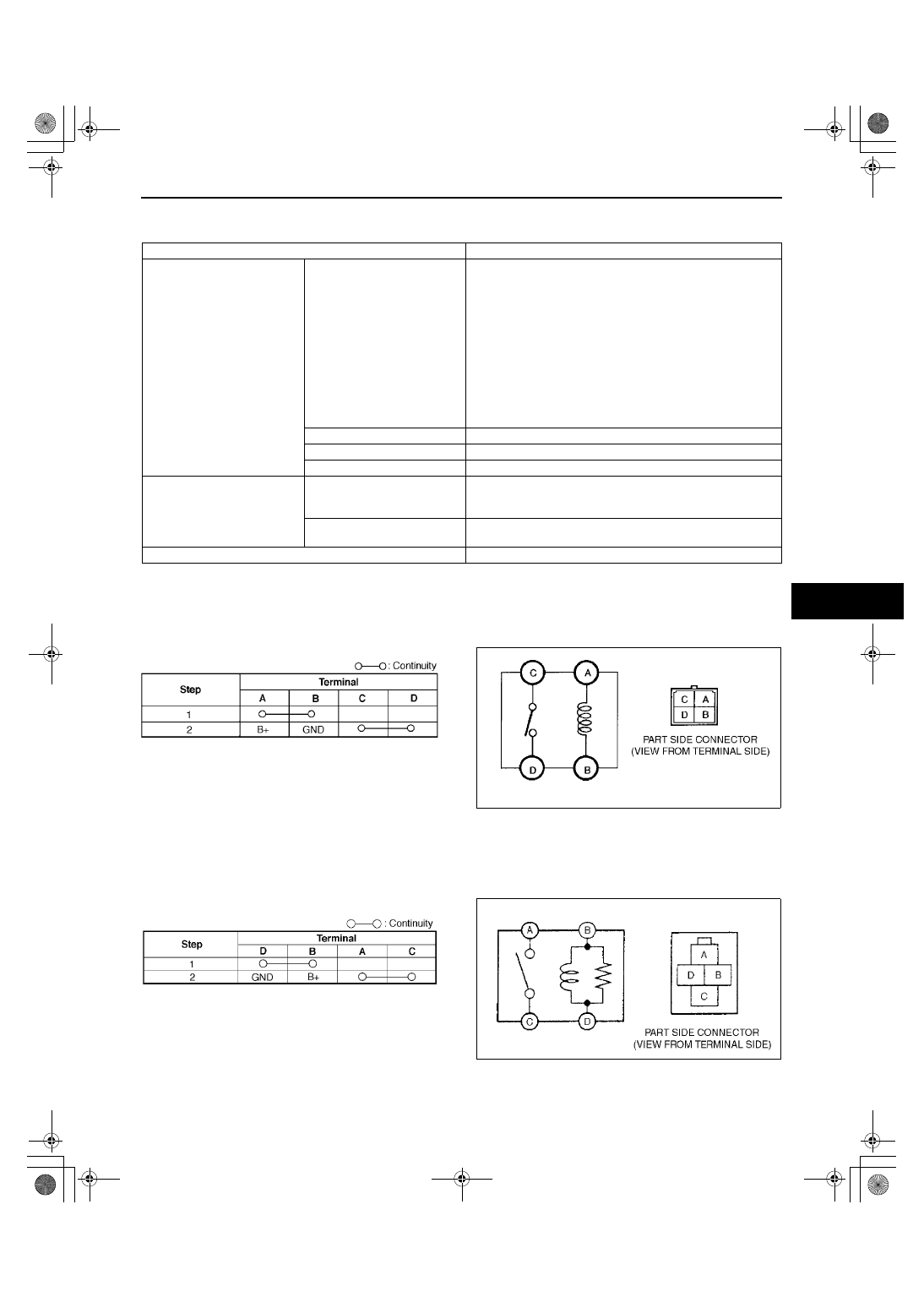

RELAY INSPECTION

A3U092167742W01

Relay type

Four-terminal
Type A

1. Remove the relay.
2. Inspect for continuity between the relay terminals using an ohmmeter.

If not as specified, replace the relay.

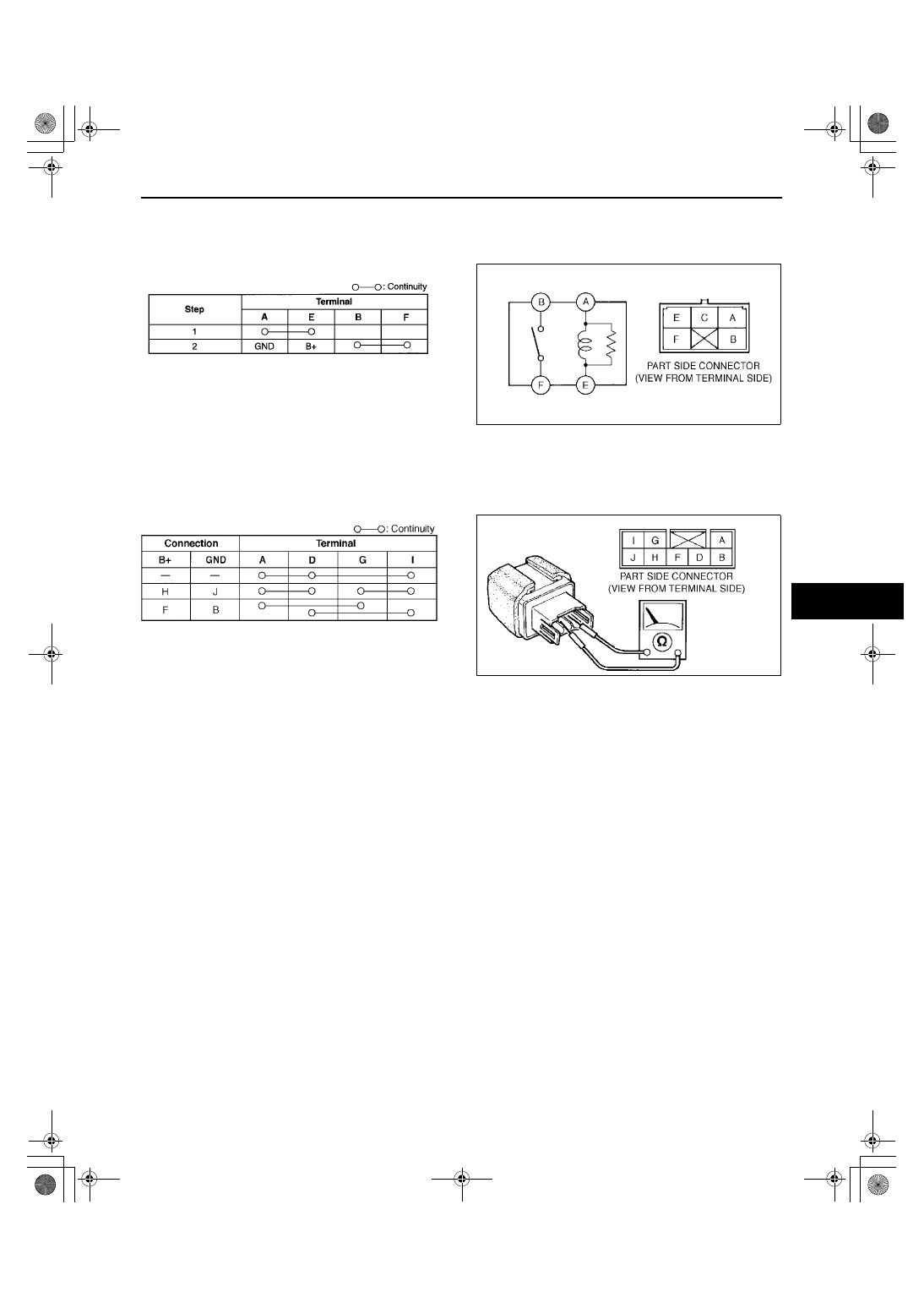

Type B

1. Remove the relay.
2. Inspect for continuity between the relay terminals using an ohmmeter.

If not as specified, replace the relay.

Terminal type

Parts name

Four-terminal

Type A

Front fog light relay

A/C relay

Condenser fan relay No.1

Condenser fan relay No.2

Cooling fan relay No.2 (KJ)

Cooling fan relay No.3 (KJ)

Rear window defroster relay

TNS relay

Woofer relay

Trunk lid opener relay

Seat warmer relay

Power window relay

Main relay

Type B

Horn relay

Type C

Starter cut relay

Type D

Fuel pump relay

Five-terminal

Type A

DRL relay

Cooling fan relay (KL)

Cooling fan relay No.1 (KJ)

Type B

Headlight relay

Blower relay

Eight-terminal

Sunroof relay

ZLU0921W003

ZLU0921W004

ZLU0921W001

ZLU0921W002

1712-1U-01G(09-21).fm  5 ページ  2001年6月29日 金曜日 午前10時38分

POWER SYSTEMS

09–21–6

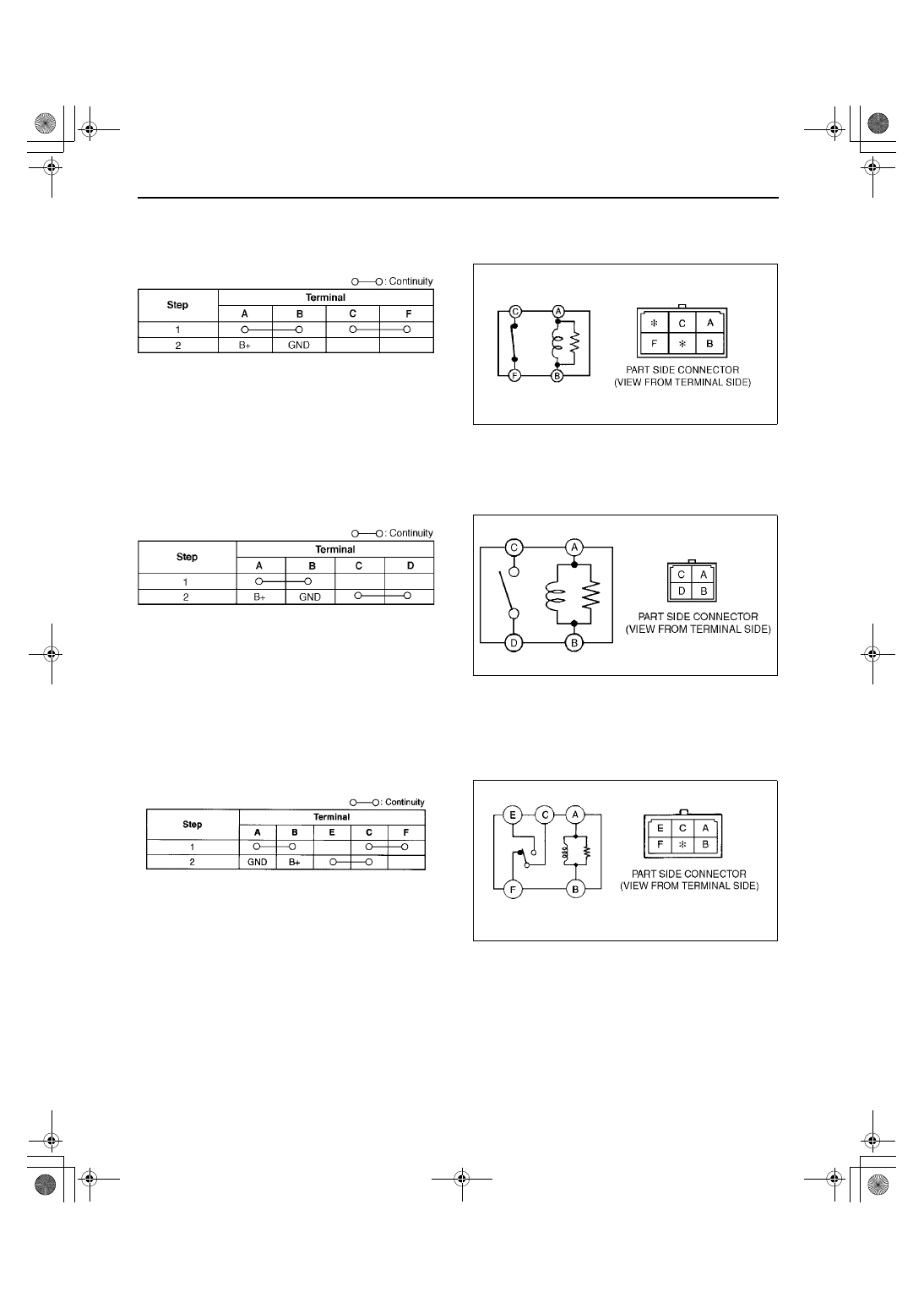

Type C

1. Remove the relay.
2. Inspect for continuity between the relay terminals using an ohmmeter.

If not as specified, replace the relay.

Type D

1. Remove the relay.
2. Inspect for continuity between the relay terminals using an ohmmeter.

If not as specified, replace the relay.

Five-terminal
Type A

1. Remove the relay.
2. Inspect for continuity between the relay terminals using an ohmmeter.

If not as specified, replace the relay.

ZLU0921W005

ZLU0921W006

ZLU921WA0

ZLU0921W007

ZLU0921W008

ZLU0921W009

1712-1U-01G(09-21).fm  6 ページ  2001年6月29日 金曜日 午前10時38分

POWER SYSTEMS

09–21–7

09–21

Type B

1. Remove the relay.
2. Inspect for continuity between the relay terminals using an ohmmeter.

If not as specified, replace the relay.

Eight-terminal

1. Remove the relay.
2. Inspect for continuity between the relay terminals using an ohmmeter.

If not as specified, replace the relay.

End Of Sie

ZLU0921W010

ZLU0921W011

ZLU0921W012

ZLU0921W013

1712-1U-01G(09-21).fm  7 ページ  2001年6月29日 金曜日 午前10時38分

INSTRUMENTATION/DRIVER INFO.

09–22–1

09–22

09–22

INSTRUMENTATION/DRIVER INFO.

LOCATION INDEX  . . . . . . . . . . . . . . . . .  09–22–1
INSTRUMENT CLUSTER SYSTEM

WIRING DIAGRAM . . . . . . . . . . . . . . . .  09–22–2

INSTRUMENT CLUSTER

REMOVAL/INSTALLATION . . . . . . . . .  09–22–3

Instrument Cluster Removal Note  . . . .  09–22–3

INSTRUMENT CLUSTER

DISASSEMBLY/ASSEMBLY  . . . . . . . .  09–22–3

INSTRUMENT CLUSTER INSPECTION.  09–22–4

Speedometer . . . . . . . . . . . . . . . . . . . .  09–22–4
Tachometer  . . . . . . . . . . . . . . . . . . . . .  09–22–4
Fuel Gauge  . . . . . . . . . . . . . . . . . . . . .  09–22–4
Water Temperature Gauge  . . . . . . . . .  09–22–4

INSTRUMENT CLUSTER REPAIR  . . . . . 09–22–4

Tachometer . . . . . . . . . . . . . . . . . . . . . . 09–22–4

INSTRUMENT CLUSTER INPUT/OUTPUT

CHECK MODE . . . . . . . . . . . . . . . . . . . . 09–22–5

DTC Chart . . . . . . . . . . . . . . . . . . . . . . . 09–22–5
Operating Order  . . . . . . . . . . . . . . . . . . 09–22–6
Checking Order   . . . . . . . . . . . . . . . . . . 09–22–7
Inspection of DTCs . . . . . . . . . . . . . . . . 09–22–7

WARNING AND INDICATOR LIGHT BULB

REMOVAL/INSTALLATION . . . . . . . . . . 09–22–13

FUEL GAUGE SENDER UNIT

INSPECTION  . . . . . . . . . . . . . . . . . . . . . 09–22–13

OIL PRESSURE SWITCH

INSPECTION  . . . . . . . . . . . . . . . . . . . . . 09–22–13

HORN REMOVAL/INSTALLATION . . . . . 09–22–13

End of Toc

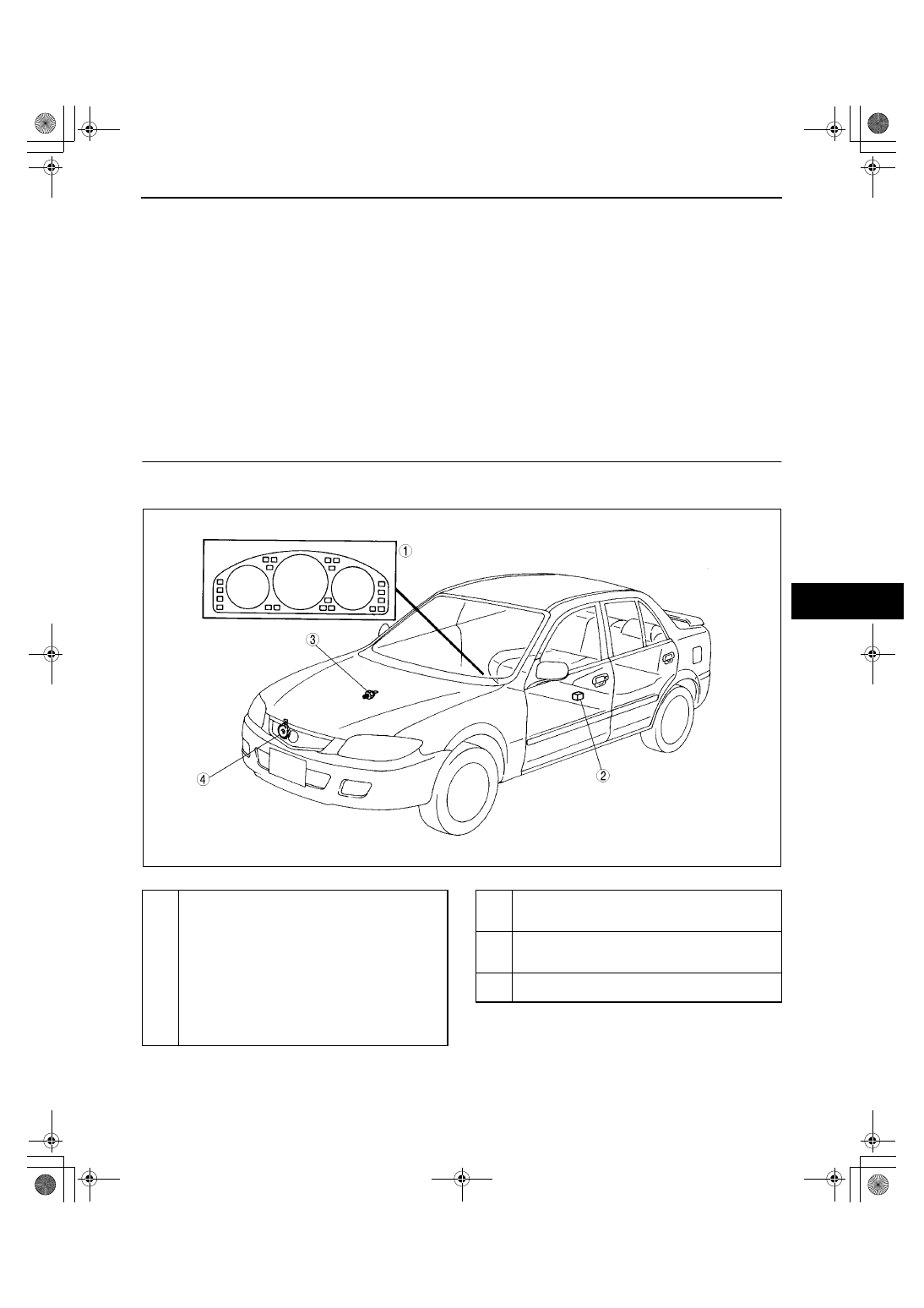

LOCATION INDEX

A3U092201067W01

.

Z3U0922W003

1

Instrument cluster
(See 09–22–3 INSTRUMENT CLUSTER
REMOVAL/INSTALLATION)
(See 09–22–3 INSTRUMENT CLUSTER
DISASSEMBLY/ASSEMBLY)
(See 09–22–4 INSTRUMENT CLUSTER
INSPECTION)
(See 09–22–4 INSTRUMENT CLUSTER REPAIR)
(See 09–22–5 INSTRUMENT CLUSTER INPUT/
OUTPUT CHECK MODE)
(See 09–22–13 WARNING AND INDICATOR
LIGHT BULB REMOVAL/INSTALLATION)

2

Fuel gauge sender unit
(See 09–22–13 FUEL GAUGE SENDER UNIT
INSPECTION)

3

Oil pressure switch
(See 09–22–13 OIL PRESSURE SWITCH
INSPECTION)

4

Horn
(See 09–22–13 HORN REMOVAL/INSTALLATION)

1712-1U-01G(09-22).fm  1 ページ  2001年6月29日 金曜日 午前10時39分
