WIPER/WASHER SYSTEM

09–19–10

Rear Wiper and Washer

1. Disconnect the negative battery cable.
2. Remove the wiper and washer switch. (See 09–19–9 WIPER AND WASHER SWITCH REMOVAL/

INSTALLATION.)

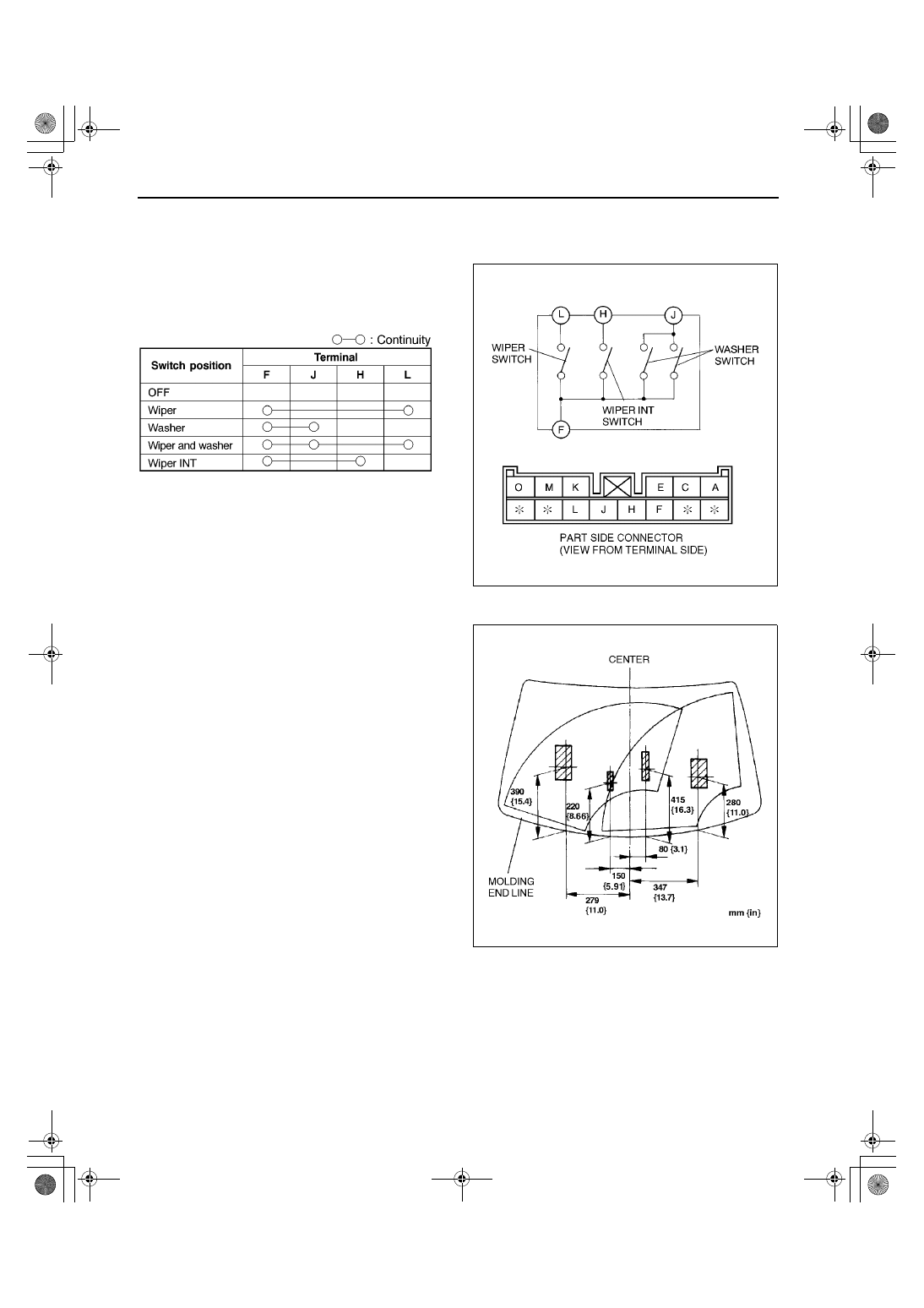

3. Inspect for continuity between the wiper and

washer switch terminals using an ohmmeter.

If not as specified, replace the wiper and
washer switch.

End Of Sie

WINDSHIELD WASHER NOZZLE ADJUSTMENT

A3U091967510W01

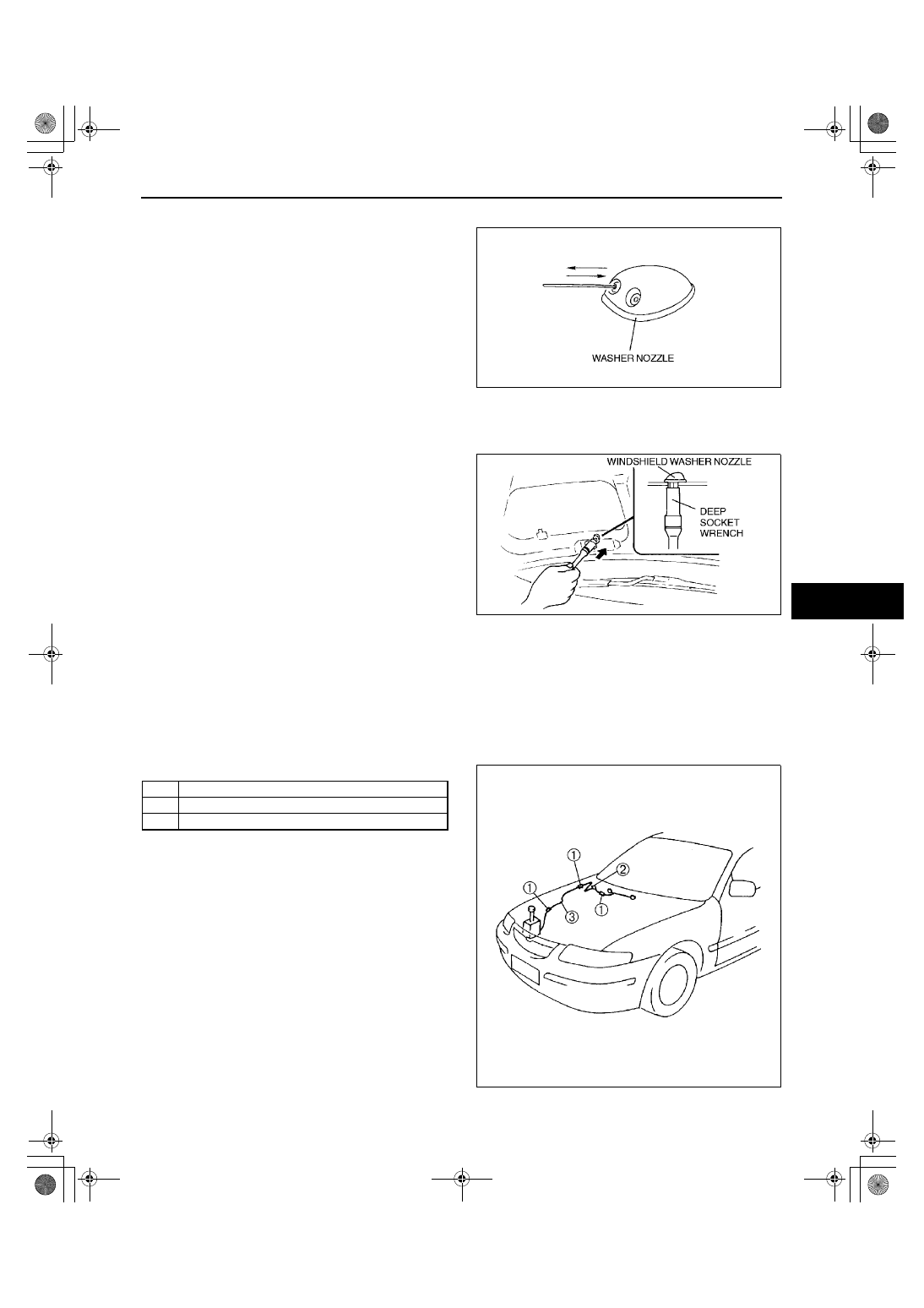

1. Insert a needle or equivalent tool into the spray

hole of the windshield washer nozzle and adjust
the nozzle direction as shown.

End Of Sie

A3U0919W107

A3U0919W017

Y3U919WA6

1712-1U-01G(09-19).fm  10 ページ  2001年6月29日 金曜日 午前10時37分

WIPER/WASHER SYSTEM

09–19–11

09–19

WINDSHIELD WASHER NOZZLE CLEANING

A3U091967510W02

1. Clean the washer nozzle by inserting and moving

a needle or similar tool back and forth.

If the nozzle becomes clogged again after
cleaning, remove the hose from washer
nozzle. Make sure there is enough washer
fluid. Then turn the washer switch on and
flush the inside of the hose.

End Of Sie

WINDSHIELD WASHER NOZZLE REMOVAL

A3U091967510W03

1. Remove the bonnet insulator.
2. Disconnect the windshield washer hose to windshield washer nozzle.
3. Remove the windshield washer nozzle using a 10

mm {0.4 in} deep socket wrench from
underneath the bonnet.

End Of Sie

WINDSHIELD WASHER NOZZLE INSTALLATION

A3U091967510W04

1. Connect the windshield washer hose to windshield washer nozzle.
2. Push the windshield washer nozzle into the installation hole.
3. Adjust the windshield washer nozzle. (See 09–19–10 WINDSHIELD WASHER NOZZLE ADJUSTMENT.)
4. Install the bonnet insulator.

End Of Sie

WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION

A3U091967500W01

1. Remove the bonnet insulator.
2. Partially peel off the right side mud guard.
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

End Of Sie

Y3U919WA7

X3U919WB3

1

Clip

2

Joint pipe

3

Windshield washer hose

X3U919WB6

1712-1U-01G(09-19).fm  11 ページ  2001年6月29日 金曜日 午前10時37分

WIPER/WASHER SYSTEM

09–19–12

REAR WIPER ARM AND BLADE ADJUSTMENT

A3U091967420W01

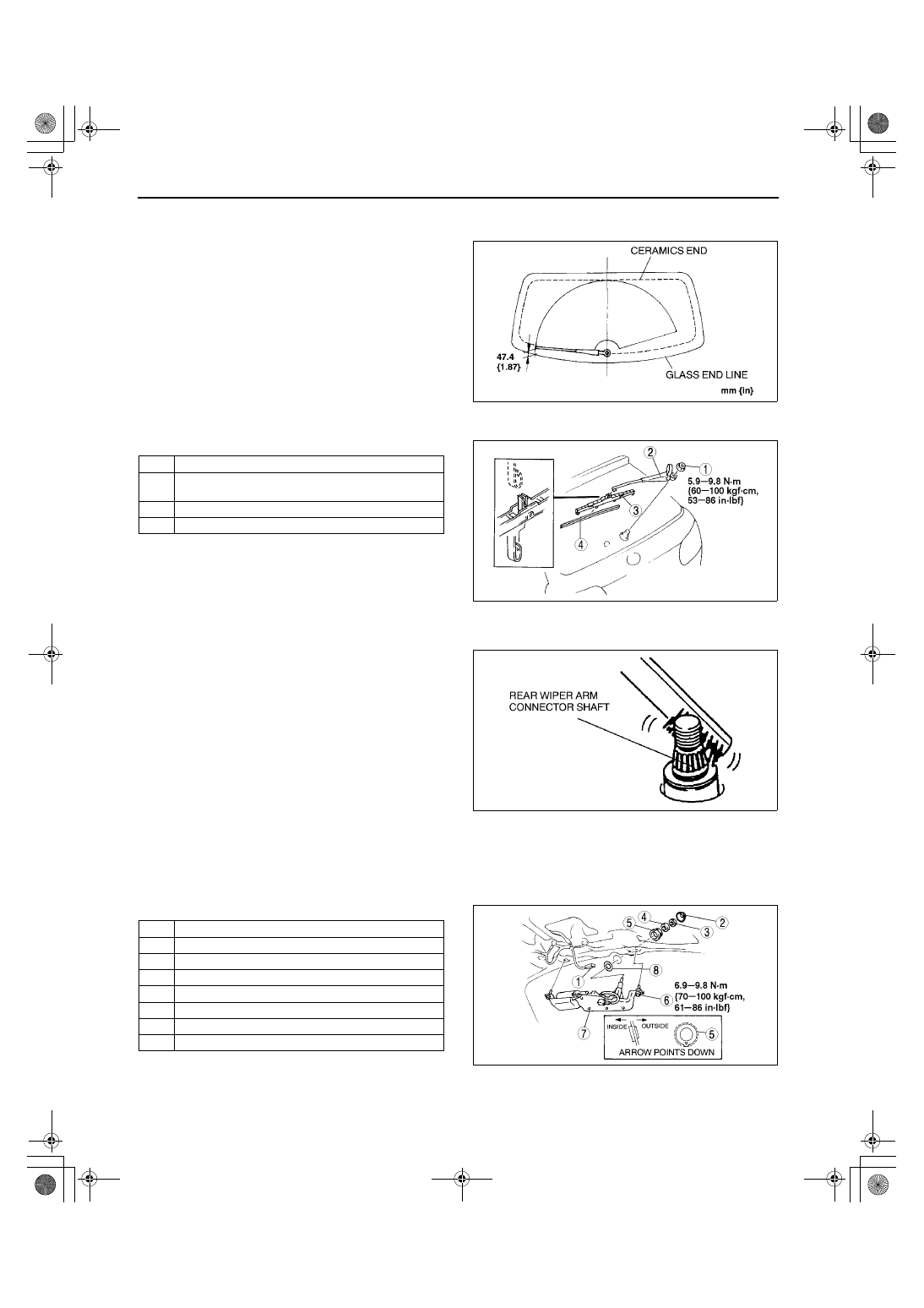

1. Operate the rear wiper motor to set the wiper in the park position.
2. Set the rear wiper arm height as shown.

End Of Sie

REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION

A3U091967420W02

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.
3. Adjust the rear wiper arm and blade. (See 09–19–

12 REAR WIPER ARM AND BLADE
ADJUSTMENT.)

Rear Wiper Arm Installation Note

1. Clean the rear wiper arm connector shaft using a

wire brush before installing the rear wiper arm.

End Of Sie

REAR WIPER MOTOR REMOVAL/INSTALLATION

A3U091967450W01

1. Disconnect the negative battery cable.
2. Remove the rear wiper arm and blade. (See 09–19–12 REAR WIPER ARM AND BLADE REMOVAL/

INSTALLATION.)

3. Remove the liftgate trim. (See 09–17–16 LIFTGATE TRIM REMOVAL/INSTALLATION.)
4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.
6. Adjust the rear wiper arm and blade. (See 09–19–

12 REAR WIPER ARM AND BLADE ADJUSTMENT.)

End Of Sie

A3U0919W008

1

Nut

2

Rear wiper arm
(See 09–19–12 Rear Wiper Arm Installation Note)

3

Rear wiper blade

4

Rubber brush

A3U0919W006

YMU919WAR

1

Connector

2

Seal  cap

3

Nut

4

Washer

5

Outer bushing

6

Bolt

7

Rear wiper motor

8

Washer

A3U0919W001

1712-1U-01G(09-19).fm  12 ページ  2001年6月29日 金曜日 午前10時37分

WIPER/WASHER SYSTEM

09–19–13

09–19

REAR WIPER MOTOR INSPECTION

A3U091967450W02

1. Disconnect the negative battery cable.
2. Remove the liftgate trim. (Refer to 09–17–16 LIFTGATE TRIM REMOVAL/INSTALLATION.)
3. Disconnect the rear wiper motor connector.

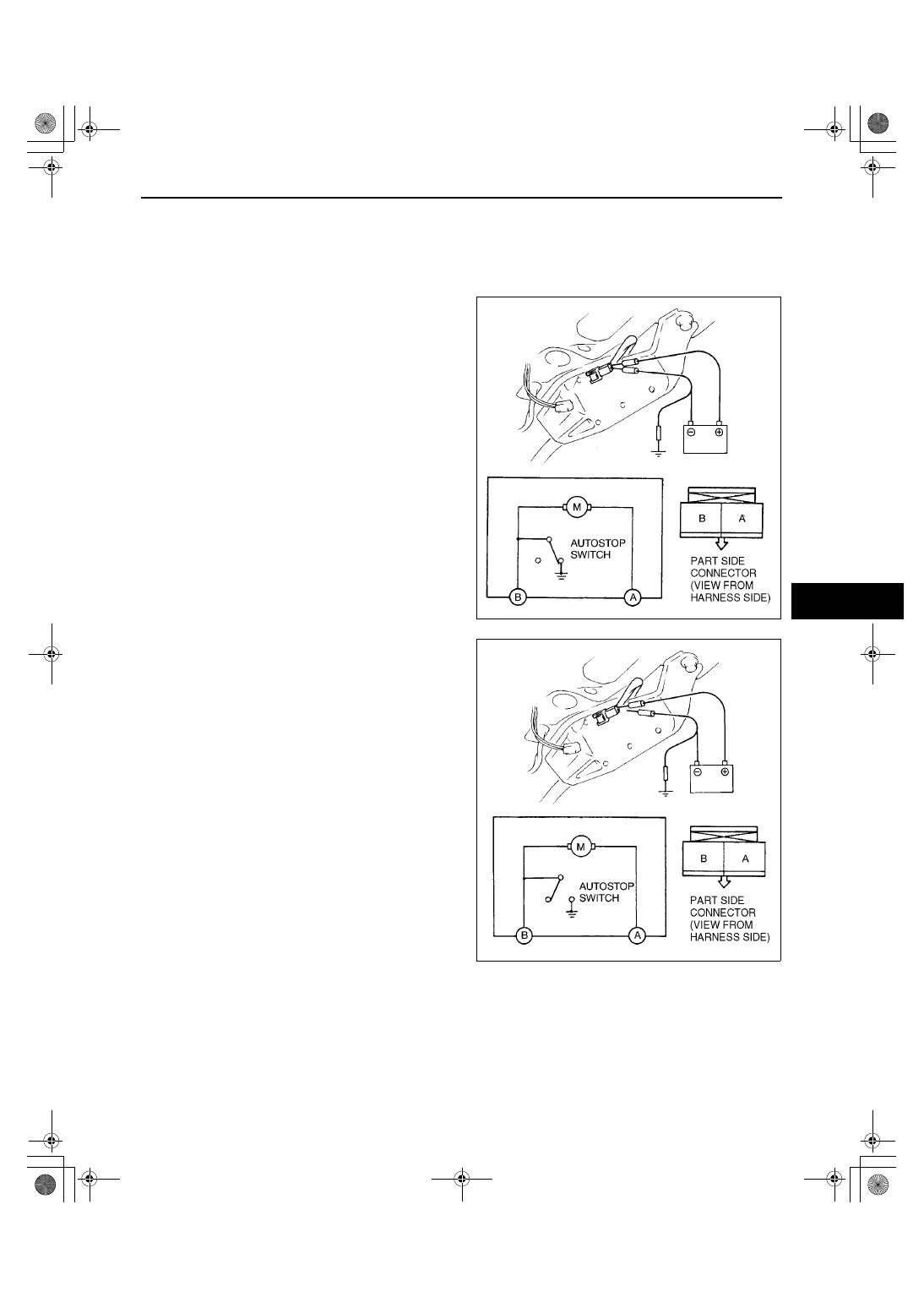

4. Connect battery positive voltage to the rear wiper motor terminal A and the ground to a bare metal part of the

vehicle and the rear wiper motor terminal B.

5. Verify that the rear wiper motor operates.

6. Disconnect the ground to the terminal B while the

rear wiper is operating.

7. Verify that the rear wiper stops in the park

position.

If not as specified, replace the rear wiper
motor.

End Of Sie

A3U0919W101

A3U0919W102

1712-1U-01G(09-19).fm  13 ページ  2001年6月29日 金曜日 午前10時37分
