INTERIOR TRIM

09–17–14

5HB

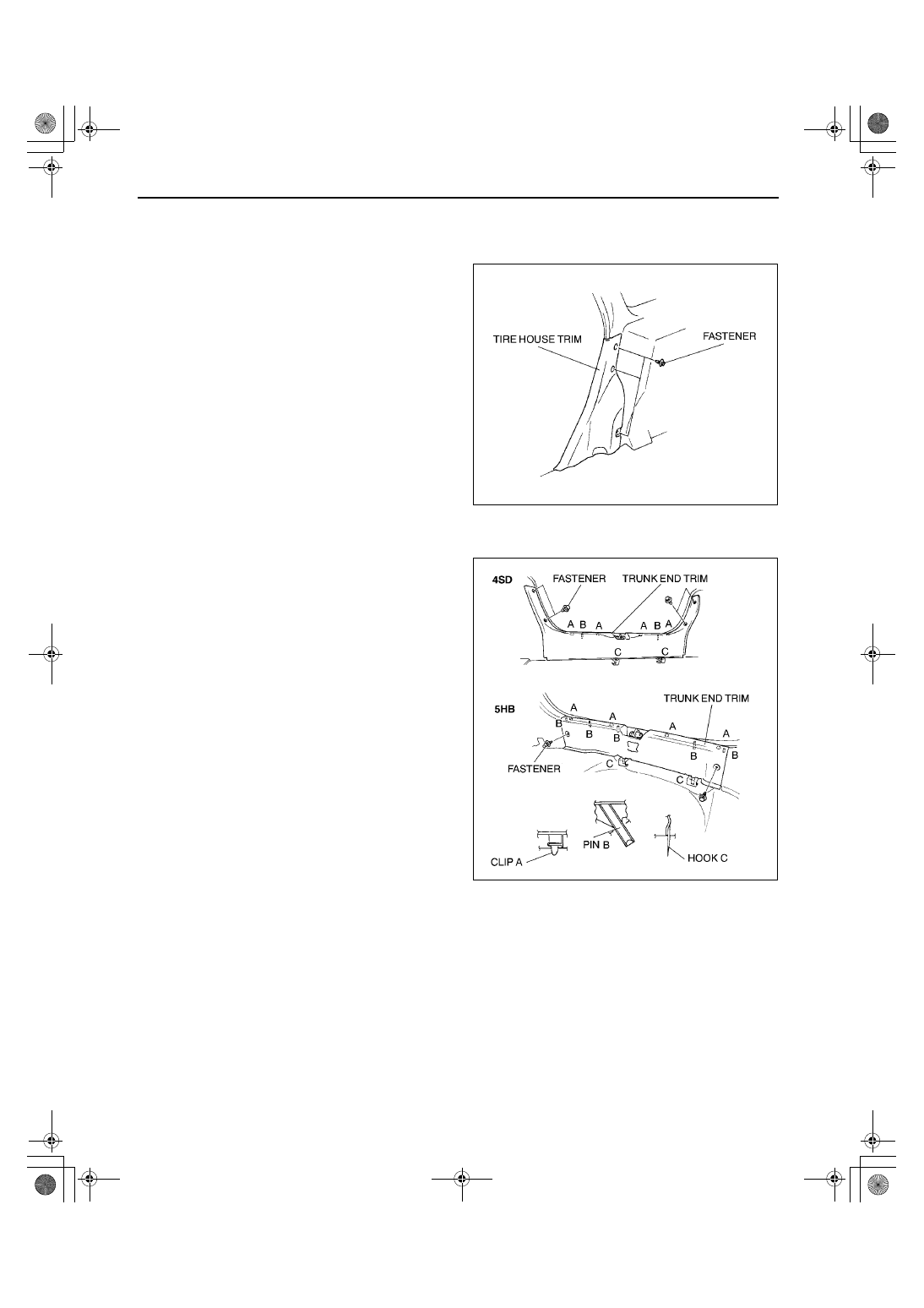

1. Lift up the rear seat cushion.
2. Remove the rear seat back.
3. Remove the rear scuff plate.
4. Remove the fasteners.
5. Pull the tire house trim forward, then remove the

tire house trim.

6. Install in the reverse order of removal.

End Of Sie

TRUNK END TRIM REMOVAL/INSTALLATION

A3U091768890W01

1. Turn the weatherstrip over.
2. Remove the fasteners.
3. Disengage clips A using a fastener remover from

the body.

4. Pull the trunk end trim upward, then disengage

pins B and C from the body.

5. Install in the reverse order of removal.

End Of Sie

A3U0917W002

A3U0917W006

1712-1U-01G(09-17).fm  14 ページ  2001年6月29日 金曜日 午前10時35分

INTERIOR TRIM

09–17–15

09–17

TRUNK SIDE TRIM REMOVAL/INSTALLATION

A3U091768860W01

4SD

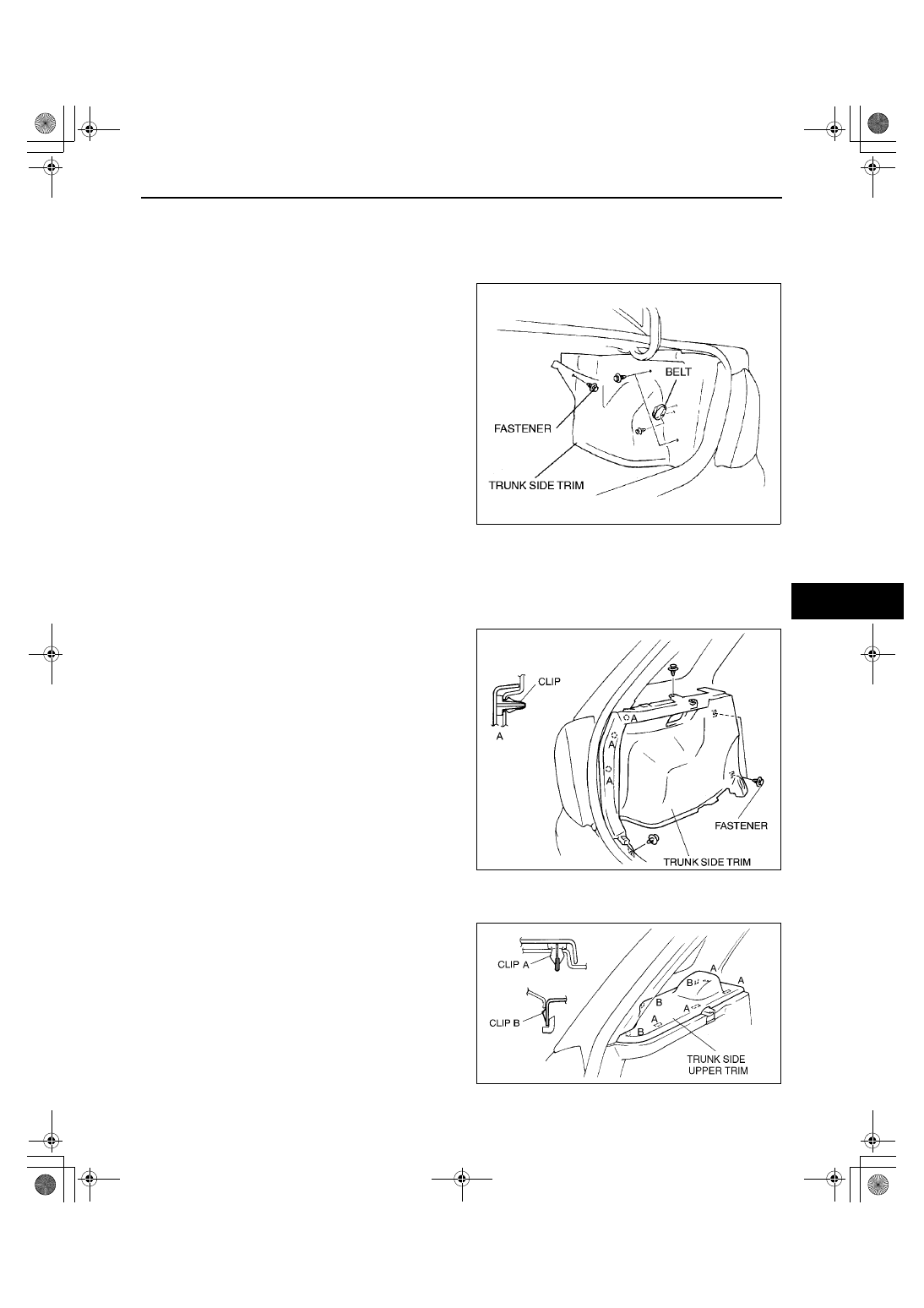

1. Remove the trunk mat.
2. Remove the trunk end trim.
3. Remove the tire house trim.
4. Remove the fasteners, then remove the belt.
5. Pull the trunk side trim outward, then remove it.
6. Install in the reverse order of removal.

5HB

1. Remove the trunk end trim.
2. Turn over the weatherstrip.
3. Remove the trunk side upper trim.
4. Remove the tire house trim.
5. Remove the fasteners.
6. Remove the trunk side trim, then disengage clips

A.

7. Disconnect the cargo compartment light

connector. (LH only)

8. Install in the reverse order of removal.

End Of Sie

TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION

A3U091768860W02

1. Remove the rear package trim.
2. Pull the trunk side upper trim upward, then

disengage clips A and B from the body.

3. Lift up the rear seat cushion.
4. Remove the rear seat belt lower anchor

installation bolts.

5. Install in the reverse order of removal.

End Of Sie

X3U917WB1

A3U0917W005

A3U0917W004

1712-1U-01G(09-17).fm  15 ページ  2001年6月29日 金曜日 午前10時35分

INTERIOR TRIM

09–17–16

LIFTGATE TRIM REMOVAL/INSTALLATION

A3U091768961W01

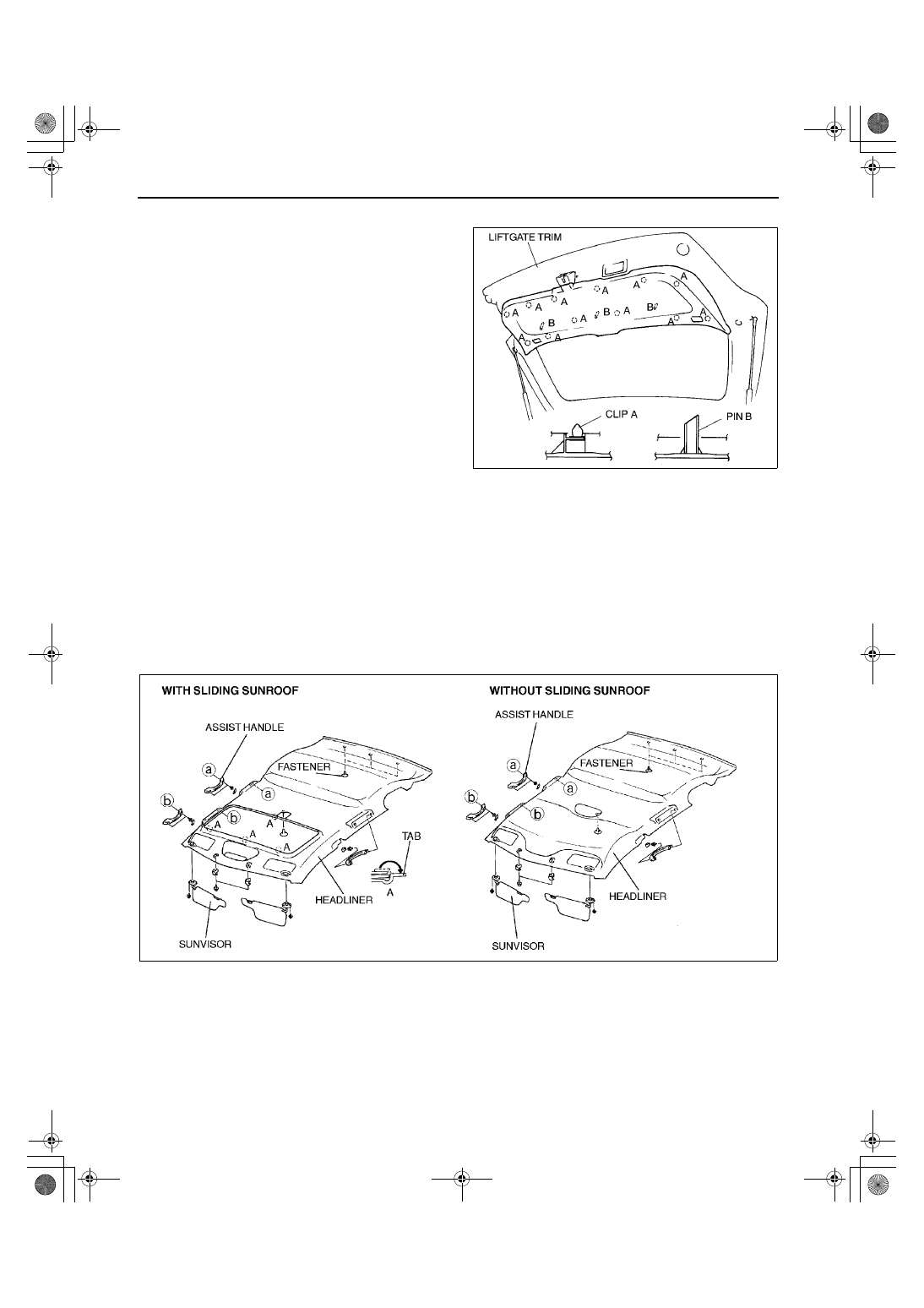

1. Disengage clips A and pins B using a fastener

remover, then remove the liftgate trim.

2. Install in the reverse order of removal.

End Of Sie

HEADLINER REMOVAL/INSTALLATION

A3U091768030W01

1. Disconnect the negative battery cable.
2. Turn the seaming welt and weatherstrip over.
3. Remove the A-pillar trims. (See 09–17–10 A-PILLAR TRIM REMOVAL/INSTALLATION.)
4. Remove the B-pillar upper trims. (See 09–17–11 B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
5. Remove the C-pillar trims. (See 09–17–11 C-PILLAR TRIM REMOVAL/INSTALLATION.)
6. Remove the interior and map light if not equipped with a sliding sunroof. (See 09–18–20 INTERIOR AND MAP

LIGHT REMOVAL/INSTALLATION.)

7. Remove the map light and interior light if equipped with a sliding sunroof. (See 09–18–22 INTERIOR LIGHT

REMOVAL/INSTALLATION.) (See 09–18–21 MAP LIGHT REMOVAL/INSTALLATION.)

8. Remove the screws then remove the sunvisor and assist handle.
9. Fold tabs A up if equipped with a sliding sunroof.

10. Remove the fasteners.

A3U0917W007

Z3U0917W002

1712-1U-01G(09-17).fm  16 ページ  2001年6月29日 金曜日 午前10時35分

INTERIOR TRIM

09–17–17

09–17

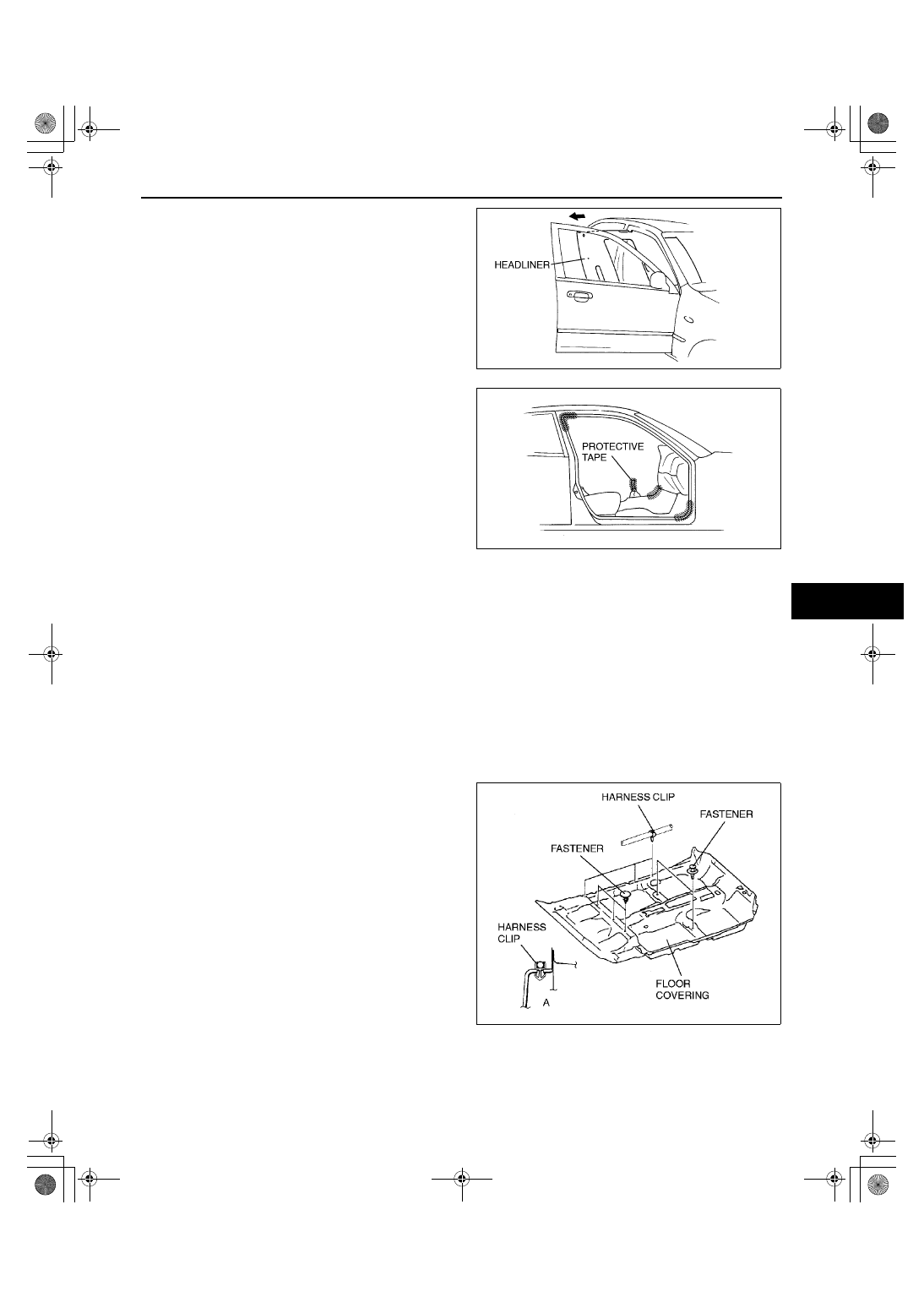

11. Remove the headliner diagonally from the

passenger-side front door frame.

Caution

••••

To protect the trim, seaming welt, etc.
from scratches when removing the
headliner from the vehicle, affix
protective tape to the console, shift lever
knob and door frame.

12. Install in the reverse order of removal.

End Of Sie

FLOOR COVERING REMOVAL/INSTALLATION

A3U091768670W01

1. Disconnect the negative battery cable.
2. Remove the front seats. (See 09–13–1 FRONT SEAT REMOVAL/INSTALLATION.)
3. Remove the rear seat cushion. (See 09–13–5 REAR SEAT REMOVAL/INSTALLATION.)
4. Remove the tire house trim. (See 09–17–13 TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
5. Remove the dashboard. (See 09–17–1 DASHBOARD REMOVAL/INSTALLATION.)
6. Remove the front side trim. (See 09–17–13 FRONT SIDE TRIM REMOVAL/INSTALLATION.)
7. Remove the B-pillar lower trim. (See 09–17–10 B-PILLAR LOWER TRIM REMOVAL.) (See 09–17–11 B-

PILLAR LOWER TRIM INSTALLATION.)

8. Remove the lower anchor of the front seat belt installation bolts.
9. Remove the selector cable if equipped with ATX. (See 05–18–3 SELECTOR LEVER REMOVAL/

INSTALLATION.)

10. Remove the interlock cable if equipped with ATX. (See 05–18–3 SELECTOR LEVER REMOVAL/

INSTALLATION.)

11. Remove the rear heat duct.
12. Remove the fasteners and clips A, then remove

the floor covering.

13. Remove the floor covering from the vehicle

through the passenger-side front door.

14. Install in the reverse order of removal.

End Of Sie

X3U917WB5

X3U917WB4

X3U917WB6
